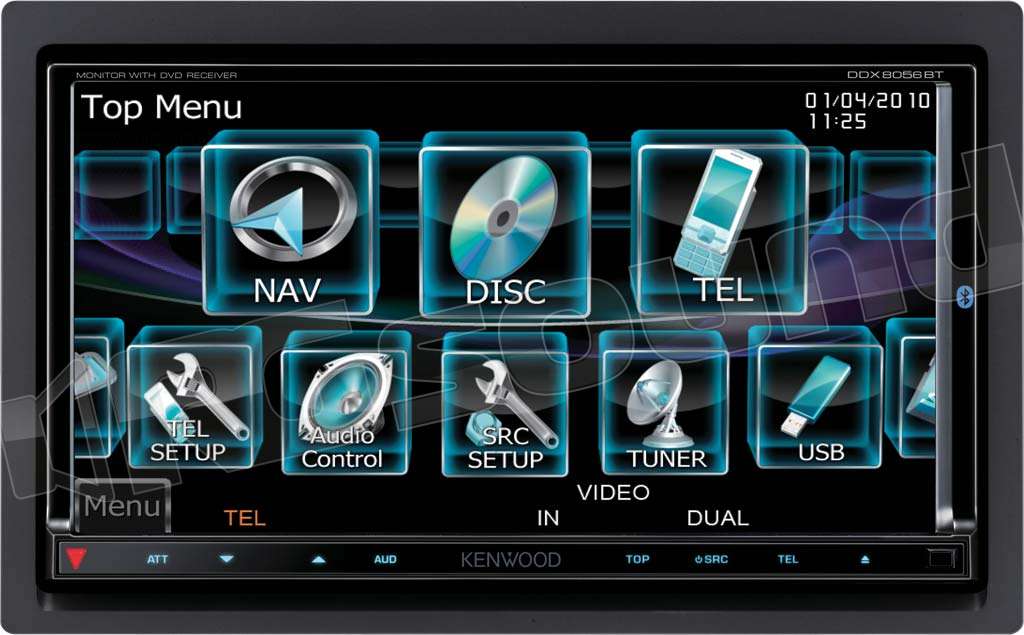

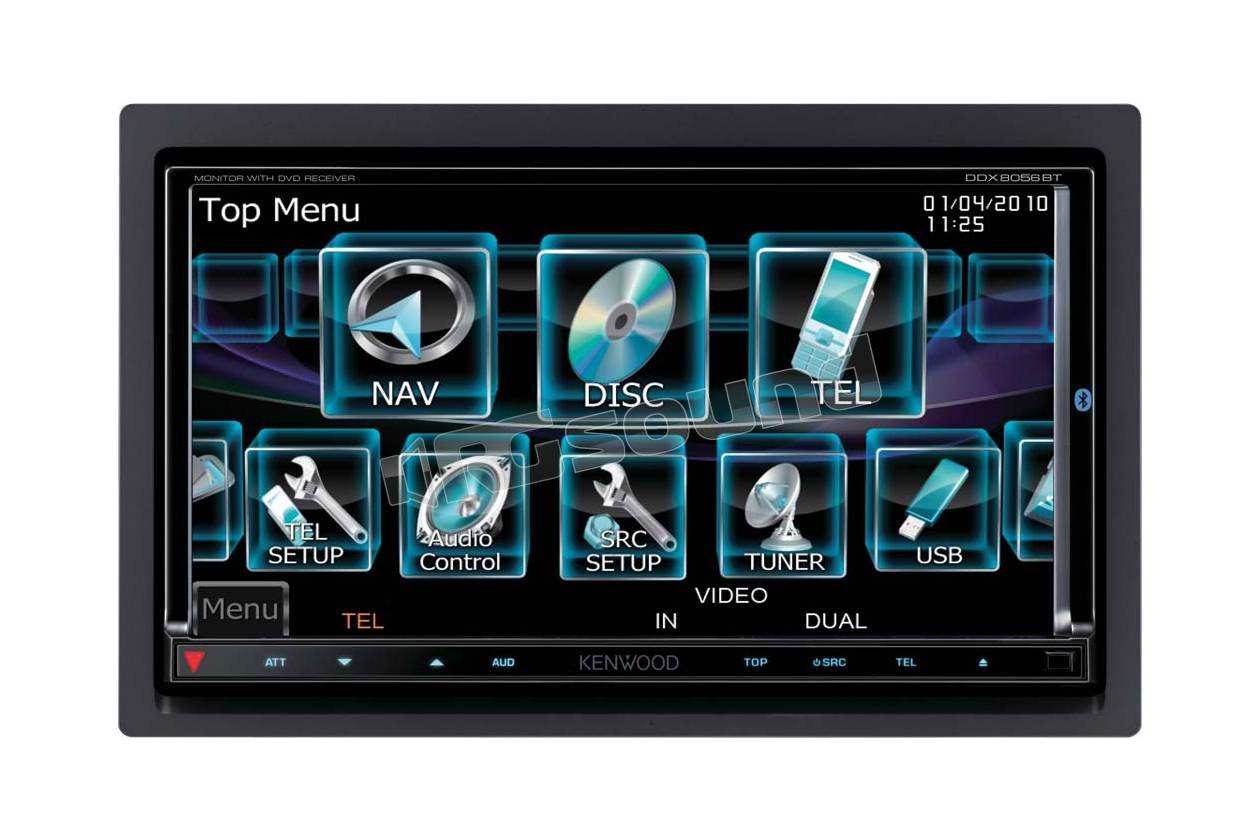

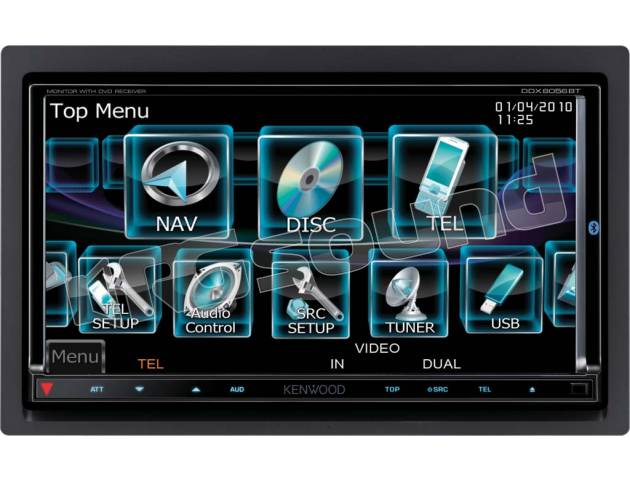

Kenwood DDX8056BT

Kenwood
il tuo prezzo: € 0,00
Prezzo riferito a singolo pezzo (IVA inclusa)
Formato 2 Din
Dimensione schermo 7 pollici
DAB Digital Radio No
Bluetooth Si
Navigatore No
Lettore DVD Si
Risoluzione schermo WVGA 800x480 Pixel
Pre out 6 Canali
Colore tasti Multicolore
HDMI No

7,0" Wide VGA 2DIN DVD-Receiver with USB interface & Bluetooth built-in



7.0 inch Wide VGA colour TFT

Removable faceplate

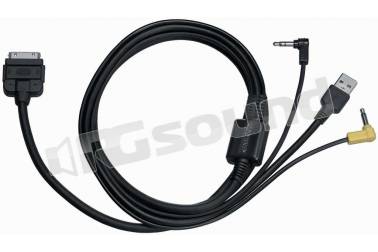

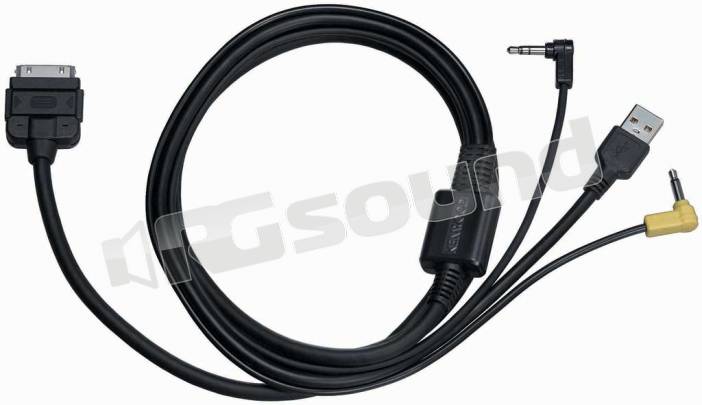

iPod, iPhone USB direct control (Requires KCA-iP301V)

5.1 DSP, 5.1ch preout

Bluetooth built-in (handsfree profile/audio profile/SMS)

Advanced Voice control

SD card slot for audio & video playback

Touch sensor keys

3D Graphical User Interface

Advanced Navigation Terminal

General Features

DIN Size

2 DIN

Detachable Faceplate

yes

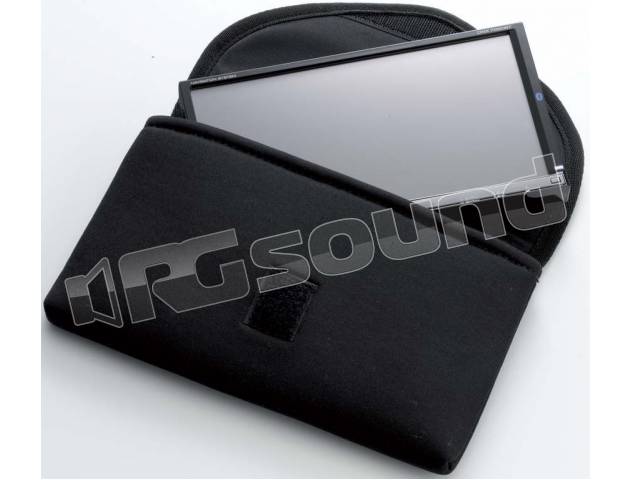

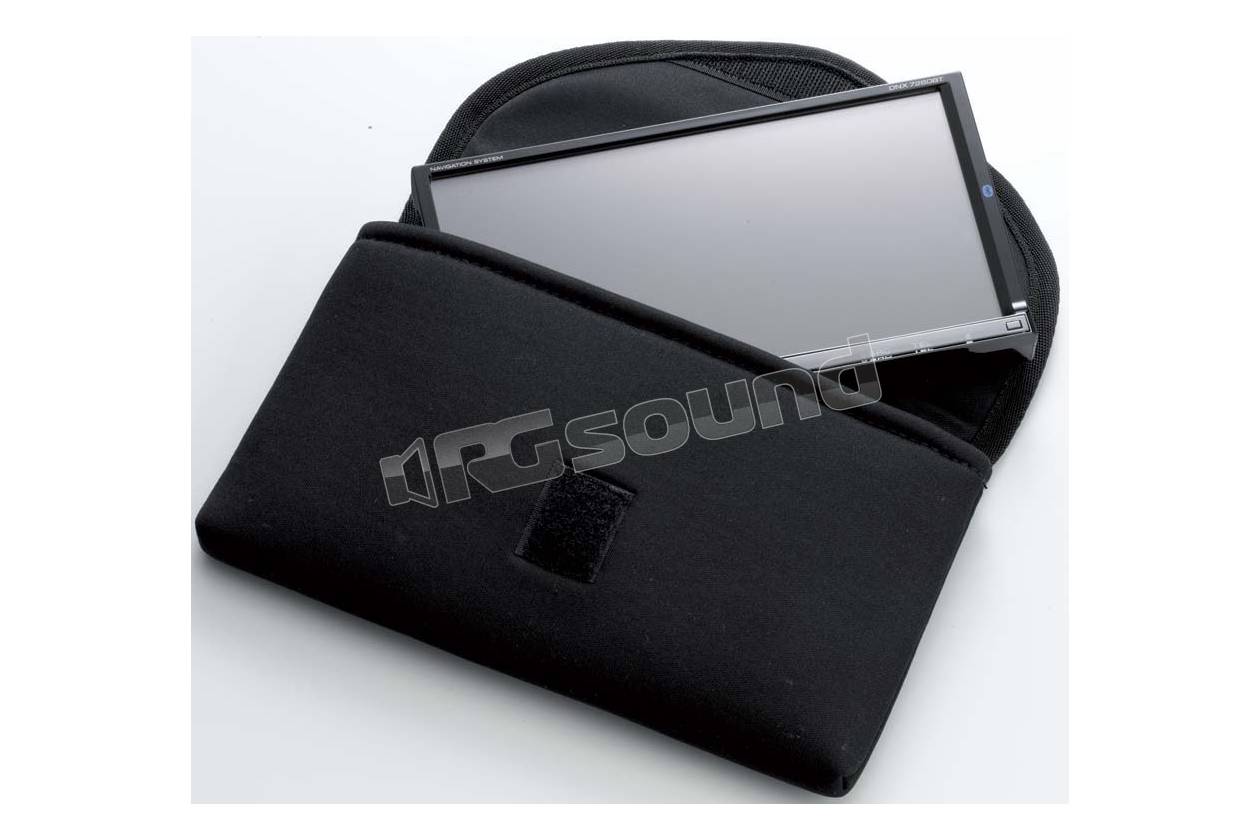

Protection Case For Faceplate

Yes

Disabled System Indicator (DSI)

Yes

Security Code Function ( user set)

Yes

On Screen Display (OSD) Operation

Yes

Smooth GUI

Yes

Selectable GUI Background Wallpaper

Yes

Key Illumination

Variable color

Touch sensor

Yes

Back-up Memory

Yes

Attenuator with Smooth Volume Return

Yes

Touch Sensor Tone

Yes

IR Remote Control included

RC-DV331

Digital Clock (24H)

Yes

ISO connector

Yes

Bluetooth unit built-in (powerd by Parrot)

Yes

Optional navigation system unit

Yes, (KNA-G620T)

Firmware upgreadable

Yes

Monitor Features

Screen Type

TFT 7,0" Wide

Display Mode

4 Mode (Full/Just/Zoom/Normal)

High Resolution VGA Display

Yes

Picture quality revision by Mstar

Yes, 3 steps

Screen Adjustments

Brightness/Tint/Color/Contrast/Black Level/Dimmer

Dimmer function

ON/OFF/Sync/Navi-Sync

Visual Source Mode

DVD/Video/Navigation/(TV)/USB/iPod

Touch Panel

Yes

Mechanism type

Auto Slide & Reverse

Mechanism Slide Adjustment

Yes, Reverse tilt + 5 steps angle dajust

Mechanism Angle Adjustment

none (fixed faceplate)

Reverse Tilt

Yes

NTSC/PAL judge

Auto

Multimedia GUI Features

OSDC Type

Full Graphics

Colour Pallet

29790

Variable Colour illumination

Yes

GUI colour coordinate

Yes

GUI animation

Yes, 3D

Menu text in selectable language

► American English
► Arabic
► British English
► Chinese
► Dutch
► French
► German
► Greek
► Hebrew
► Italian
► Persian
► Portuguese
► Russian
► Spanish
► Thai
► Turkish

Background Customize

Yes

Skin Change

Yes, 3D, Fire & Metal

Picture in picture

Yes, Only in navigation screen

Tuner Features

Radio Data System

Yes

Radio Text Plus

Yes

Program Type Function (PTY)

Yes

Enhanced Other Networks Function (EON)

Yes

K3I - Clean Reception Tuner

Yes

FM Reception

Yes

AM (MW/LW) Reception

Yes

Presets

24 Presets (18FM / 3LW / 3MW)

Station Select

List

Automatic Memory Entry (AME)

Yes

Up/Down Seek Tuning

Yes

Tuning mode (Auto1 / Auto2 / Manual)

Yes

FM Stereo / Mono Selector

Yes

DVD-Features

Mechanism

DVS-8500

Disc Capacity

1 Disc(s)

DVD±R/RW Compatible

Yes

DVD Region Code

5

VCD Compatible

Yes

CD-R/RW Compatible

Yes

CD Text

Yes

MP3

Yes

ID3 Tag

Yes

WMA

Yes

WMA Tag

Yes

AAC

Yes

AAC Tag

Yes

Digital/Analog Converter

24 bit

MPEG1/2 Video File (.mpg) Compatible

Yes

DivX (Certified)

Yes

CD-DA Repeat/Scan/Random play

Yes

Direct Search

Yes

Time Code Display

Yes

Resume Play

Yes

Zoom Control (DVD/VCD)

Yes

Disc Menu Direct Touch

Yes

USB Features

USB terminal

Yes

USB Type

USB1.1 / USB 2.0

MP3 playback with ID3 Tag Display

Yes

WMA (Windows Media File) playback

Yes

AAC (Advanced Audio Codec) playback

Yes

WAV (Waveform Audio Format) playback

Yes

MPEG1 Video decoder

Yes

MPEG2 Video Decoder

Yes

MPEG4 Video Decoder

Yes

H.264 Video decoder

Yes

JPEG slide show

Yes

JPEG picture control

Yes

Zoom control (movie/photo)

Yes

Repeat/Scan/Random search

Yes

Direct search

Yes

Category search

Yes

Resume play

Yes

Time code display

Yes

SD-card Features

SD card type:

Yes, SD, SDHC, mini SD, miniSDHC, microSD, microSDHC compatible

MP3 audio files

Yes

WMA audio files

Yes

AAC audio files

Yes

WAV audio files

Yes

JPG image files

Yes

MPEG1 video files

Yes

MPEG2 video files

Yes

MPEG4 Video files

Yes

H.264 video files

Yes

WMV video files

Yes

Repeat play

Yes

Scan play

Yes

Random play

Yes

Category search

Yes

Direct search

Yes

Time code display

Yes

Resume play

Yes

Zoom control

Yes, Movie/photo

Picture control (JPEG)

Yes

JPG slide show

Yes

iPod Features

Made for iPod & iPhone *

Yes

USB Video & Audio direct control (3 wire)

with optional cable KCA-iP301V

Music playback

Yes

Video playback

Yes

Album art support

Yes

Music library search

Yes

Alphabet search

Yes, up to the first 3 characters

Control by hand

Yes

Works with iPod Classic *

80G & 120G

Works with iPod Video *

5th/6th generation

Works with iPod Touch *

1st/2nd Gen

Works with iPod Nano *

1st/2nd/3rd/4th/5th Gen

Works with iPhone *

Yes, iPhone, iPhone 3G & iPhone 3GS

Battery charge + power control

Yes

* Always update to latest Apple firmware



Audio features

Max. Output Power (MOSFET Power IC)

4 x 50W

Pre-out

5.1 channel

Pre-out Output Level

5V

Auxiliary Input

RCA (rear side)

Subwoofer Reference Level Adj.

Yes

Dual Zone Source & Volume Control

Yes

Dual Zone (FRONT / REAR Switchable)

Yes

Att.(-20dB) with smooth Volume Return

Yes

Beep On/Off

Yes

Multimedia DSP Features

DSP Chip

Freescale

Position Control

Yes

Position Preset

3

Position Cabin Size

Yes

Graphic equalizer

Yes

G-EQ

13 bands

G-EQ KBS

Yes

G-EQ manual setting

Yes

G-EQ f0 Qty

Yes, 4

G-EQ adjustable level

Yes, +9dB/-9dB

DRC (Only On Dolby Digital)

3 (Wide/Normal/Midnight)

Time Alignment

0cm ~ 600cm

High Pass Filter

Yes (Center)

HPF Cut Off Frequency

14

HPF Cut Slope Level

4

Low Pass Filter

Yes (Non-Fading)

LPF Cut Off Frequency

14

LPF Cut Slope Level

4

Cross-over

Yes

Source DSP Memory

Yes

SRS WOW

Yes

WOW 3D

Yes

WOW FOCUS

Yes

WOW TrueBass

Yes

Dolby PrologicII

Yes

Dolby Digital Decode

Yes

dts decode

Yes

Down Mix Control

Yes

Speaker Size Control

Yes

Channel Level Control

Yes

Supreme

Yes

Video Features

Audio/Video Output

1 RCA

Audio/Video Input

Yes, Mini-jack in front panel, need optional CA-C3AV

iPod AV input switchable to additional AV input

Yes

Video-In for Rear-view Camera

1 dedicated video input (RCA)

Mirror-mode on Rear-view Image

Yes

Detection Mode Rear View Camera

Reverse sensor wire

(Rear) camera display view control

Yes

Picture in picture

yes

DVD Menu Direct Touch Operation

Yes

Dolby Digital Decoder

Yes

Dolby Pro Logic II decoder

Yes

dts Decoder

Yes

dts Digital surround

Yes

MPEG Decoder

Yes

Linear PCM Decoder

Yes

SRS Circle Surround Automotive Decoder

Yes

TV ready

Yes

Connectivity

OEM Wired Remote Control

Yes

Parking sensor wire

Yes

Reverse sensor wire

Yes

Power Control (P.CON) wire

Yes

External Relay Control

Yes

Multi angle control (Relay SW)

Yes, for optional camera CMOS-300

2-way (Tel/Navi) mute wire

Yes

Dimmer control wire

Yes

TV Tuner Control

Yes

Advanced navigation RGB terminal

Yes

External microphone input

Yes

Bluetooth General Features

Hands free Profile (HPF)

Yes

Advanced Audio Distribution Profile (A2DP)

Yes

Serial Port Profile (SPP)

Yes

Headset Profile (HSP)

Yes

Phonebook Access Profile (PBAP)

Yes

Phone numbers hold:

up to 1000 per registered phone.

Voice recognition dialing

Yes

Object Push Profile (OPP)

Yes

Synchronization Profile (SYNC)

Yes

Audio/Video Remote Control Profile (AVRCP)

Yes

Short Message Service (SMS)

Yes

Phone device status display

Yes

Audio device status display

Yes

Signal strength display

Yes

Remaining battery display

Yes

Bluetooth phones to register

5

High-quality noise canceling microphone

Yes, external microphone

Bluetooth firmware upgradeable

Yes

* depends on phone model/make



Tuner Specifications

FM Frequency Range

87.5MHz ~ 108MHz

FM Frequency Step

50kHz

FM Usable Sensitivity

0.7μV/750ohm (S/N 26dB)

FM Quieting Sensitivity

1.6μV/75ohm (S/N 46dB)

FM Frequency Response

30Hz ~ 15kHz (± 3dB)

FM Selectivity(DIN)

over 80dB (±400kHz)

FM Stereo Separation (1kHz)

35dB

MW Frequency Range

531kHz ~ 1611kHz

MW Frequency step

9kHz

MW Usable Sensitivity

25μV (S/N 20dB)

LW Frequency Range

153kHz ~ 281kHz

LW Usable Sensitivity

45μV (S/N 20dB)

DVD Specifications

D/A Converter

24 bit

Video decoder

Linear PCM/Dolby Digital/dts/MLP/MP3/WMA/AAC

Audio decoder

MPEG1/MPEG2/MPEG4(Divx)

Wow & Flutter

Below Measurable Limit

Freq. Resp. (96kHz Sampling)

20Hz ~ 44kHz

Freq. Resp. (48kHz Sampling)

20Hz ~ 22kHz

Freq. Resp. (44,1kHz Sampling)

20Hz ~ 20kHz

Total Harmonic Distortion

0.01% (1kHz)

Signal to Noise Ratio

98dB (1kHz)

Dynamic Range

98dB

Disc Format

DVD-Video/Video-CD/CD-DA

FM Signal to Noise Ratio

65dB(MONO)

Sample Frequency

44.1kHz/48kHz/96kHz

Quantifying bit number

16/20/24bit

USB Specifications

USB Version compatibility

1.1 / 2.0

File System

FAT 16/32

Maximum Supply current

500mA

D/A Converter

24 bit

MP3 Decode

Compliant with MPEG-1/2 Audio Layer-3

WMA Decode

Compliant with Windows Media Audio

AAC Decode

AAC-LC "m4a" Files

WAV Decode

Linear - PCM Files

Acceptable video files

MPEG1, MPEG2, MPEG4, H.264, WMV

SD-card specs

Compatible SD cards

SD, SDHC, mini SD, miniSDHC, microSD, microSDHC

File system

FAT 16/32

Maximum capacity

32 GB

Data transfer rate

Maximum 12 Mbps

Video decoder

MPEG1, MPEG2, MPEG4, H.264, WMV

Audio decoder

PM3, WMA, AAC, WAV (Linear PCM)

Audio Specifications

Maximum Power

50W x 4

Output Power (DIN45324,+B=14.4v)

30W x 4

Preout Level

2000mV / 10kOhm,

Preout Impedance

≤ 600Ohm

Speaker Impedance

4Ohm ~ 8Ohm

Bass Tone Control

100Hz ±10dB

Middle Tone Control

1kHz ±10dB

Treble Tone Control

10kHz ±10dB

DSP Specifications

Frequency band

13 bands

Frequency band - Front

62.5Hz ~ 16kHz

Frequency band - Center

62.5Hz ~ 16kHz

Frequency band - Rear

62.5Hz ~ 16kHz

Equalizer Gain

–9db ~ +9db

High Pass Filter frequency

Through/30 ~ 250 (Hz)

High Pass Filter Slope

-6/-12/-18/-24 dB/Oct

Low Pass Filter frequency

30 ~ 250(Hz)/Through

Low Pass Filter Slope

-6/-12/-18/-24 dB/Oct

Time aligment - Front

0 ~ 6.1m (0.02cm step)

Time aligment - Center

0 ~ 3.4m (0.02cm step)

Time aligment - Rear

0 ~ 6.1m (0.02cm step)

Time aligment - Sub

0 ~ 6.1m (0.02cm step)

Video Specifications

Color System of External Video Input

NTSC/PAL

External Video Input Level (RCA)

1Vpp / 75Ohm

External Audio Max. Input Level (RCA)

2V / 25kOhm

Analog RGB Input

0.7Vpp / 75Ohm

Video Output Level (RCA)

1Vpp / 75Ohm

Audio Output Level (RCA)

1.2Vpp / 10kOhm

Monitor Specifications

Screen size (Diagonal)

6.95 Inches Wide

Screen Size (WxH)

156.6 x 81.6mm

Display system

Transparent TN LCD Panel

Drive system

TFT Active Matrix System

Number of Pixels

1152000pixels (800(H) x 480(V) x RGB)

Effective pixels

99.99%

Pixel arrangement

RGB Striped

Back lighting

LED (Light Emitting Diode)

Bluetooth specifications

Technology

bluetooth 2.1 + EDR certified

Frequency

2.402 - 2.48 GHz

Output power

+4dBm(max), 0dBm (AVE) power class 2

Maximum range

Line of sight approx. 10 meter

Consigliati per te
