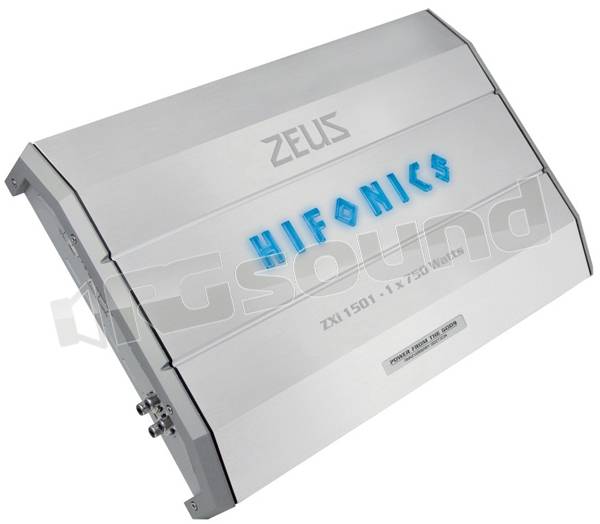

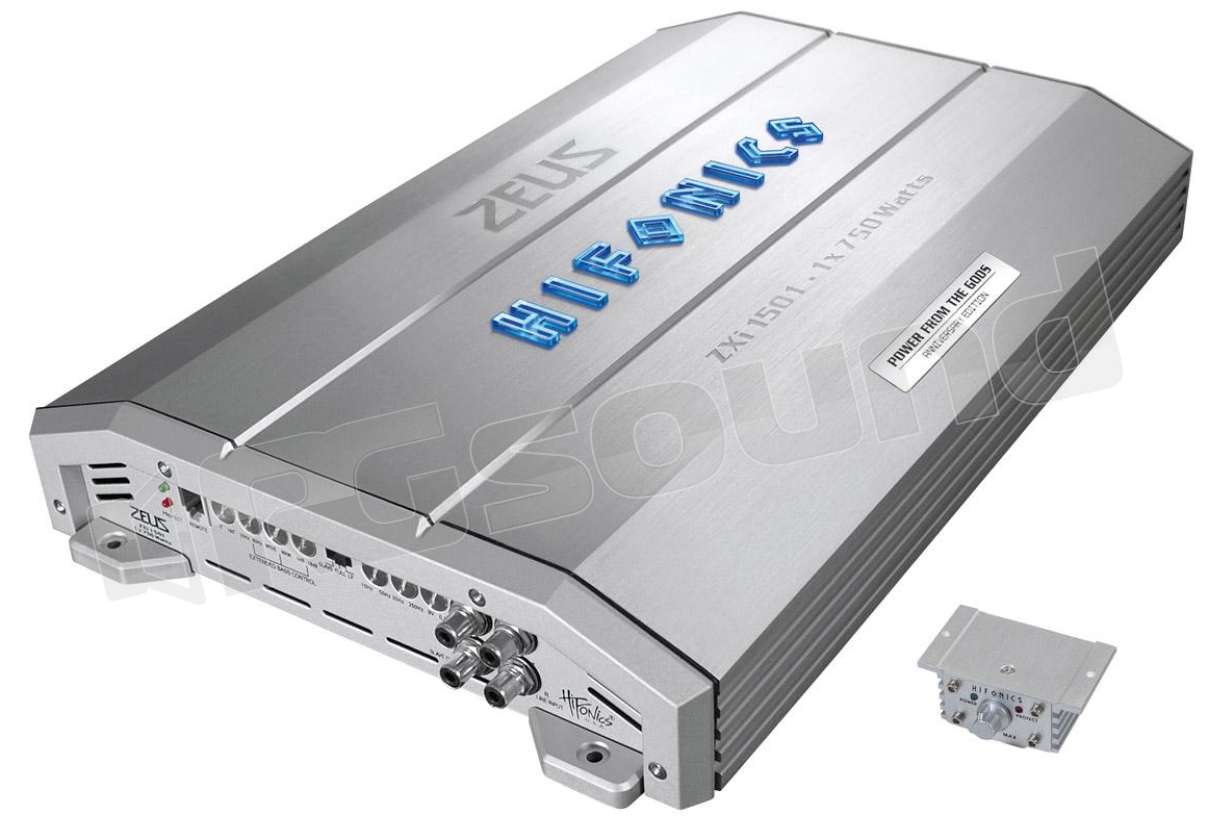

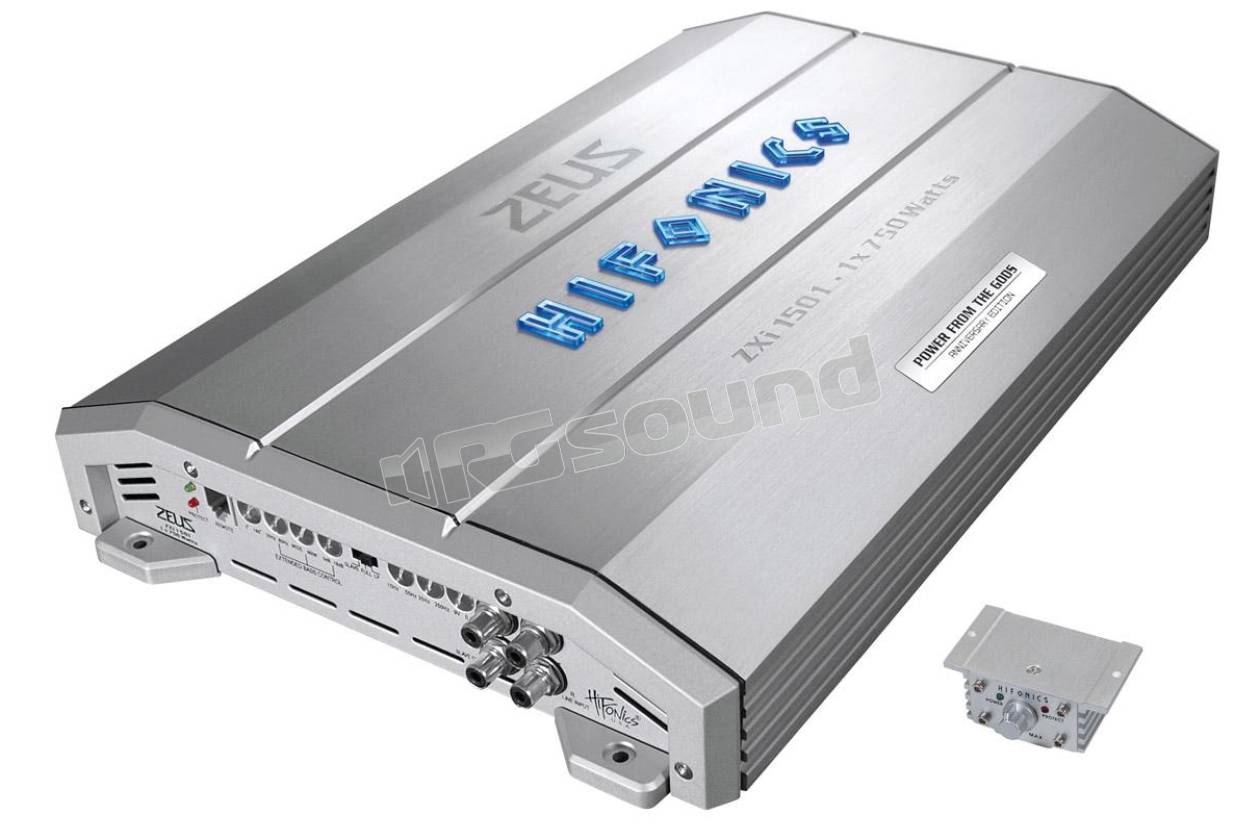

Amplificatore compatto a 1 canale HIFONICS serie ZEUS Z3
Principali caratteristiche ZXi1501 :
CHANNELS: 1
CIRCUIT CLASS: IGBT Analog
OUTPUT POWER RMS 13,8 V
1 x 300 Watts @ 4 Ohms
1 x 500 Watts @ 2 Ohms
1 x 750 Watts @ 4 Ohms mono bridged
OUTPUT POWER MAX. 13,8 V
1 x 600 Watts @ 4 Ohms
1 x 1000 Watts @ 2 Ohms
1 x 1500 Watts @ 4 Ohms mono bridged
Frequency Range –3dB: 20Hz - 30 kHz
Damping Factor: > 200
Signal-to-Noise Ratio: > 90 dB
Channel Separation: > 60 dB
THD&N: 0,03%
Input Sensitivity: 9 - 0.2 V
Input Impedance: > 47 kOhm
Various Lowpassfilter: 35 - 250 Hz
Subsonicfilter: 15 - 55 Hz
Sub Boost: 0-18 dB @ 20-80 Hz
Fuse Ratings: 2 x 50 A
Dimensions
Width x Height x Length:
260 x 60 x 380(410) mm
