Blaupunkt XLf 200 A

Blaupunkt XFL 200 A sub woofer attivo di 200mm, potenza massima 300 W

Caratteristiche XFL 200 A

Active Subwoofer enclosure with integrated Class-D Amplifier
Small dimensions: 340 x 71/79 x 225 mm, therefor easiest mounting, e.g. even under the front seats
Digital Amplifier with high power output: 150 Watts RMS / 300 Watts Max.Power
200mm/8” Subwoofer with Aluminium Compound-Membran
Perfectly matching subwoofer with high rated and peak power handling
Easiest connection – only 12 volts/ground signal + the signal from the speakers or pre-amplifier required
Automatic power-on via high level or RCA/Cinch input – no remote signal required
Housing material: aluminum die-cast/fiberglass reinforced ABS
EPC compatible: easy connection via optional cable for power, ground and speaker signal (Easy Power Connection EPC)

Specifiche XFL 200 A

System
Closed subwoofer enclosure with integrated Class-D amplifier
Description Amplifier
Type: Class-D (Digital)
RMS Power: 150 watts
Max Power: 300 watts
Frequency response: 20 – 150 Hz
Signal/Noise ratio: >92 dB
Input sensitivity: 0.1 – 9V
Low-pass filter crossover frequency: 50–150 Hz
Phasing control: 0 - 180°

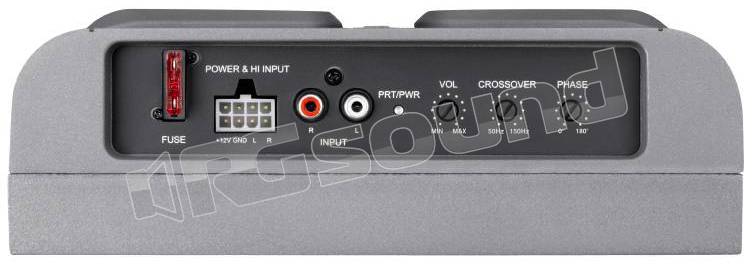

Audio-in: 2x Cinch/RCA, 2x Highlevel
Automatic power-on – no remote signal required!
After 60 sec. without any signal the amplifier will automatically switch off
Operation indicator: dual-color LED (green / red)

Description Speaker XFL 200 A
Diameter: 200 mm
Cone material/-color: Aluminum Compound / blue-metallic
RMS power handling: 150 watts
Peak power handling: 300 watts
Impedance: 0.6 ohms
Frequency response: 20 – 150Hz
Sound pressure level 2.0 V/m: >92 dB

Subwoofer Housing XFL 200 A
System: closed box
Material: aluminum die-cast / fibreglass-reinforced ABS
Housing color: dark silver
Dimensions W x H x D: 340 x 225 x 79 mm

Scope of delivery XFL 200 A
Subwoofer enclosure
Adapter cable for highlevel, power supply and ground connection
Fuse 10A

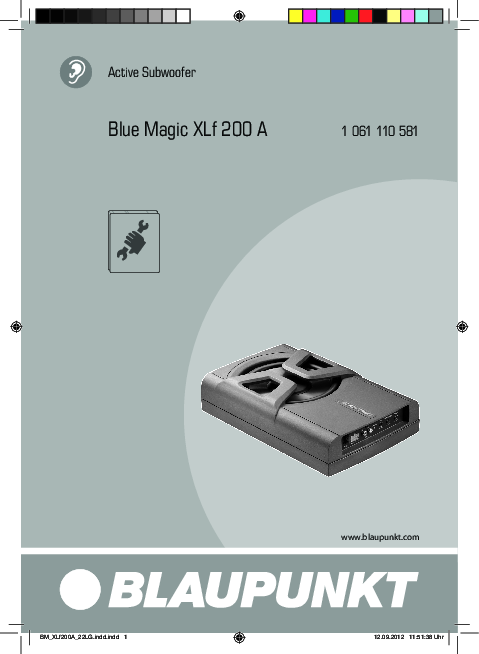

User manual
Installation material: metal strip, special screws
Accessories
Easy Power Connection-Kabel (7607001547001)
