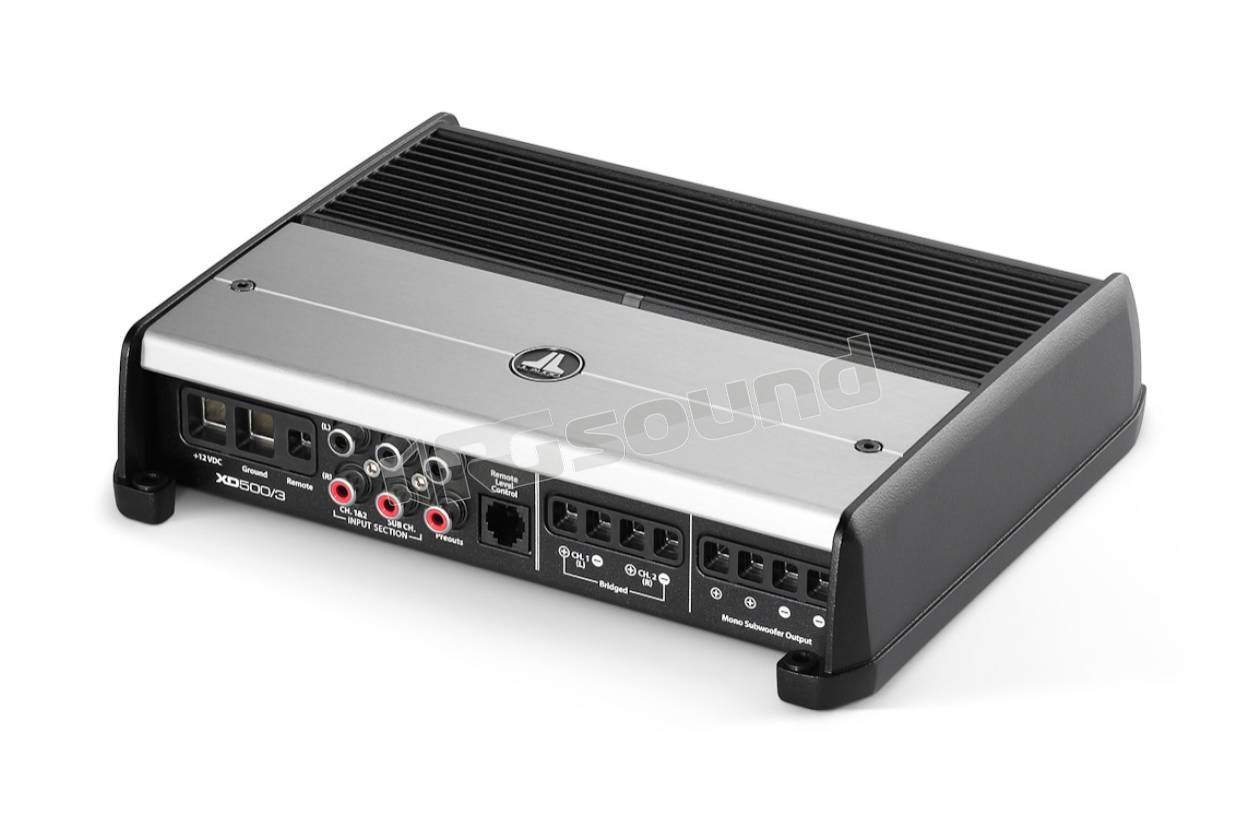

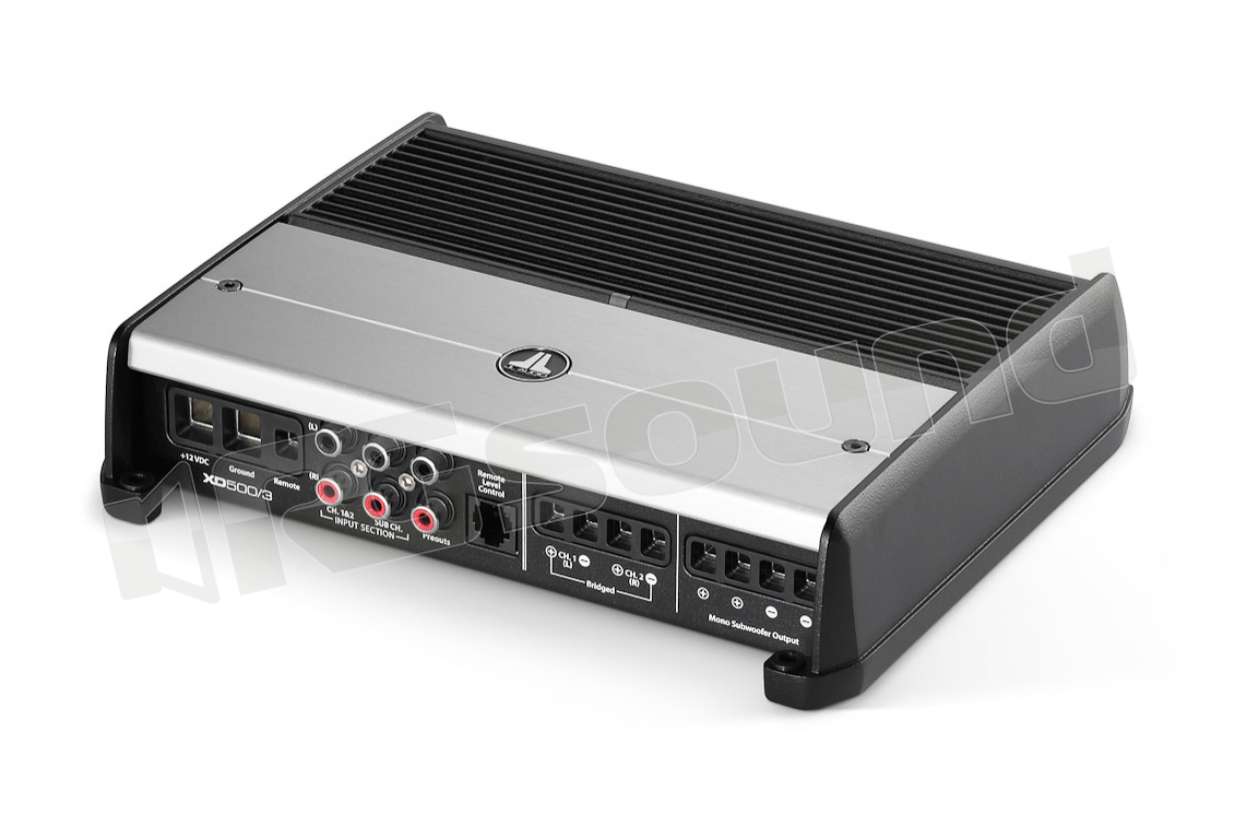

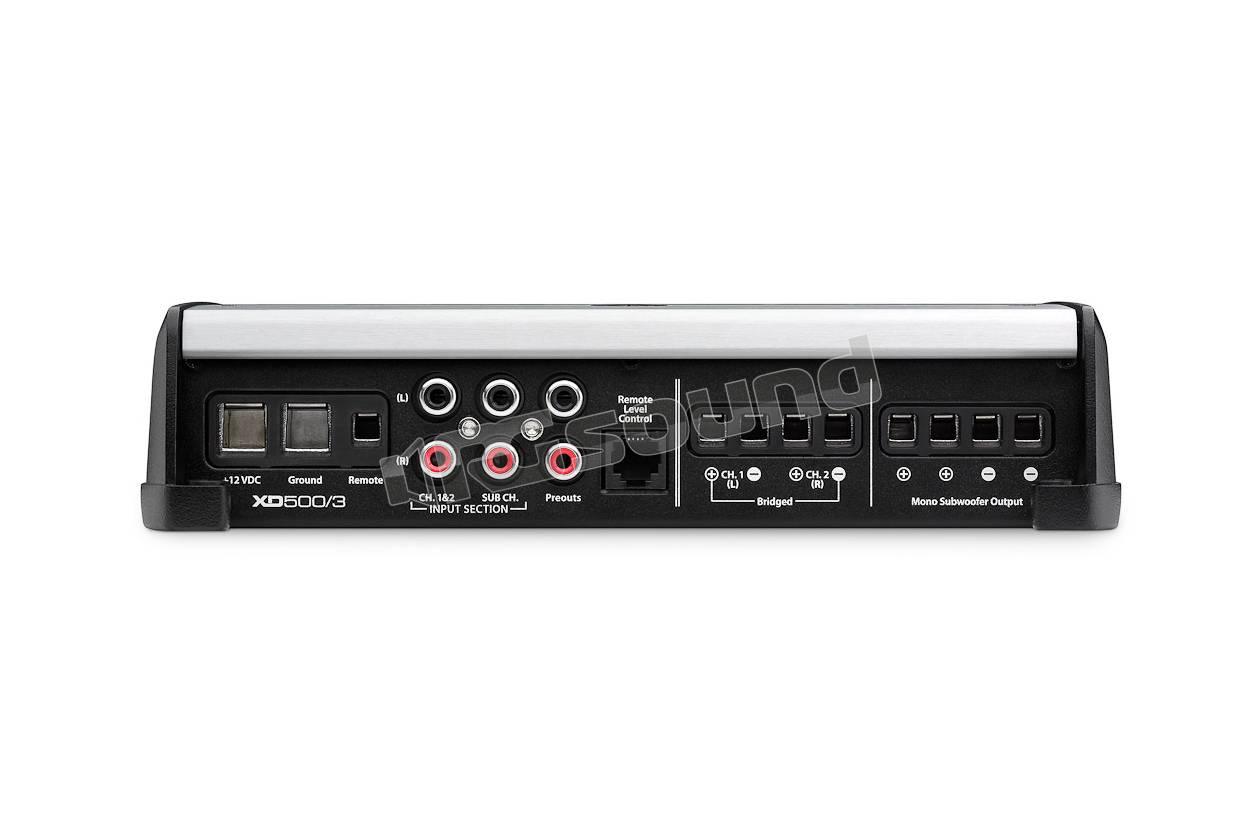

JL Audio XD500/3v2

JL Audio XD500/3 Serie XD amplificatore compatto a 3 canali in Classe D

Caratteristiche amplificatori Serie XD

Con le loro dimensioni estremamente compatte e la loro versatilità, abbinate ad una buona  resa sonora, gli amplificatori della Serie XD rappresentano la soluzione perfetta per chi ha poco spazio a disposizione ma non vuole rinunciare alle prestazioni di un amplificatore di qualità e potenza.

La tecnologia NexD ne garantisce un'efficienza nettamente maggiore e un'eccellente sezione di processione del segnale.

Caratteristiche tecniche JL Audio XD500/3

Potenze nominali:

Main Channels @ 4 Ω 75 W RMS x 2

Main Channels @ 2 Ω 100 W RMS x 2

Main Channels - Bridged @ 4Ω 200 W RMS x 1

Subwoofer Channel @ 4 Ω 180 W RMS x 1

Subwoofer Channel @ 3 Ω 240 W RMS x 1

Subwoofer Channel @ 2 Ω 300 W RMS x 1

Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB)

Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB)

S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)

S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

Damping Factor @ 4 Ω >120 / 50 Hz

Damping Factor @ 2 Ω >60 / 50 Hz

THD+N @ Rated Power (Main Channels)<1% @ 2 Ω per Ch.

THD+N @ Rated Power (Subwoofer Channels)<1% @ 2 Ω per Ch.

Input Voltage Range @ RCA Inputs100 mV - 4 V RMS

Min.Copper Power / Ground Wire Gauge4 AWG wire

Fuse Rating50 A (AFS, AGU or MaxiFuse™)

Filter Mode(s): Channels 1 & 2 (front)

High-Pass only

Filter Slope(s): Channels 1 & 2 (front)12 dB/octave

Filter Frequency Range: Channels 1 & 2 (front)50 Hz - 500 Hz

Filter Mode(s): Channels 3 & 4 (rear)N/A

Filter Slope(s): Channels 3 & 4 (rear)N/A

Filter Frequency Range: Channels 3 & 4N/A

Filter Mode(s): Subwoofer ChannelLow-Pass only

Filter Slope(s): Subwoofer Channel12/24 dB/octave

Filter Frequency Range: Subwoofer Channel50 Hz - 500 Hz

Detented, Calibrated Filter Freq. PotentiometersYes

Filter Defeat FunctionYes

Infrasonic Filter: Subwoofer Channelnone

Remote Level ControlOptional (HD-RLC)

Remote Level ModesSub Ch. or All Channels

Channel Input Mode SwitchYes (2/4 ch.)

Pass-Through Preamp OutputBuffered

Source Channel Selection for PreOutsYes (1&2/Sum/Sub)

Dimensioni e peso:

Height (H) 2.05 in / 52 mm

Width (W) 8.52 in / 216 mm

Depth (D) 7.09 in / 180 mm

Net Weight 4.8 lb / 2.18 kg
