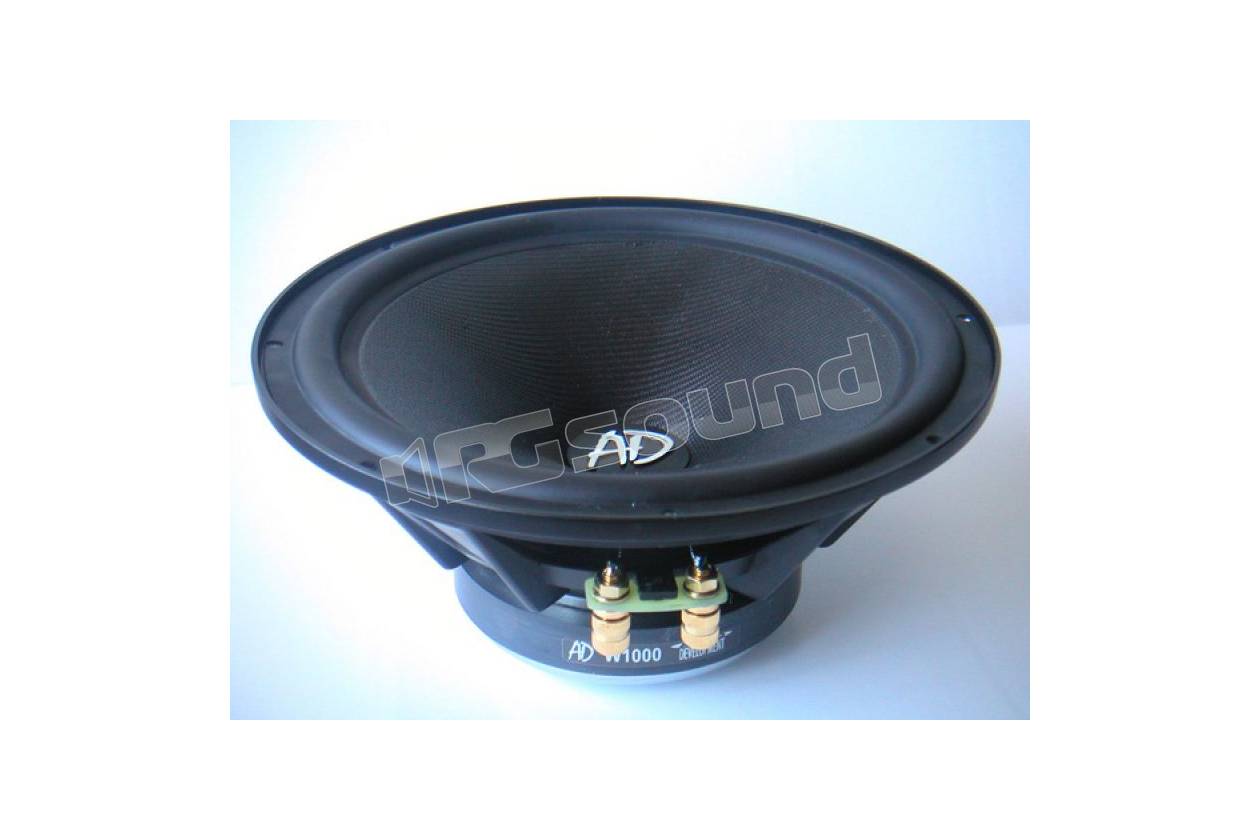

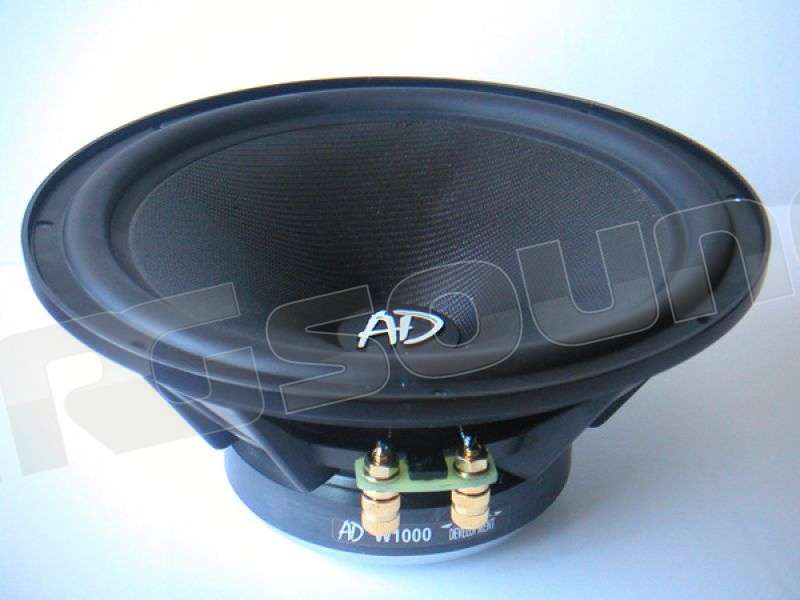

AD Audio Development W1000

AD subwoofers are designed as true bass frequencies reproducers, not just a sort of bass reinforcement. This is even more necessary when using AD systems, that are worldwide recognized as some of the most satisfactory in this field. An active crossover, a good quality amplifier, and your two way system is able to reach the deepest abysses of sound reproduction, giving that plus in emotion that your ears require. Available in single or double voice coil, their power handling and good sensitivity are other features of those components.

This true-woofer loudspeaker is dedicated to the reproduction of the lower frequencies in mobile use.
The electroacustical parameters of this bass transducer represent the right compromise between sensitivity , lower frequency extension and, last but not least, sound.

Made in Italy!

Le: 0.82 mH
Re: 3.2 Ohm
Fs: 46 Hz
Qms: 3.1
Qts: 0.45
Vas: 74 Liter
Bl: 7.62
Frequenzbereich: 40 - 2.000 Hz
Sd: 346 cm²
Xmax: 26 mm
Pmax: 150.0 W
dBSpl: 92 dB

Phase and Impedance curves are measured after 20 hour of use at 50 W RMS, so are the T/S parameters.

- CONE: Fibreglass.
- SUSPENSION: Thermo-formed butilic rubber.
- VOICE COIL: OFC voice coil on alu-former (40 mm diameter). Vented pole for forced air cooling.
- BASKET: multi reinforced Aluminum.
- VOICE COIL DUST COVER: material, weight, dimension studied to increase the Mms in order to linearize the higher frequencies too.
