Pioneer VSX-LX304B ricevitore a 9.2 canali da 9x185 Watt, 6 ingressi HDMI (4K), IMAX Enhanced, Dolby Atmos®, DTS:X, Dolby Atmos Height Virtualizer, funziona con Sonos, Zone 2, AirPlay 2, Bluetooth e integrazione Chromecast. Finitura nera.
VSX-LX304 è progettato per la riproduzione ottimale di filmati IMAX Enhanced e Dolby Atmos/DTS:X con un suono surround senza interruzioni da 7.2.2ch/5.2.4ch calibrato da MCACC e con supporto per gli standard video di prossima generazione, il Pioneer VSX-LX304 fornisce un’emozione multidimensionale al vostro home cinema. Dolby Atmos Height Virtualizer è in grado di fornire effetti sonori virtuali senza l’utilizzo di altoparlanti surround o in altezza. Goditi l’audio multi-room riprodotto in streaming con il sistema SONOS, FlareConnect, Chromecast integrato, DTS Play-Fi e Apple AirPlay 2.
Pioneer VSX-LX304B caratteristiche principali
IMAX Enhanced
DTS:X/DTS Neural:X Upmixing
Virtualizzazione in altezza Dolby Atmos
Apple AirPlay 2
Dolby Atmos/Dolby Surround Upmixing
Pronto per gli standard video di prossima generazione
Sistema avanzato MCACC con Auto Phase Control Plus
Funziona con SONOS
Powered Zone 2 con DAC dedicato
Uscita Zone B per cuffie wireless
Integrazione Chromecast
Pioneer VSX-LX304B Caratteristiche Audio
Channels: 9
Amplification Type: Direct Energy
185 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
170 W/ch (8 ohms,1 kHz, THD 1 %, 1ch Driven IEC)
IMAX Enhanced*1
Dolby Atmos®, Dolby Surround Upmixer
DTS:X®, DTS Neural:X® Upmixer
Reflex Optimizer
Dolby Atmos Height Virtualizer*1
Dolby® TrueHD, Dolby Digital Plus
DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
DSD Disc (SACD) Playback via HDMI (2.8 MHz/2 ch, 5.1 ch)
Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus™ floating-point DSP (TI)
384 kHz/32-bit D/A Conversion with AK4458 (AKM) & PCM5101A (TI)
Audio Return Channel (ARC) on HDMI
Advanced MCACC Auto Room Tuning
• Auto Phase Control Plus
• Subwoofer EQ
• Multi-point Standing Wave Control
Advanced Sound Retriever (2ch)
Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance
Pioneer VSX-LX304B Caratteristiche Video
Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)*2
HDR10, HLG and BT.2020 Compliant Wide Colour Gamut Signal Pass-through
Dolby Vision™ Compatible
Ultra HD Upscaling (1080p to 4K)
3D Ready (Blu-ray Disc™, Broadcast, and Games)
Deep Colour (36-bit), “x.v. Colour”
Pioneer VSX-LX304B Collegamenti

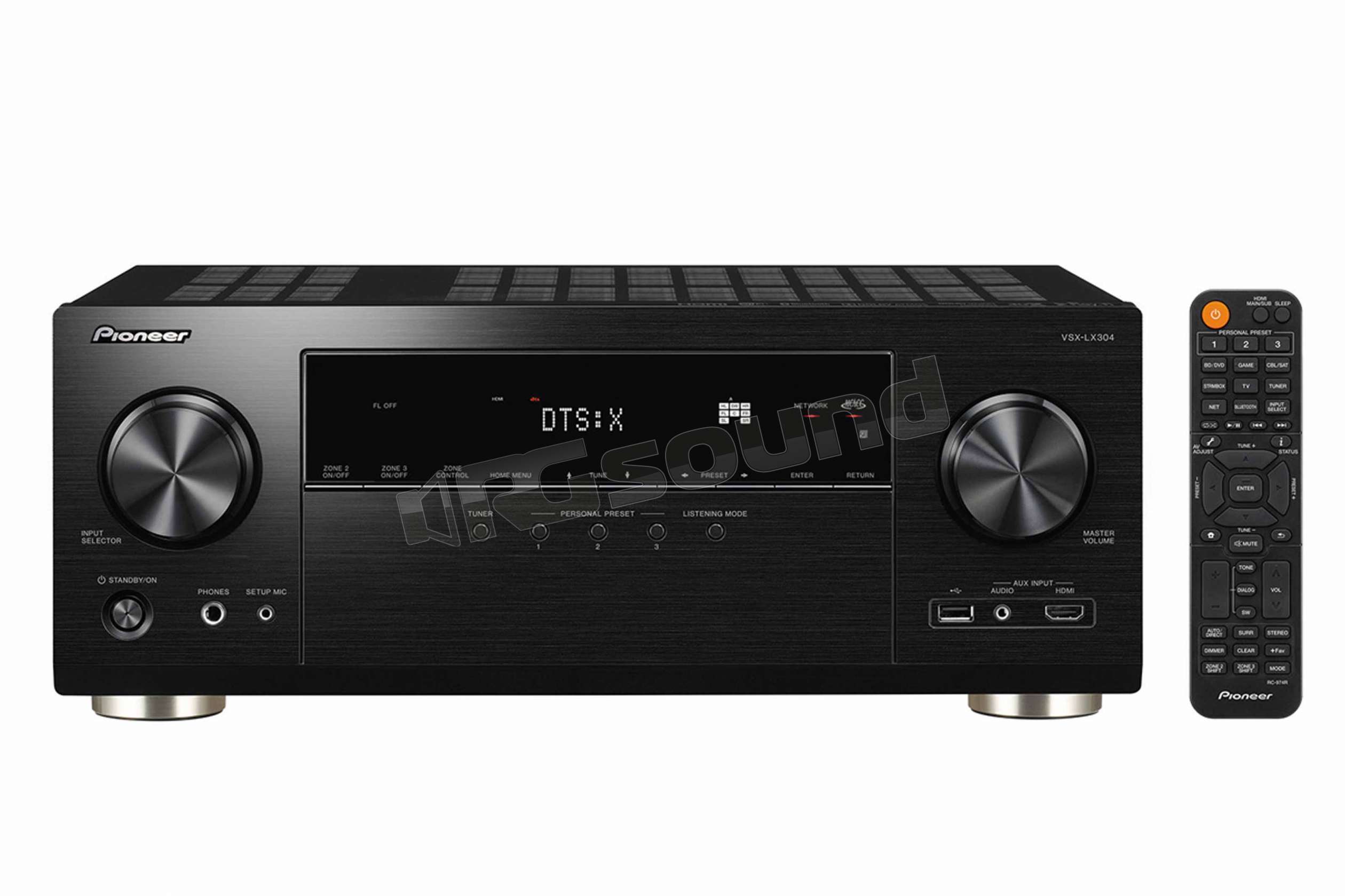

FRONT TERMINALS
HDMI 1 In
USB 1 In for USB Drive
MCACC Setup MIC In (Gold-Plated)
Audio 1 In (Mini Stereo Jack, Gold-Plated)
Phones 1 Out

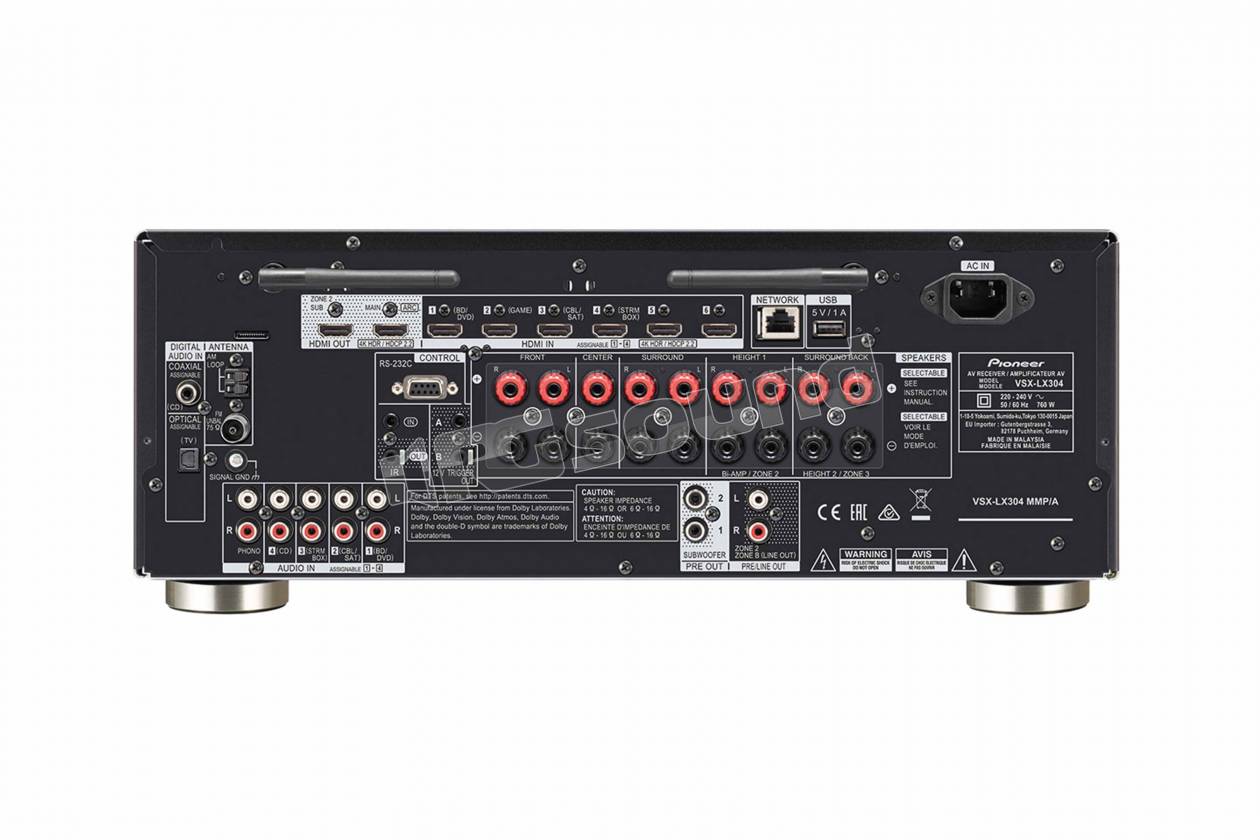

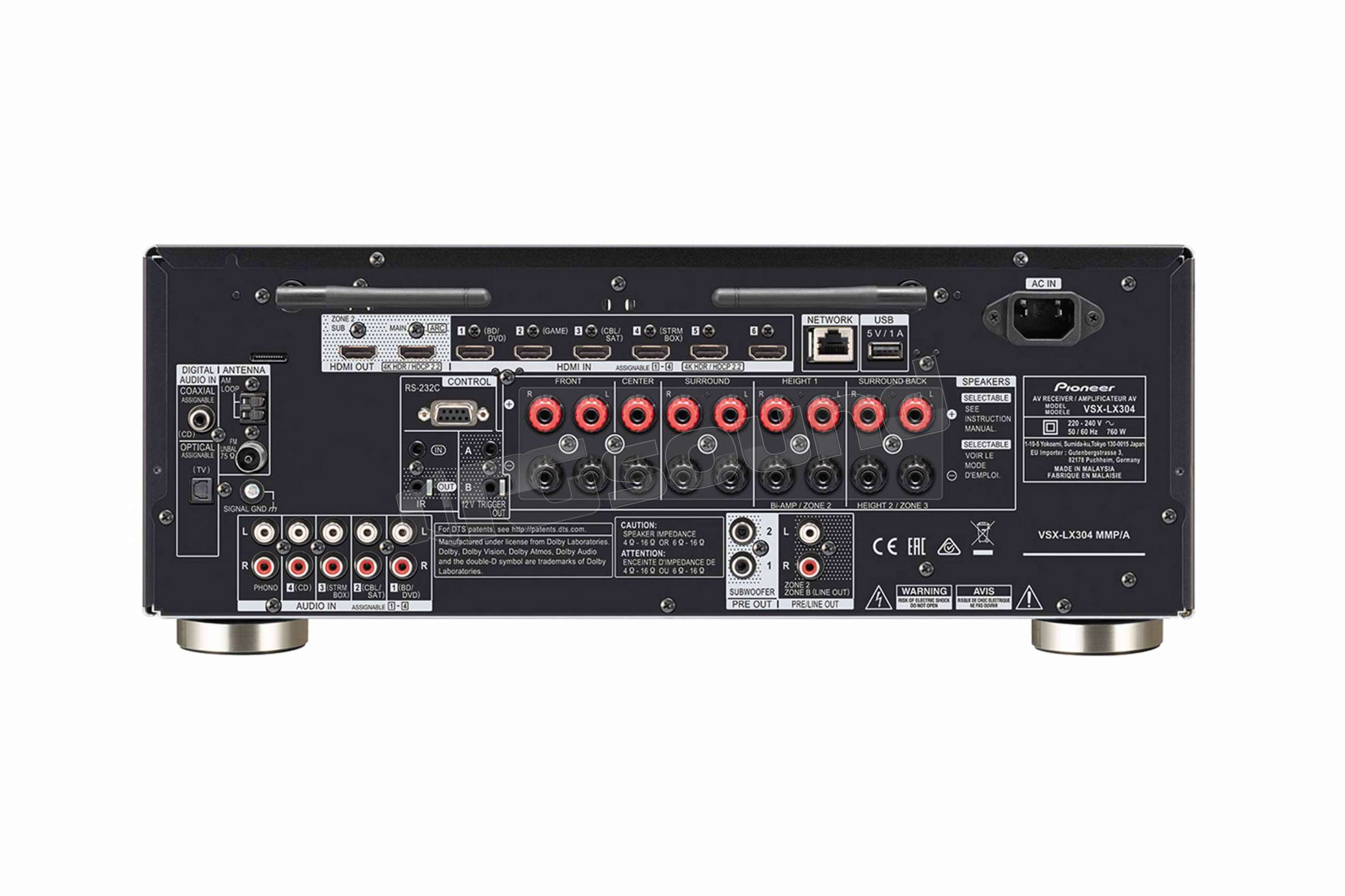

REAR TERMINALS
HDMI 6 In (4 Assignable)
HDMI 2 Out (1 for MAIN, 1 for SUB)
Ethernet 1 In
USB 1 In for USB Drive
Audio 4 In (Assignable)
Phono (MM) 1 In
Digital Coaxial 1 In (Assignable)
Digital Optical 1 In (Assignable)
Subwoofer 2 Pre Out
ZONE B Line Out for Wireless Headphones
ZONE 2 Pre/Line Out
Speaker 9ch Out (FRONT, CENTER, SURROUND, HEIGHT 1/Bi-AMP/ZONE 2, SURROUND BACK/HEIGHT 2/ZONE 3)
IR 1 In/1 Out
12 V Trigger 2 Out
RS-232C
FM/AM Antenna
Pioneer VSX-LX304B Dimensioni e Peso
Dimensions (W x H x D): 435 x 173 x 370.5 mm
Weight: 10.8 kg
