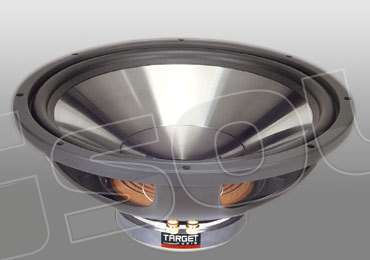

Subwoofer, diametro 390 mm, 300 watt nominali, 600 watt max, cono in polipropilene placcato color titanio, sospensione in gomma butilica, piastre polari cromate, morsetti a vite.

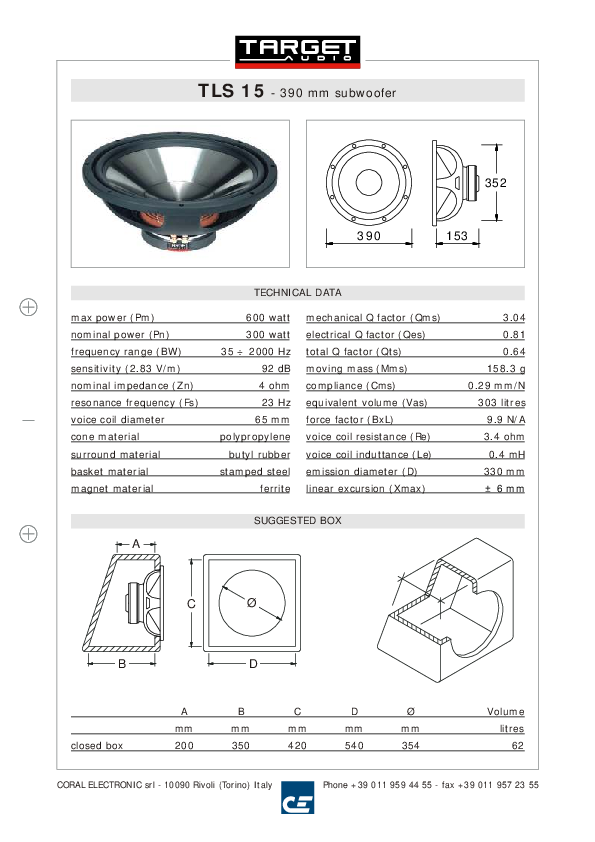

TECHNICAL DATA:

nominal impedance (Zn): 4 ohm
nominal power (Pn): 300 watt
max power (Pm): 600 watt
sensitivity (2.83 V/1 m): 92 dB
frequency range (BW): 25÷2000 Hz
resonance frequency (Fs): 23 Hz
voice coil diameter: 65 mm
cone material: polypropylene
surround material: butyl rubber
basket material: stamped steel
magnet material: ferrite

mechanical Q factor (Qms): 3.04
electrical Q factor (Qes): 0.81
total Q factor (Qts): 0.64
moving mass (Mms): 158.3 g
compliance (Cms): 0.29 mm/N
equivalent volume (Vas): 303 litres
force factor (BxL): 9.9 N/A
voice coil resistance (Re): 3.4 ohm
voice coil inductance (Le): 0.4 mH
emission diameter (D): 330 mm
linear excursion (Xmax): ± 6 mm
