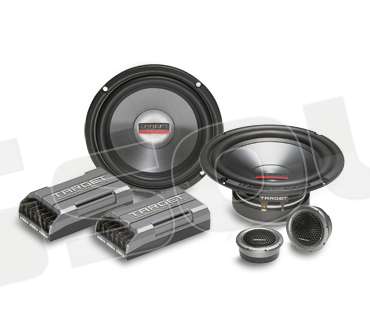

Target Audio TDK 600

Kit di altoparlanti, 2 vie, 240 watt max, 120 watt nominali,
woofer diametro 165 mm (profondità 62 mm) con cono in polipropilene placcato color titanio, tweeter orientabile con bobina da 25 mm e magnete al neodimio, filtro crossover 4000 Hz 12/24 dB/oct con protezione elettronica uscita tweeter


TECHNICAL DATA:

nominal impedance (Zn): 4 ohm
max power (Pm): 240 watt
nominal power (Pn): 120 watt
sensitivity (2.83 V/1 m): 90 dB
freq. range (BW): 50÷20000 Hz

woofer data
nominal impedance (Zn): 4 ohm
nominal power (Pn): 120 watt
max power (Pm): 240 watt
frequency range (BW): 50÷4000 Hz
voice coil diameter: 25 mm
cone material: polypropylene
surround material: butyl rubber
basket material: stamped steel
magnet material: ferrite

tweeter data
nominal impedance (Zn): 4 ohm
nominal power (Pn): 100 watt
max power (Pm): 200 watt
frequency range (BW): 3÷20 KHz
voice coil diameter: 30 mm
dome material: silk
magnet material: neodymium

filter data
crossover frequency: 4000 Hz
low-pass slope: 12 db/oct
high-pass slope: 24 dB/oct
electronic power control
size: 65x120x33 mm
