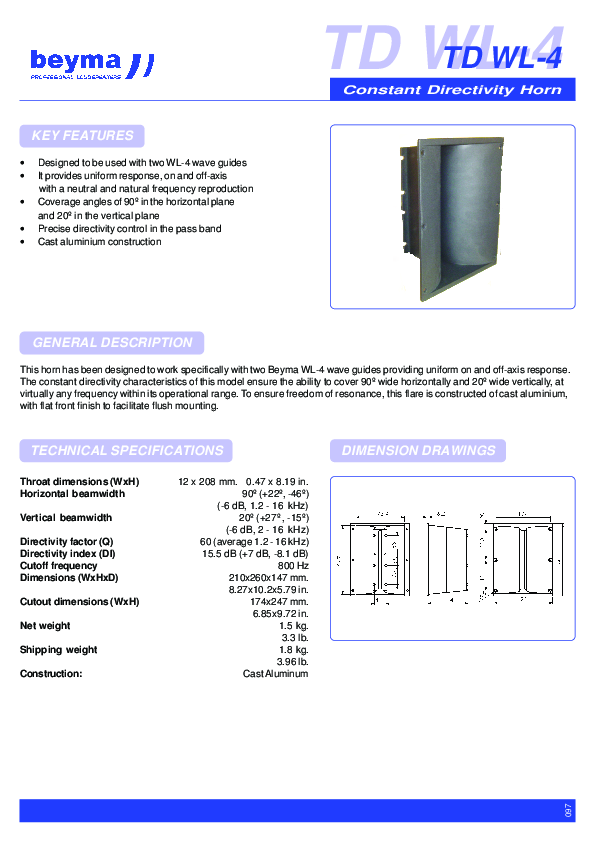

Dispersion HxV | 90x20º |
Throat diameter | 12x208 mm 0.47x8.19 in |
Horizontal beamwidth | 90º (+22º -46º) (-6dB 1.2 - 16kHz) |
Vertical beamwidth | 20º (+27º -15º) (-6dB 2 - 16kHz) |
Directivity factor (Q) | 60 (media/average 1.2 - 16kHz) |
Directivity index (DI) | 15.5dB (+7dB -8.1dB) |
Dimensions (WxHxD) | 210x250x147mm |
Baffle cutout dimensions (WxH) | 174x247mm |
Net weight | 1.5 kg 3.3 lb |
Total weight | 1.8 kg 3.96 lb |
Material | Aluminium |
