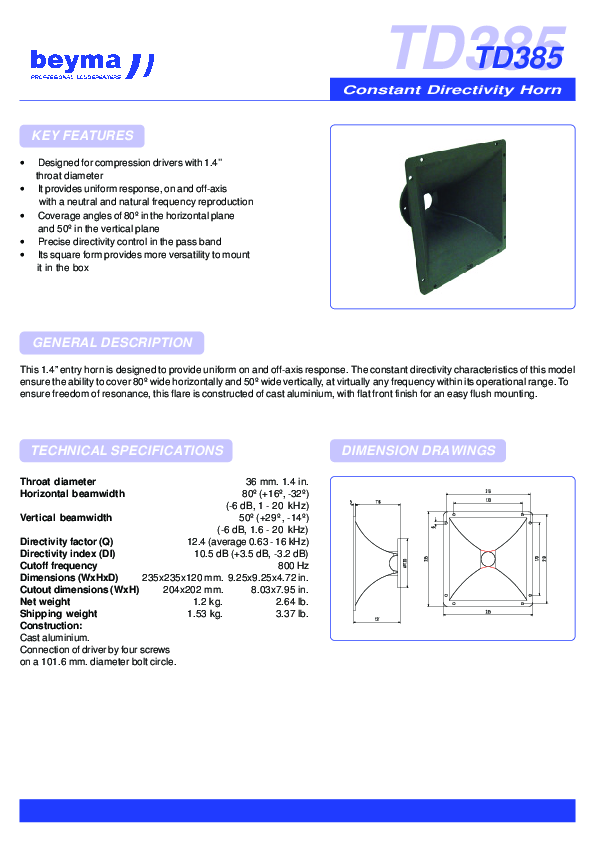

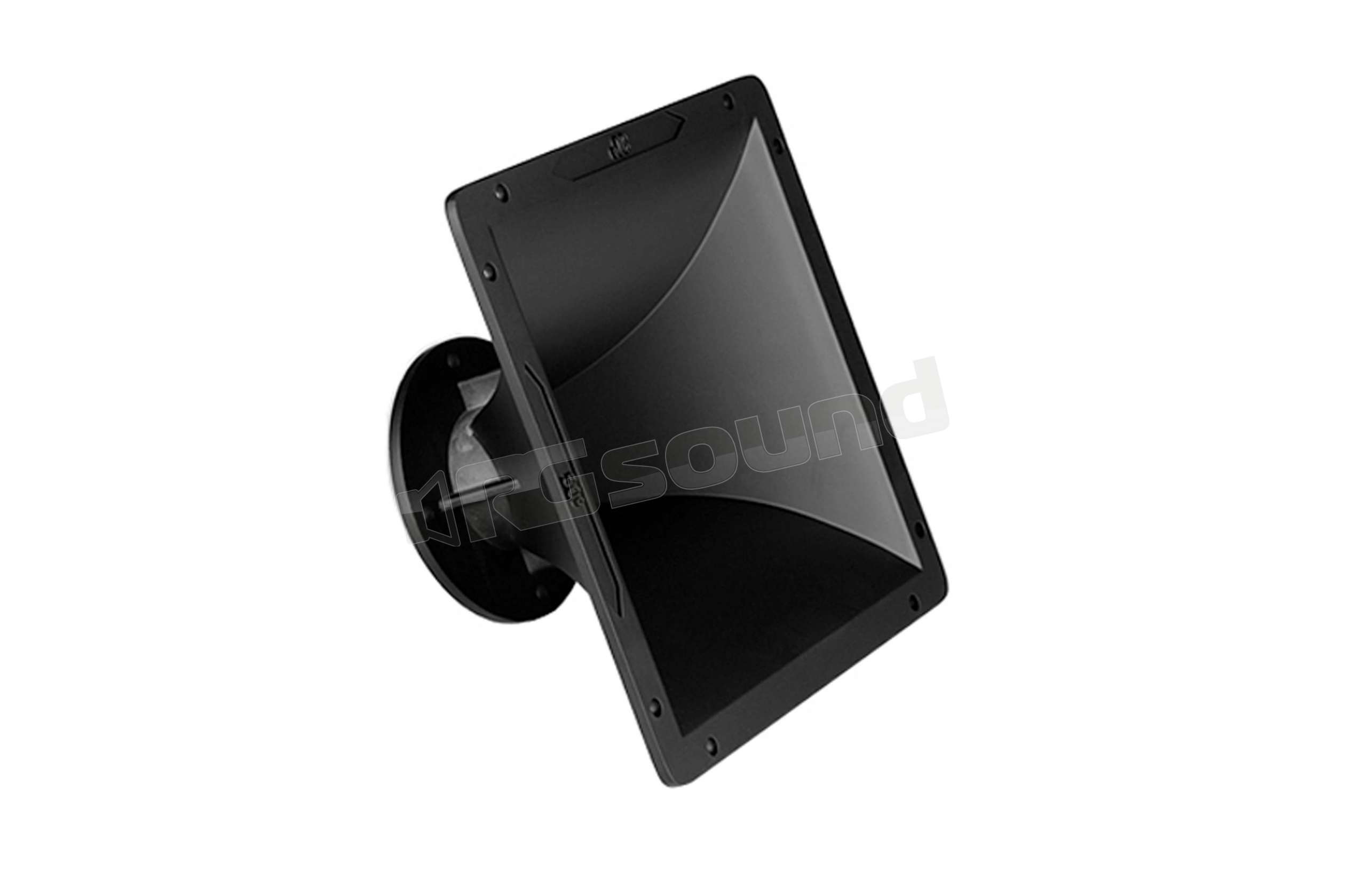

Beyma TD-385 horn tweeter
Dispersion HxV | 80x50º |
Throat diameter | 36 mm 1.4 in |
Horizontal beamwidth | 80º (+16º -32º) (-6dB 1 - 20kHz) |
Vertical beamwidth | 50º (+29º -14º) (-6dB 1.6 - 20kHz) |
Directivity factor (Q) | 12.4 (media/average 0.63 - 16kHz) |
Directivity index (DI) | 10.5dB (+3.5dB -3.2dB) |
Dimensioni, peso e installazione
Dimensions (WxHxD) | 235x235x120mm |
Baffle cutout dimensions (WxH) | 204x202mm |
Net weight | 1.2 kg 2.64 Ib. |
Total weight | 1.53 kg 3.37 lb |
Material | Aluminium |
Construction | Cast Aluminium. Connection of driver by 4 screws on a 4 in. (101.6mm) diameter bolt circle. |
