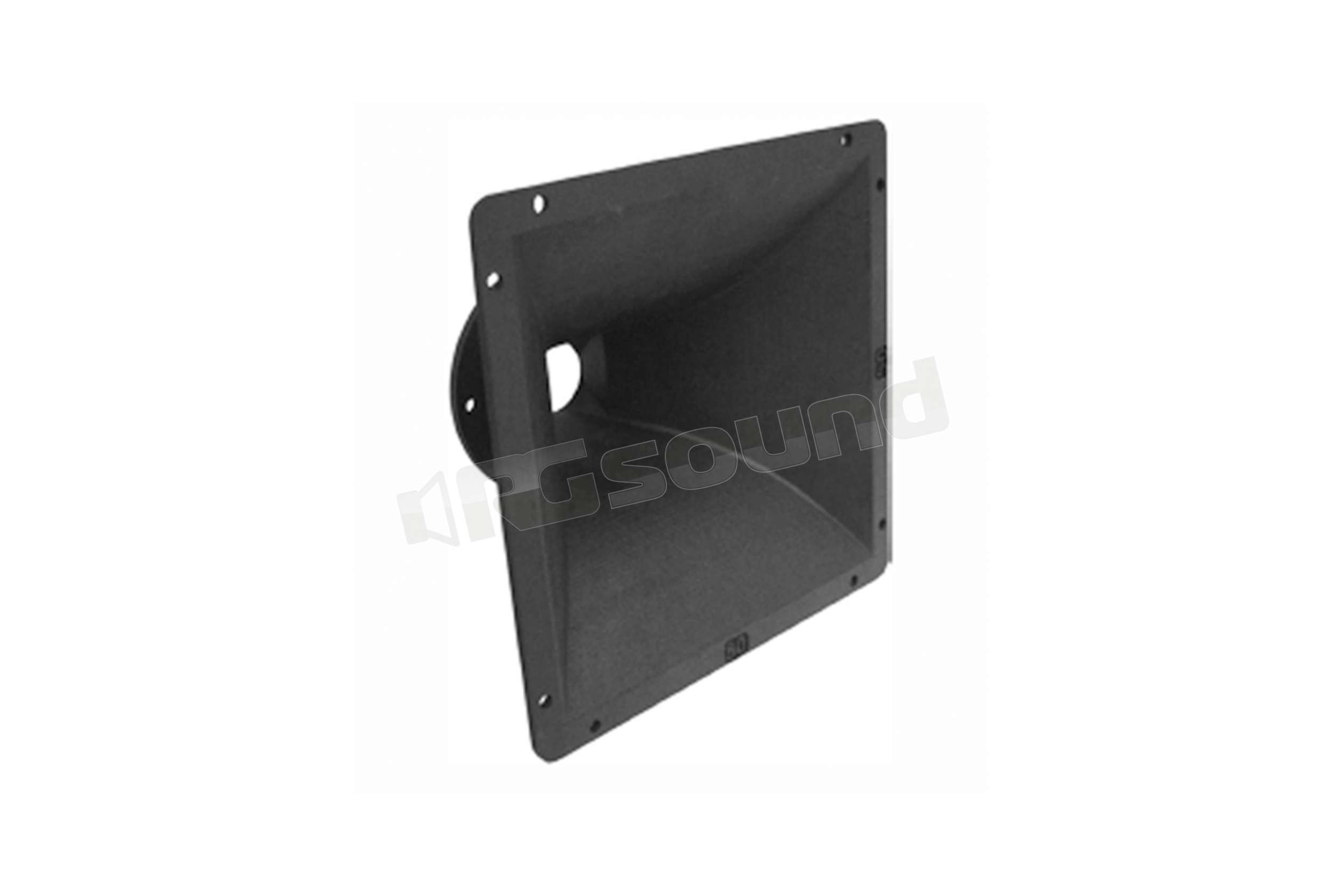

Beyma TD-365 tromba direzionale con gola 36mm
Caratteristiche tecniche
Dispersion HxV | 60x50º |
Throat diameter | 36 mm 1.4 in |
Horizontal beamwidth | 60º (+27º -6º) (-6dB 1 - 16kHz) |
Vertical beamwidth | 50º (+20º -1º) (-6dB 2.5 - 16kHz) |
Directivity factor (Q) | 11.1 (media/average 0.63 - 16kHz) |
Directivity index (DI) | 10.3dB (+1.9dB -2.4dB) |
Dimensions (WxHxD) | 235x235x121mm |
Baffle cutout dimensions (WxH) | 204x202mm |
Net weight | 1.2 kg 2.64 Ib. |
Total weight | 1.53 kg 3.37 lb |
Material | Aluminium |
Construction | Cast Aluminium. Connection of driver by 4 screws on a 4 in. (101.6mm) diameter bolt circle. |
