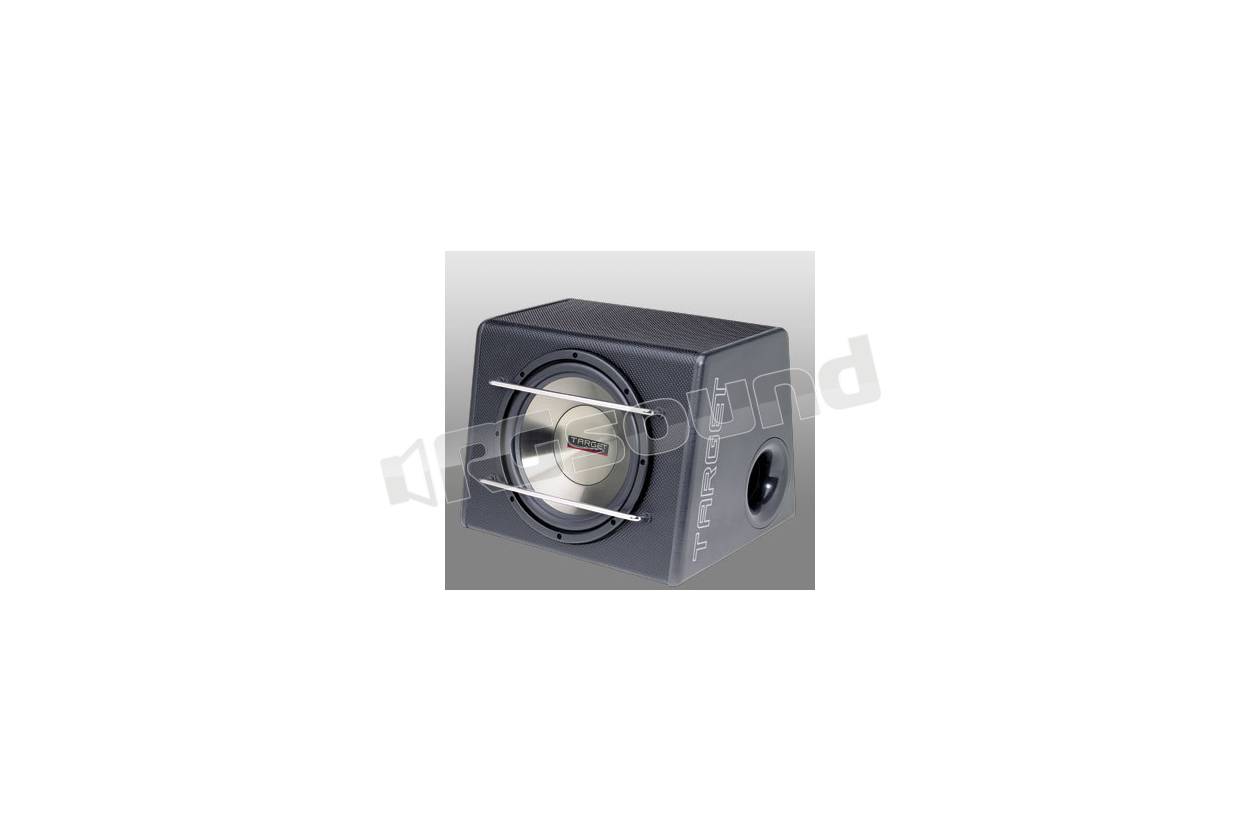

Subwoofer passivo con altoparlante diametro 320 mm,
250 watt nominali, 500 watt max,
gamma utile 38-200 hertz, sensibilità 93 dB,
carico bass-reflex con condotto ad apertura esponenziale,
box 35 litri realizzato in MDF e rivestito in vinile.
TECHNICAL DATA:
nominal impedance (Zn): 4 ohm
nominal power (Pn): 250 watt
max power (Pm): 500 watt
sensitivity (2.83 V/1 m): 93 dB
frequency range (BW): 38÷200 Hz
internal volume: 40 litres
LOUDSPEAKER DATA:
nominal impedance (Zn): 4 ohm
nominal power (Pn): 250 watt
max power (Pm): 500 watt
speaker diameter: 320 mm
voice coil diameter: 65 mm
cone material: polypropylene
surround material: butyl rubber
basket material: stamped steel
magnet material: ferrite
