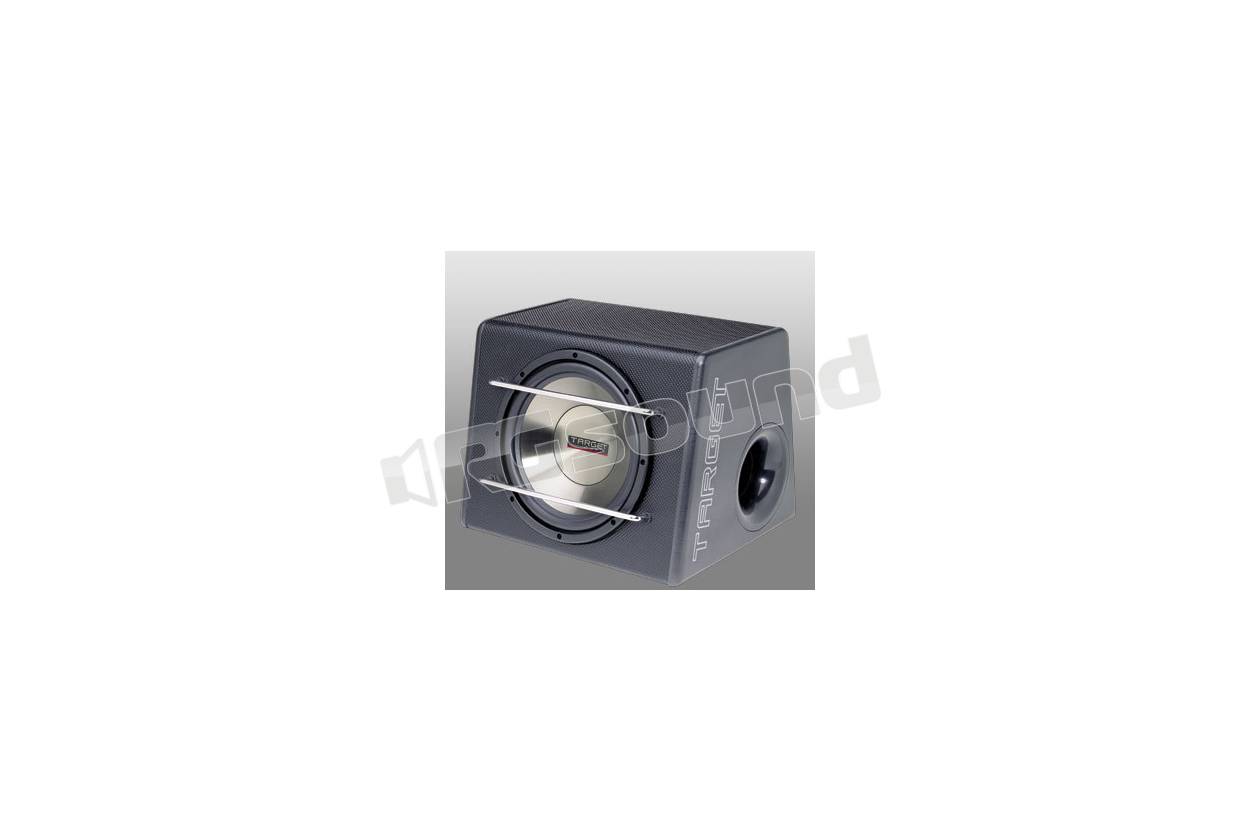

Subwoofer passivo con altoparlante diametro 260 mm,
175 watt nominali, 350 watt max,
gamma utile 40-200 hertz, sensibilità 92 dB,
carico bass-reflex con condotto ad apertura esponenziale,
box 23 litri realizzato in MDF e rivestito in vinile.
TECHNICAL DATA:
nominal impedance (Zn): 4 ohm
nominal power (Pn): 175 watt
max power (Pm): 350 watt
sensitivity (2.83 V/1 m): 92 dB
frequency range (BW): 40÷200 Hz
internal volume: 23 litres
LOUDSPEAKER DATA:
nominal impedance (Zn): 4 ohm
nominal power (Pn): 175 watt
max power (Pm): 350 watt
speaker diameter: 260 mm
voice coil diameter: 50 mm
cone material: polypropylene
surround material: butyl rubber
basket material: stamped steel
magnet material: ferrite
