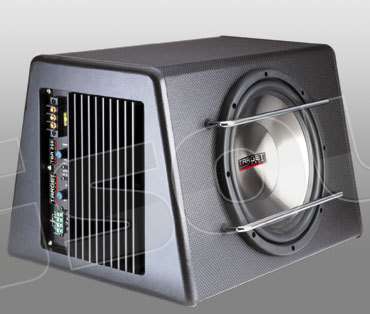

Subwoofer amplificato: 240 watt max, 120 watt RMS. Ingressi RCA e alto livello, filtro passa-basso, bass-boost, controllo di fase.

Altoparlante diametro 260 mm; cassa reflex con condotto ad apertura esponenziale. Box realizzato in MDF e rivestito in vinile.

TECHNICAL DATA:

music power: 240 watt
rms power: 120 watt
frequency range: 40÷200 Hz
bass-boost gain: +6/+12 dB
bass-boost frequency: 70 Hz
low-pass cut frequency: 40÷160 Hz
low-pass slope: 12 dB/oct
phase control: 0/180 deg
RCA input sensitivity: 0.2/4 V
RCA input impedance: 22 KOhm
high-level input sensitivity: 2÷20 V

LOUDSPEAKER DATA:

speaker diameter: 260 mm
voice coil diameter: 50 mm
cone material: polypropylene
surround material: butyl rubber
basket material: stamped steel
magnet material: ferrite
