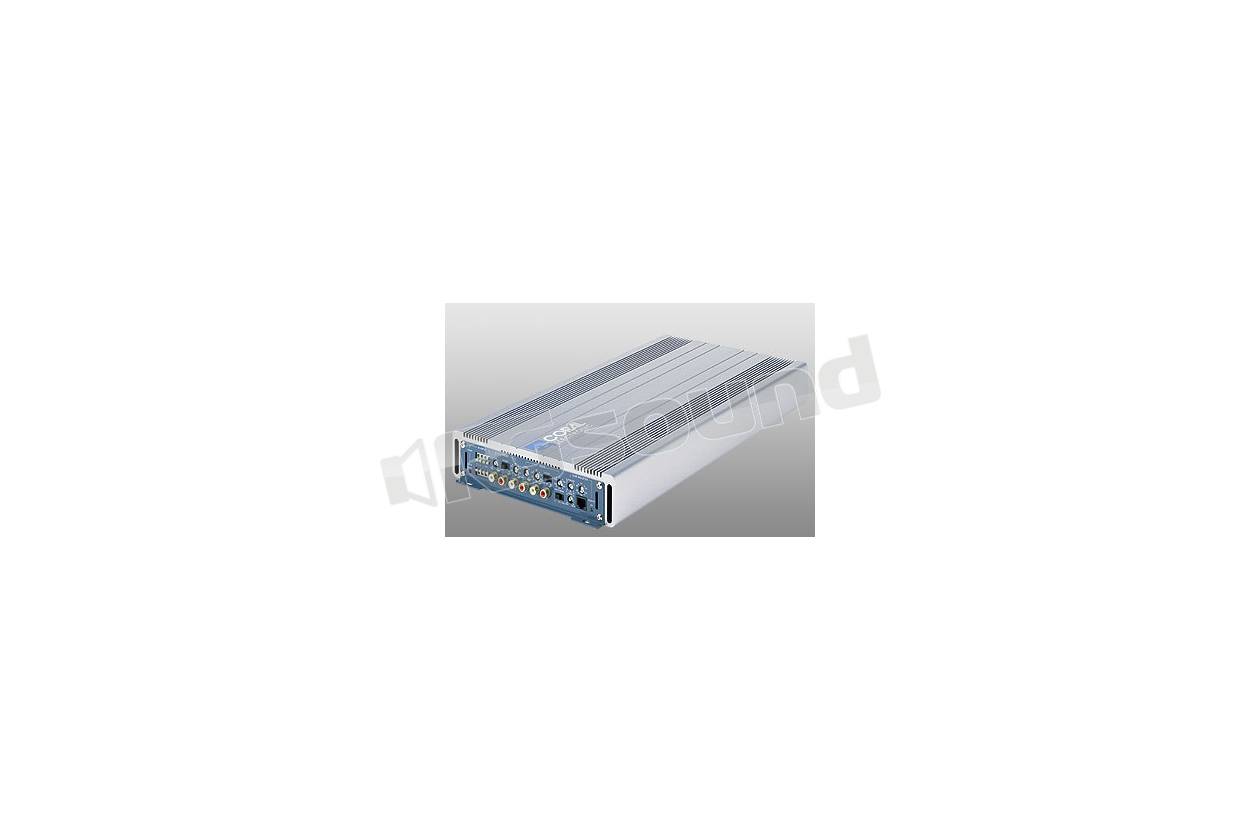

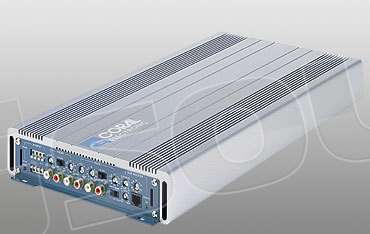

Coral Electronic TA 500

Amplificatore 3/5 canali, 4x40 + 1x160 watt RMS, 2x120 + 1x160 watt RMS, ingressi alto livello, 6 ingressi RCA, filtri passa-alto e passa-basso, controllo dei bassi X-Pander, controllo remoto in dotazione.

TECHNICAL DATA:

total music power: 1000 W

front & rear channels
rms power (4 ohm): 4x40 W
rms power (2 ohm): 4x60 W
rms power (4ohm, 2 canali): 2x120 W
high-pass cut: 40÷600 Hz
high-pass slope: 12 dB/oct
low-pass cut: 40÷600 Hz
low-pass slope: 12 dB/oct
freq. response (-3 dB): 10÷30K Hz

subwoofer channel
rms power (4 ohm): 1x160 W
rms power (2 ohm): 1x260 W
low-pass cut: 40÷160 Hz
low-pass slope: 12 dB/oct
X-Pander frequency: 80 Hz
X-Pander gain: 0÷18 dB

T.H.D.: 0.04 %
S/N ratio: 90 dB
input sensitivity (RCA): 0.2÷5 V
input impedance (RCA): 22 Kohm
input sens. (high-level): 1÷10 V

power supply: 11÷15 V
max power current : 40 A
internal fuses: 2x30 A
size: 220x440x50 mm
