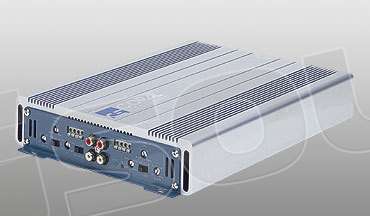

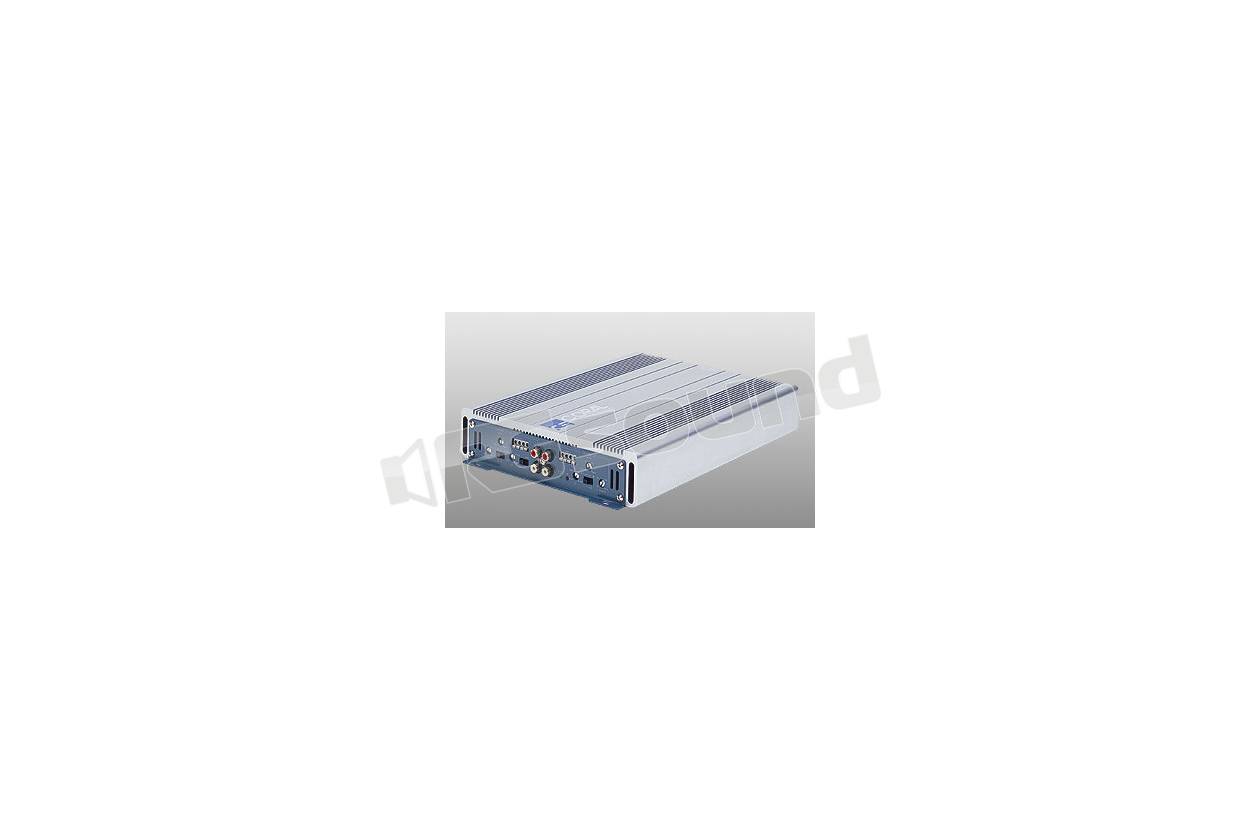

Amplificatore 4/3 canali: 4x40 watt rms, 2x40 + 1x120 watt rms, filtro passa-alto e passa-basso, controllo dei bassi X-Pander, uscita pre filtrata, ingressi ad alto livello.
TECHNICAL DATA: total music power: 480 W rms power (4 ohm): 4x40 W rms power (2 ohm): 4x60 W rms power (4ohm, 3 canali): 2x40 + 1x120 W high-pass cut: 40÷400 Hz high-pass slope: 12 dB/oct low-pass cut: 40÷400 Hz low-pass slope: 12 dB/oct freq. response (-3 dB): 10÷30K Hz X-Pander frequency: 80 Hz X-Pander gain: 0÷18 dB T.H.D.: 0.04 % S/N ratio: 90 dB input sensitivity (RCA): 0.2÷5 V input impedance (RCA): 22 Kohm input sens. (high-level): 1÷10 V power supply: 11÷15 V max power current : 30 A internal fuses: 2x15 A size: 220x320x50 mm |
