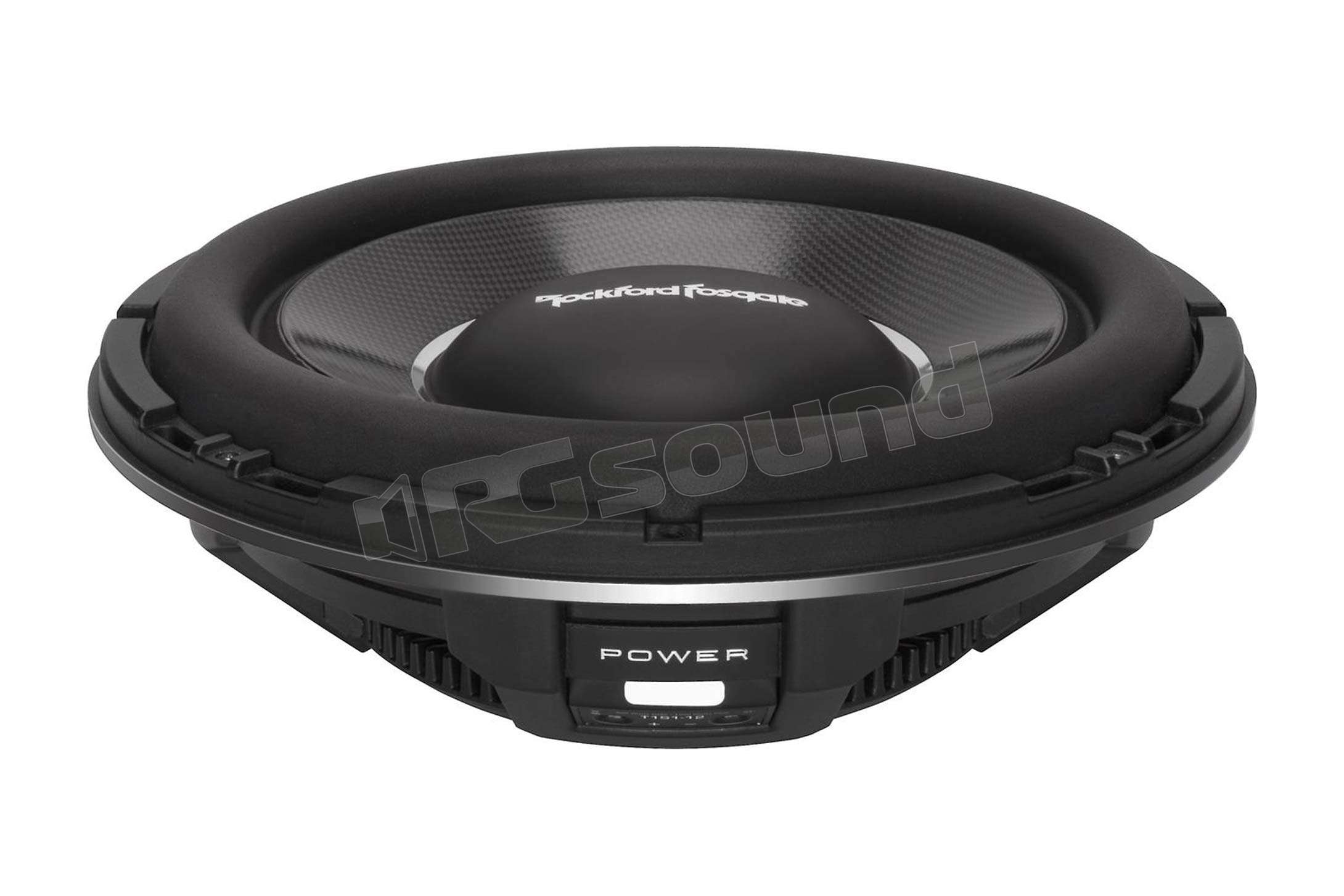

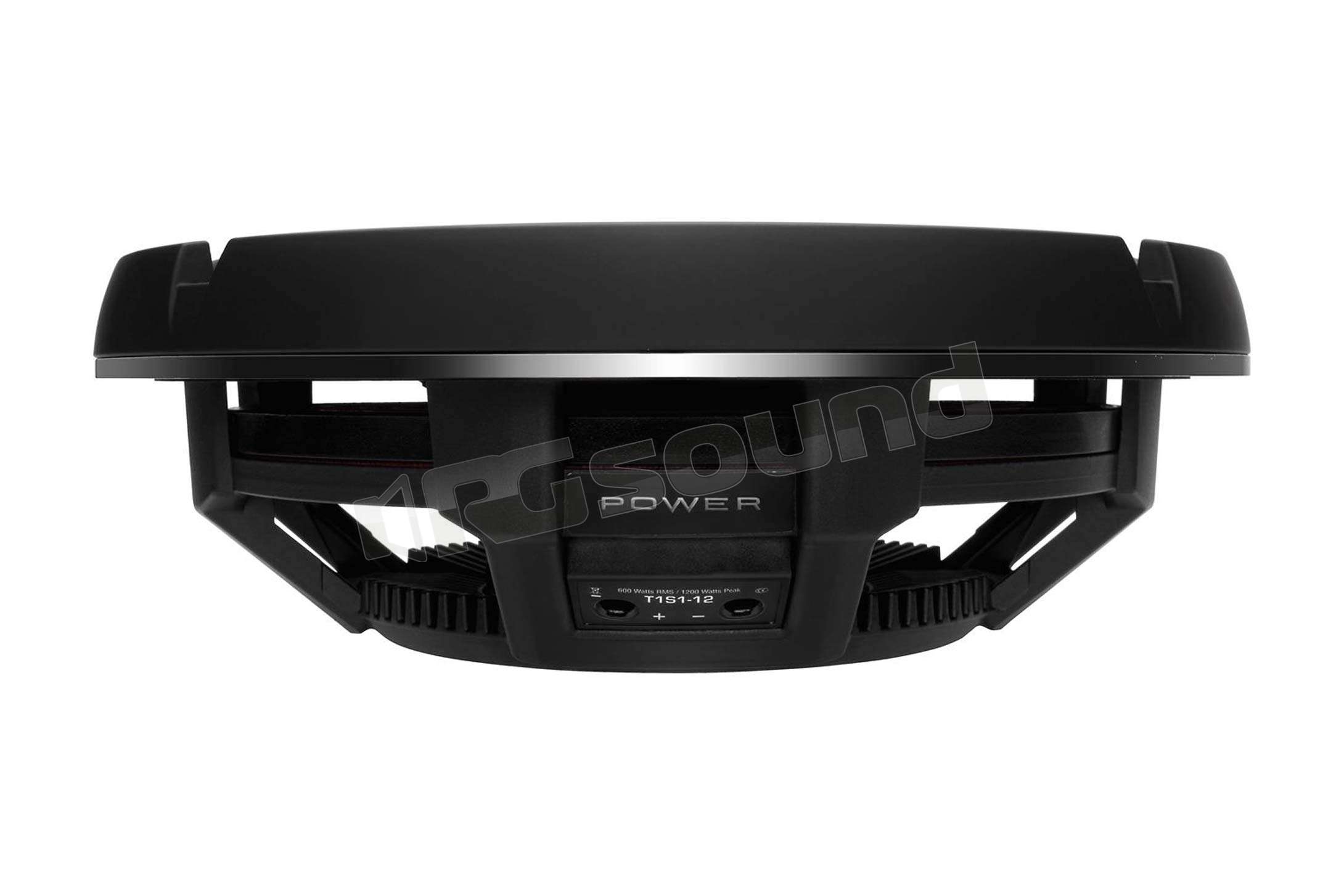

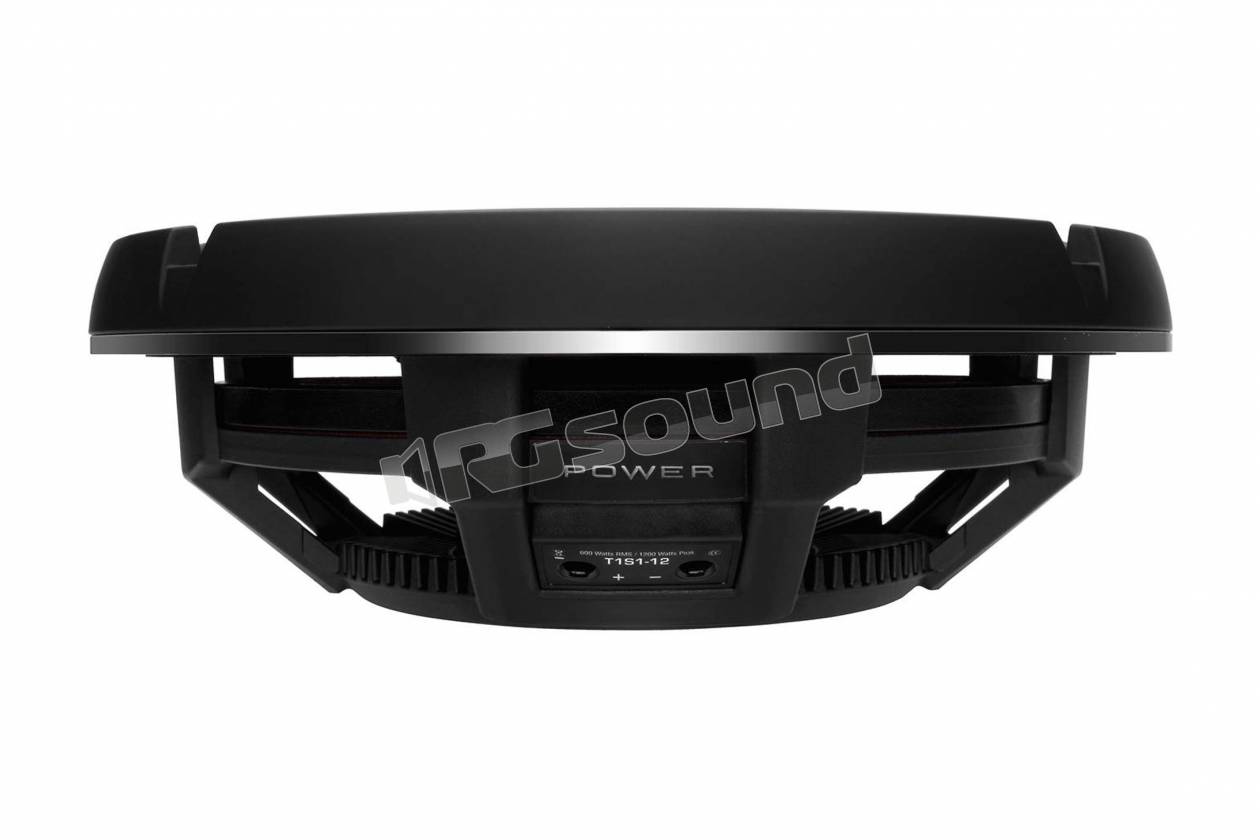

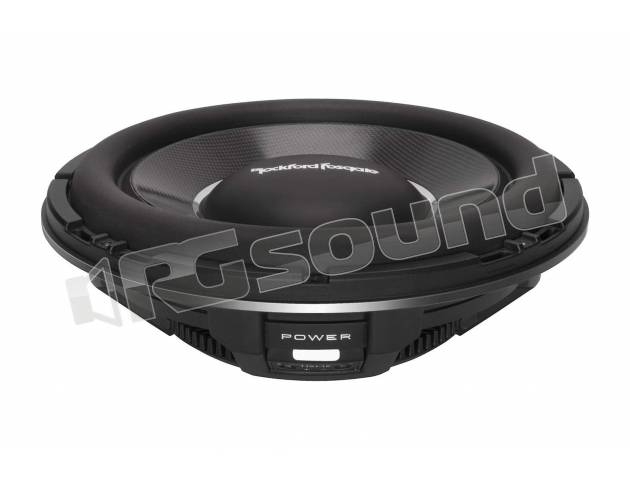

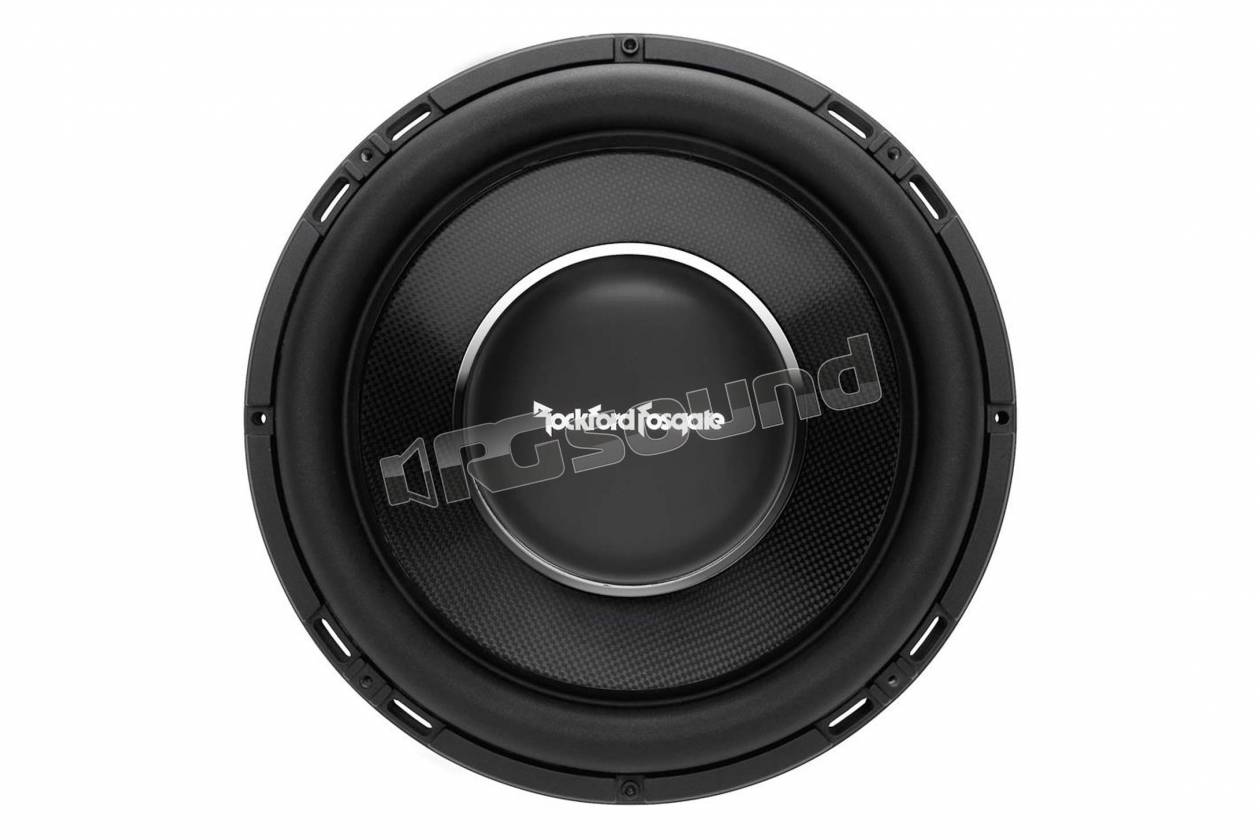

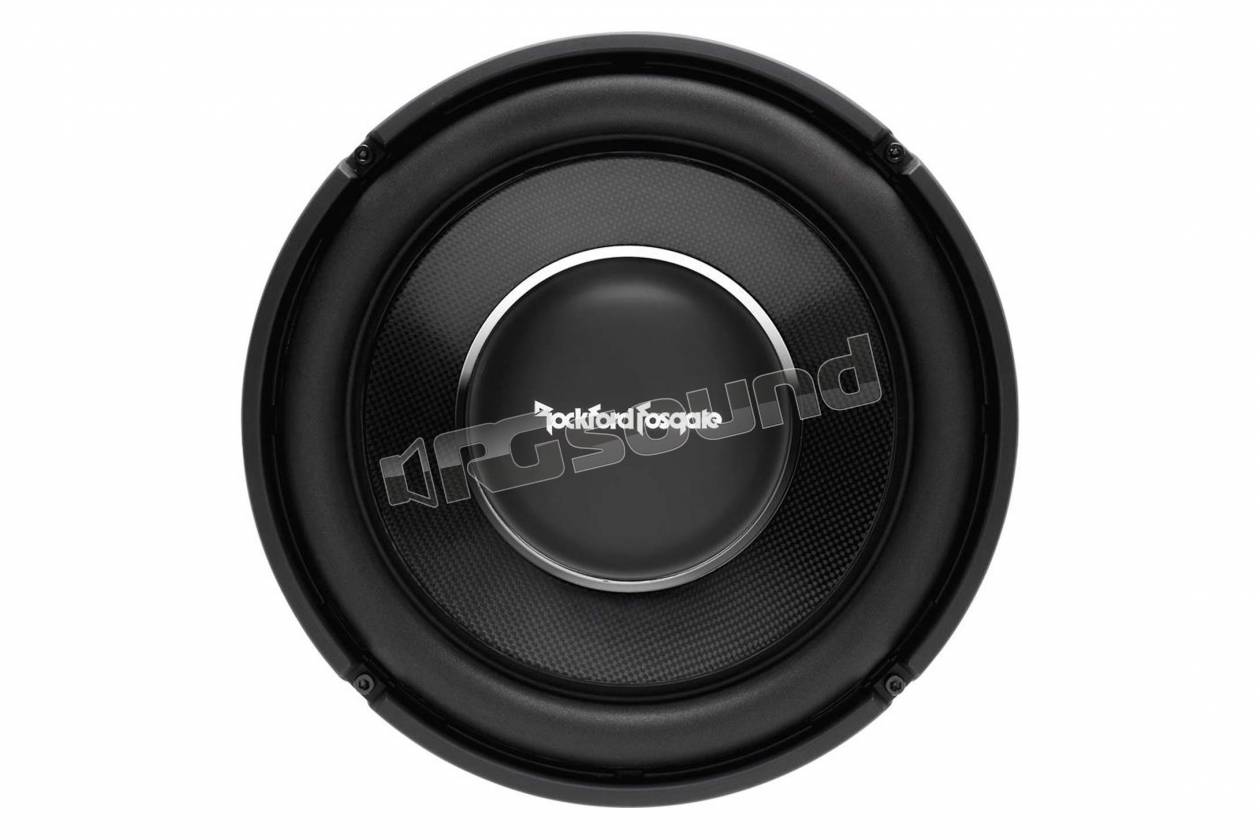

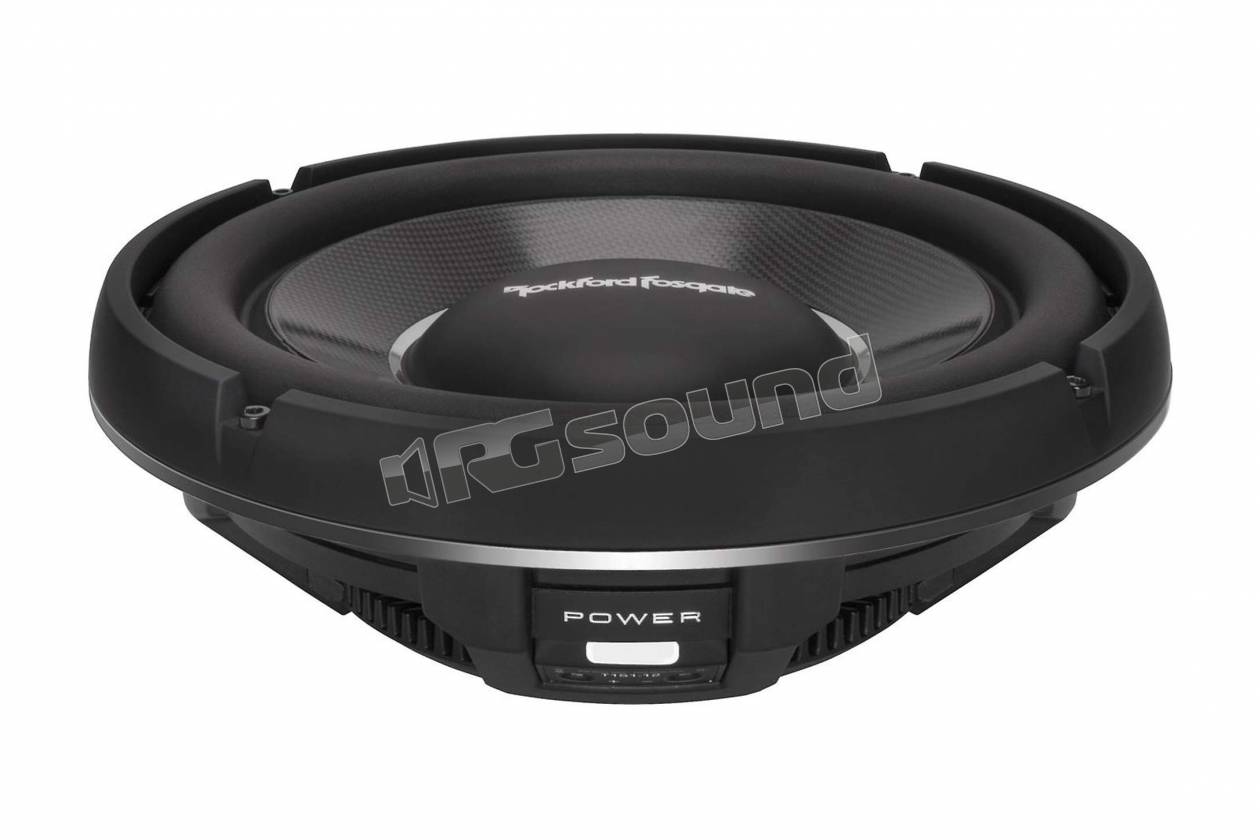

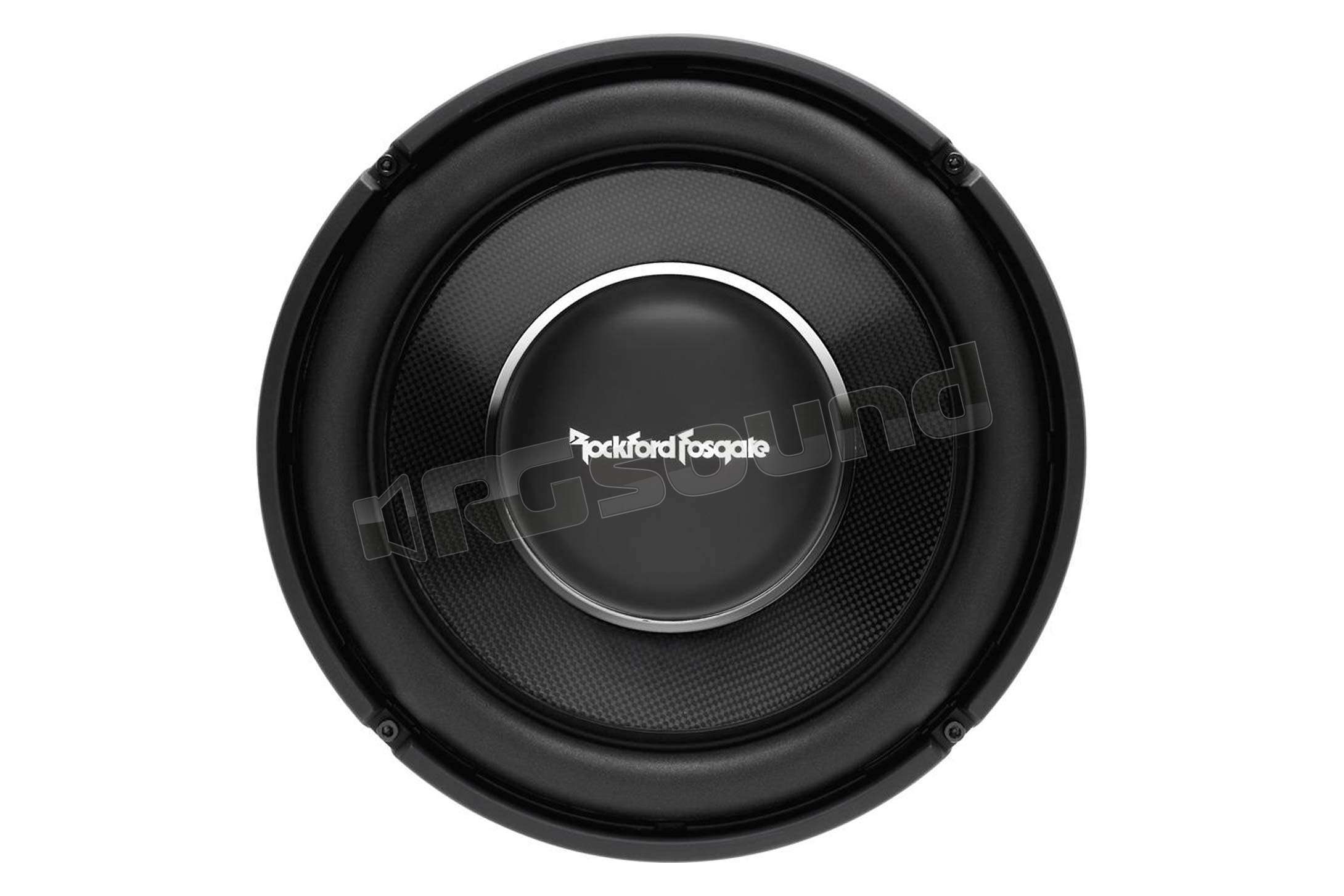

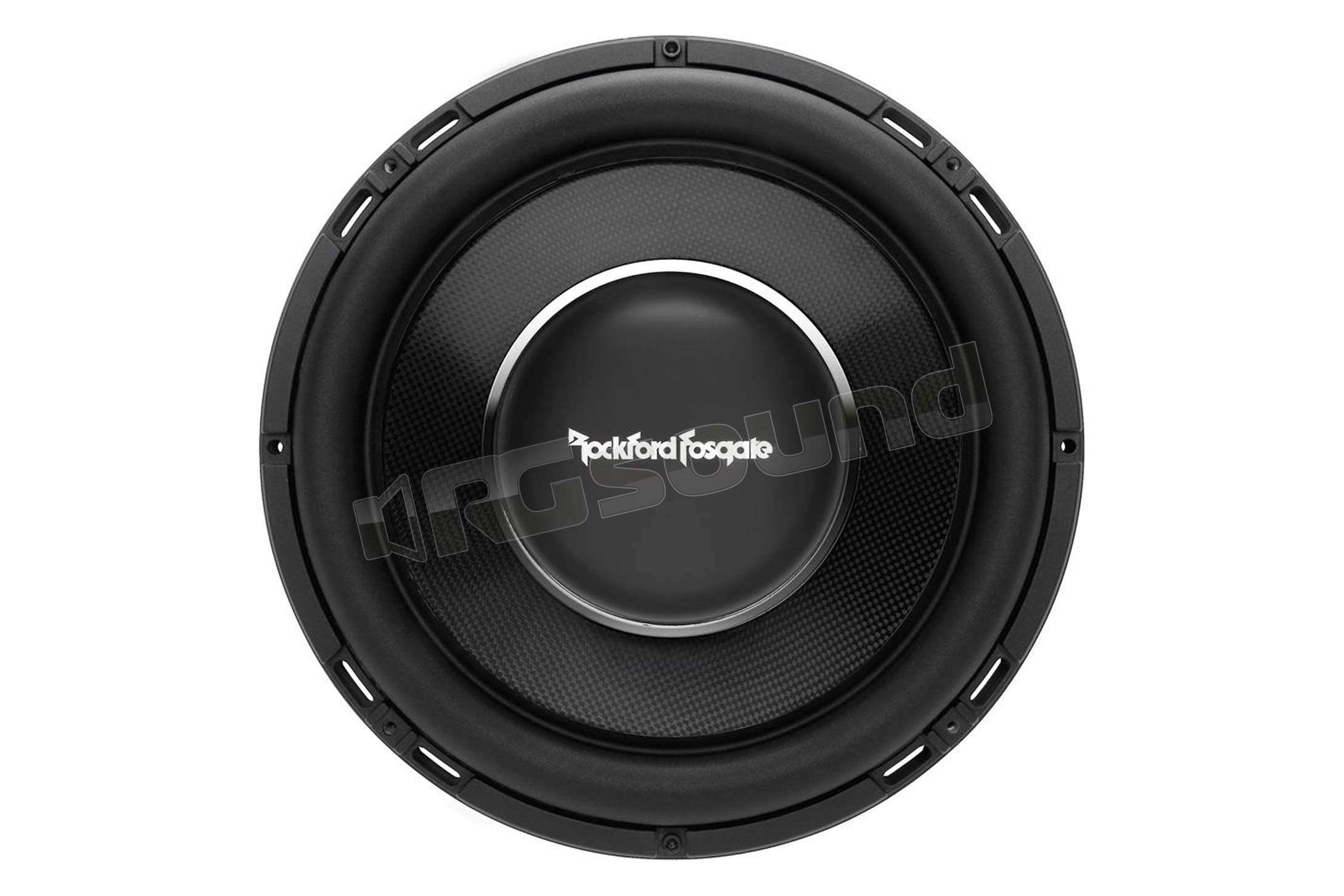

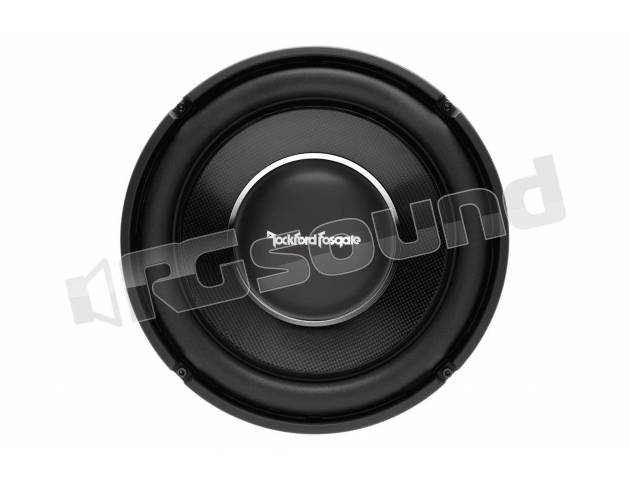

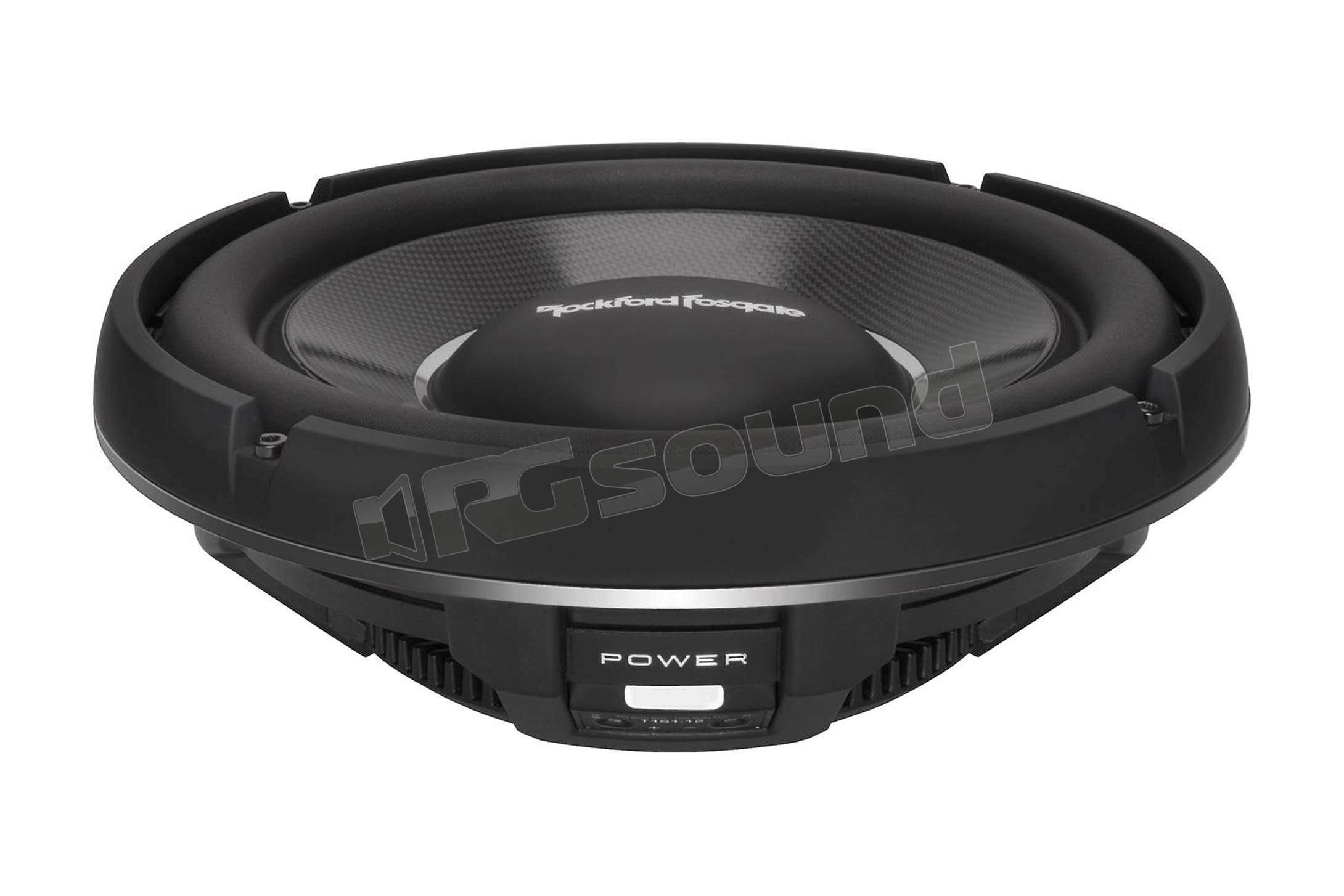

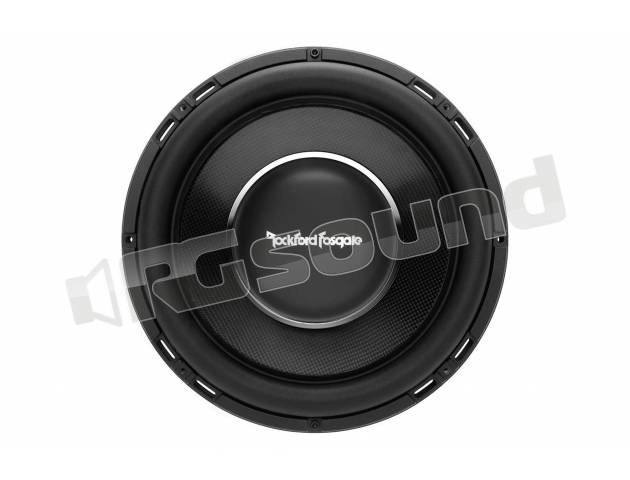

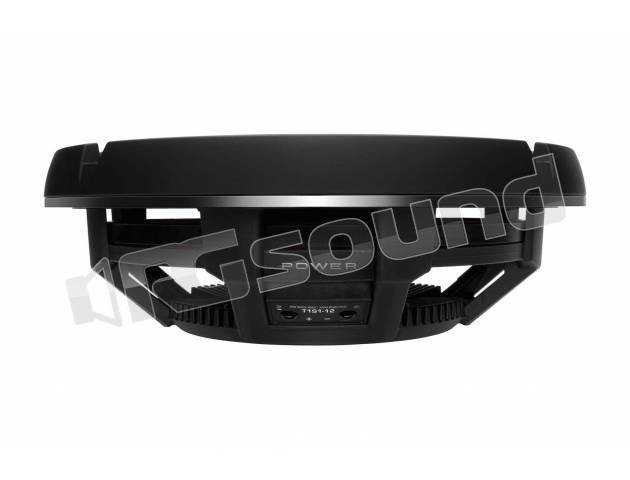

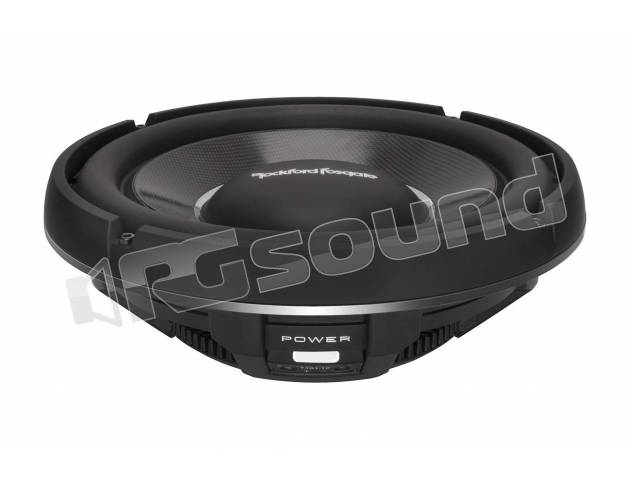

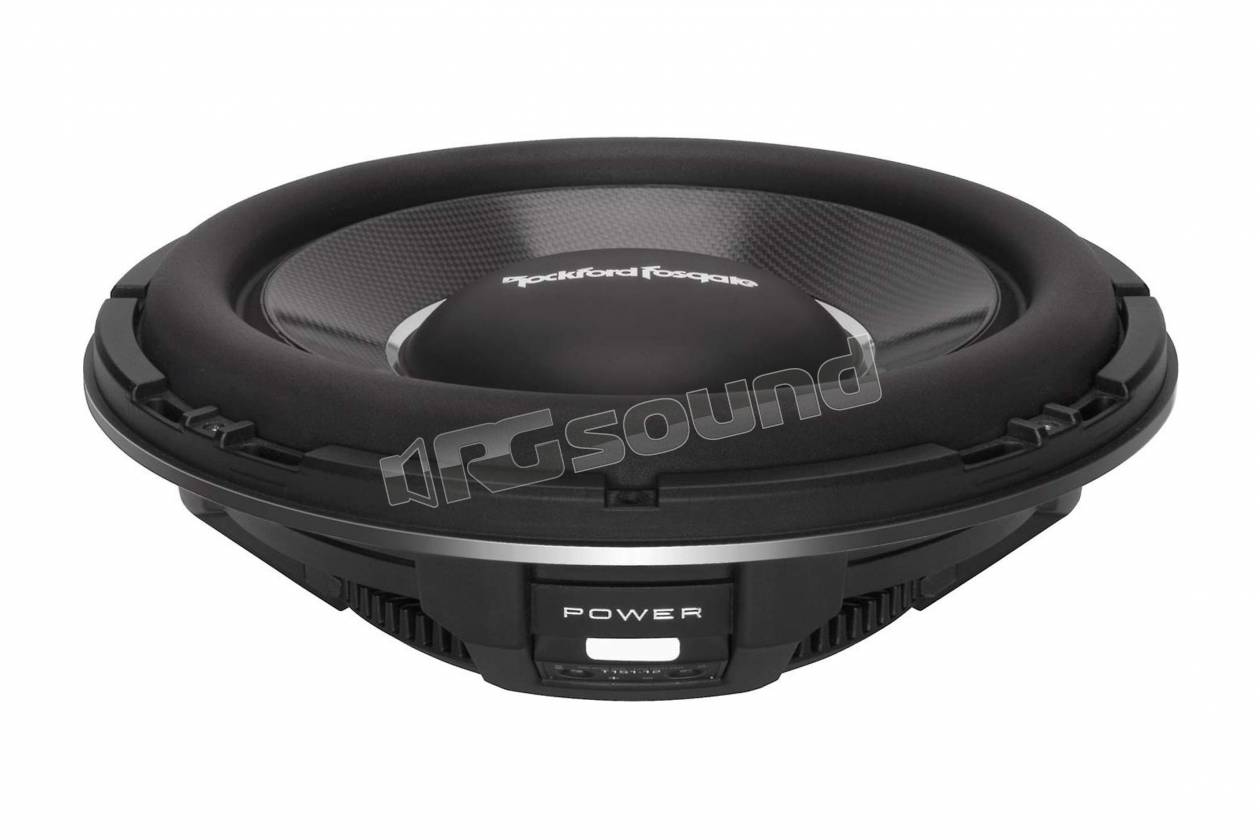

Rockford Fosgate T1S2-12 slim subwoofer 30cm (12") serie Power T1, impedenza 2 Ohm

T1S2-12 è un subwoofer sottile realizzato per essere installato anche in spazi ristretti. Dispone di una sola bobina 2 Ohm per configurazioni di cablaggio semplificato. Nonostante le sue dimensioni compatte il T1S2-12 sprigiona tutta la potenza dei bassi che contraddistingue i subwoofer Rockford Serie Power.

Griglie T1SG-12 vendute separatamente.

Caratteristiche tecniche Rockford Fosgate T1S2-12

Carbon fiber/PMI/glass fiber cone with aluminum dustcap

Injection molded foam surround with VAST™

Dual Nomex progressive spiders with integrated lead wires

Aluminum diecast frame with integrated heat sink fins

Custom insulated push spring 10 AWG terminals

Dual wound 2.5" voice coil with interior/exterior windings

Encapsulating voice coil to former coupling technology (patent pending)

Detachable die cast aluminum trim ring

Vented pole piece

High temp high energy neodymium motor structure

Proprietary split yoke pass thru motor technology (patent pending)

Integrated copper cap heat sinking shorting ring (IDHS)

Optional grille insert available

Optimized for sealed enclosures

Dimensioni: 300mm (12")

Nominal Impedance: 2 Ohm

Power Handling (Watts RMS) :600 Watts

Power Handling: 1200 Watts Max

Voice Coil Diameter:2.98" (75 mm)

Magnet Weight (oz):14.42 oz. (0.41 Kg)

Speaker Connector:10 AWG slot loaded

Fs (Hz): 37

Re (Ohms): 1.7

Le (mH): 0.45

Qms: 11.22

Qes: 1.17

Qts: 1.06

Vas (Liters): 32.4

Sd (cm2): 560

SPL (dB @ 1w/1m): 84

Xmax (mm): 15

Woofer Displacement (in): 0.042 cu. ft. (1.2 Liters)

Cutout Diameter (in): 11.22 in. (285 mm)

Mounting Depth (in): 3.01 in. (76.5 mm)

Shipping Weight: 16.15 Lbs. (7.3 Kg.)
