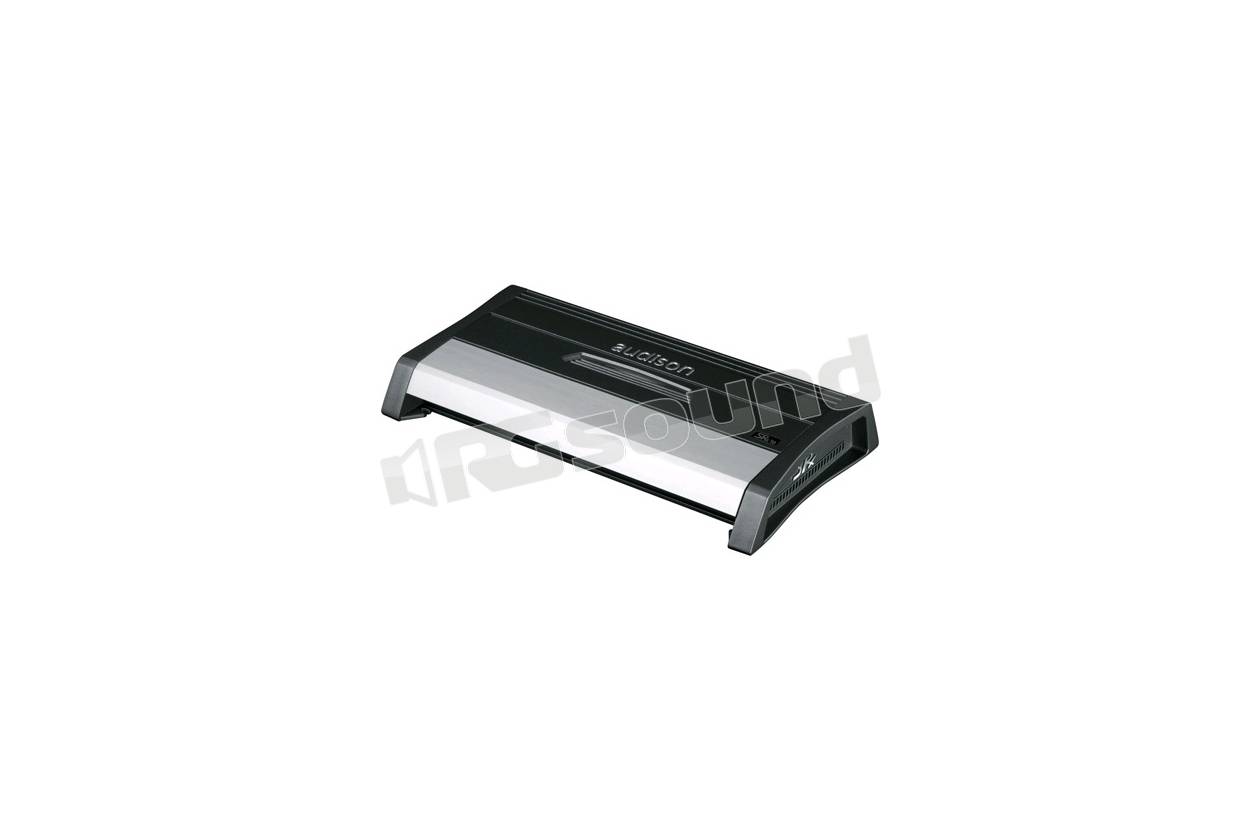

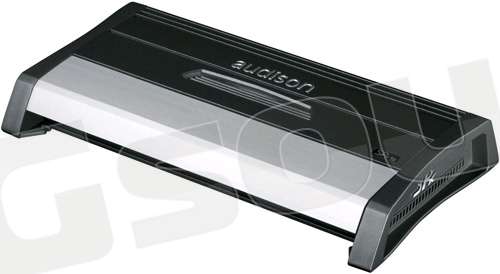

Audison SRX 5

Caratteristiche principali

• Distortion Front ch- THD (1 kHz@4Ω):0.07 %
• Distortion Sub ch- THD (100 kHz@4Ω): 0.03 %
• Bandwidth Front,Rear ch (-3 dB):5 ÷ 50k Hz
• Bandwidth Sub (-3 dB):5 ÷ 500k Hz
• S/N ratio (A weighted@1 V):98 dB
• Damping factor (1 kHz@4Ω): 100
• Damping factor (100 Hz@4Ω): 500
• Pre-In sensitivity:0.3 ÷ 5 V
• Speaker-In sensitivity:1 ÷ 15 V
• Pre-In impedance :15 kΩ
• Speaker-In impedance:100 Ω
• Load impedance (MIN):
  • 3 Ch 4x2 Ω + 1x2 Ω
  • 5 Ch 2x4 Ω + 1x2 Ω
  OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
  • 5 Ch 55W x 4 (4Ω) + 185Wx1 (4Ω)
  • 5 Ch 75W x 4 (2Ω) + 160Wx1 (2Ω)
  • 5 Ch 50W x 4 (4Ω) + 300Wx1 (2Ω)
  • 5 Ch 70W x 4 (2Ω) + 260Wx1 (2Ω)
  • 3 Ch 150W x 2 (4Ω) + 160Wx1 (4Ω)
  • 3 Ch 140W x 2 (4Ω) + 260Wx1 (2Ω)

• Remote In: 7 ÷ 15 VDC (1 mA)
• Remote Out : 12 VDC (15 mA)
• Fuse (AFS): 40 A

• Front Bypass / Hi-pass 50 ÷ 5k Hz @12 dB/Oct.
• Rear Bypass / Hi-pass/ Band Pass 50 ÷ 5k Hz @12 dB/Oct.
• Sub Bypass /Lo Pass 50 ÷ 220 Hz @24 dB/Oct

• BxLxHmm 216x470x56
• Weight (kg/lb): 4,65 / 10.25
