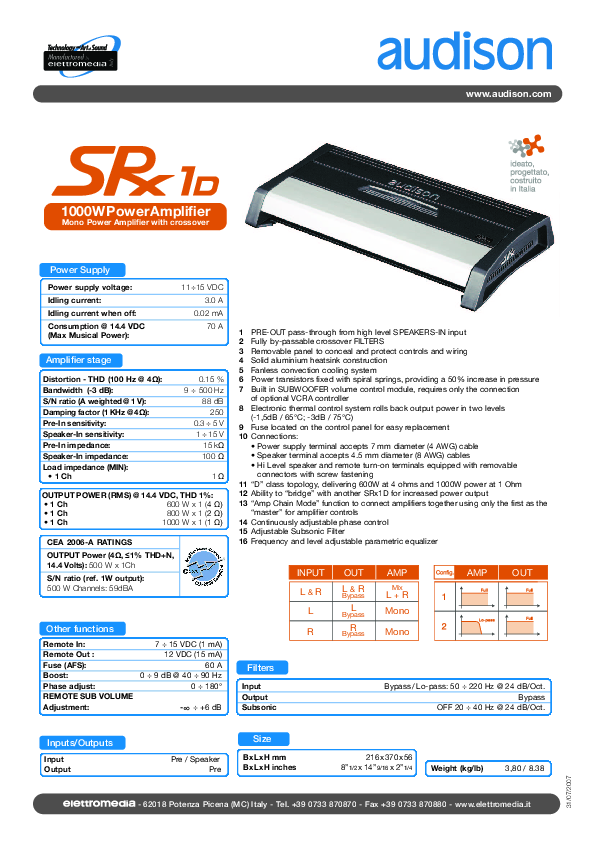

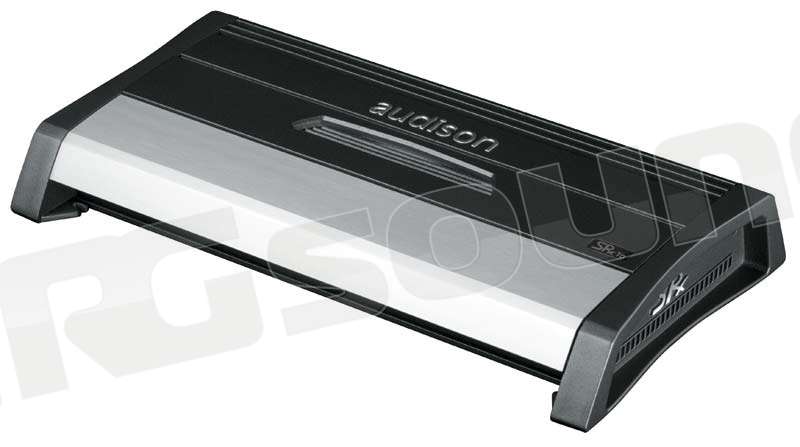

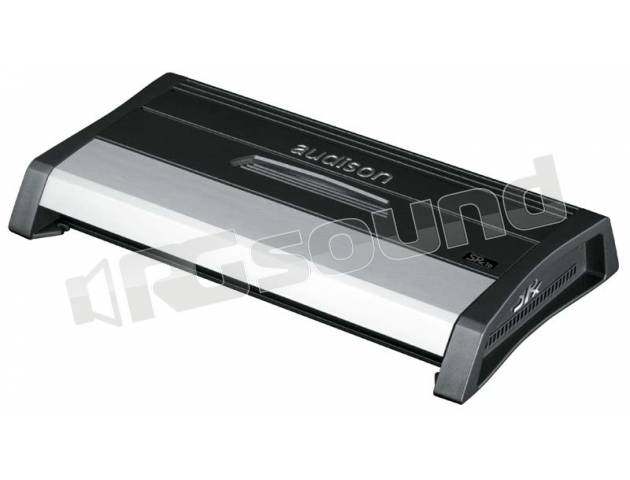

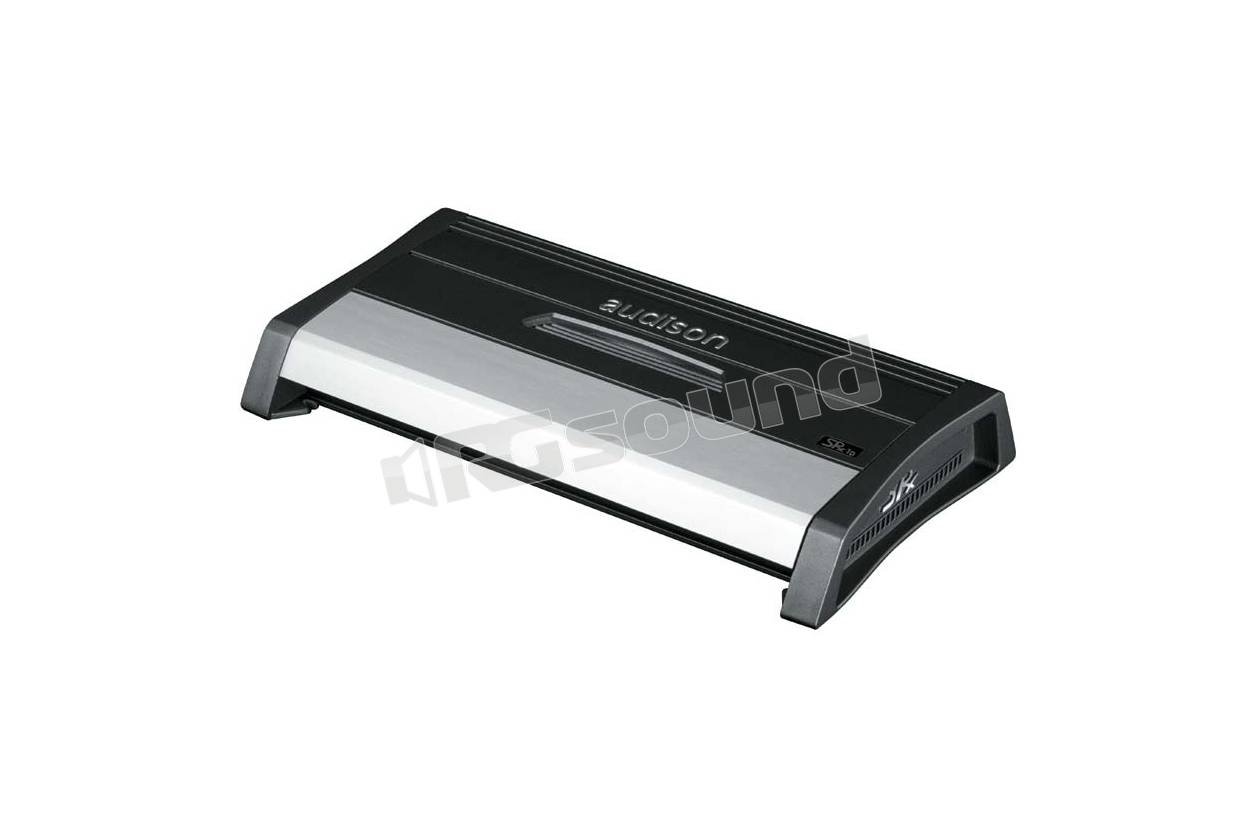

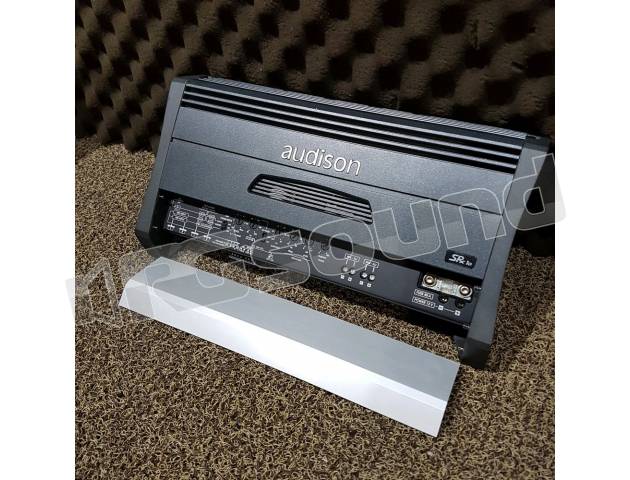

SRX1D amplificatore monofonico in classe D specifico per subwoofer, crossover e filtro subsonico integrato.

wattaggio reale (RMS) @ 14.4 VDC, THD 1%:
• 1 Ch 600 W x 1 (4 Ω)
• 1 Ch 800 W x 1 (2 Ω)
• 1 Ch 1000 W x 1 (1 Ω)


Specifiche:
1 PRE-OUT pass-through from high level SPEAKERS-IN input
2 Fully by-passable crossover FILTERS

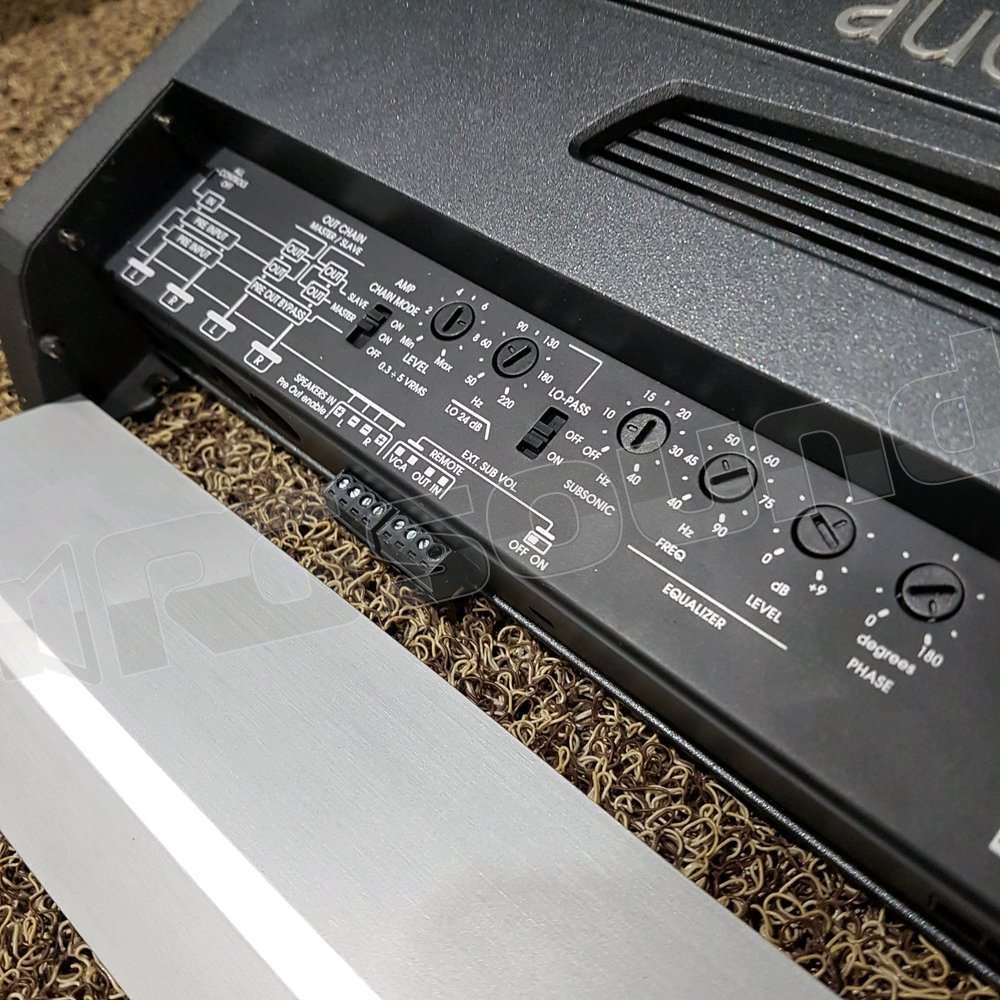

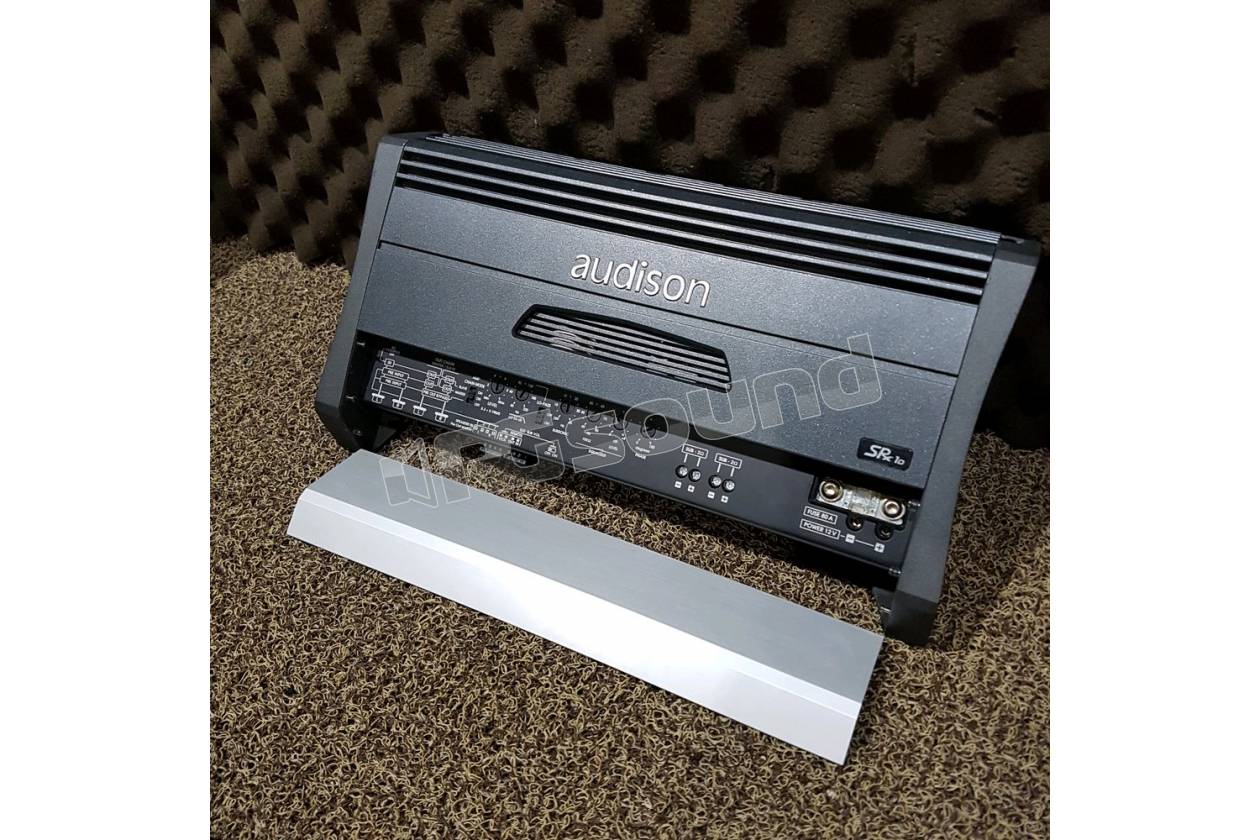

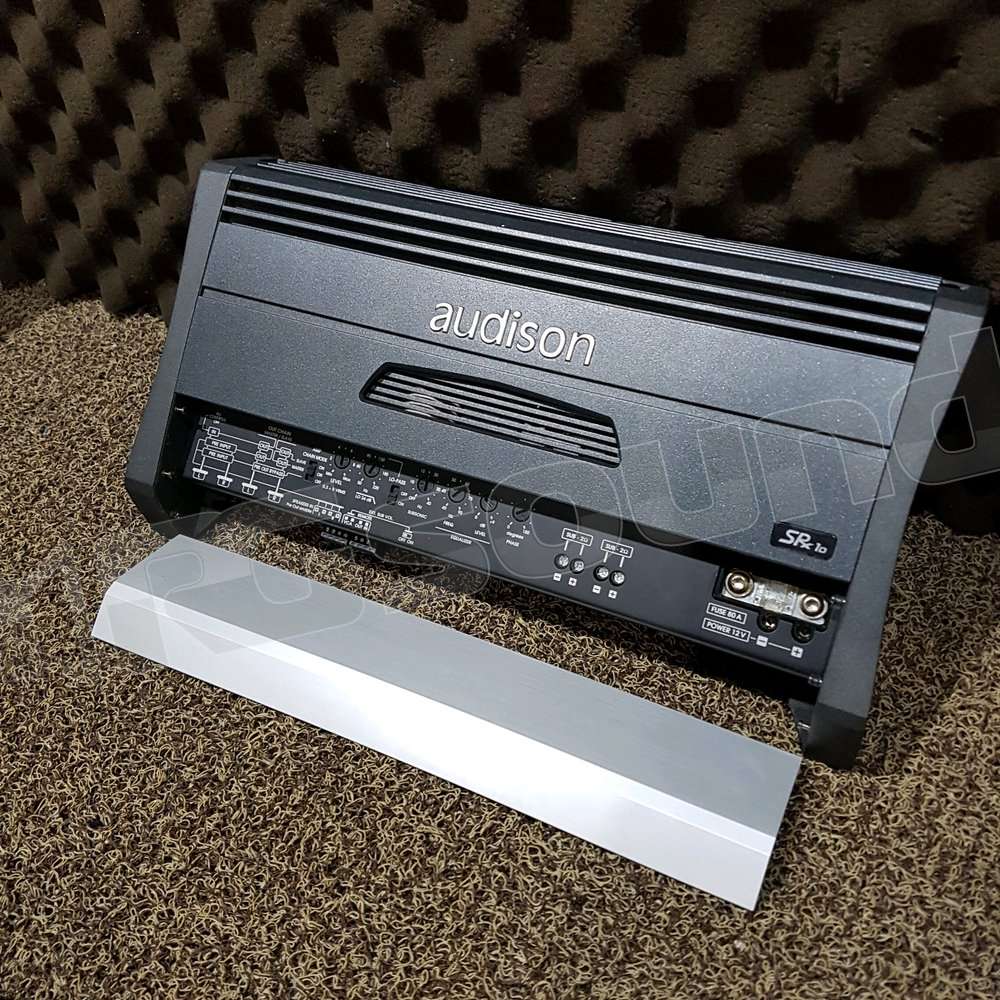

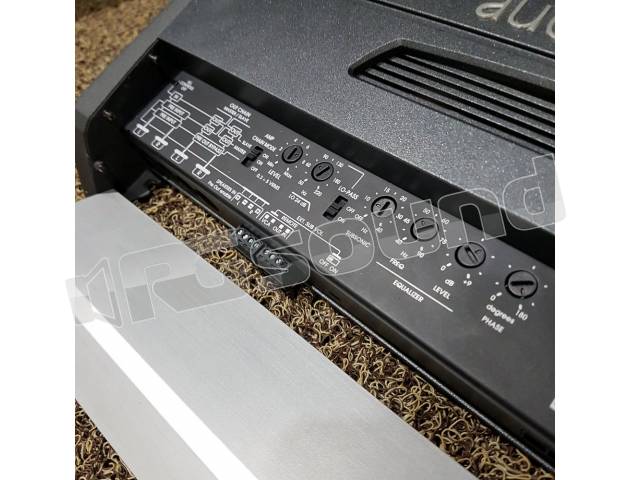

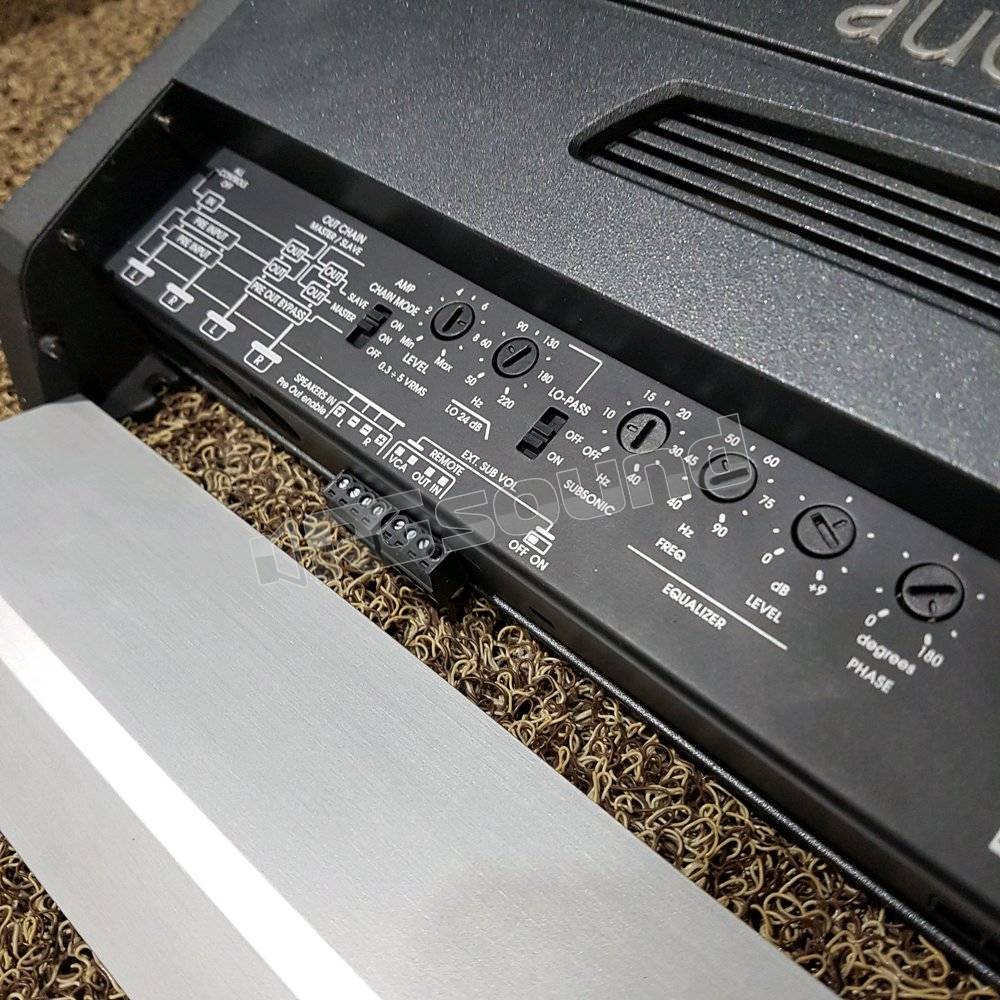

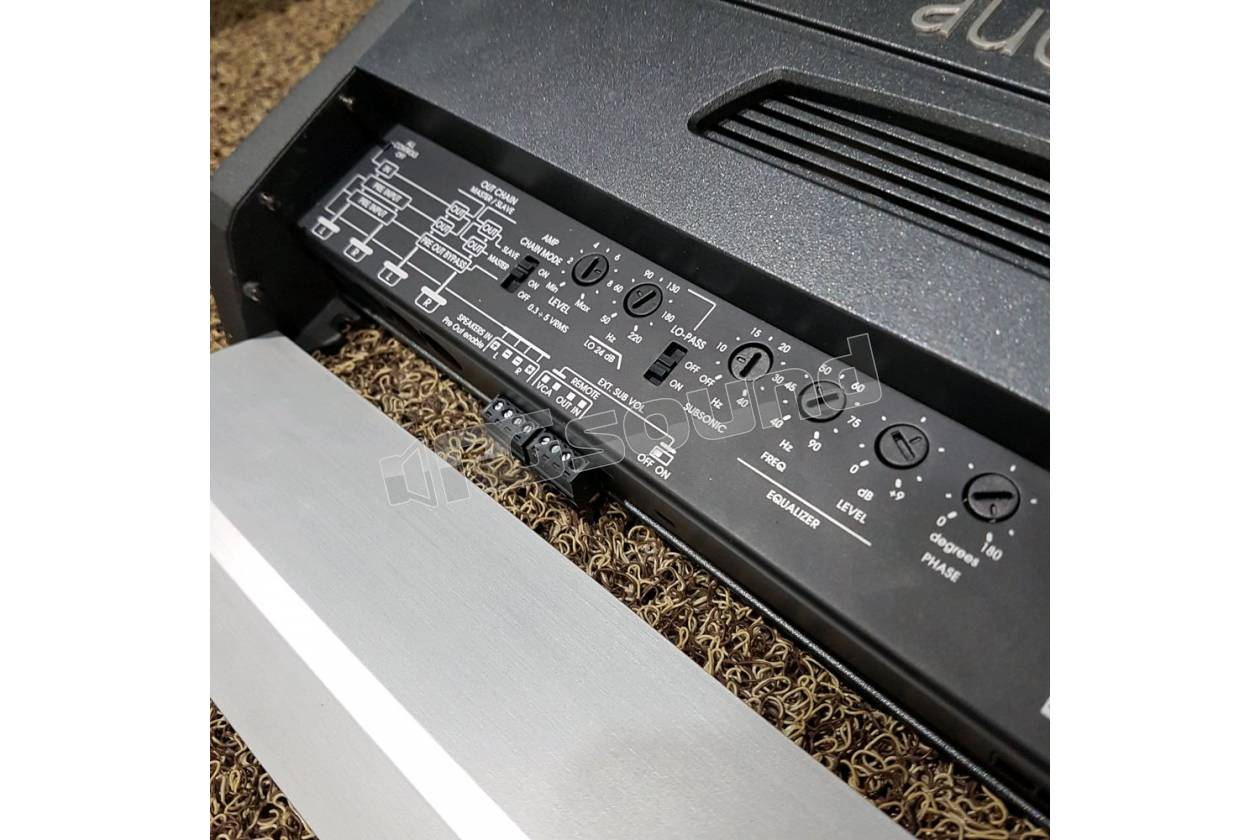

3 Removable panel to conceal and protect controls and wiring
4 Solid aluminium heatsink construction
5 Fanless convection cooling system
6 Power transistors fixed with spiral springs, providing a 50% increase in pressure
7 Built in SUBWOOFER volume control module, requires only the connection of optional VCRA controller
8 Electronic thermal control system rolls back output power in two levels (-1,5dB / 65°C; -3dB / 75°C)
9 Fuse located on the control panel for easy replacement
10 Connections:
• Power supply terminal accepts 7 mm diameter (4 AWG) cable
• Speaker terminal accepts 4.5 mm diameter (8 AWG) cables
• Hi Level speaker and remote turn-on terminals equipped with removable
• connectors with screw fastening
11 “D” class topology, delivering 600W at 4 ohms and 1000W power at 1 Ohm
12 Ability to “bridge” with another SRx1D for increased power output
13 “Amp Chain Mode” function to connect amplifiers together using only the first as the “master” for amplifier controls
14 Continuously adjustable phase control
15 Adjustable Subsonic Filter
16 Frequency and level adjustable parametric equalizer
