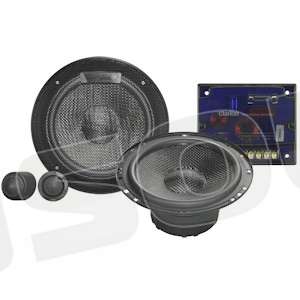

Sistema a 2 vie 165 mm (6 - ½”) serie PLATINUM
Woofer: cono composto in fi bra di titanio metallizzato con sospensione
in gomma, 165 mm.
Tweeter: cupola in seta, con magnete al neodimio, 25 mm.
Potenza di picco: 350W.
Crossover 2 vie in dotazione.
Reproduction system | 2-way Component System |
---|---|
TM-GF/titanium wire composite cone woofer with rubber surround | 165 mm |
Pure soft dome tweeter with neodymium magnet | 25 mm |
2-Way mounting tweeter (flush mounting / surface mounting) | ● |
Custom-Fit Tweeter Bracket Included (for Renault, Peugeot, Citroën) | ● |
High-grade -12dB/oct 2-way crossover network with level attenuator (0 dB, -3 dB) | ● |
Extremely high frequency reproduction | 50 kHz |
Music peak power (W) | 350 |
Continuous power (W) | 55 |
Fs (Hz) | 65 |
Qts | 0.90 |
Vas (Litres) | 10.0 |
Frequency response (Hz) | 25 ~ 50,000 |
Efficiency (dB/W/m) | 91 |
