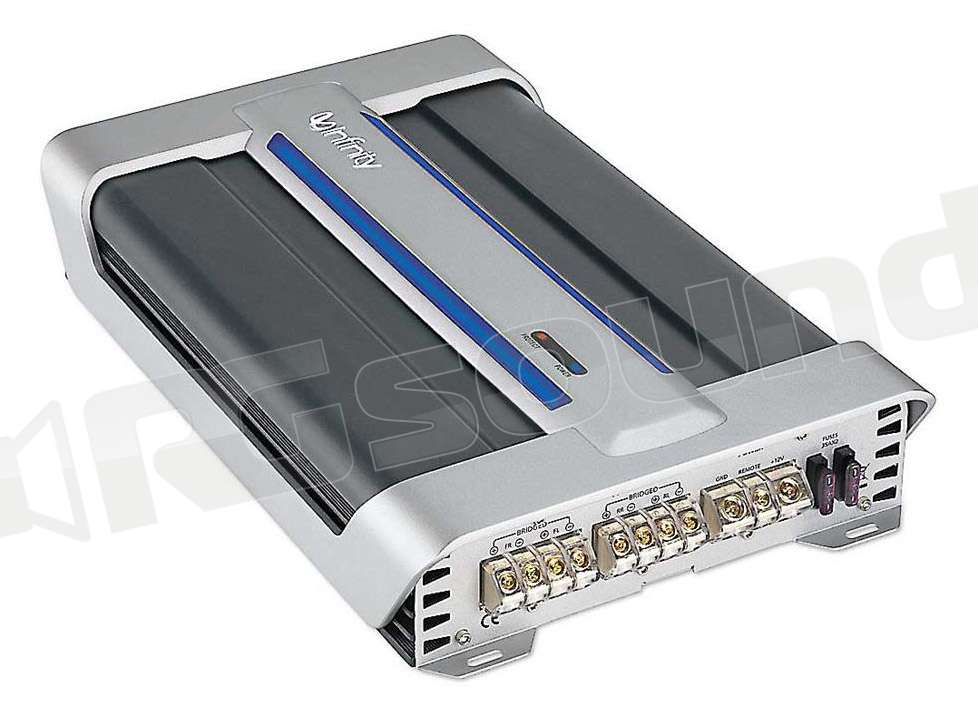

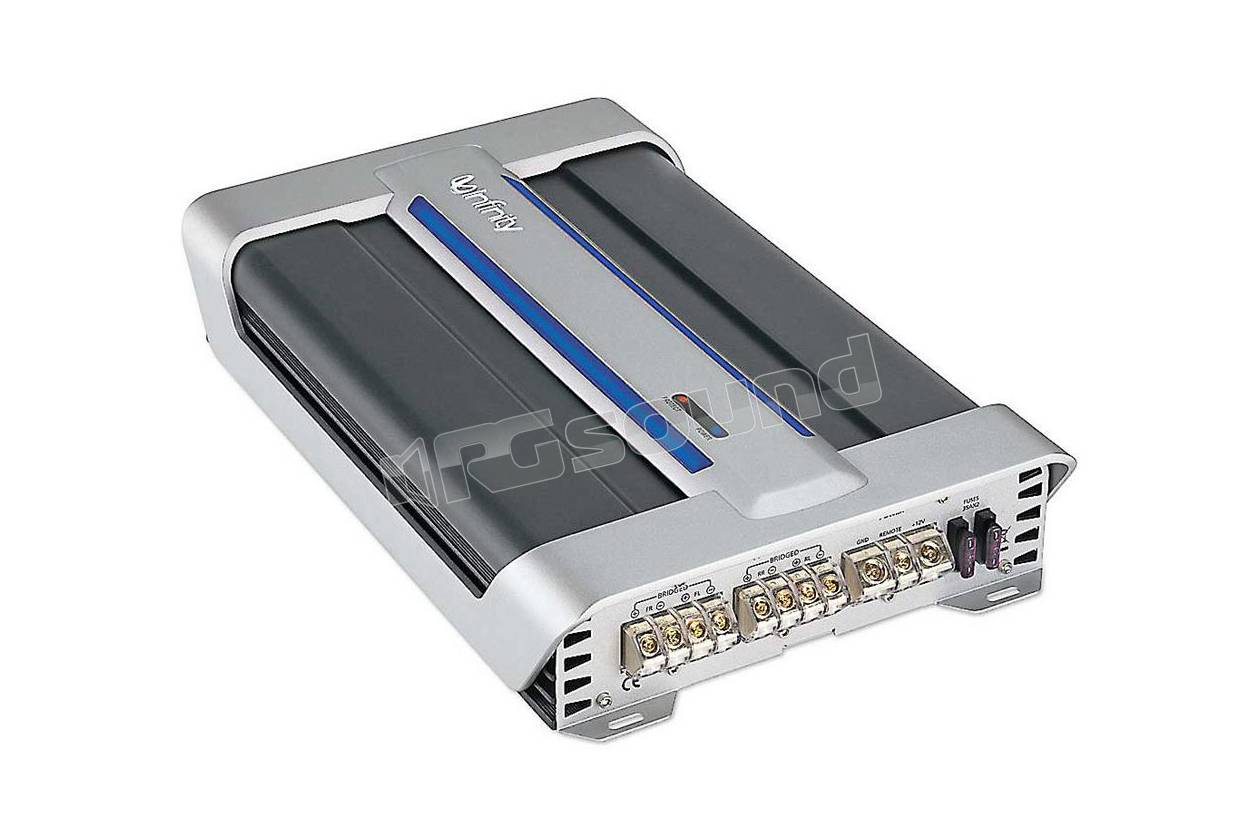

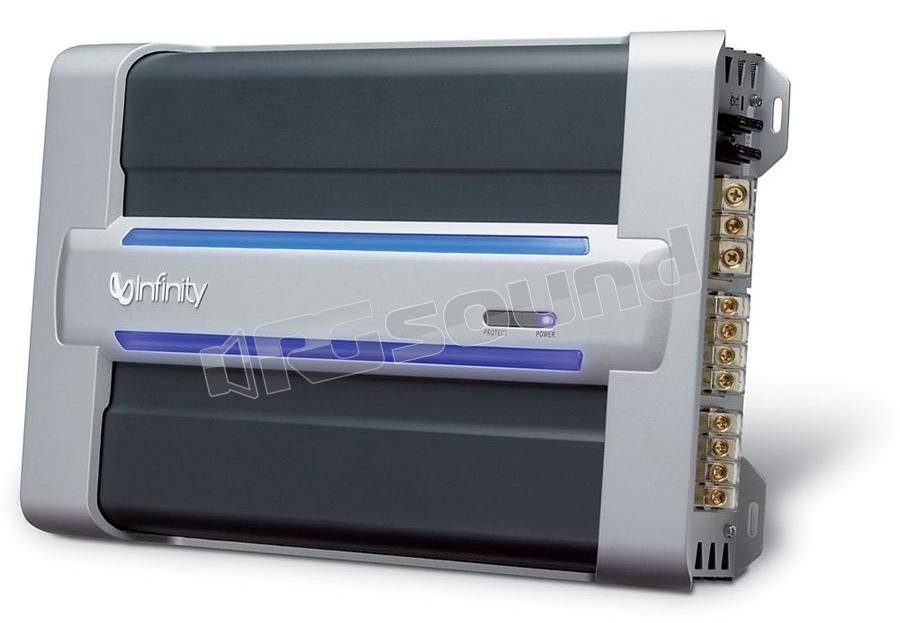

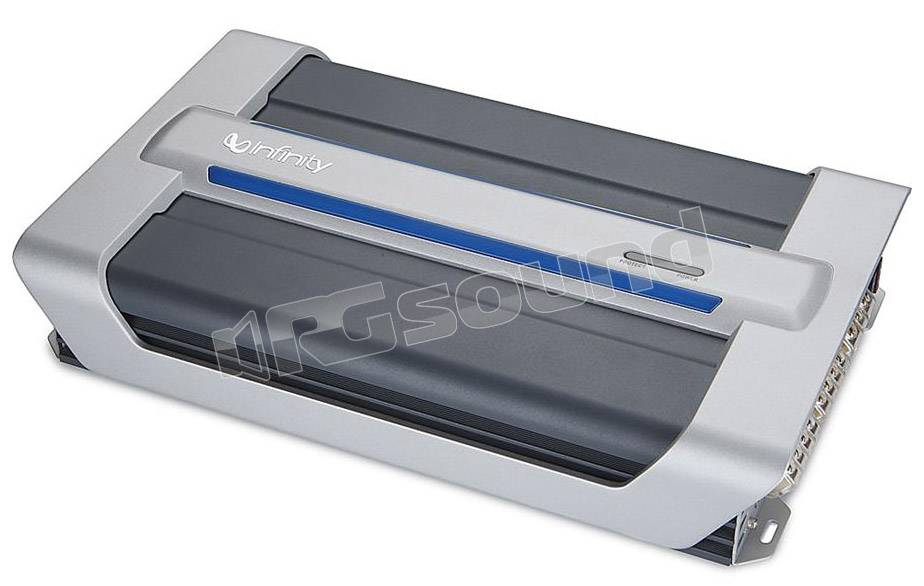

Amplificatore 4 canali in classe AB, 75W RMS x4 @ 4Ohm
CARATTERISTICHE:
Performance | ||
---|---|---|
RMS Power Output (Watts x Channels) | 75 x 4 | |
Peak Power Output (Watts x Channels) | 117 x 4 | |
Power at 2 Ohms (Watts x Channels) | 90 x 4 | |
Bridged Power (Watts x Channels) | 180 x 2 | |
Minimum Impedance Bridged | 4 | |
Minimum Impedance Unbridged | 2 | |
Best Frequency Response | 10-100k Hz | |
THD at Rated RMS Power | 1% | |
Signal to Noise Ratio | 85 dB | |
Input Voltage | 14.4v | |
Features | ||
Amplifier Class | AB | |
Low-Pass Crossover Frequency | 32-320 Hz | |
Low-Pass Slope (dB/octave) | 12 dB | |
High-Pass Crossover Frequency | 32-320 Hz | |
High-Pass Slope (dB/octave) | 12 dB | |
Bass Boost | 0-6 dB | |
Bass Boost Frequency | 50 Hz | |
Fan Cooled | No | |
Fuse Rating | 70 |
