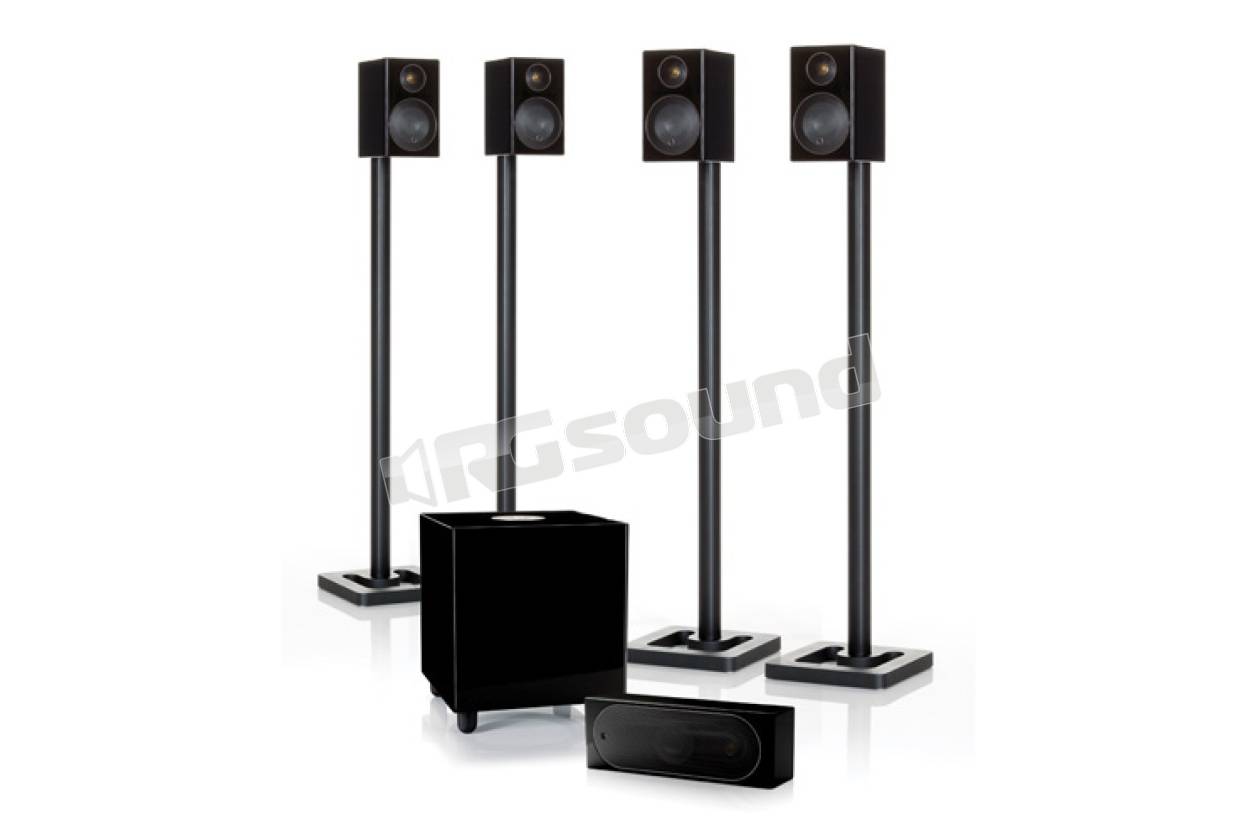

Monitor Audio Radius R90HD10 Kit per home theatre

Monitor Audio RADIUS R90HD10

Kit per Home Theatre
Composto dai seguenti prodotti:
4 x Altoparlanti Satellite: R90HD
1 x Canale Centrale: R180HD
1 x Subwoofer: R370HD



TECNOLOGIA:

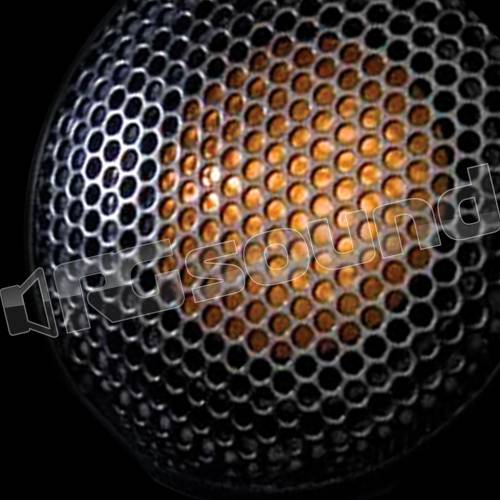

GOLD DOME C-CAM
The gold dome tweeter is formed from a ceramic-coated aluminium/magnesium alloy, gold anodised to a specific thickness for ideal stiffness and damping characteristics. Its new profile and surround geometry have been developed using advanced modelling tools, to provide the optimum qualities for accurate sound reproduction.
The new design moves the first order of breakup to beyond 35kHz, producing a linear response way beyond audibility, which matches the wide frequency bandwidth available from HD music and cinema sound formats.
The gold dome is thinner, lighter, more rigid and therefore more efficient than domes made from other materials which are prone to distortion in the audio band.

MMP II
Metal Matrix Polymer driver cones have a polypropylene base loaded with metallic particles to offer a rigid and responsive structure. They are manufactured using a sophisticated high-pressure injection process, which modulates cone thickness at critical points to optimise stiffness and consistency, resulting in a superior sonic performance.


ARC
Anti-Resonance Composite
Having various applications within a number of our speaker ranges, this high-tech Anti-Resonance Composite material is a thermo-set polymer loaded with minerals to provide very inert, optimally-damped components.
Refined by Monitor Audio’s engineers initially for the Platinum series, ARC is ideal for acoustic design, where a high degree of structural rigidity and vibration damping is required in order to prevent the propagation of standing waves and modal resonances.

C-CAM drivers
Ceramic-Coated Aluminium/Magnesium is a material originally developed by the aerospace industry for jet engine components.
Its properties are ideal for loudspeaker cones being extremely rigid, yet light enough to yield high overall efficiency. In manufacture, aluminium/magnesium alloy undergoes a three-stage stress-relieving process to remove surface deformation and molecular weakness.
Once formed, the alloy cone is subjected to a high temperature anodic coating process in which a layer of pure ceramic alumina is depleted onto its surfaces to a depth of 50 microns, producing a completely rigid sandwich of alloy and heat-dissipating ceramic material.
Conventional cones are liable to flex or twist in operation, producing a significant level of audible distortion.
C-CAM cones have a much higher resistance to bending stress and therefore exhibit much greater fidelity over their entire operating range.
C-CAM tweeters and woofers share an audible consistency producing a smooth transition of frequencies and a sense of realism and cohesion in the soundstage.
