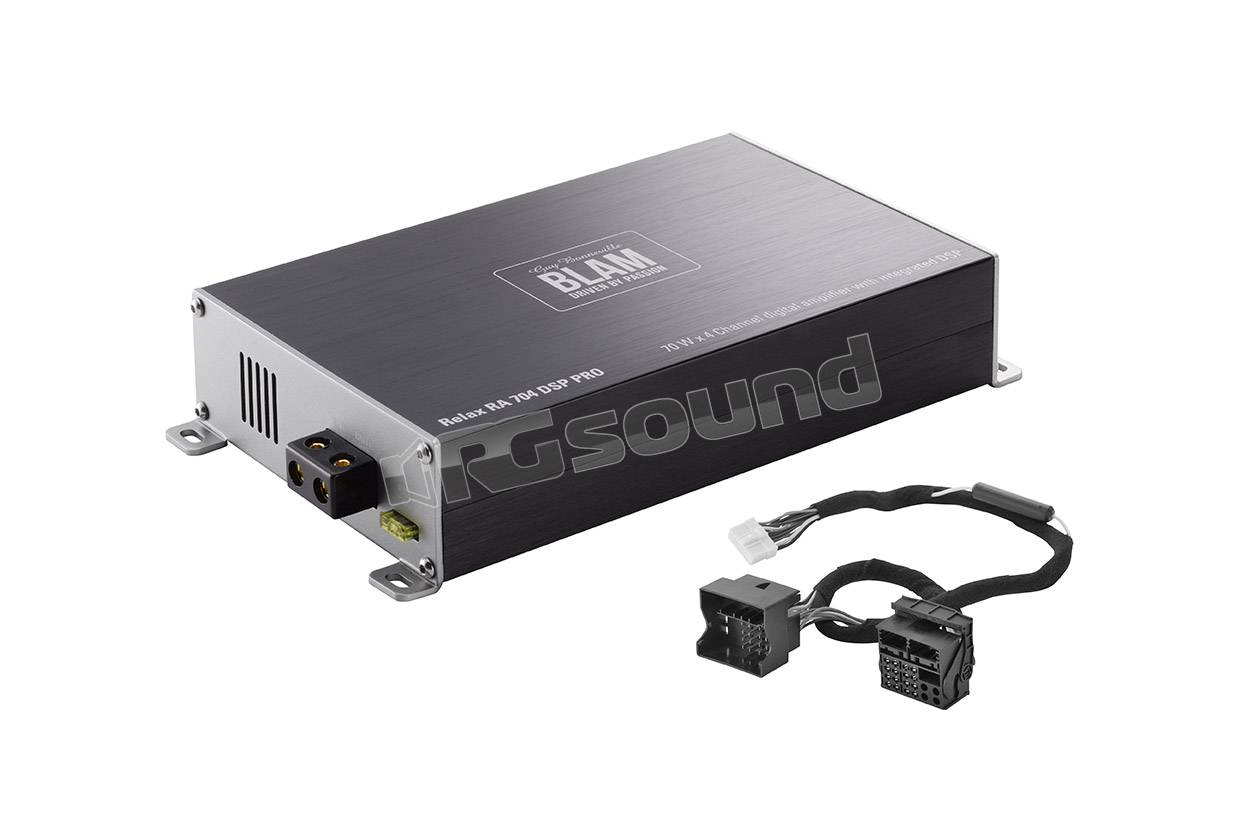

4-CHANNEL PLUG & PLAY AMPLIFIER WITH INTEGRATED DSP

Plug and play installation in the car without cutting original wires (different cables available). Delivered with cables.

RMS Power (4 Ohms) when powered directly from Battery 70 W x 4

RMS Power (4 Ohms) when powered from OEM Wires 50 W x 4

Frequency response: 20 Hz ~ 20 KHz

Distortion: 1 KHz < 0.1%

Supply voltage range: 9 V – 15 V

Signal/Noise ratio: > 90 dB

Standby current: < 0.4 mA

Class-D amp efficiency: 95%+

Maximum operating current: 30 A

Dimensions (L x W x H): 184 x 114 x 38 mm

COMMON DSP FEATURES
Sigma DSP 28-/56-bit 50 MIPS digital audio processor 24-bit stereo audio ADC and DAC: >98 dB SNR Sampling rates 96 kHz

704 DSP PRO
Bluetooth connection and control of DSP settings via Android and Iphone apps
Time alignment adjustable from 0 up to 2.30 m for each speaker – 7 bands Parametric EQ for front and rear speakers – Fully customizable crossover from 0 to 24dB / octave on all outputs – 6 RCA outputs for connecting additional amplifiers including 2 fully cofigurable for subwoofers – 5 favourites settings memorized in the amplifier – Unlimited setting memorised in the phone – 3D Surround Sound – Adjusting the bass independent – Setting the phase and the activation of each channel.
