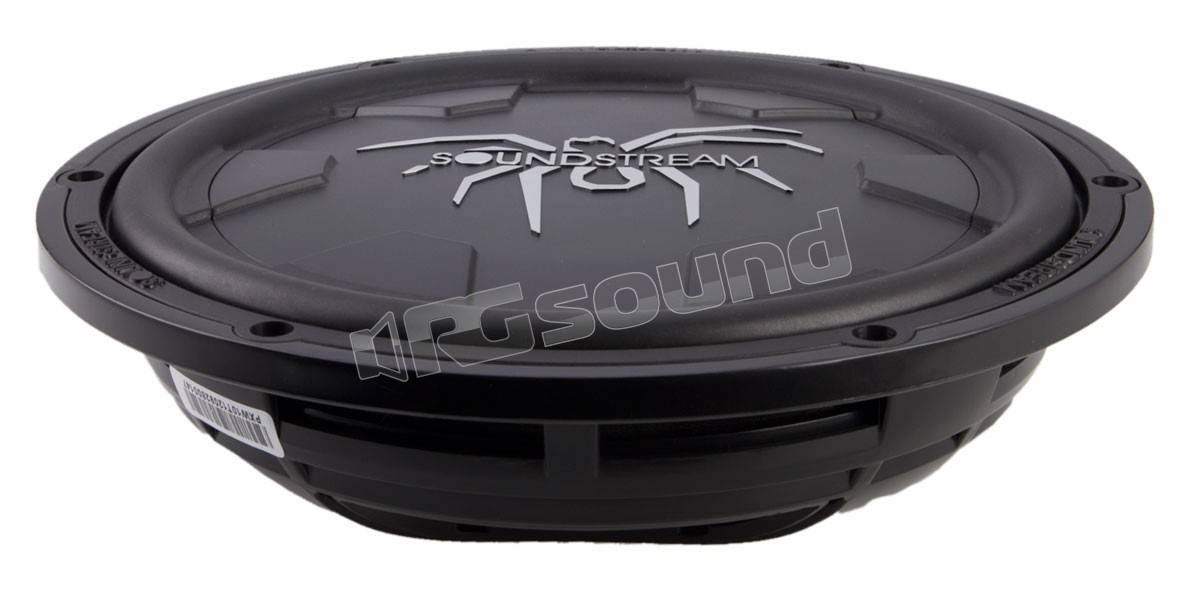

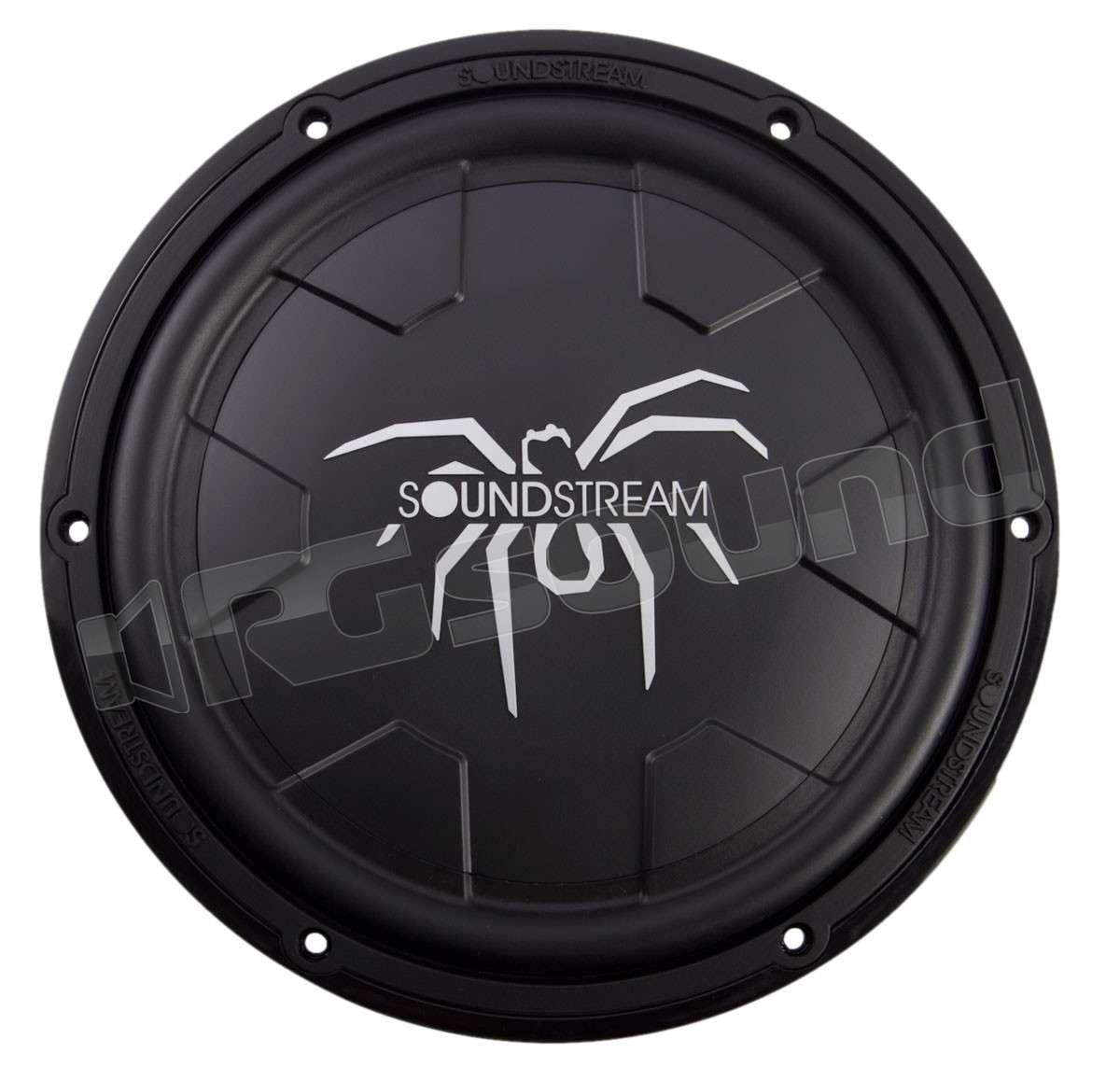

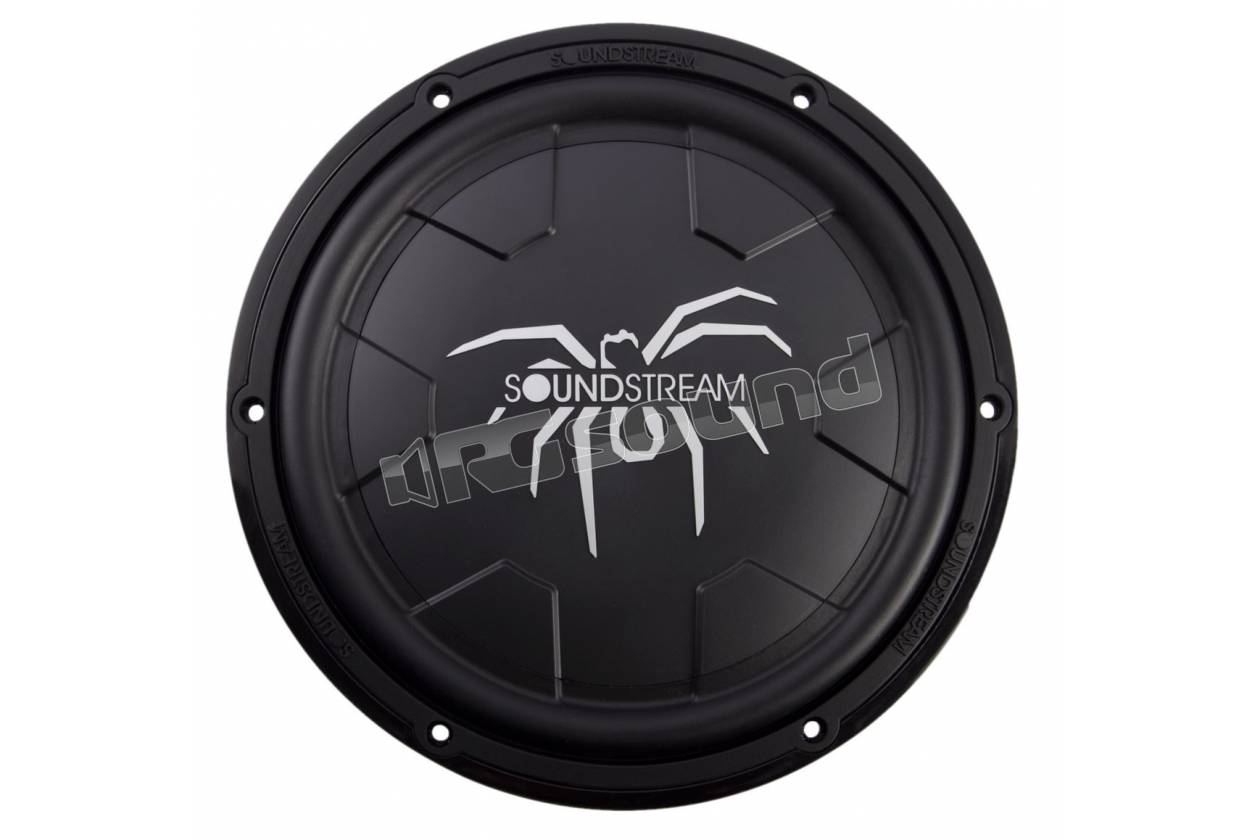

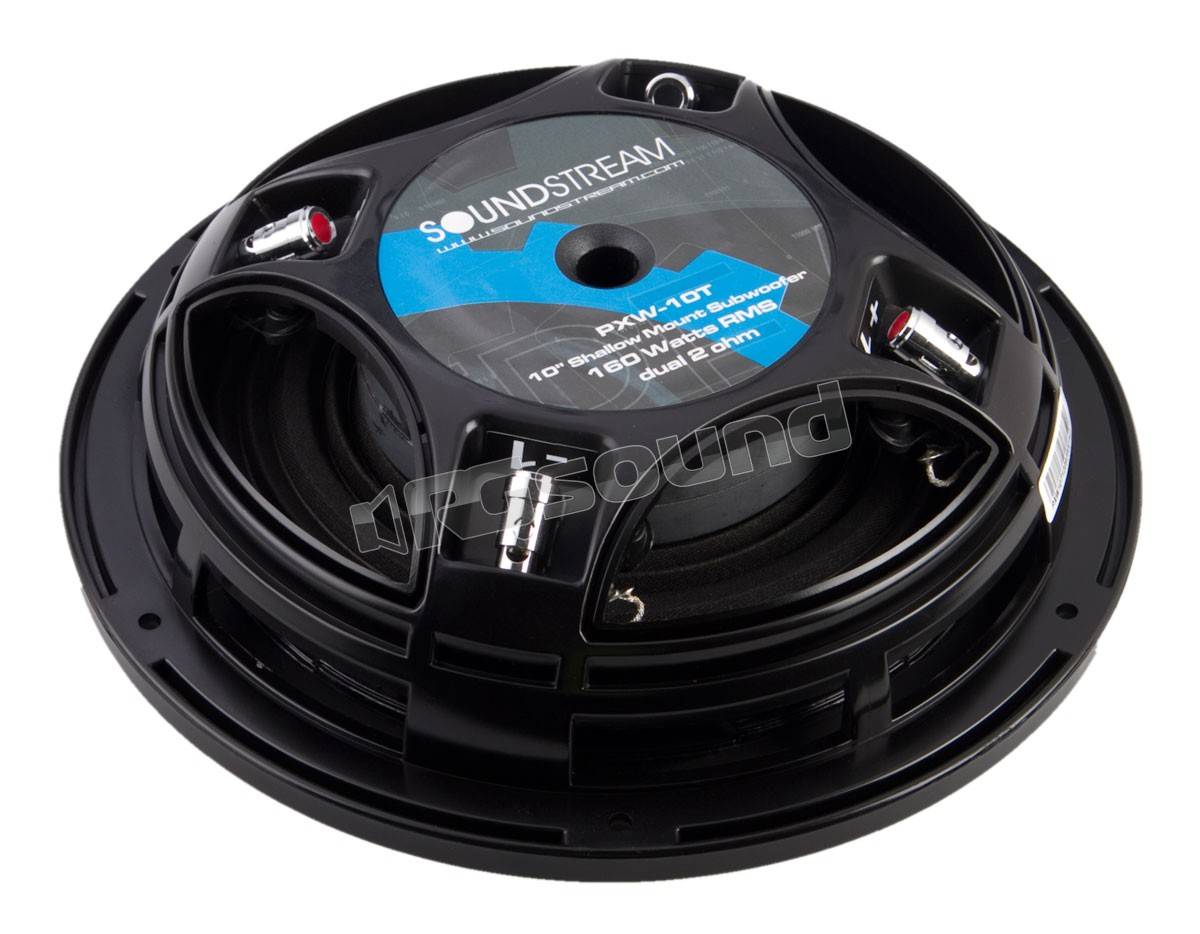

PXW-10T subwoofer piatto 250mm Soundstream serie PICASSO - Potenza 160W
SPECIFICHE PXW-10T
Soundstream | PXW-10T |
---|---|
Fs (hz) | 39.63 |
Qms | 5.143 |
Vas (ft^3) | 1.118 |
Cms (mm/n) | 114.400 |
Mms (g) | 5.5 |
Dia (in.) | 8.858 |
Sd (in^2) | 62.63 |
Qes | 0.677 |
Re (ohms) | 3.6 |
Z (ohms) | 4 |
BL | 12.31 |
Pe (watts) | 160 |
Qts | 0.598 |
No | 0.281 |
1w/1m SPL | 86.51 |
VC (Ohms) | DVC2 |
High Tuning | |
---|---|
Sm Sealed | 0.50 ft³ |
Qtc | 0.958 |
F3 | 59.52 |
Med Sealed | 0.75 ft³ |
Qtc | 0.837 |
F3 | 55.11 |
Lg Sealed | 1.00 ft³ |
Qtc | 0.772 |
F3 | 53.45 |
Low Tuning | |
---|---|
Sm Vented | 1.00 ft³ |
port | 3"x12" |
Fb | 40.04 |
F3 | 39.51 |
Med Vented | 1.25 ft³ |
port | 3"x12" |
Fb | 35.23 |
F3 | 34.87 |
Lg Vented | 1.50 ft³ |
port | 3"x12" |
Fb | 31.82 |
F3 | 31.62 |
