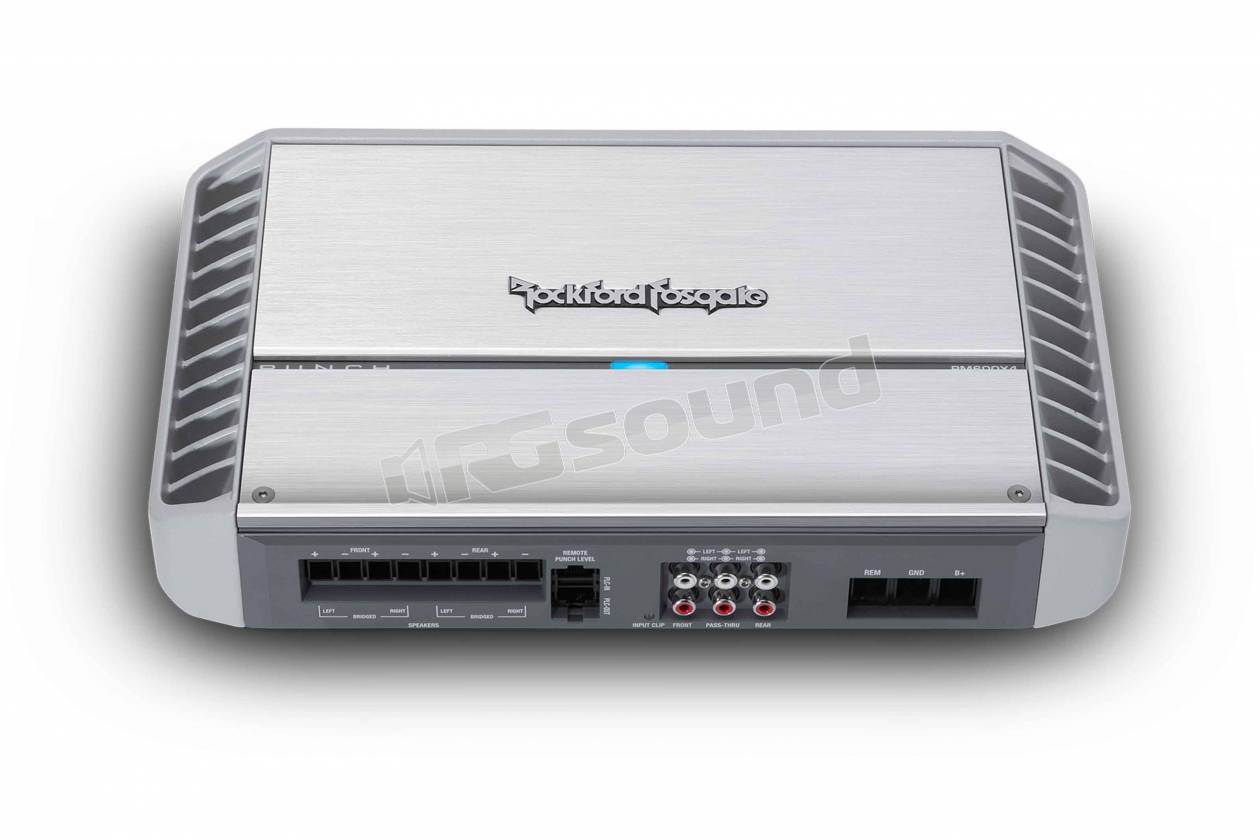

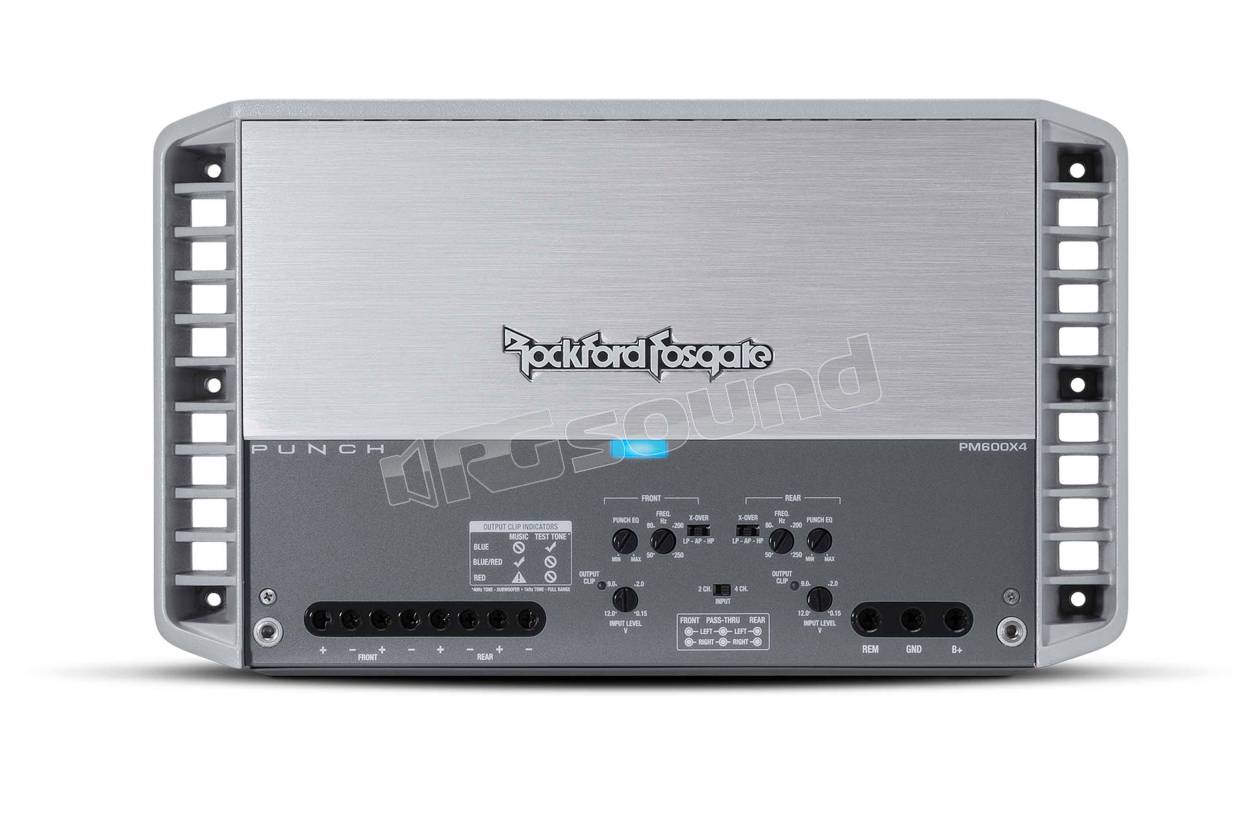

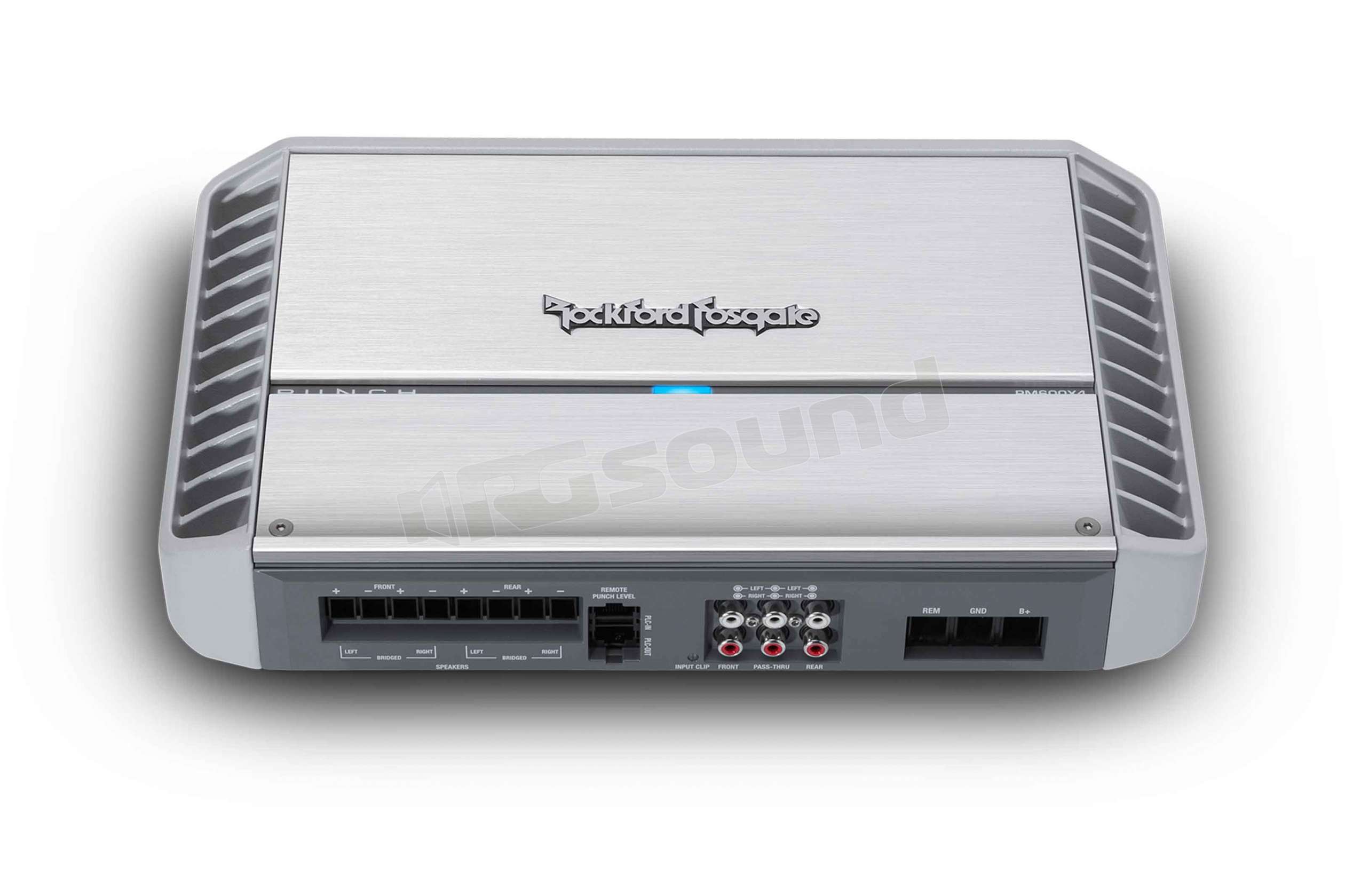

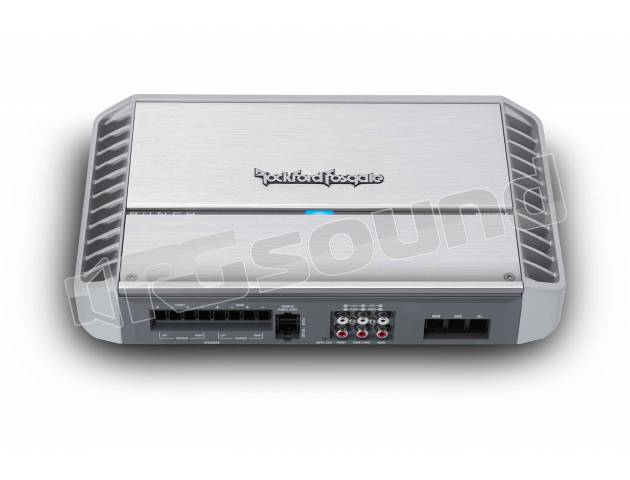

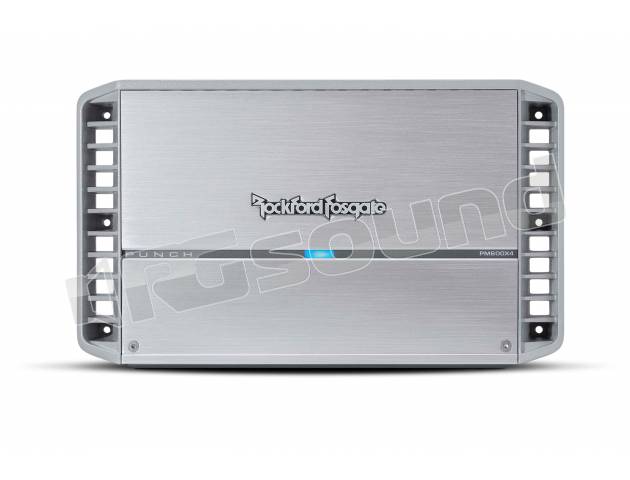

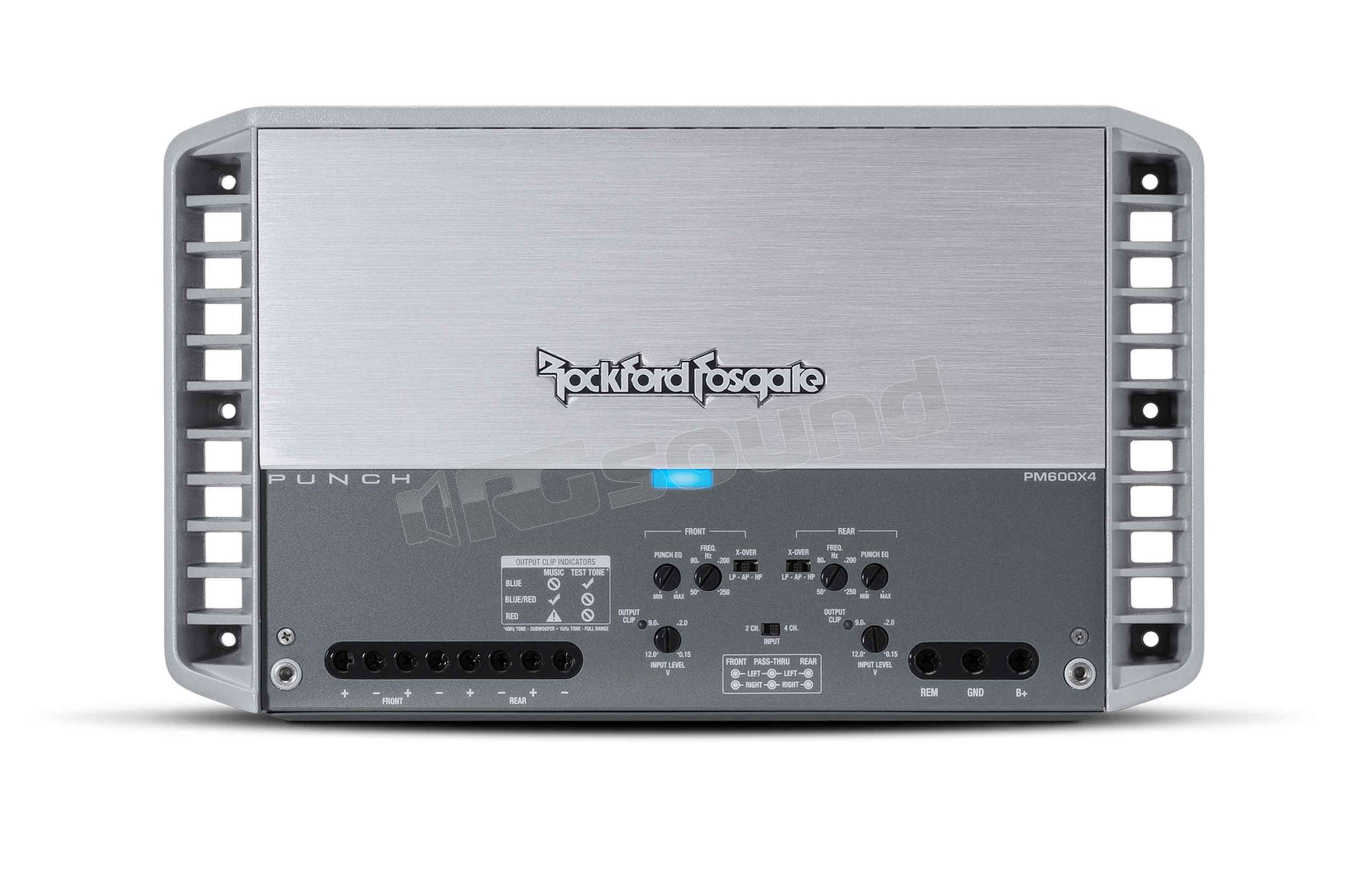

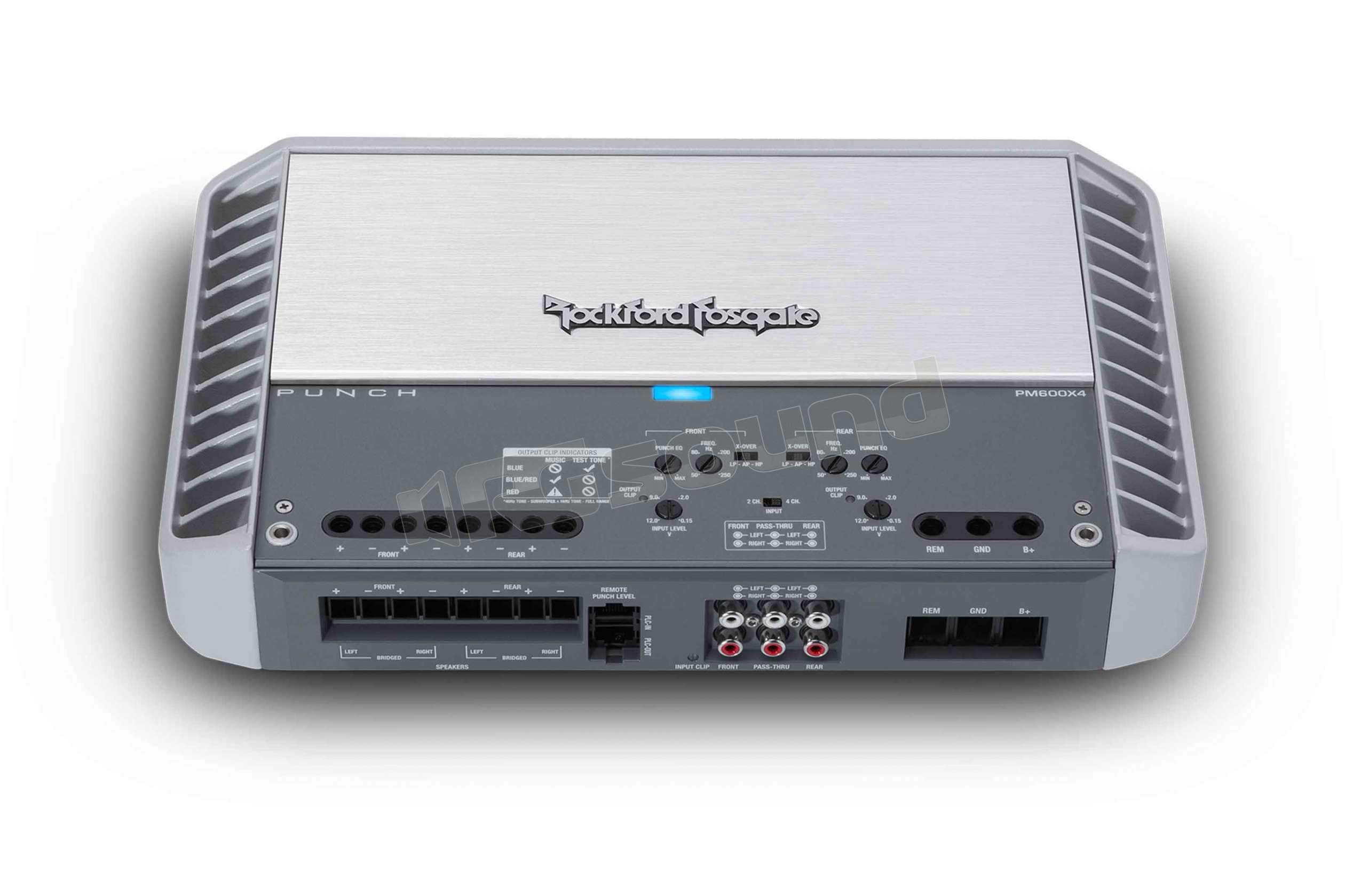

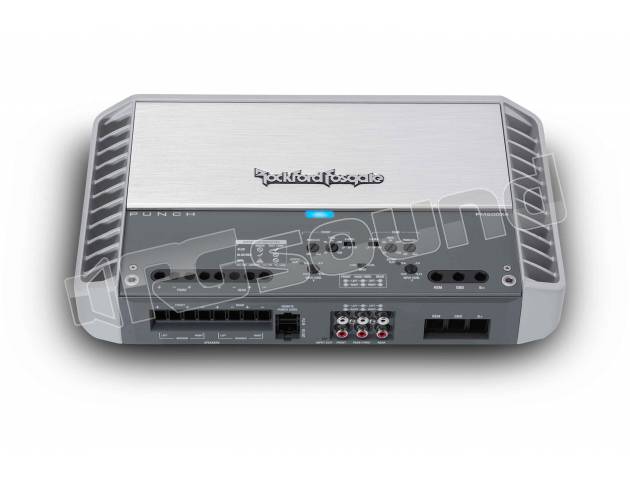

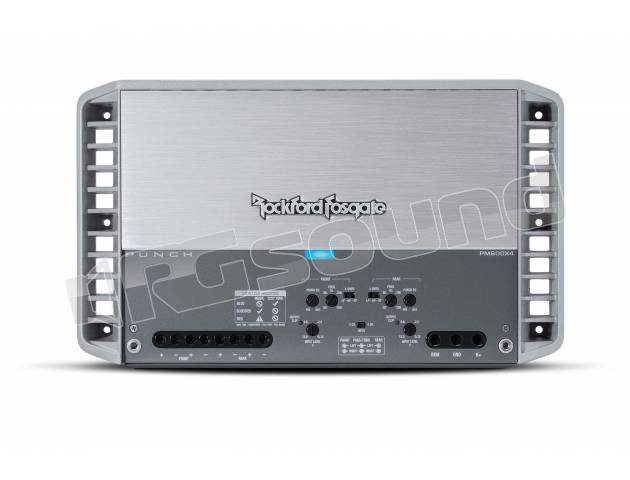

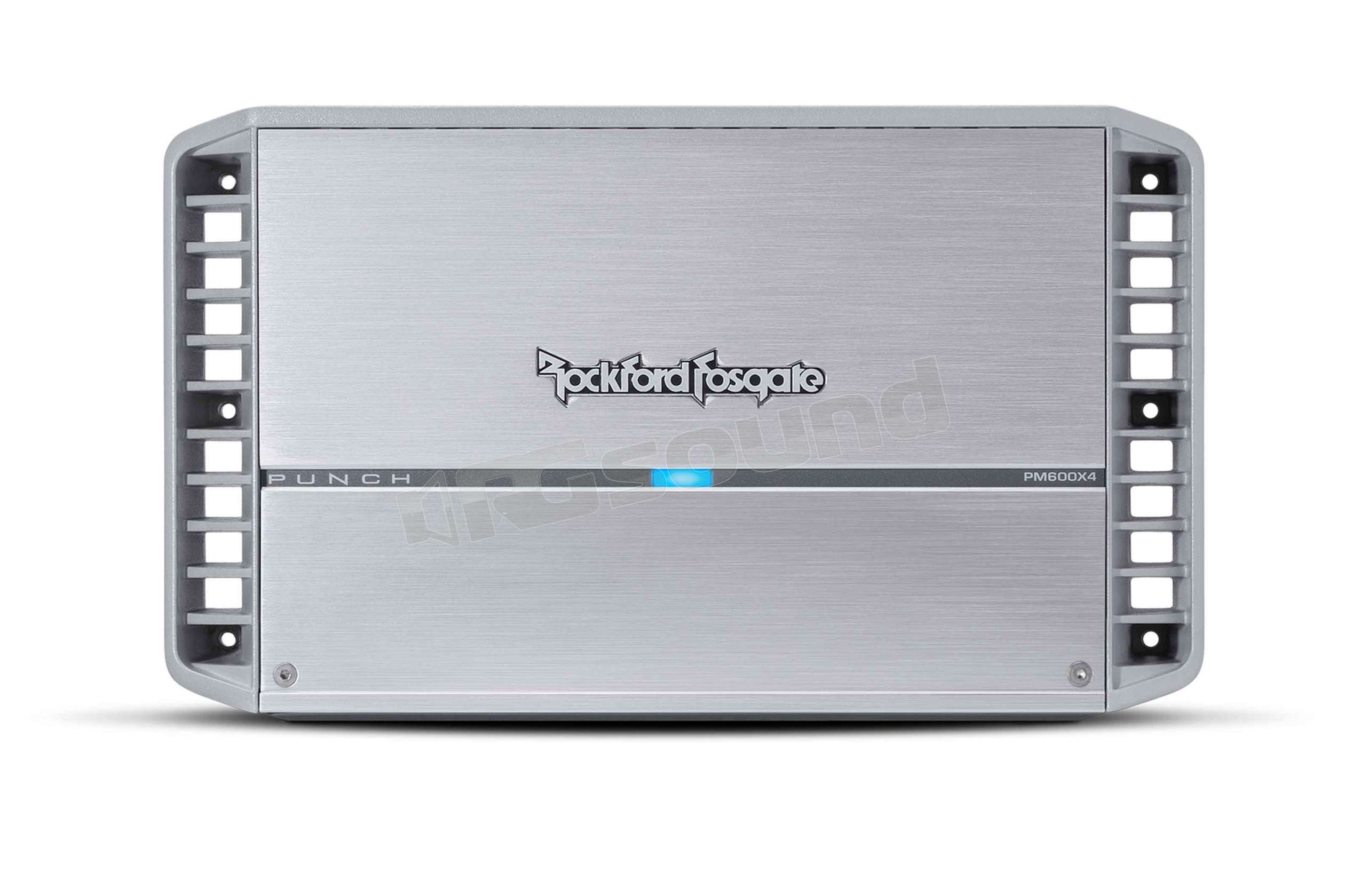

Rockford Fosgate PM600X4 amplificatore versatile a 4 canali

Rockford Fosgate PM600X4 amplificatore a quattro canali serie Punch, versatile e indicato per alimentare qualsiasi configurazione del sistema audio

Oltre alla modalità stereo a 4 canali, è possibile collegare entrambi i canali per creare un amplificatore a 2 canali ad alta potenza o far funzionare altoparlanti stereo nella parte anteriore con subwoofer nella parte posteriore in modalità a 3 canali. I crossover HP / LP variabile e l'EQ Punch integrato consentono un'accurata regolazione delle frequenze dei bassi e le prese Pass-Thru RCA forniscono flessibilità con la crescita del sistema riducendo al minimo gli adattatori a Y.

Input Sensitivity 150 mV - 12 V

Recommended Fuse (not included) 100 A

Average Current Draw (13.8V Music) 45 A

Efficiency (average) 68% @ 4-Ohm

Dynamic Power (PVC/PowerCube®):

- 129 Watts x 4 @ 4-Ohms 0° Res
- 211 Watts x 4 @ 2-Ohms 0° Res

CEA-2006 Compliant

CEA-2006 Power Rating 75W x 4 @ 4? ≤1.0% THD+N

Shipping Weight 12.8 Lbs. (5.80 Kg.)

Suggested Alternator 75 A

Crossover Controls:

- Front/Rear High-Pass (HP): 50Hz-250Hz @ 12dB/octave Butterworth
- Front/Rear Low-Pass (HP): 50Hz-250Hz 12dB/octave Butterworth
- All-Pass: Yes

Number of Channels 4

Operating Voltage 9 - 16 VDC

Max. Current Draw (13.8V Sinewave) 90 A

Total Harmonic Distortion (THD+Noise) 4-Ohm: <1.0% / 2-Ohm: <1.0%

Rated Power (RMS Continuous Power):

- 75 Watts x 4 @ 4-Ohm
- 150 Watts x 4 @ 2-Ohm
- 300 Watts x 2 @ 4-Ohm Bridged

Total Power (Sum of Rated Power) 600 Watts

Bridgeable

Tone Controls:

- Front Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
- Front Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
- Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
- Rear Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
- Function depends upon LP/AP/HP switch position

Signal Input Hi/Low level: 2 RCA pair

Signal Output Low level: 1 RCA pair

Power Input Connector Captive C-Clamp

Power Wire Gauge 4 AWG

Speaker Output Connector Captive C-Clamp

Speaker Wire Gauge 8 AWG to 18 AWG

Heat Sink Type Cast aluminum

Cooling Convection

Optional Punch Remote Level Control (PLC2)

Visual Indicators:

- Power/Protect/Thermal LED
- Input Clip LED3
- Output Clip LED1,2,3

LED Color Legend:
- 1BLUE: <0.5% THD
- 2VIOLET: 1% THD
- 3RED: 10%+ THD

Circuit Topology Class Class A/B

Frequency Response 20Hz to 20kHz +/- 1.0dB

Dimensions (H x W x D) 6.05 x 19.71 x 33.73 (cm)
