Rockford Fosgate PM1000X5 amplificatore 5 canali con filtri attivi per sistema audio completo

Rockford Fosgate PM1000X5 amplificatore marino full-range 5 canali, Classe AB / BD, potenza 1.000 Watt

PM1000X5 è un amplificatore a 5 canali, dedicato per la nautica, con alta potenza dinamica e l'uso della tecnologia AB per i canali frontali/posteriori, mentre il canale subwoofer utilizza la Classe BD.

Realizzato per l'ambiente nautico, il PM1000X5 è conforme agli standard di resistenza agli ambienti marini.

Caratteristiche PM1000X5:

Ingresso ad alto livello con Auto Turn-On
Setup C.L.E.A.N.
Controllo remoto opzionale Punch Level Control (PLC2)
Cossover Butterworth 12dB/ottava
EQ Punch con + 18dB spinta @ 45Hz.
Muted turn on
Dissipatore in alluminio pressofuso
Protezione contro i cortocircuiti
Protezione sovraccarico corrente
Filtro Infrasonic
Interruttore di ingresso 2/4 canali

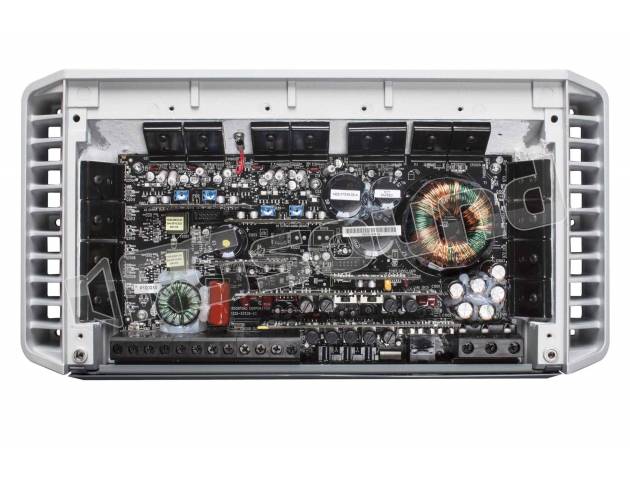

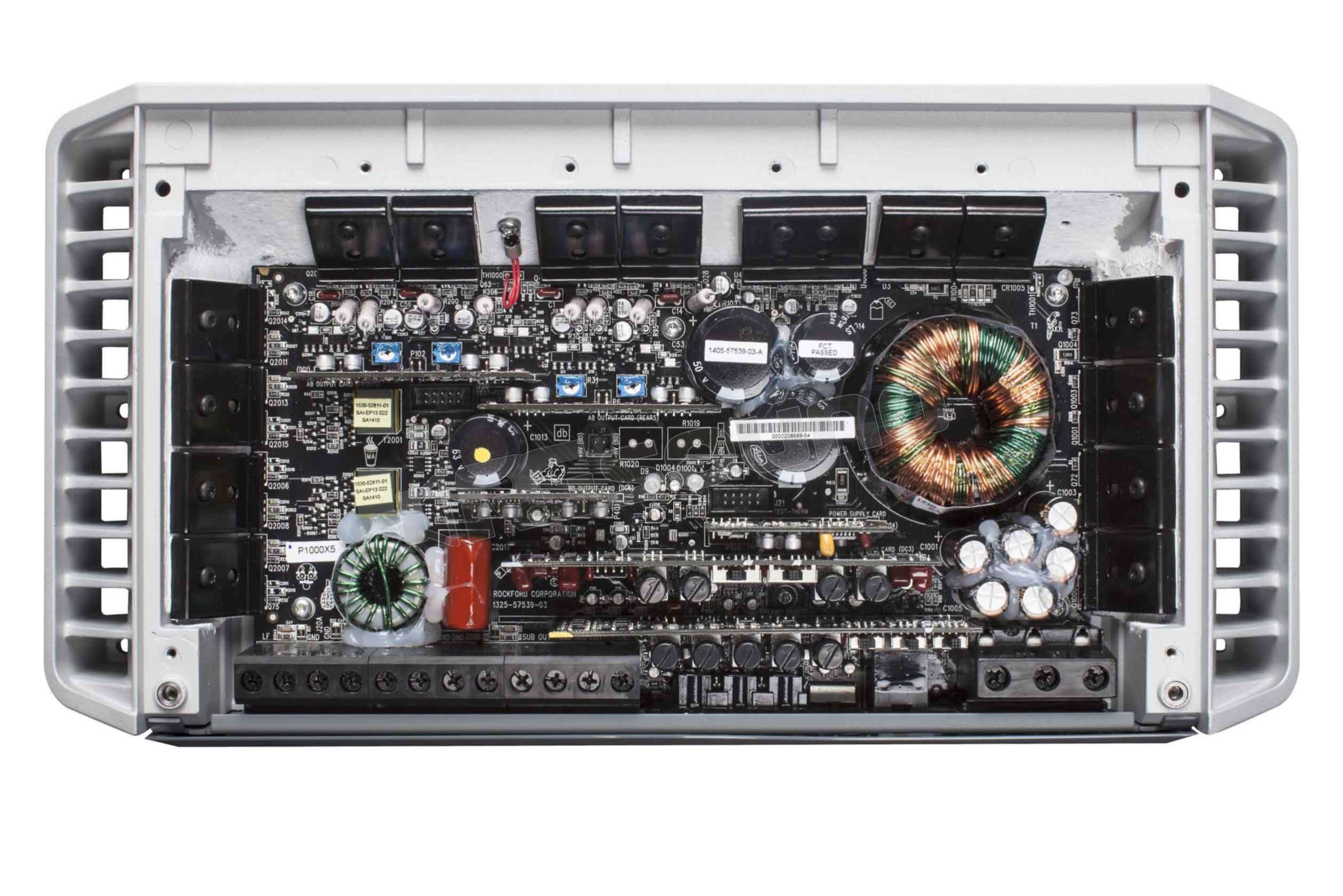

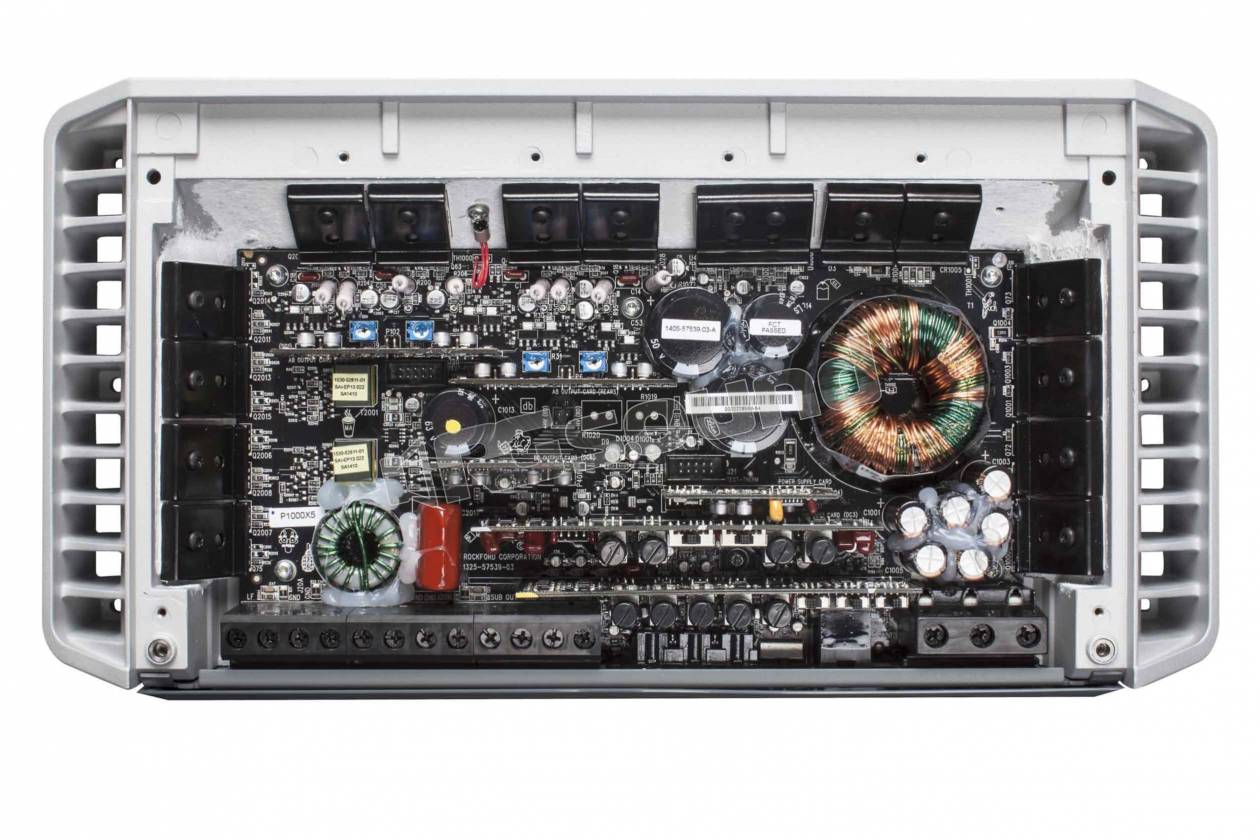

Marine rivestimento di grado due parti epossidica su circuiti
Hardware in acciaio INOX

Speciifche PM1000X5:

Number of Channels: 5

Rated Power (RMS Continuous Power):

• 75 Watts x 4 + 150 Watts x 1 @ 4-Ohm
• 125 Watts x 4 + 300 Watts x 1 @ 2-Ohm
• N/A + 500 Watts @ 1-Ohm

Total Power (Sum of Rated Power): 1000 Watts

Dynamic Power (PVC/PowerCube®):

• 115 Watts x 4 + 299 Watts x 1 @ 4-Ohms 0° Res
• 190 Watts x 4 + 540 Watts x 1 @ 2-Ohms 0° Res
• N/A + 863 Watts x 1 @ 1-Ohm 0° Res

Bridgeable: Yes (front/rear channels)

Frequency Response: Front/Rear: 20Hz - 20kHz +/-3dB

Sub: 20Hz - 500Hz +/-3dB

Efficiency (average): Front/Rear: 66% @ 4-Ohm

Sub Channel: 80% @ 4-Ohm

Total Harmonic Distortion (THD+Noise): <1.0%

Crossover Controls: Front: 50Hz - 250Hz High-Pass @ 12dB/Octave

Rear: 50Hz - 250Hz High-Pass @ 12dB/Octave

Sub: 50Hz - 250Hz Low-Pass

Sub: 28Hz infrasonic filter @ 12dB/Octave

Tone Controls:Sub: 0dB to +18dB @ 45Hz

Input Sensitivity: 150 mV - 12 V

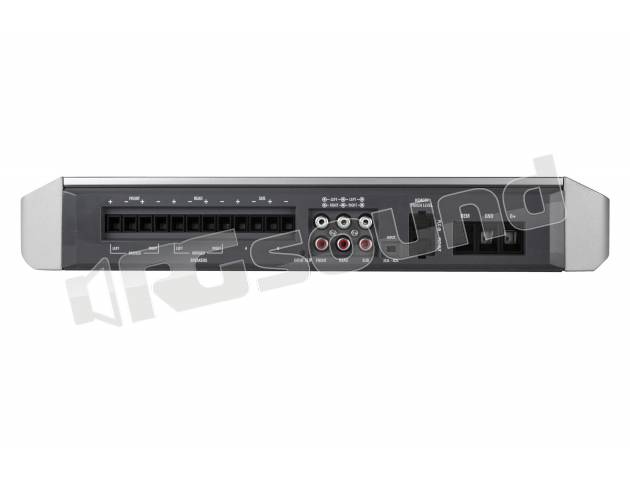

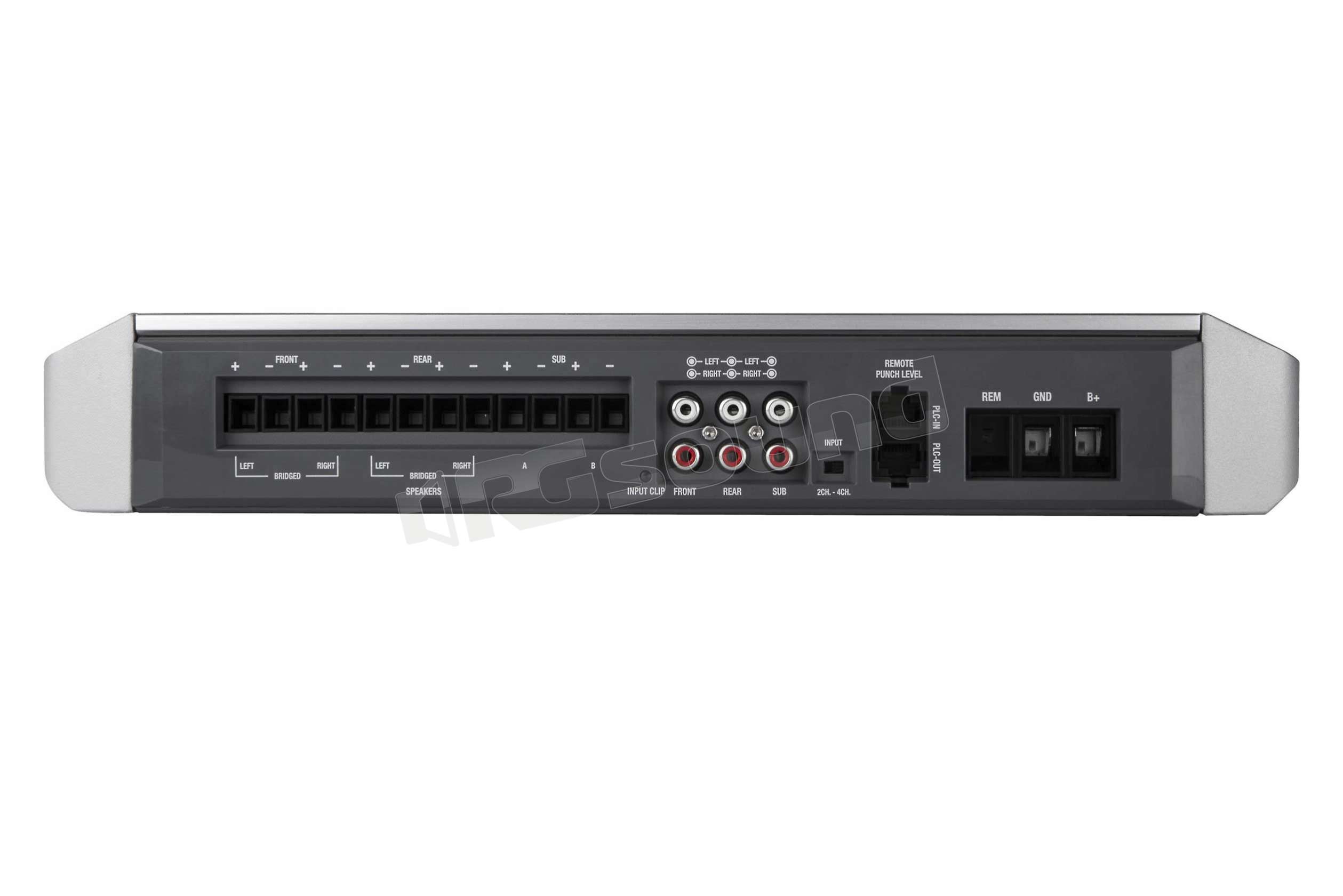

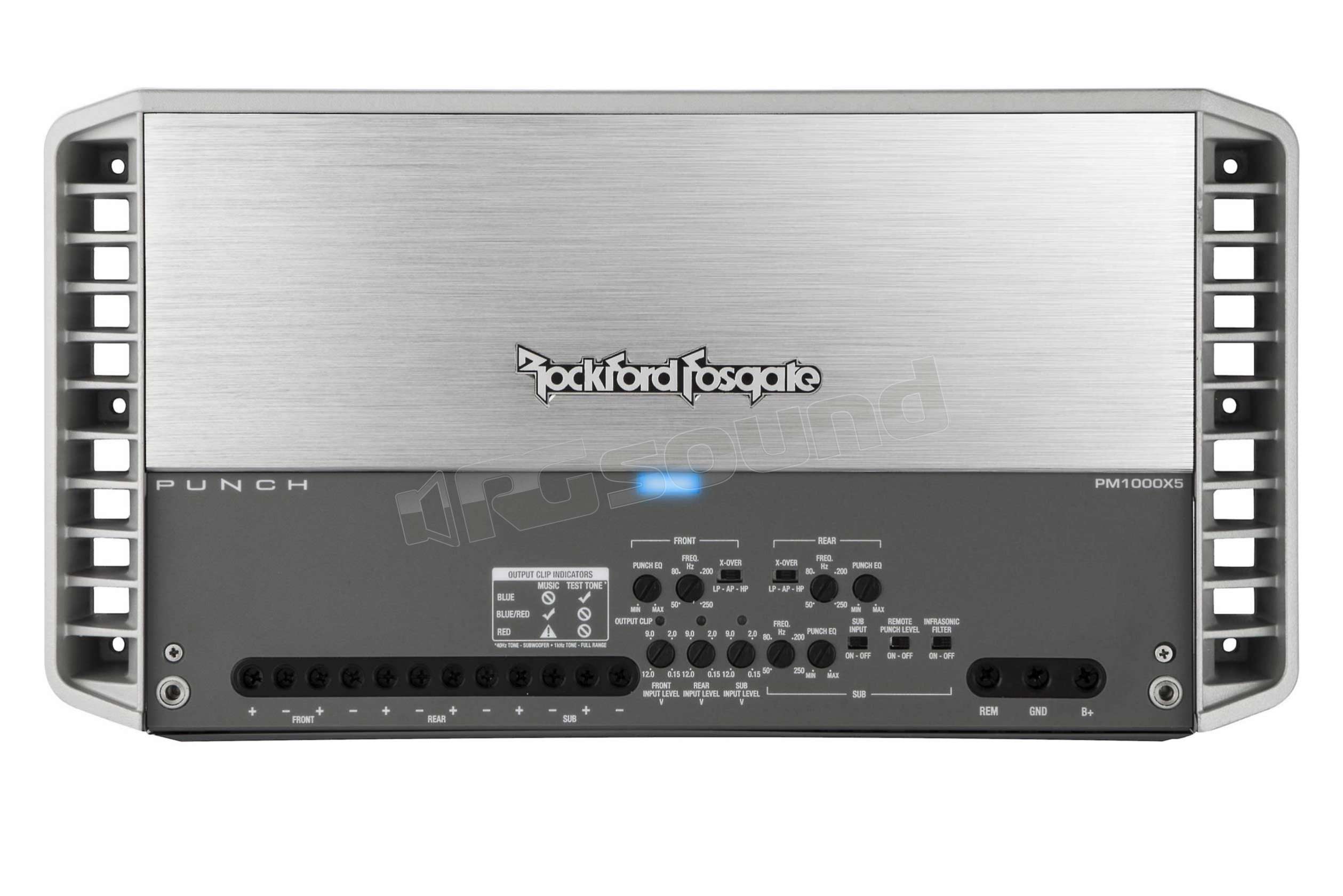

Signal Input:Input Switch: Hi/Low level input

Input Switch: 2/4 channel input

Hi/Low Level: 3 RCA Pair

Sub: front/sub input switch

Power Input Connector: Block

Power Wire Gauge: 4 AWG

Speaker Output Connector: Block

Speaker Wire Gauge: 12 AWG

Heat Sink Type: Cast

Cooling: Convection

Remote Controls: Optional Punch Level Control (PLC2) Ready

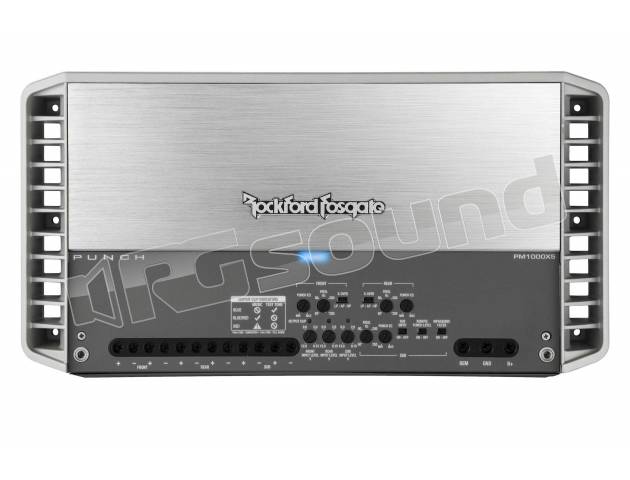

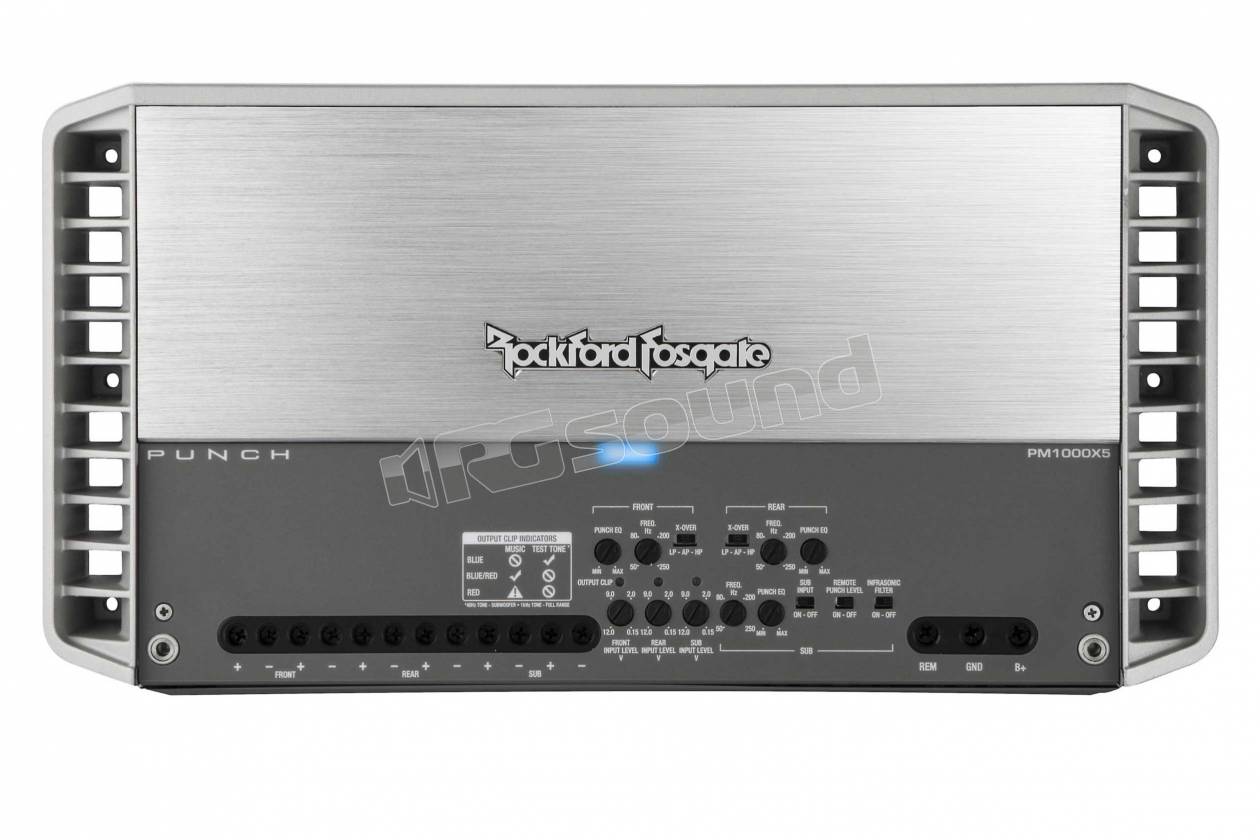

Visual Indicators: Power/Protect/Thermal LED
Input Clip LED 3
Output Clip LED 1,2,3

LED Color Legend:

• 1BLUE: <0.5% THD
• 2VIOLET: 1% THD
• 3RED: 10%+ THD

Circuit Topology Class:Front/Rear: Class-A/B

Sub: Class-BD

Operating Voltage: 9 - 16 VDC

Recommended Fuse (not included): 150 A

Max. Current Draw (13.8V Sinewave): 150 A

Average Current Draw (13.8V Music): 75 A

Suggested Alternator: 100 A

Shipping Weight: 15.3 Lbs. (6.93 Kg.)

Dimensions (W x D x H): 38.18 x 19.71 x 6.05 cm
