Sistema multimediale 2 DIN con Navigazione GPS e mappa Europa completa 43 paesi.
Software di navigazione iGO primo con TMC, visualizzazione 3D e punti di interesse Premium.
Garanzia Latest Map: mappa aggiornabile gratuitamente entro 30 giorni dalla prima attivazione.
Software GPS con specifiche truck: calcola il percorso ideale in base alle caratteristiche del mezzo ed il materiale trasportato.
Display touch screen digitale 6,2”.
Sintonizzatore radio FM/AM World Tuner (Europa, Americhe, Asia, Giappone).
RDS con funzioni PS, AF, EON, PTY, TP, TA, CT, RT.
Memorizza fino a 30 stazioni radio.
Lettore CD/DVD
compatibile con formati DVD, DVD+/-R/ RW,DVD-ROM, CD-DA,CD-ROM,CD-R/RW.
Riproduzione formati AVI,MP4,MPEG,MPG,Xvid, DivX,JPEG, JPG,WMA e MP3 con funzione ID3-Tag (visualizza file e cartelle).
Controllo diretto e ricarica iPod, iPhone tramite USB frontale e posteriore.
Modulo Bluetooth Parrott integrato con funzioni vivavoce, audio streaming e download rubrica telefonica.
Microfono Bluetooth integrato + microfono esterno con ingresso posteriore (incluso).
Ingresso retrocamera con attivazione automatica in caso di inserimento retromarcia.
Equalizzatore parametrico a 3 bande con 8 impostazioni predefinite (pop, rock, classic, jazz, techno, flat, optimal, user).
Potenza massima 4x50W
Ingressi frontali USB, SDHC, SD, MMC, AV-in jack 3,5mm,
ingressi posteriori USB e AV-in RCA.
Dual Zone:
2 uscite video per monitor posteriori con gestibili in modo indipendente.
Uscita pre-amplificata a 4 canali (2V)
Accessori contenuti nella confezione: telecomando, micro-SD 4GB con mappe precaricate, antenna GPS, sintonizzatore TMC,
microfono Bluetooth esterno, cornice, gabbia 2DIN e cablaggi.

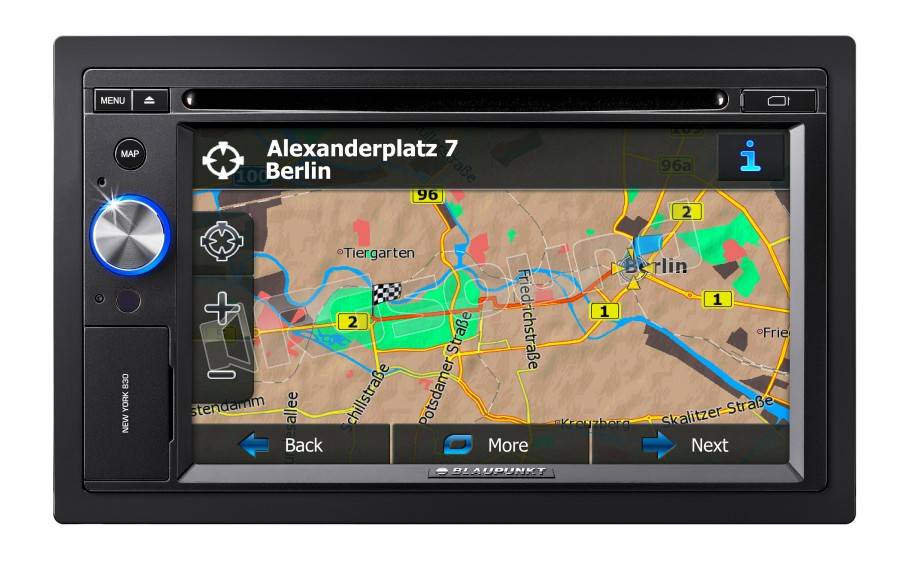

![Blaupunkt New York 830 Truck](/thumbs/1200x0/blaupunkt-new-york-830-truck_num-2-pid-19314.jpg)
Specifiche tecniche:
Display
6.2” digital TFT touch screen display
800 x 480 pixels
Wallpaper upload
Navigation
Pan-European car navigation
Pan-European truck navigation
Traffic Message Channel (TMC)
Data carrier
DVD: DVD, +/-R, +/-RW, -ROM
CD: CD-DA, -ROM, -R/-RW
VCD: VCD
USB: Front and rear USB for Audio and Video (Standard A-type)
Memory cards: Front SDHC slot for Audio and Video
Media player
Audio playback formats: MP3, WMA
Video playback formats: AVI, DivX®, MP4, MPEG, MPG, Xvid
Picture playback formats: JPEG, JPG
Bluetooth
Built-in Bluetooth
Hands-free calling (HFP)
Phone book upload (PBAP)
Ausio Streaming (A2DP)
2 microphones (built-in + external rear microphone)
Radio
Wave bands: FM, AM (MW/LW)
Radio Data System (RDS)
Rear seat entertainment
Audio / Video
Sources: DVD, VCD, CD, SDHC, SD, MMC, USB, AV-In
Inputs
USB: Front and rear
iPod: iPod/iPhone direct control via front and/or rear USB
Memory cards: SDHC, SD, MMC
Audio / Video: 1 front A/V, 1 rear A/V
Rear view camera
Outputs
Video/Audio-Out: 2 (CVBS) / 1
4 channel preamp-out
Subwoofer: Sub-out
Equalizer
Number of bands: 3
Model: parametric
Amplifier
Max. power: 4 x 50 Watt
Sinus power at 14,4V: 4 x 22 Watt
Navigation
- Platform: iGo primo
- Western Europe maps: 23 countries (TomTom)
Andorra, Austria, Belgium, Denmark, Finland, France, Germany, Gibraltar, Republic of Ireland, Italy, Liechtenstein, Luxembourg, Malta, Monaco, Norway, Portugal, San Marino, Spain, Sweden, Switzerland, The Netherlands, United Kingdom, Vatican
- Eastern Europe maps: 20 countries (various map suppliers)
Albania, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Estonia, Former Yugoslavian Republic of Macedonia, Greece, Hungary, Latvia, Lithuania, Montenegro, Poland, Romania, Serbia, Slovakia, Slovenia, Turkey, Ukraine
- Navigation languages (voice and navigation system): 27 languages
Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, English (British), English (American), Estonian, Finnish,Flemish, French, German, Greek, Hebrew, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian – None (Ding only)
- Street names announced (Text to Speech): 11 languages
Danish, English (British), Finnish, French, German, Italian, Norwegian, Polish, Spanish, Swedish, Turkish
- Dynamic navigation (TMC) : Yes
- 3D view mode: Yes
- 3D city map Western Europe: Yes
- 3D landmarks: Yes
- 3D buildings: Yes
- Premium POI (Point Of Interest): Yes
- Realistic junction view: Yes
- Demo mode: Yes
- Last map guarantee: Yes (30 days after 1st GPS reception)
- Data carrier: Micro-SD, 4GB (included)
- Map update: Yes, online via www.naviextras.com<//link>
-
- Speed camera: Optional, online via www.naviextras.com<//link>
Truck Navigation
- Western Europe truck data: 23 countries (TomTom)
Andorra, Austria, Belgium, Denmark, Finland, France, Germany, Gibraltar, Republic of Ireland, Italy, Liechtenstein, Luxembourg, Malta, Monaco, Norway, Portugal, San Marino, Spain, Sweden, Switzerland, The Netherlands, United Kingdom, Vatican
- Eastern Europe truck data: 12 countries (various map suppliers)
Albania, Czech Republic, Estonia, Former Yugoslavian Republic of Macedonia, Hungary, Latvia, Lithuania, Montenegro, Poland, Romania, Slovakia, Slovenia
- Truck attributes: Length, width, height, trailer, number of axles, max. allowed weight, actual weight, freight (explosives, flammable gas, non-flammable gas, poisonous gas), max. speed
- Truck profiles: 3 profiles programmable
-
- Truck timer settings: Number of drivers, max. continuous driving time, min./max. break time, max. daily driving time, warn in advance, current times display
Display
- Technology: Digital
- Type: TFT
- Screen size: 6.2"
- Resolution: 800 x 480 pixels
- Touchscreen: Yes
- Brightness adjustable: Yes (bright, normal, dark, night)
- Display switch off: Yes (off after 10 or 20sec selectable)
- Clock display: 24 / 12 hours
- Date display: Yes
- Wallpaper options: Black, blue, red, green, orange
- Wallpaper / Picture upload: via Micro-SD
- Radio system languages: English (British), German, Spanish, French, Italian, Polish (Navigation: 27 languages, see Navigation)
Radio
-
Type of tuner: Analogue receiver
-
World tuner (switchable): Yes (Europe, OIRT, Americas, Asia, Japan)
-
Wave bands: FM1, FM2, FM3, AM1 (MW), AM2 (LW)
-
Radio Data System (RDS): Alternative Frequencies (AF), Clock Time (CT), Enhanced Other Networks (EON), Programme Service Name (PS), Programme Types (PTY), Radio Text (RT), Traffic Announcement (TA), Traffic Programme (TP)
-
Travelstore: Yes (FM1, FM2, FM3)
-
Search via frequency: Yes
-
Station memory: 30
-
Sensitivity: lo/dx
-
Frequency response (Hz) -3dB: 30 – 15.000
Data carrier
- DVD: DVD, +/-R, +/-RW, -ROM
- DVD regional code: Code 2 (default setting)
- VCD: VCD
- CD: CD-DA, -ROM, -R/-RW
- Type disc-drive: Automatic loading
- Shock proof memory: Yes (CD/DVD)
- Frequency response (Hz) -3dB: 20 – 20.000
- USB-removable storage: USB 2.0 compatible
- Memory cards: SDHC (up to 32 GB), SD, MMC
- Formatting USB, SDHC, SD, MMC: FAT, FAT 32
- Micro-SD: Navigation / Picture upload
DVD player
- Track up / down: Yes
- Fast forward / fast rewind: Yes (x2, x4, x8, x20)
- Repeat chapter / title: Yes
- Play / pause / stop / resume: Yes
- Chapter skip: Yes
- Chapter search: Yes
- Last position memory: Yes
- Root menu: Yes
- Setup: Yes
- Title menu: Yes
- Sub-titles: Yes
- Audio language: Yes
- Zoom: Yes
-
Media player
-
Video playback formats: AVI, MP4, MPEG, MPG, Xvid
-
DivX® video format: DivX Certified® to play DivX® video, including premium content
-
Video from MSD: Yes (USB, SDHC, SD, MMC)
-
Picture playback formats: JPEG, JPG
-
Audio playback formats: MP3, WMA
-
MP3 Title display: ID3-tag (versions 1 and 2), file names, folder names
-
MP3 folder/file browsing: Yes (without playback interruption)
-
MP3 file search: Yes, by track number
-
Criteria browsing: Yes, for iPod/iPhone
-
Album art display: Yes, for iPod/iPhone
-
Mix: Yes (all, folder)
-
Repeat: Yes (all, folder, track)
-
Fast forward / fast rewind: Yes (x2, x4, x8, x20)
-
CD text: Yes
-
Number of files: 1.500 by directory
-
Bit rate MP3: 32 – 320 kBit/s
-
Bit rate WMA: 32 – 192 kBit/s
-
Variable bit rates: Yes
iPod / iPhone
-
Direct control via USB (Made for iPod, iPhone)
-
Front USB, rear USB (simultaneously)
-
iPod video via USB-A/V cable
-
Supported iPod generations:
iPod touch (4th generation)
iPod touch (3rd generation)
iPod touch (2nd generation
iPod touch (1st generation)
iPod classic
iPod with video
iPod Nano (7th generation)
iPod nano (6th generation)
iPod nano (5th generation
iPod nano (4th generation)
iPod nano (3rd generation)
iPod nano (2nd generation)
iPod nano (1st generation)
-
Bluetooth
- Module: Parrot FC6000
-
Supported version: Bluetooth 2.0 with EDR
-
Supported profiles: HFP, PBAP; A2DP, AVRCP
-
Audio streaming: Yes
-
Pairing (number of devices): 3
-
Pairing code: 1234 (default, changeable)
-
Hands-free calling: Yes, via microphone + radio speakers
-
Microphones: 2 (built-in + external rear microphone)
-
Key functions: Accept call, hang up call, reject call, redialling
-
Phone book access: Yes, download up to 1.000 entries by paired phone
-
Auto synchronisation: Yes
-
2nd call handling (call wait / call hold): Yes
-
History call lists: Missed, dialled, received calls
Rear seat entertainment
- Video: Yes
-
Audio: Yes
-
Sources: DVD, VCD, CD, SDHC, SD, MMC, USB 1, USB 2, AV-IN 1, AV-IN 2
Rear view camera
Equalizer
-
Number of bands: 3
-
Model: parametric
-
Type: analogue
-
Bass / mid / treble: Yes (+/- 14 steps)
-
Low pass filter: Yes (60/80/100/200 Hz)
-
Mid pass filter: Yes (0,5/1,0/1,5/2,5 kHz)
-
High pass filter: Yes (10/12,5/15/17,5 kHz)
-
Variable subwoofer gain: Yes (24 steps)
-
Variable subwoofer frequency: Yes (80/120/160 Hz)
-
Dynamic bass boost: Yes
-
Sound presets: Rock, Pop, Classic, Jazz, Techno, Flat, Optimal, User
-
Balance: Yes (+/- 24 steps)
-
Fader: Yes (+/- 24 steps)
-
Source specific volume: Yes (DVD, USB, SDHC, Radio, Bluetooth, AV-IN 1, AV-IN 2, Navigation, iPod)
Amplifier
- Number of chanels: 4
- Max. power (Watt): 4 x 50
- Sinus power at 14,4 V (Watt): 4 x 22
Inputs
-
Antenna: 3 (Radio, GPS, TMC)
-
USB 1: Front USB (standard A-type)
-
USB 2: Rear USB (standard A-type)
-
iPod/iPhone: Direct control via USB 1/2
-
Front memory card reader 1: SDHC, SD, MMC
-
Front memory card reader 2: Micro SD (navigation)
-
AV-IN 1: Front A/V (3.5 mm jack, 0,5V)
-
AV-IN 2: Rear A/V (RCA, 0,5V)
-
Rear view camera: Yes (RCA)
-
Reverse gear signal: Yes
-
Handbrake signal: Yes
-
External hand-free microphone: yes (3.5 mm jack, rear)
-
IR remote control: Yes (IR-eye in front panel)
-
Steering wheel remote control: Yes (SWC, rear, analogue, 3.5 mm jack, programmable via menu)
-
Power supply: Yes (ISO, flying cable heads)
Outputs
-
Rear Video 1: RCA, composite
-
Rear Video 2: RCA, composite
-
Rear Audio: RCA
-
Preamp-out: 4-channel, RCA, 2V
-
Subwoofer: RCA
-
Audio channels: ISO, flying cable heads
General
-
Installation: 2-DIN
-
Operating voltage: 12V (10,5 – 16V)
-
Weight: 2,73 kg
-
Depth (incl. panel + connector): 180,9 mm
-
Depth (installation depth): 165,2 mm
-
Width: 178 mm
-
Height: 100 mm
-
Front panel: fixed
-
Colour: black
-
Key illumination: white
-
Disc slot illumination: white
-
Volume encoder illumination: red (radio off) / blue (radio on)
-
Demo mode: Yes, for navigation application
Accessories included in delievery
-
User manual*:15 languages
Bulgarian, Danish, Dutch, English, Finnish, French German, Greek, Hungarian, Italian, Polish, Portuguese, Romanian, Spanish, Swedish
* Extended navigation manual by language (above mentioned languages plus Czech and Slovakian) available soon under www.blaupunkt.com
-
IR remote control: Yes (incl. battery)
-
Micro SD card: Yes (4GB, navigation pre-installed)
-
TMC tuner: Yes
-
GPS antenna: Yes
-
External hands-free microphone: Yes
-
Trim ring: Yes
-
Mounting frame: Yes
-
Mounting material: Yes
-
Connector cable set 1: Power (ISO A) / Speakers (ISO B) / Camera, Reverse signal, Handbrake signal, SWC (ISO C)
-
Connector cable set 2: Preamp-/Sub-out, A/V-in/-out 2 (RCA)
-
Connector cable set 3: Video-out 1 (RCA)
-
Fixed rear pigtail cables: Hands-free microphone (3.5 mm jack), TMC input (3.5 mm jack), Radio antenna input, USB (standard A-type), iPod Video-in
