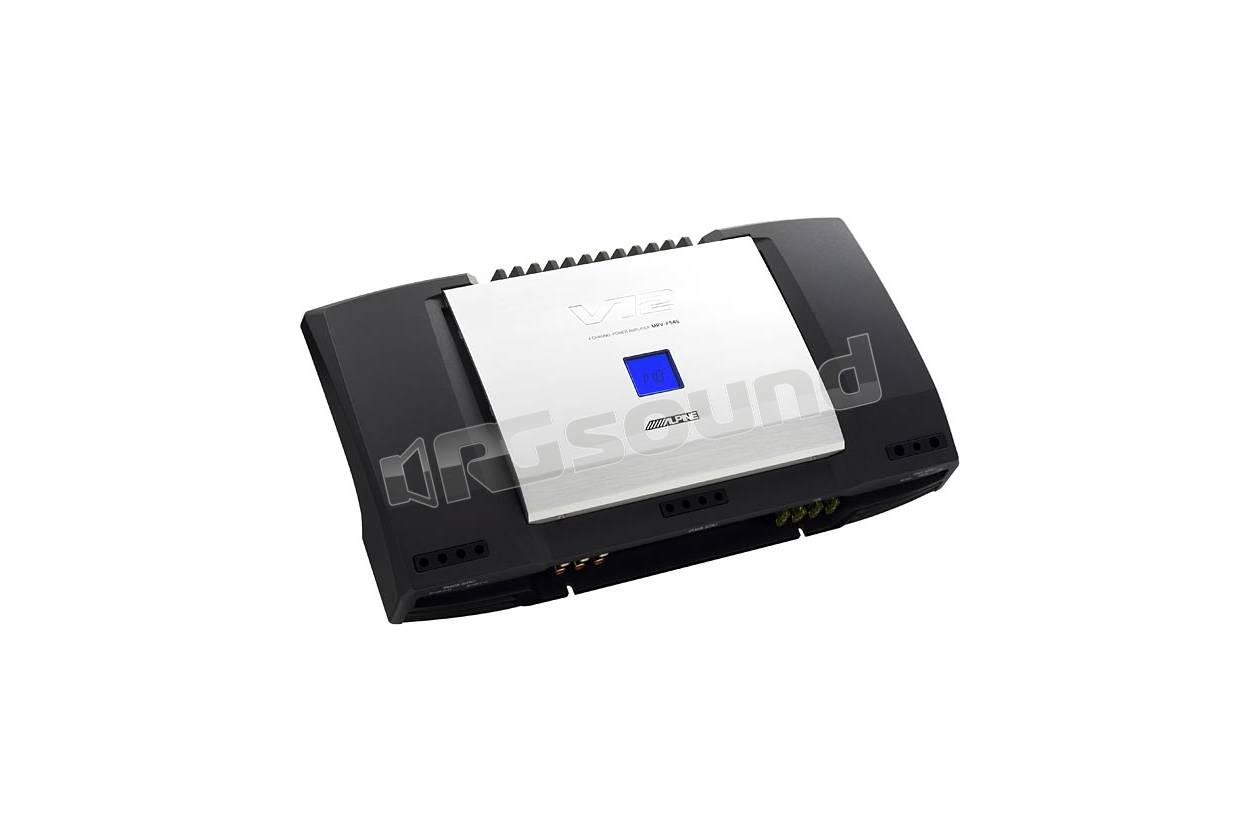

Alpine MRV-F545 4/3/2 canali

AMPLIFICATORE DI POTENZA A 4/3/2 CANALI

Con la funzione MultiMode, puoi utilizzare il tuo amplificatore in tutte le configurazioni - a due, tre o quattro canali - e creare il tuo sistema ideale.

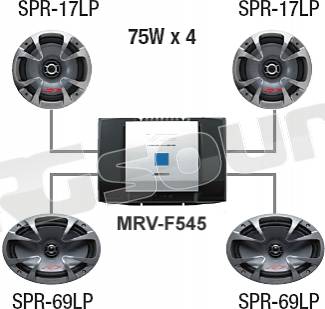

Sistema standard:
quattro altoparlanti coassiali con le stesse impostazioni di potenza e crossover.

[Power Features]
• Bass EQ (45Hz, +16dB for CH3/4)
• Multimode Capability (CH3/4)
• MOS-FET Power Supply Transistor
• BI-POLAR Output Transistor
• Amplifier Link (Model 2005)
• Phase Selector
• Speaker Input (RCA conversion)
• RCA Pre-out
• Independent Variable Crossover
• Over Current Protection
• High Temperatur Protection
• STAR Circuit
• Digital Control Center Display
• Discrete Pre-amp Stage
• DC-DC PWM Power Supply
• MOS-FET Output & Power Supply Transistor

[Power Specifications]
• Weight 5.6 kg
• Dimensions 420 x 60 x 228 mm
• Frequency Response 20Hz-20kHz (0, -1dB)
• Input Sensitivity 0.2-4V (at 10k ohm)
• S/N Ratio 96dBA
• 500W x 1 Bridge (4ohm, 14.4V, 0.3% THD, CH3/4)
• 125W x 1 Bridge (4ohm, 14.4V, 0.3% THD, CH1/2)
• 100W x 4 RMS (4ohm, 12.0V, 0.08% THD)
• 125W x 4 RMS (4ohm, 14.4V, 0.08% THD)
• Max. 225W x 4
