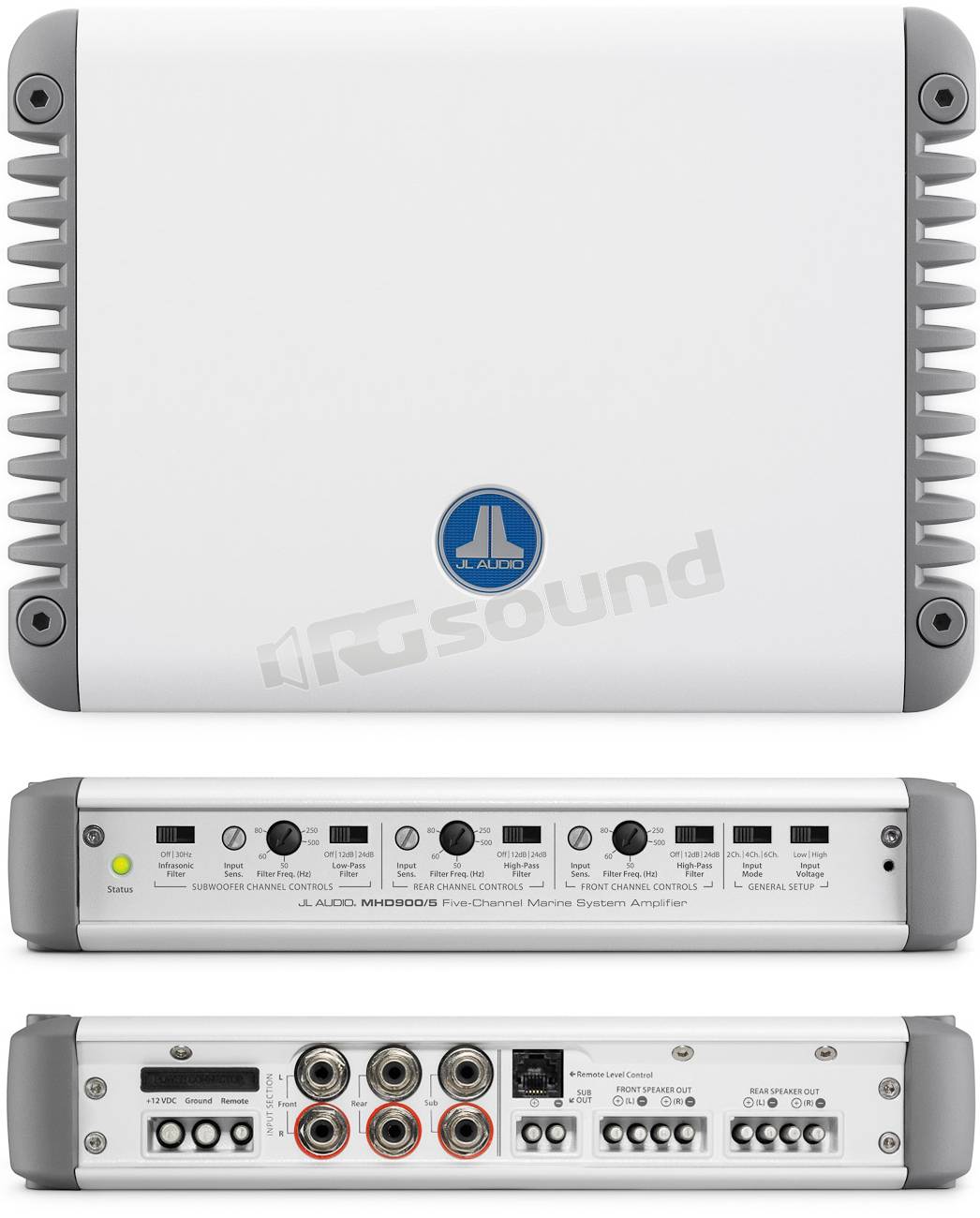

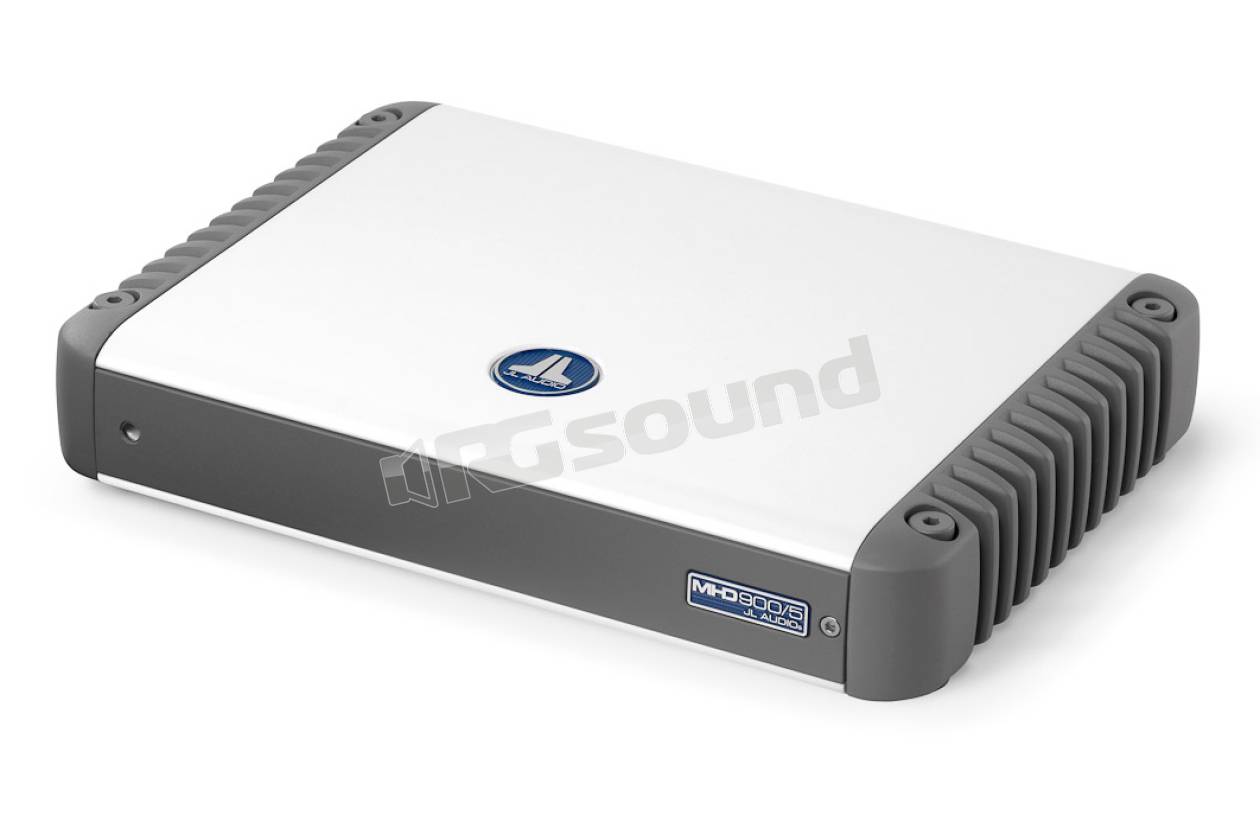

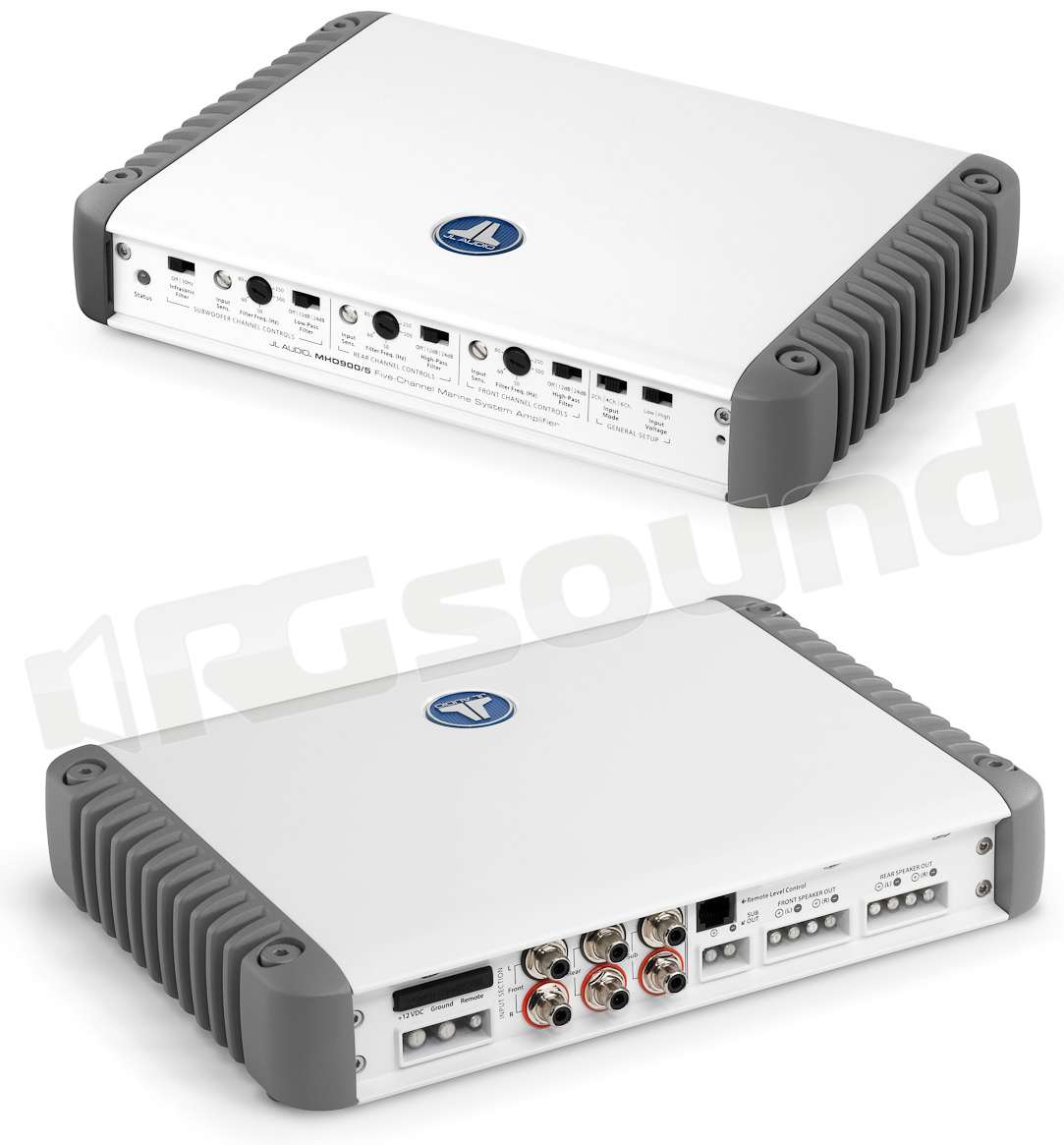

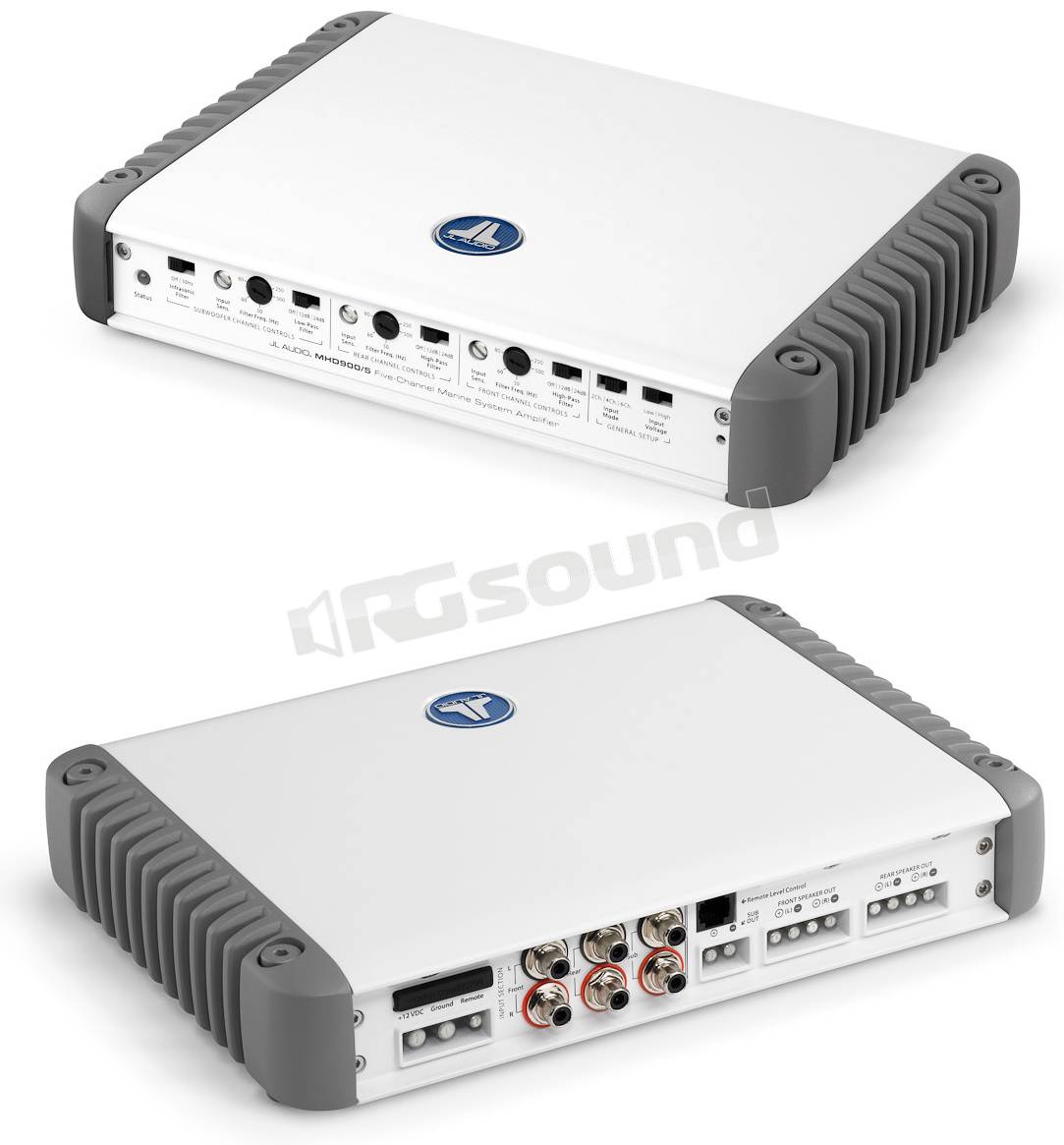

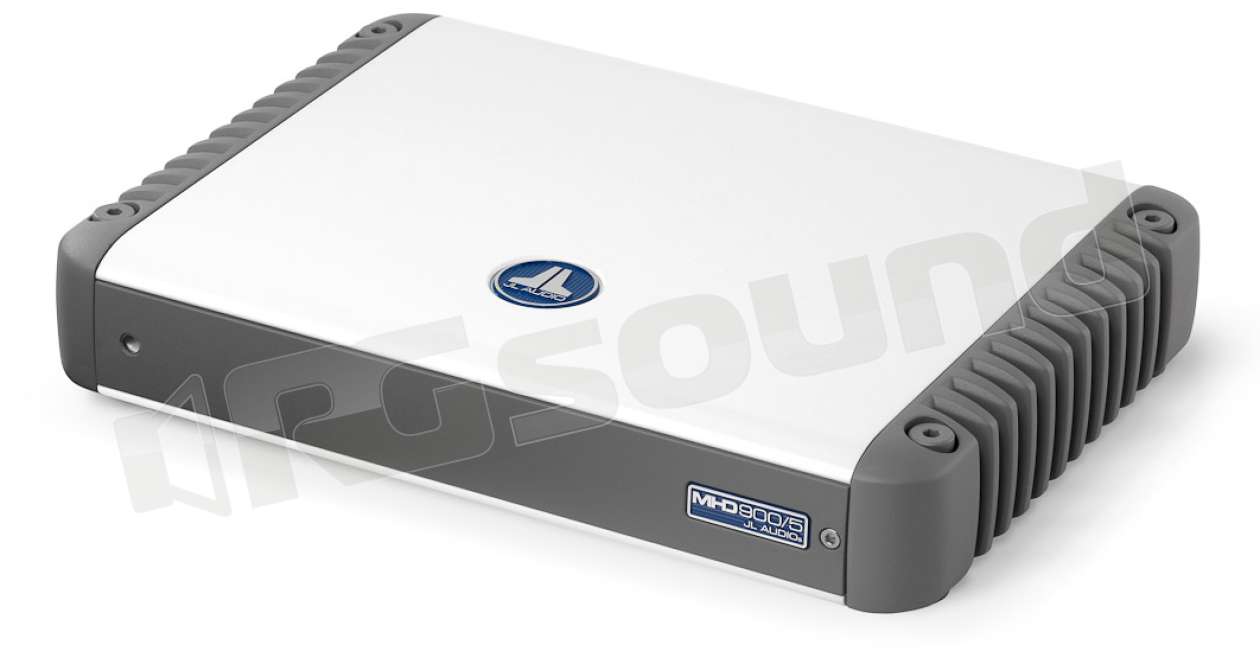

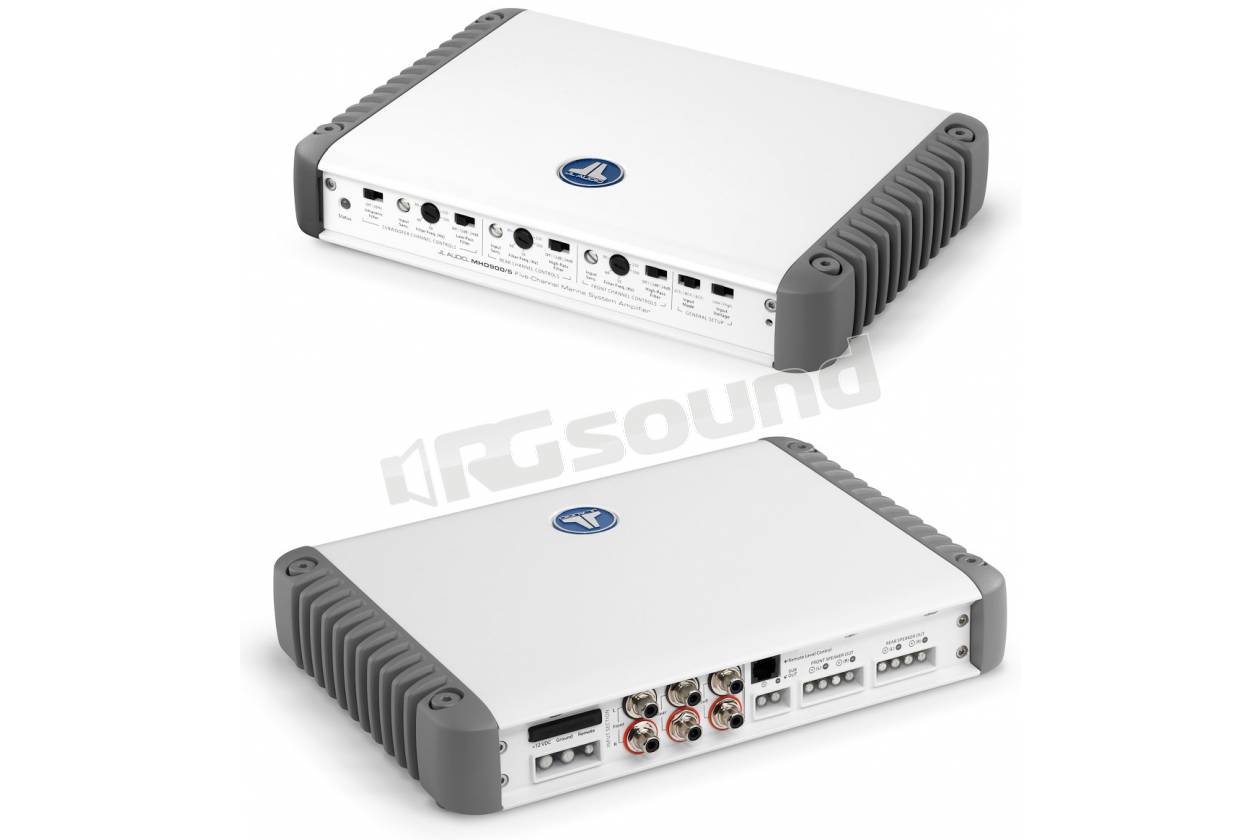

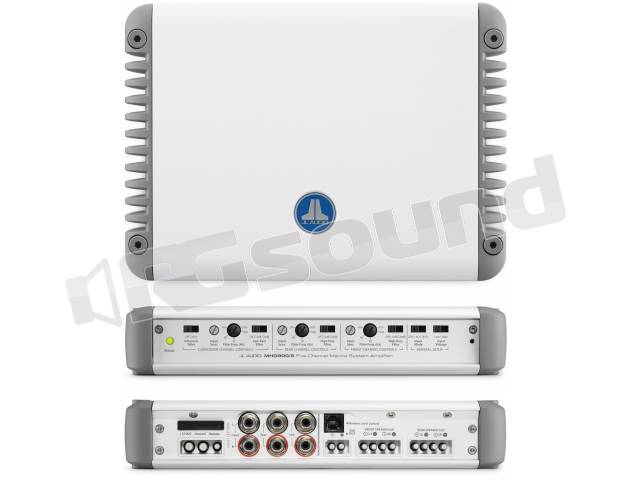

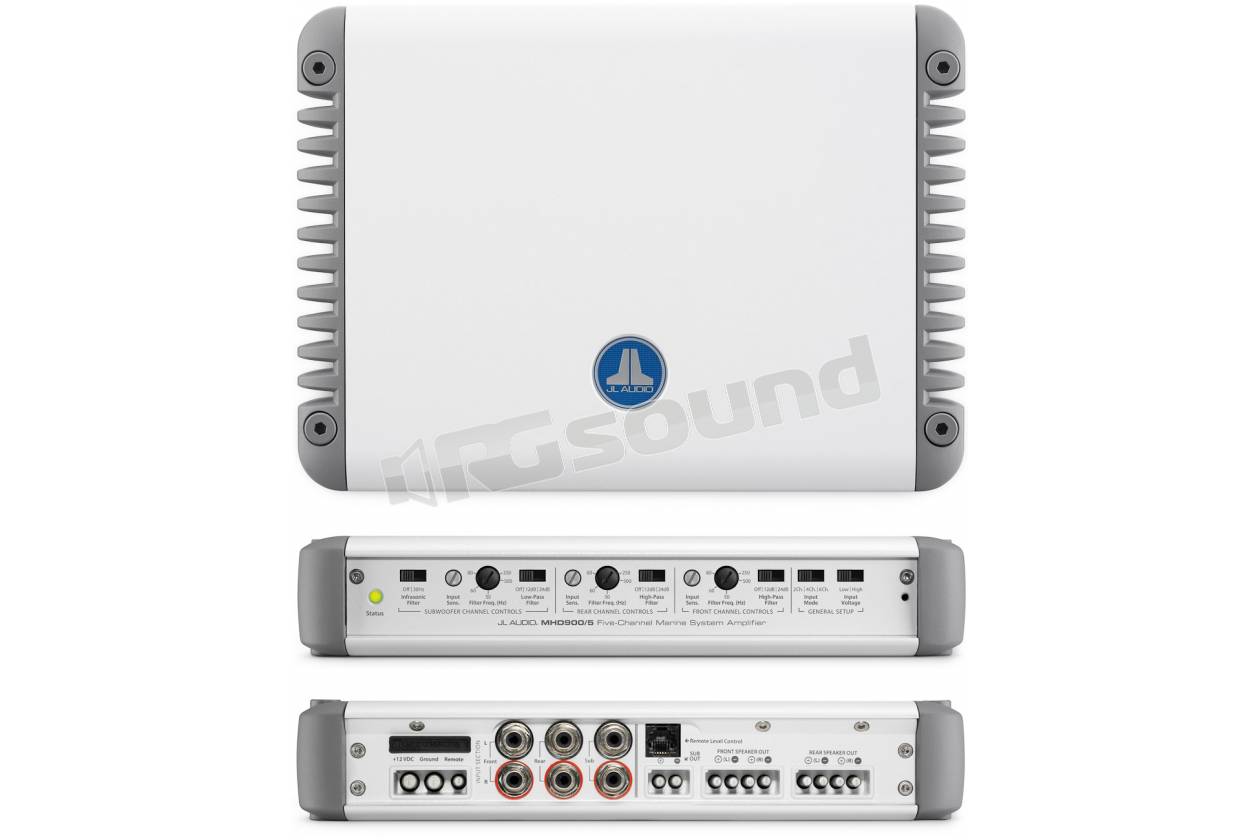

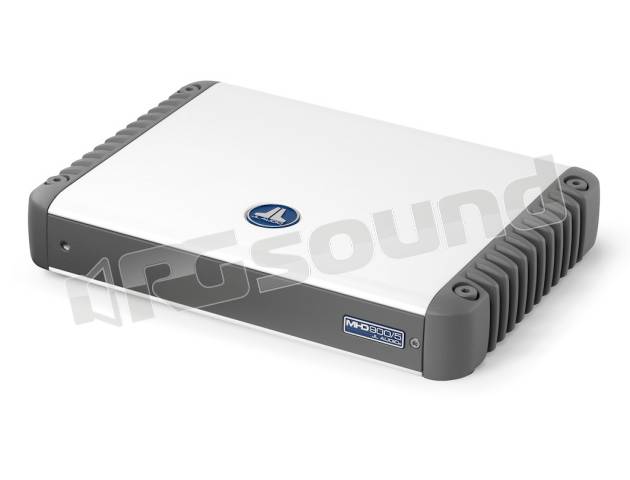

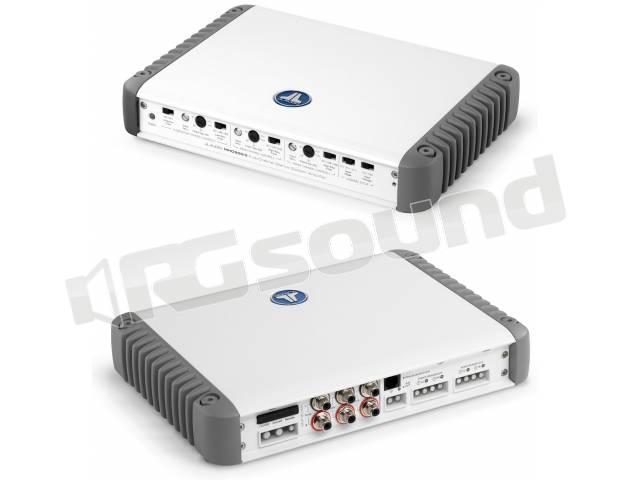

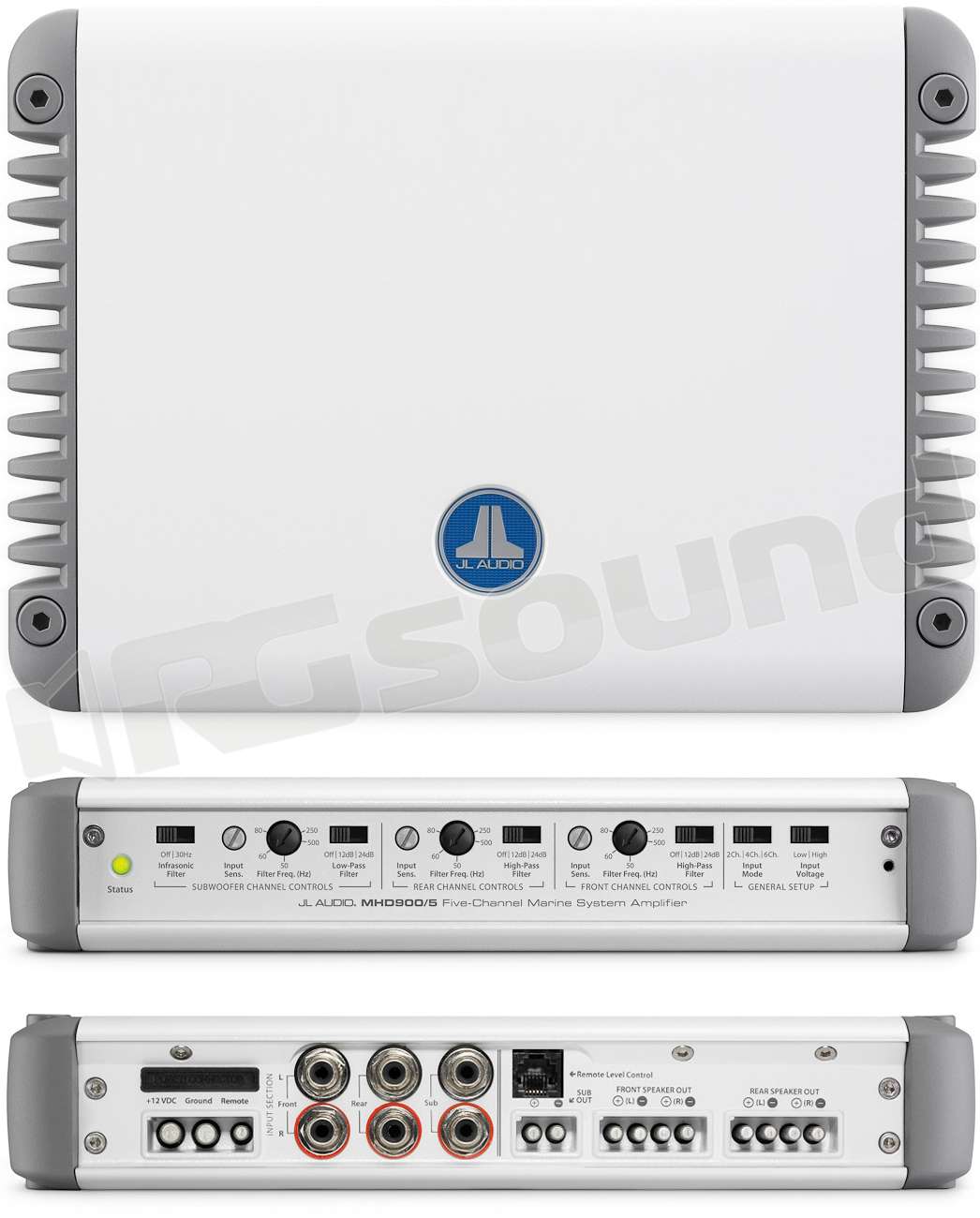

JL Audio MHD900/5-24V amplificatore marino cinque canali

JL Audio MHD900/5 - 24V amplificatore marino full range cinque canali Classe D per sistemi di 24V. Garantito dal miglior servizio RGsound.it. Dimensioni ultracompatte 243 x 49 x 211 mm - Potenza RMS 4 x 100 W + 1 x 500 W.

Caratteristiche MHD900/5 - 24V
Rated Continuous (RMS) Power @ 14.4 V

Main Channels @ 4 Ω 100 W RMS x 4
Main Channels @ 3 Ω 75 W RMS x 4
Main Channels @ 2 Ω 75 W RMS x 4
Main Channels @ 1.5 Ω 75 W RMS x 4
Main Channels - Bridged @ 8 Ω 200 W RMS x 2
Main Channels - Bridged @ 4 Ω 150 W RMS x 2
Subwoofer Channel @ 4 Ω 500 W RMS x 1
Subwoofer Channel @ 3 Ω 500 W RMS x 1
Subwoofer Channel @ 2 Ω 500 W RMS x 1
Subwoofer Channel @ 1.5 Ω 500 W RMS x 1

Rated Continuous (RMS) Power @ 12.5 V

Main Channels @ 4 Ω 100 W RMS x 4
Main Channels @ 3 Ω 75 W RMS x 4
Main Channels @ 2 Ω 75 W RMS x 4
Main Channels @ 1.5 Ω 75 W RMS x 4
Main Channels - Bridged @ 8 Ω 200 W RMS x 2
Main Channels - Bridged @ 4 Ω 150 W RMS x 2
Subwoofer Channel @ 4 Ω 500 W RMS x 1
Subwoofer Channel @ 3 Ω 500 W RMS x 1
Subwoofer Channel @ 2 Ω 500 W RMS x 1
Subwoofer Channel @ 1.5 Ω 500 W RMS x 1

Specifiche generali MHD900/5 - 24V

Frequency Response (Main Channels) 12 Hz - 28 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 12 Hz - 10 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels) >108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Main Channels) >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >300 / 50 Hz
Damping Factor @ 2 Ω >150 / 50 Hz
THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω
THD+N @ Rated Power (Subwoofer Channel) <0.05% @ 5 Ω
Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min Copper Power / Ground Wire Gauge Accepts up to 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)

Signal Processing MHD900/5 - 24V

Remote Level Control Optional (HD-RLC)
Infrasonic Filter: Subwoofer Channel 30 Hz, Defeatable
Filters Defeatable? Yes
Remote Level Modes Sub Ch. only
Channel Input Mode Switch Yes (2/4/6 ch.)
Source Channel Selection for PreOuts N/A
Pass-Through Preamp Output None
Detented, Calibrated Filter Freq. Potentiometers Yes
Filter Frequency Range: Subwoofer Channel 50-500 Hz
Filter Modes: Channels 3 & 4 (rear) High-Pass only
Filter Frequency Range: Channels 1 & 2 (front) 50-500 Hz
Filter Slope (dB/Octave): Channels 1 & 2 (front) 12 dB or 24 dB
Filter Slope (dB/Octave): Channels 3 & 4 (rear) 12 dB or 24 dB
Filter Frequency Range: Channels 3&4 50-500 Hz
Filter Slope (dB/Octave): Subwoofer Channel 12 dB or 24 dB
Filter Modes: Subwoofer Channel Low-Pass only
Filter Modes: Channels 1 & 2 (front) High-Pass only

Dimensioni MHD900/5 - 24V

Height (H) 1.93 in / 49 mm
Width (W) 10.74 in / 273 mm
Depth (D) 8.29 in / 211 mm
Net Weight 6.85 lb / 3.11 kg
