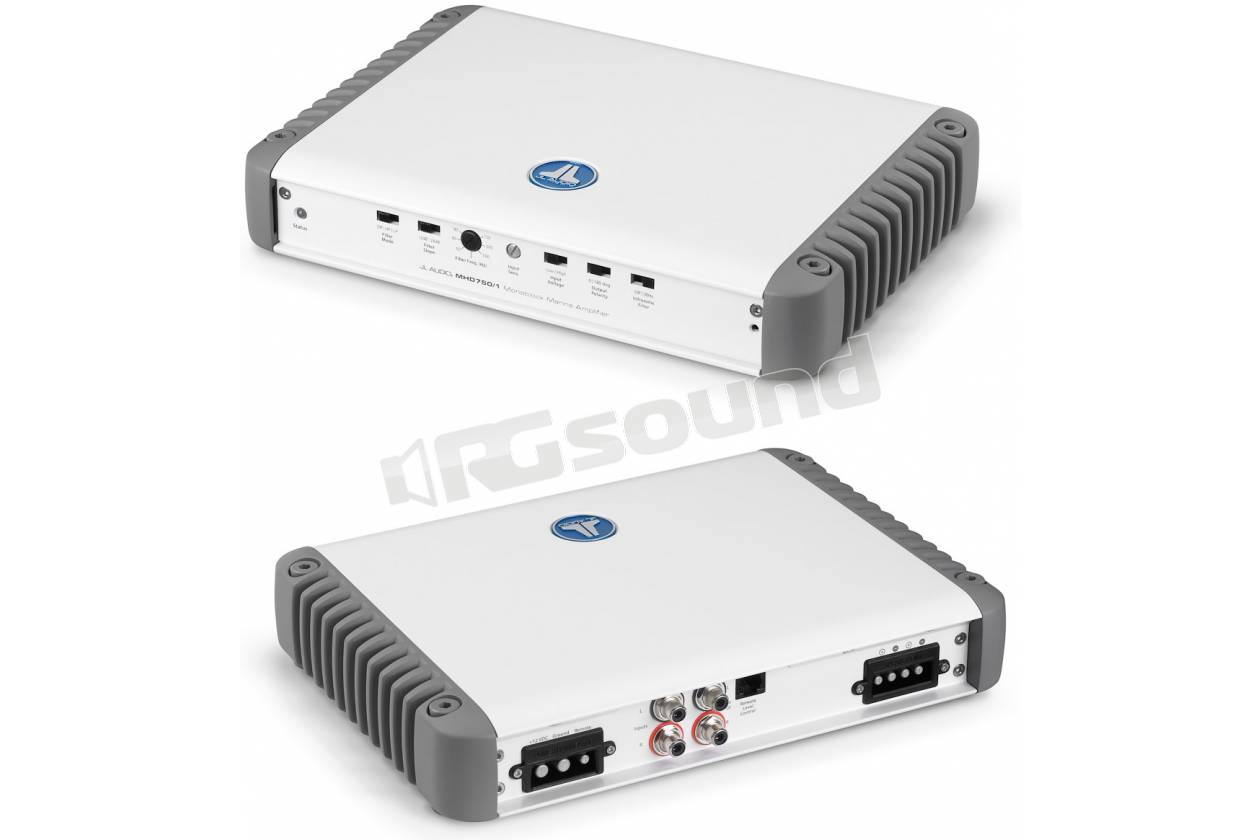

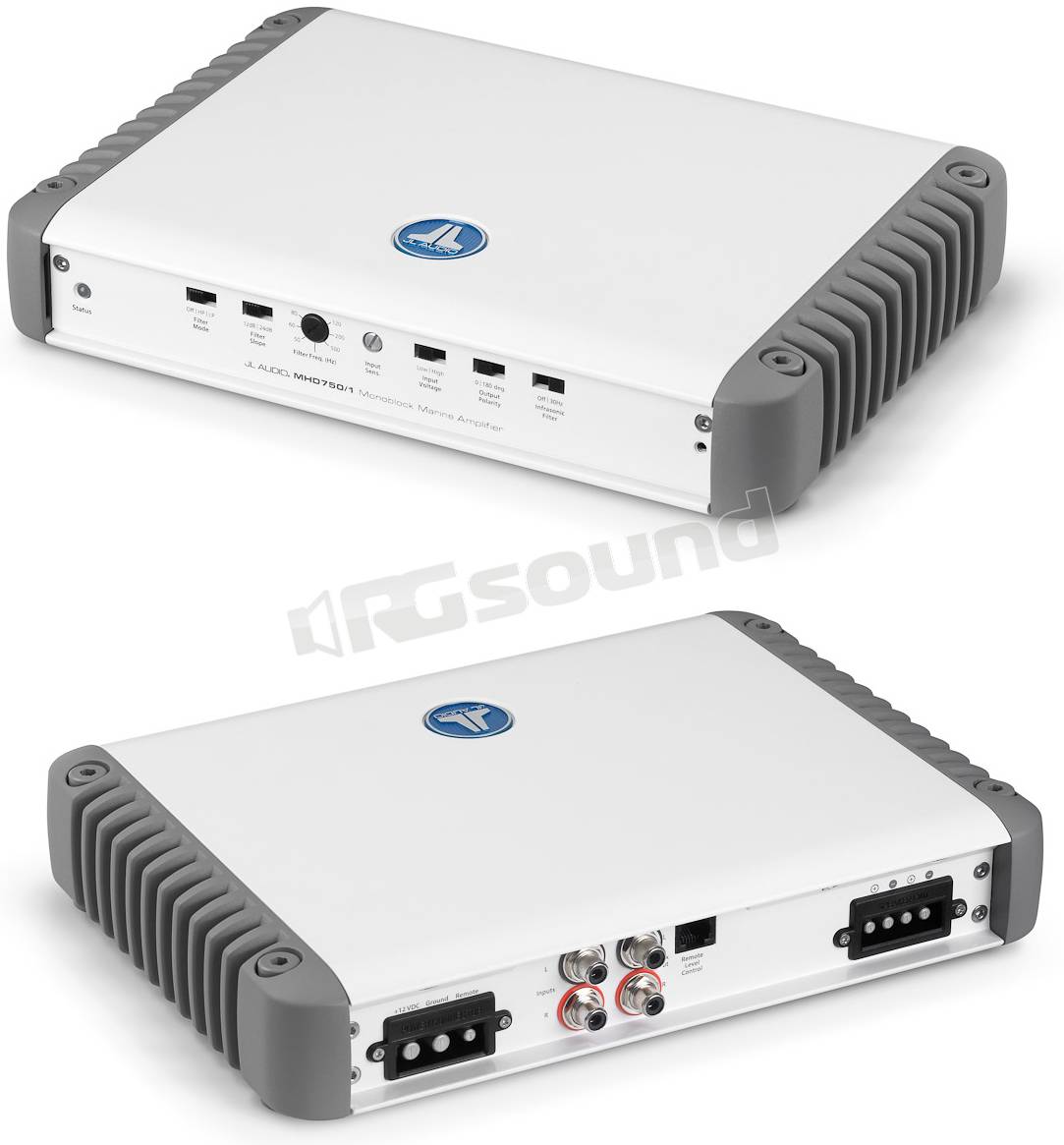

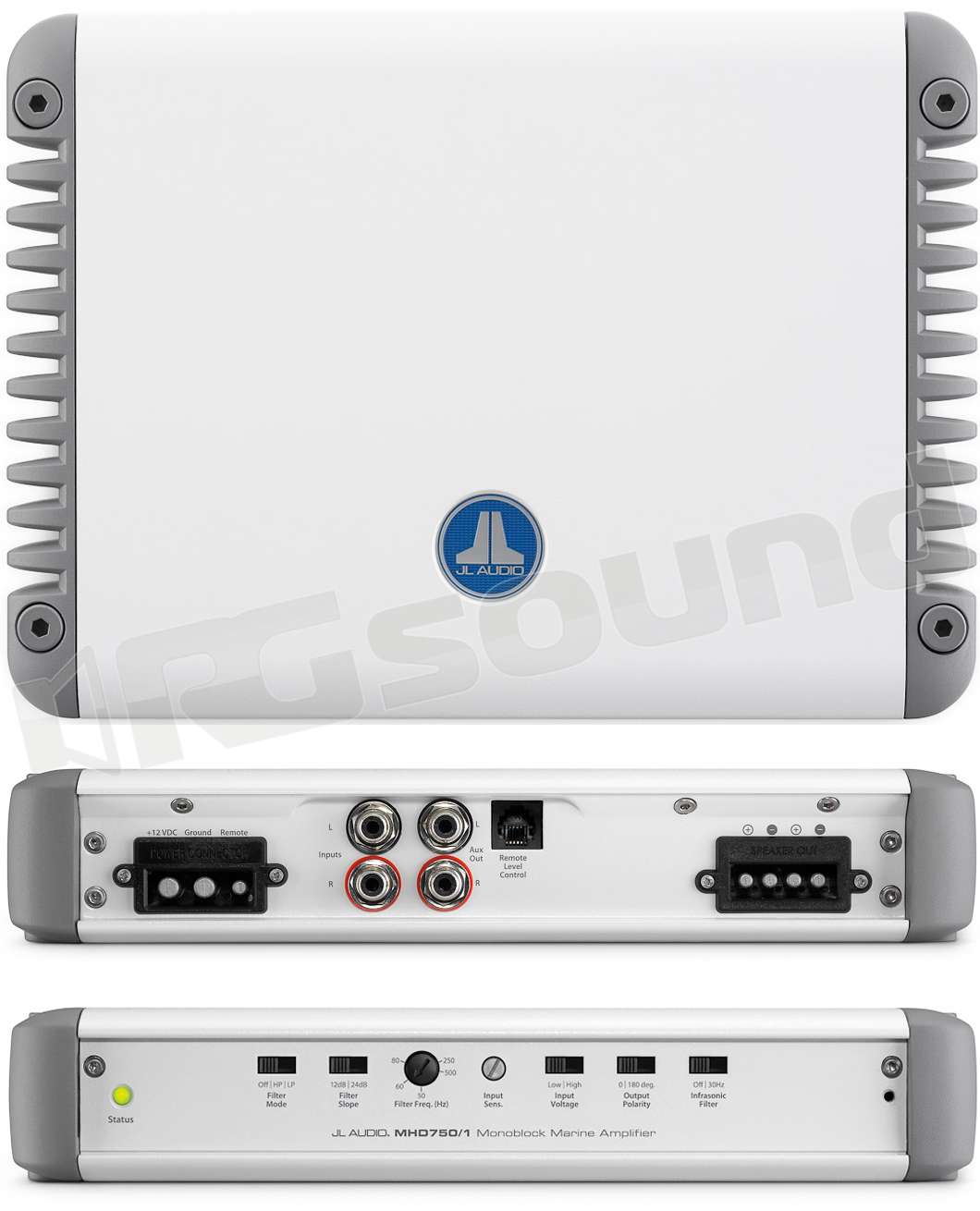

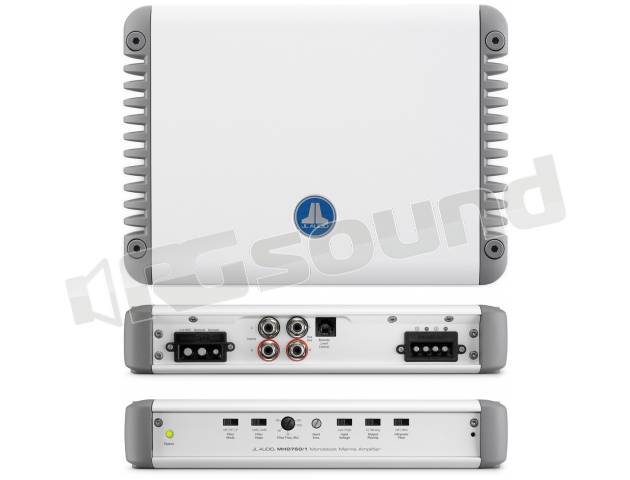

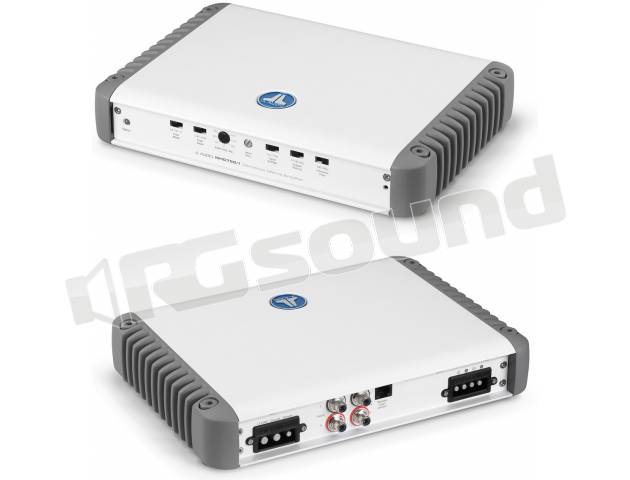

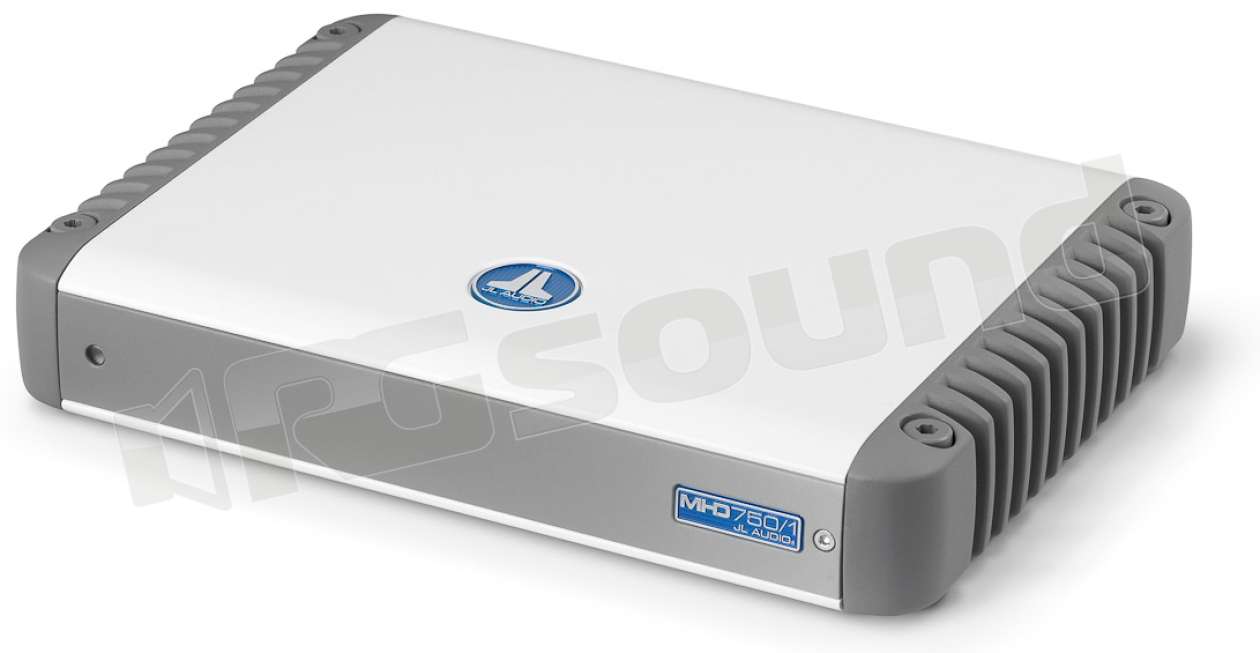

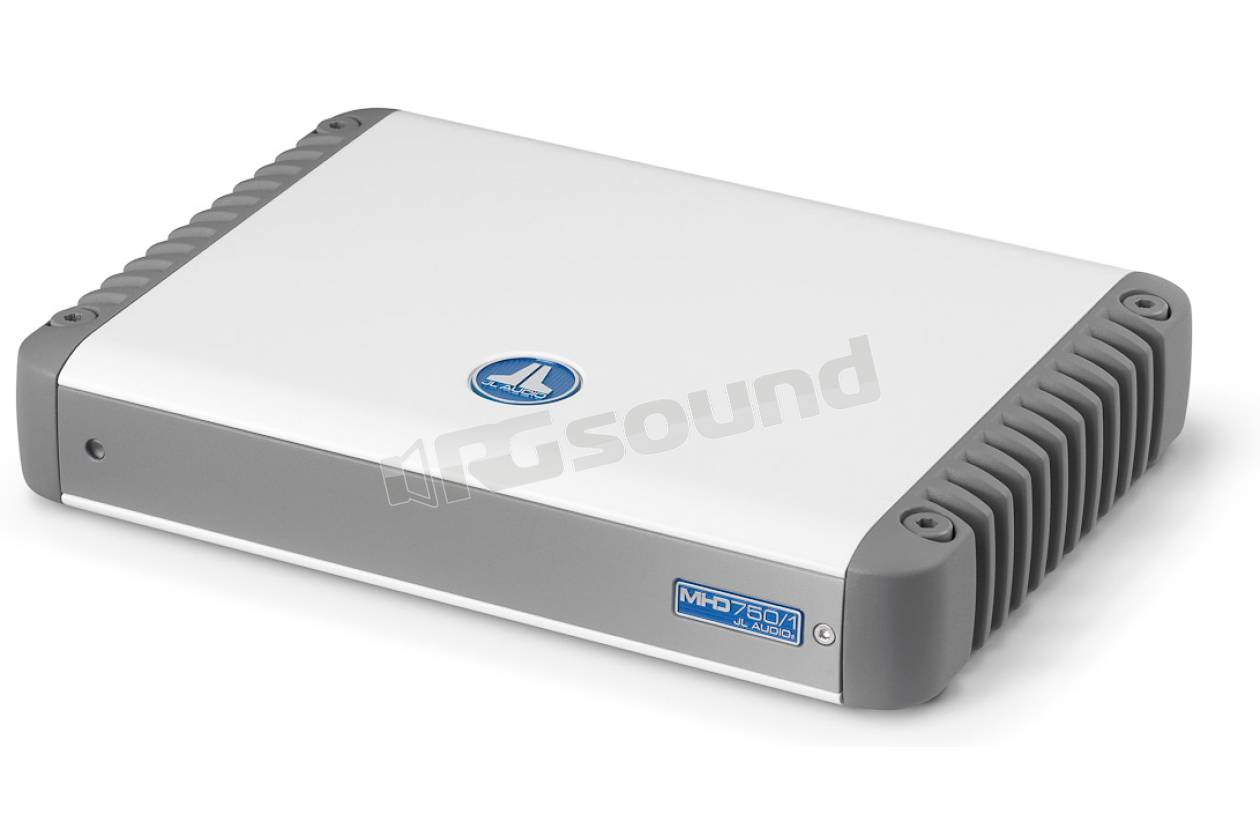

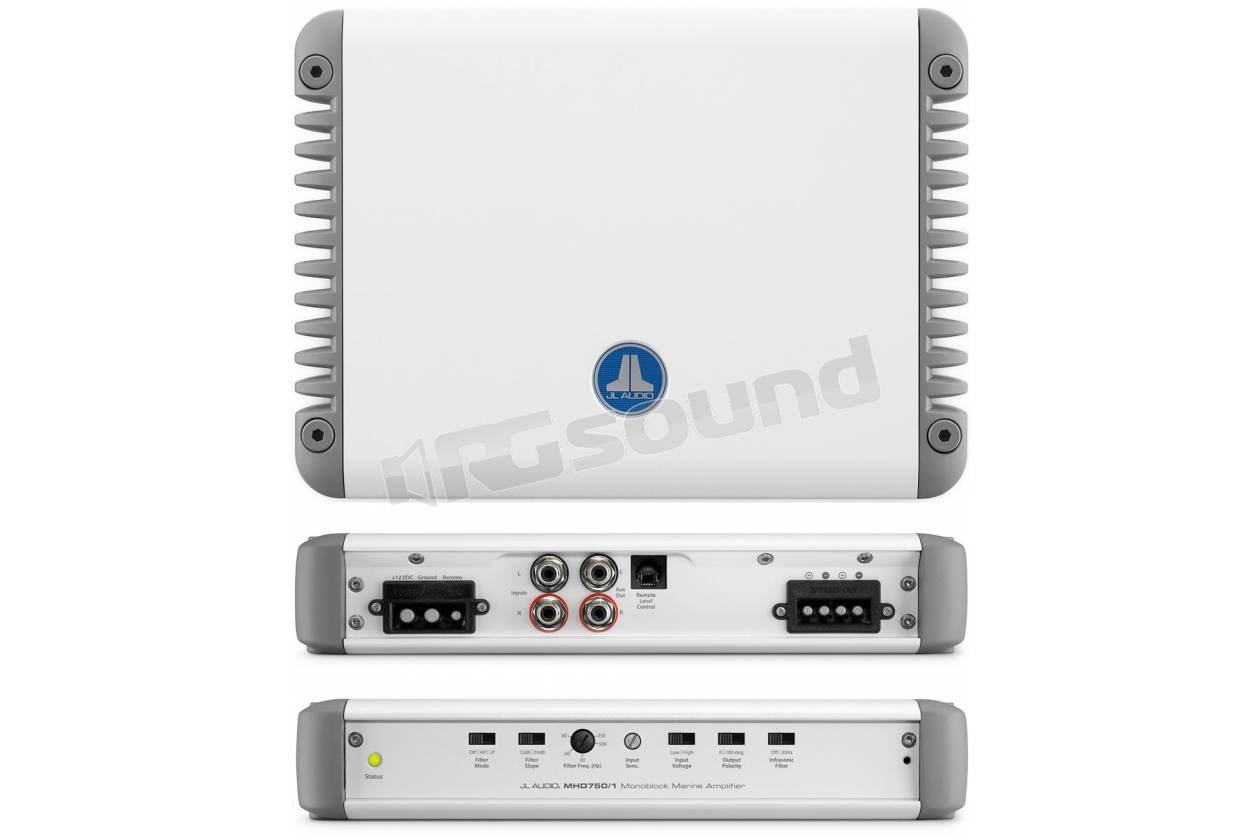

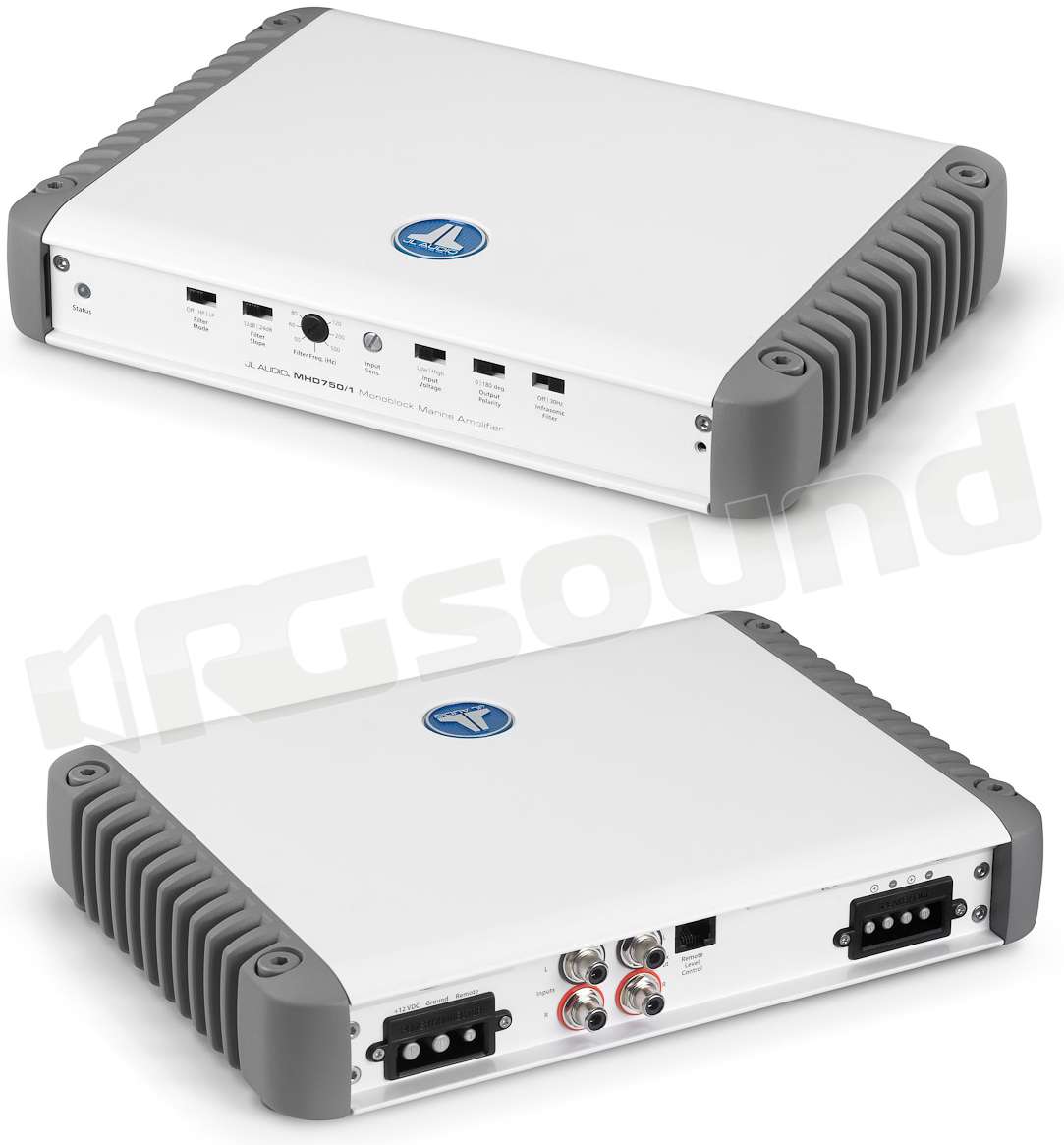

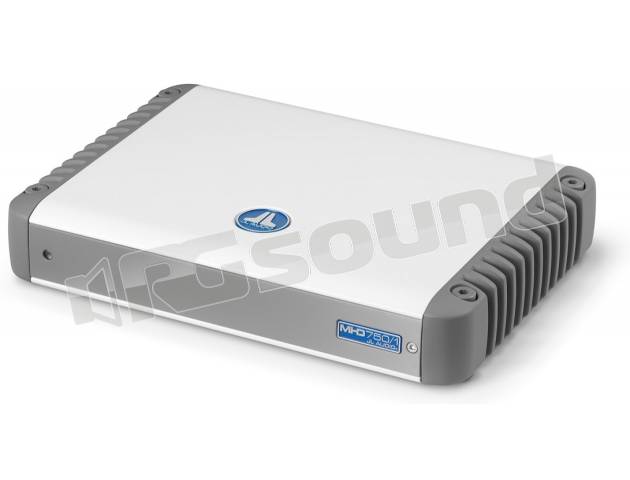

JL Audio MHD750/1 amplificatore monocanale marino

JL Audio MHD750/1 amplificatore monocanale marino full range Classe D. Garantito dal miglior servizio RGsound.it. Dimensioni ultracompatte 243 x 49 x 211 mm - Potenza RMS 1 x 750 W.

Caratteristiche MHD750/1
Rated Continuous (RMS) Power @ 14.4 V

@ 4 Ω 750 W RMS x 1
@ 3 Ω 750 W RMS x 1
@ 2 Ω 750 W RMS x 1
@ 1.5 Ω 750 W RMS x 1

Rated Continuous (RMS) Power @ 12.5 V

@ 4 Ω 750 W RMS x 1
@ 3 Ω 750 W RMS x 1
@ 2 Ω 750 W RMS x 1
@ 1.5 Ω 750 W RMS x 1

Specifiche generali MHD750/1

Frequency Response 6 Hz - 8 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Main Channels) >88 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >500 / 50 Hz
Damping Factor @ 2 Ω >250 / 50 Hz
THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω
Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)

Signal Processing MHD750/1

Filter Modes Low-Pass or High-Pass
Filter Slope (dB/Octave) 12 dB or 24 dB
Filter Frequency Range 50-500 Hz
Detented, Calibrated Filter Freq. Potentiometer Yes
Filter Defeatable? Yes
Infrasonic Filter 30 Hz, defeatable
Bass Boost EQ (0 to +12 dB @ 45 Hz) No
Output Polarity Switch Yes
Remote Subwoofer Level Control Optional (HD-RLC)
Pass-Through Preamp Output Type Buffered

Dimensioni MHD750/1

Height (H) 1.93 in / 49 mm
Width (W) 10.74 in / 273 mm
Depth (D) 8.29 in / 211 mm
Net Weight 6.6 lb / 2.99 kg
