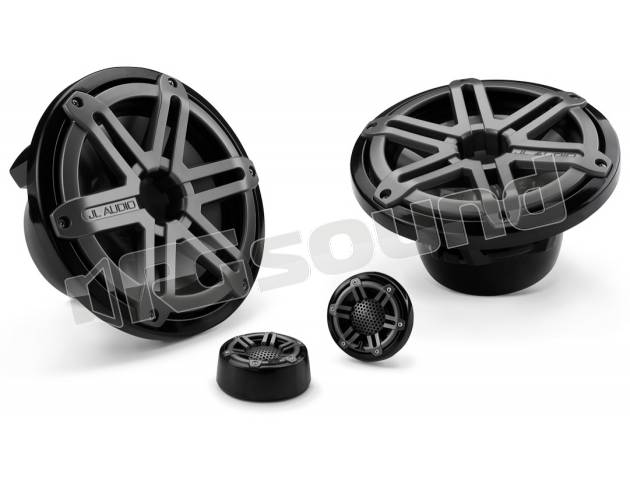

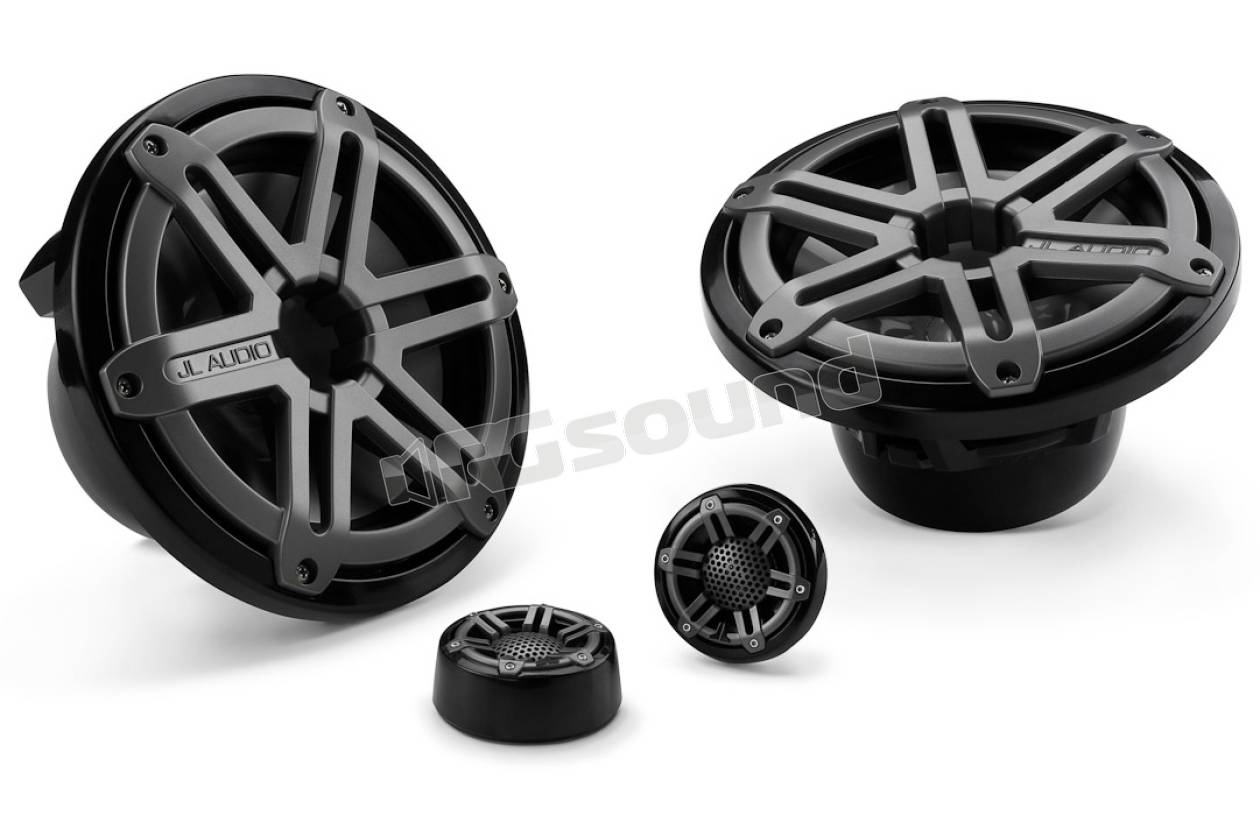

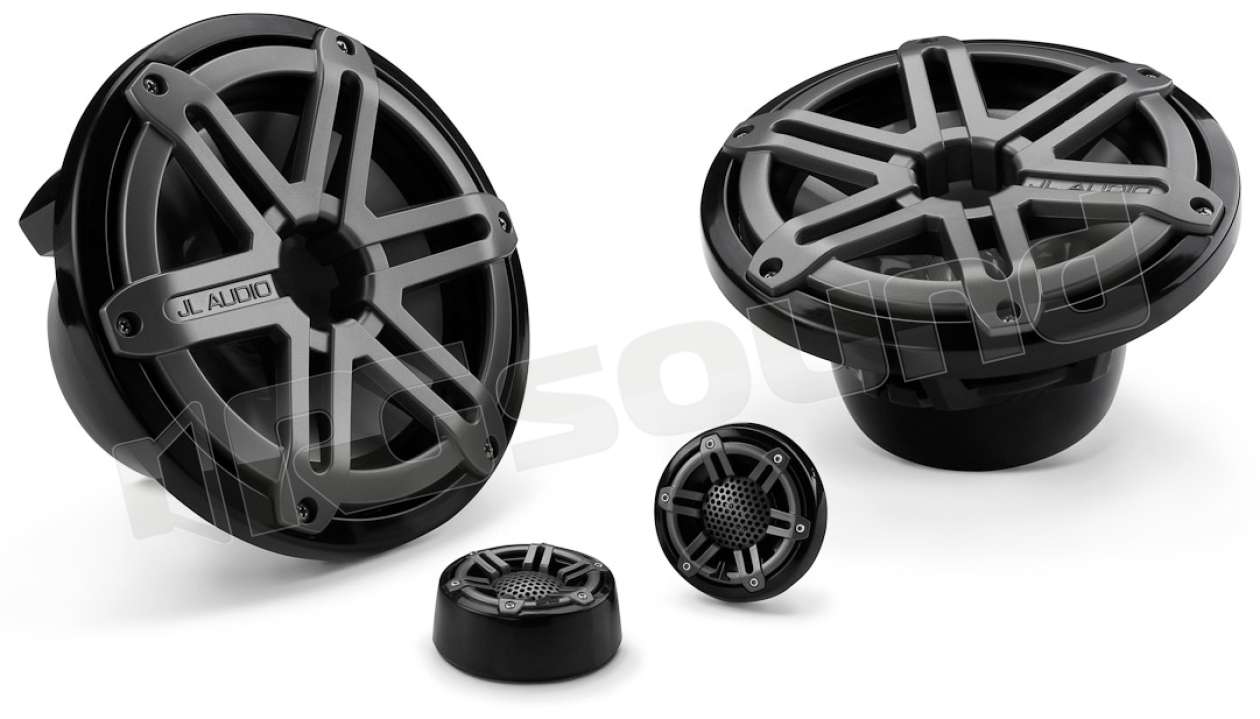

JL Audio M770-TCS-SG-TB kit marino a due vie 200 mm

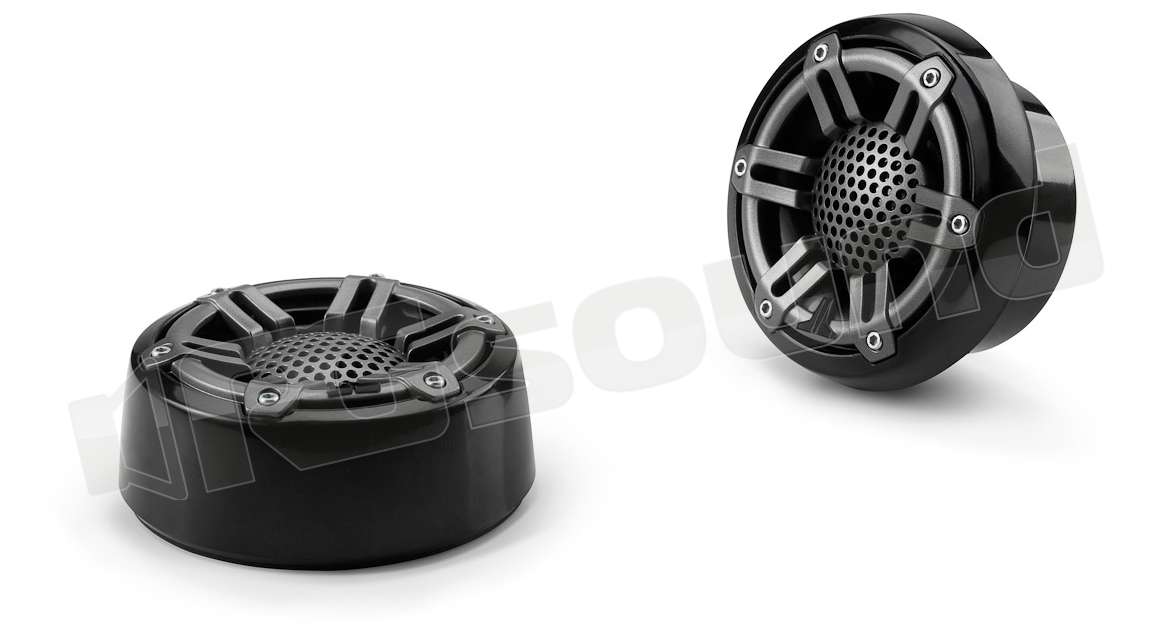

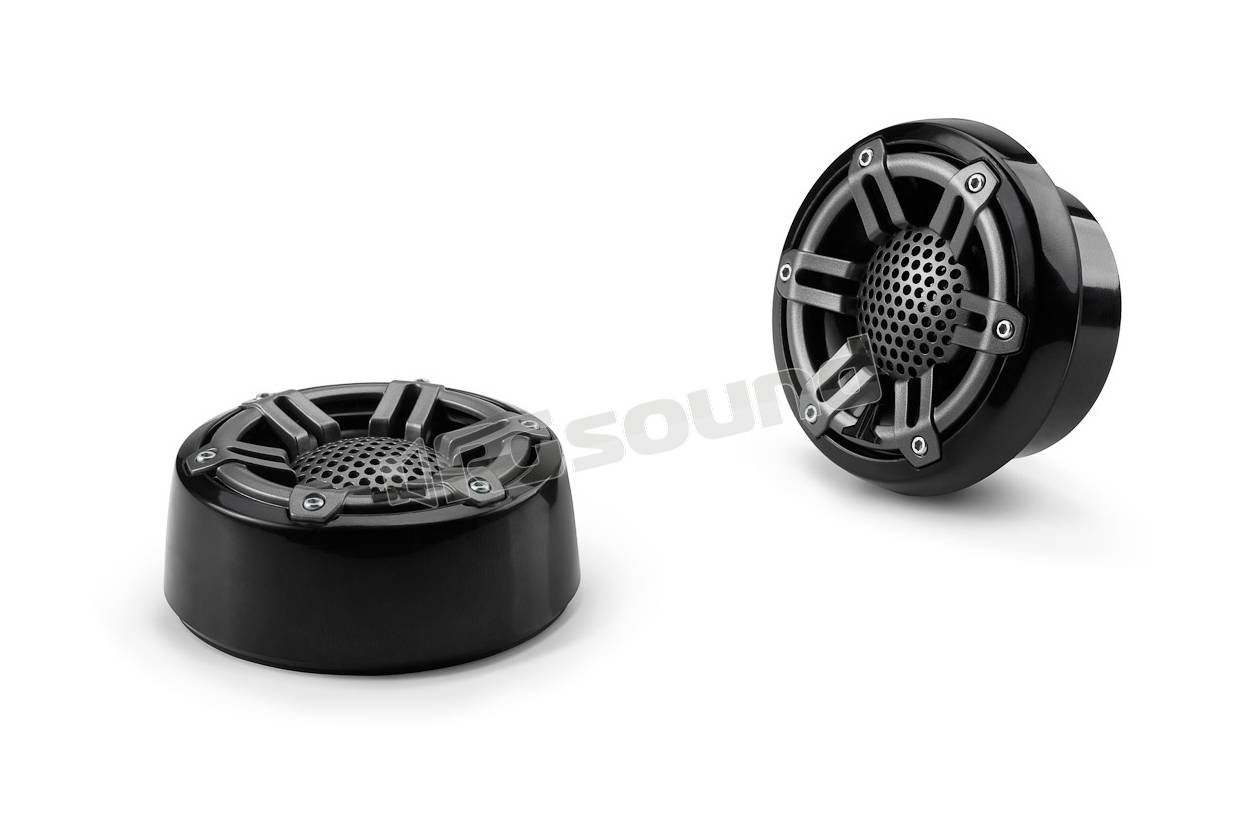

JL Audio M770-TCS-SG-TB Serie M kIt impermeabile a due vie 200 mm di alta gamma per uso nautico con griglie in titanio. Garantito dal miglior servizio RGsound.it. M770-TCS-SG-TB è realizzato per contenitori con volume di lavoro limitato. Tweeter di 25mm con cupola in seta e magnete in neodimio.

Caratteristiche M770-TCS-SG-TB

Continuous Power Handling (RMS) 100 W
Peak Music Power 225 W
Recommended RMS Amplifier Power (per Ch.) 40 - 175 W
System Efficiency 91.0 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 45 Hz - 25 KHz ± 3 dB

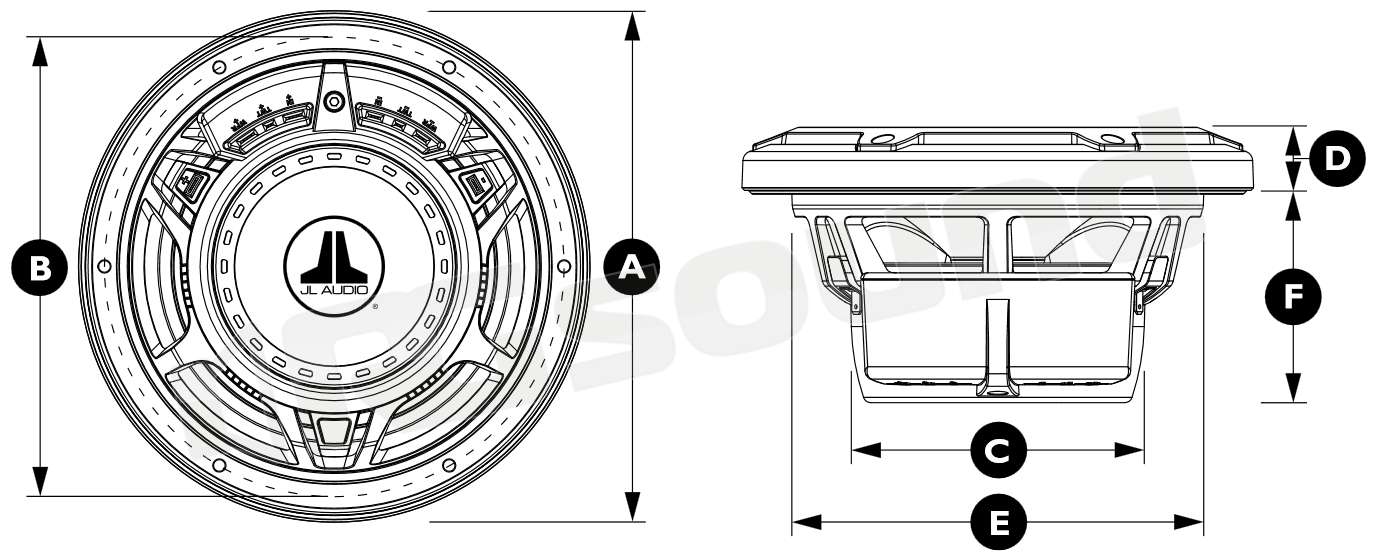

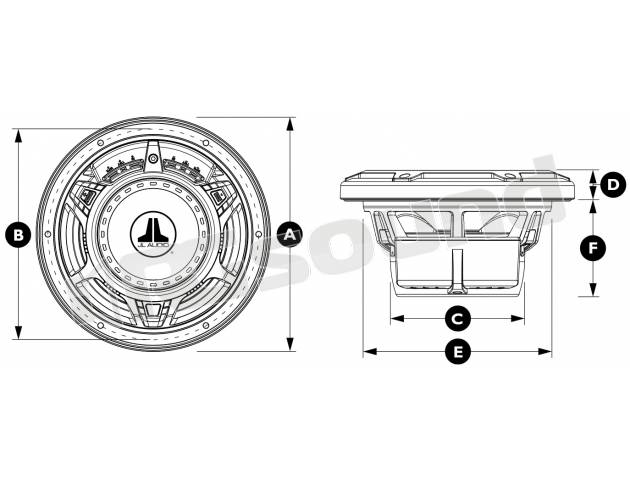

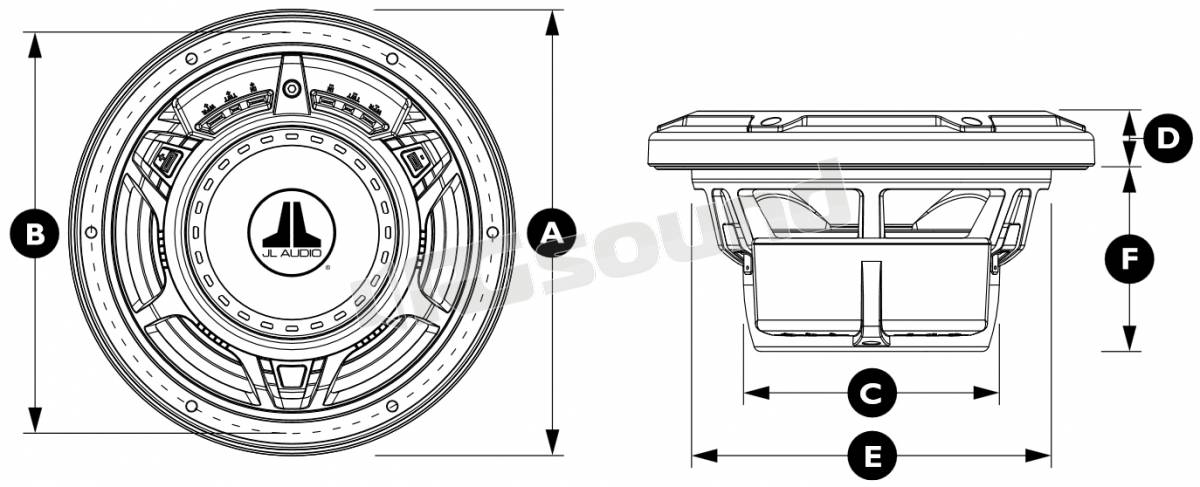

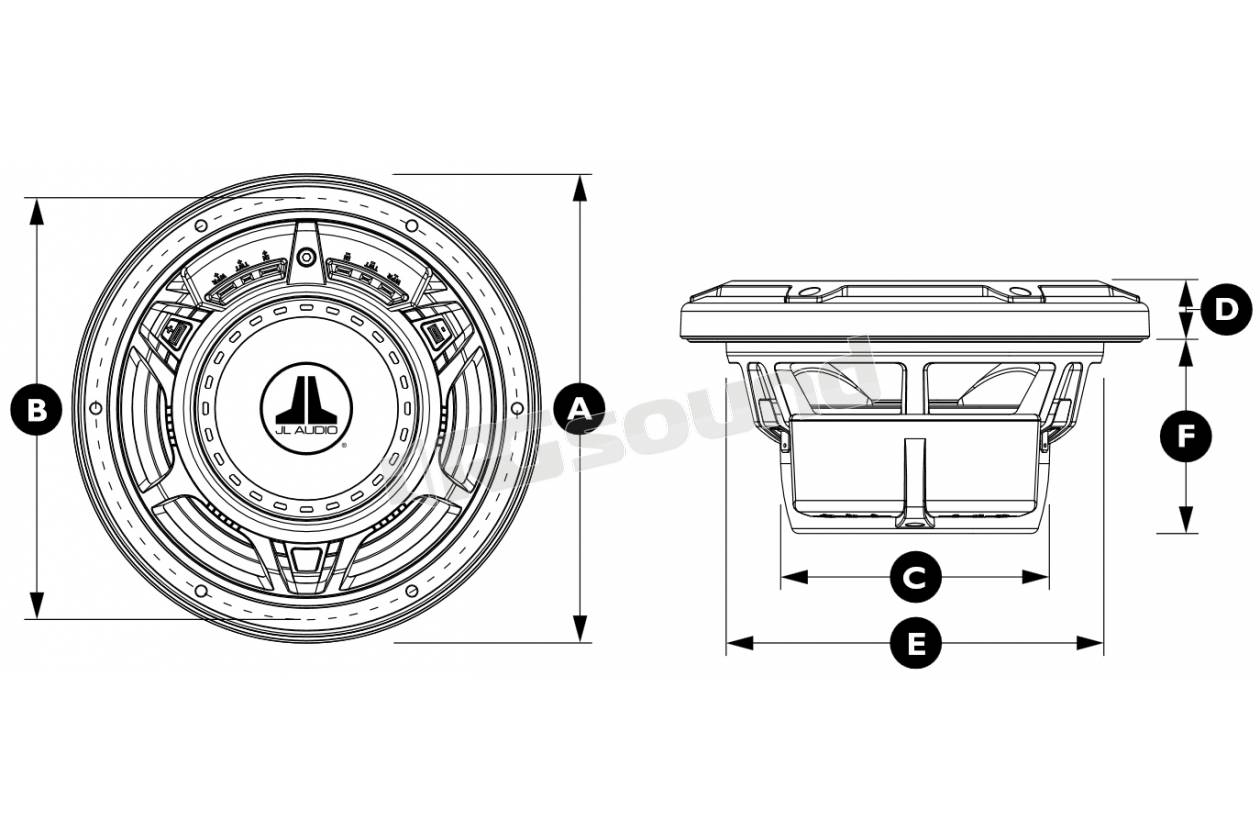

Dimensioni woofer M770-TCS-SG-TB

Frame Outer Diameter (A) 7.70 in / 196 mm
Bolt Hole Circle Diameter (B) 6.92 in / 176 mm
Motor Overmold Outer Diameter (C) 4.41 in / 112 mm
Frontal Grille Protrusion* (D) 0.99 in / 25 mm
Mounting Hole Diameter (E) 6.25 in / 159 mm
Mounting Depth (F) 3.15 in / 80 mm

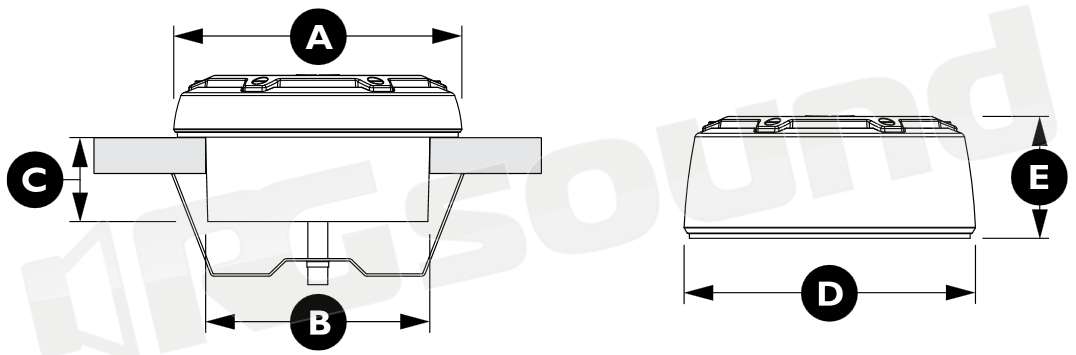

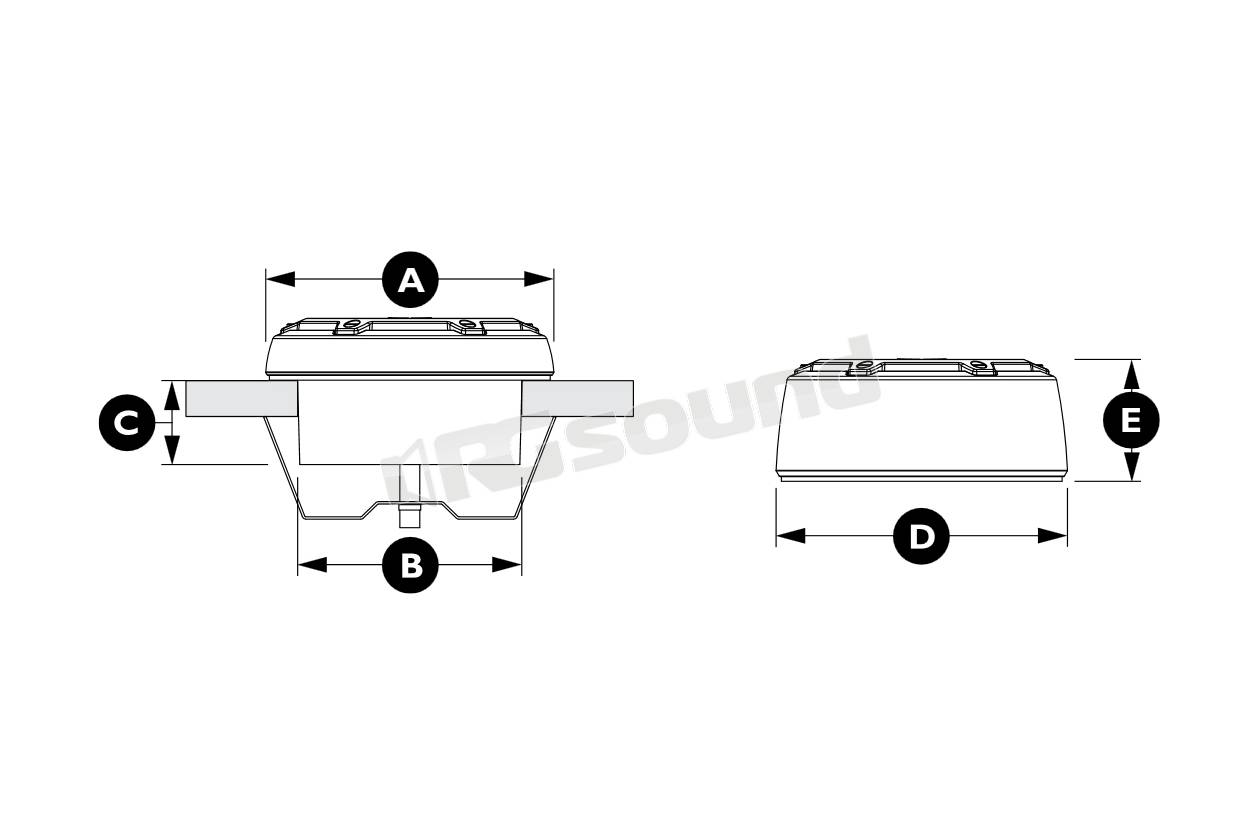

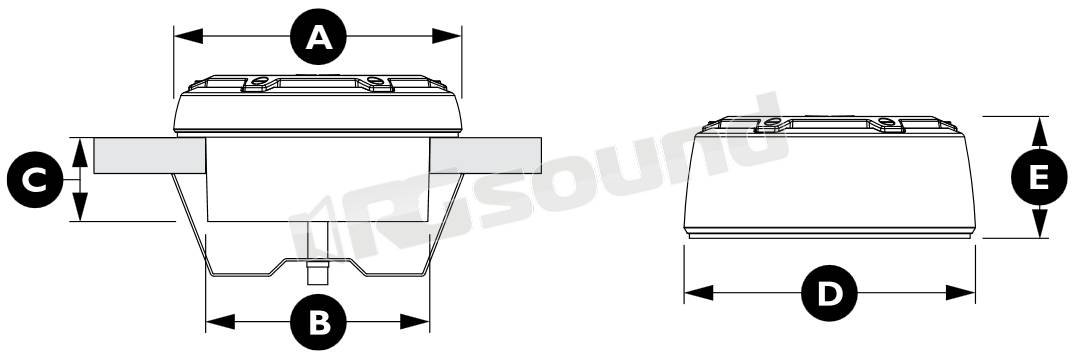

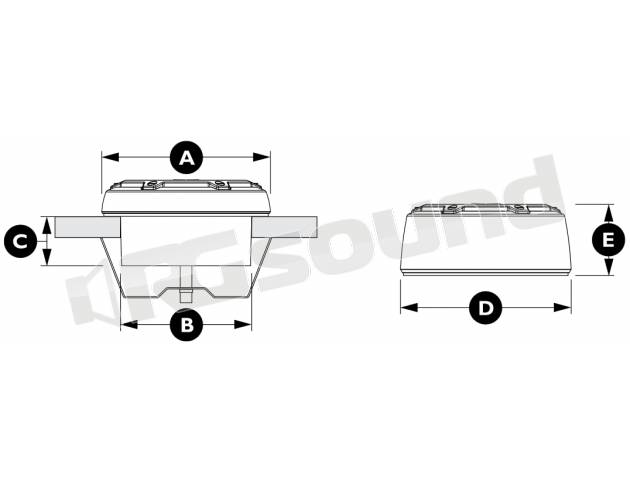

Dimensioni tweeter M770-TCS-SG-TB

Flush Mount Fixture Diameter (A) 2.38 in / 60 mm
Flush Mount Mounting Hole Diameter (B) 1.875 in / 48 mm
Flush Mount Mounting Depth (C) 0.70 in / 18 mm
Surface Mount Mounting Hole Diameter (D) 2.44 in / 62 mm
Flush Mount Protrusion (E) 1.02 in / 26 mm
