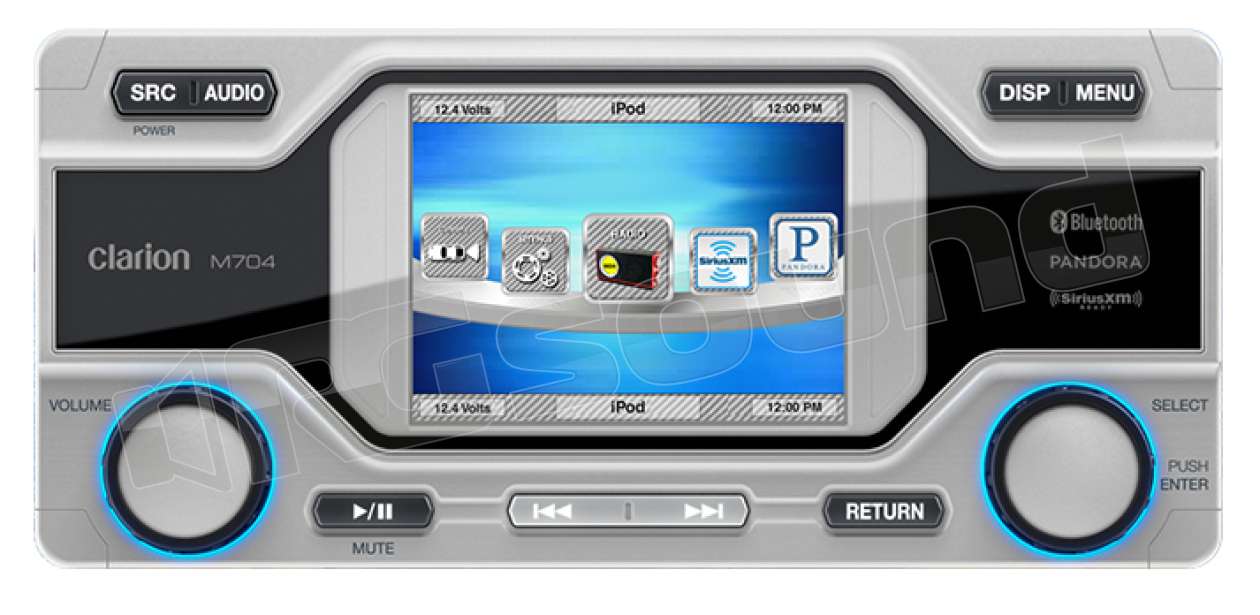

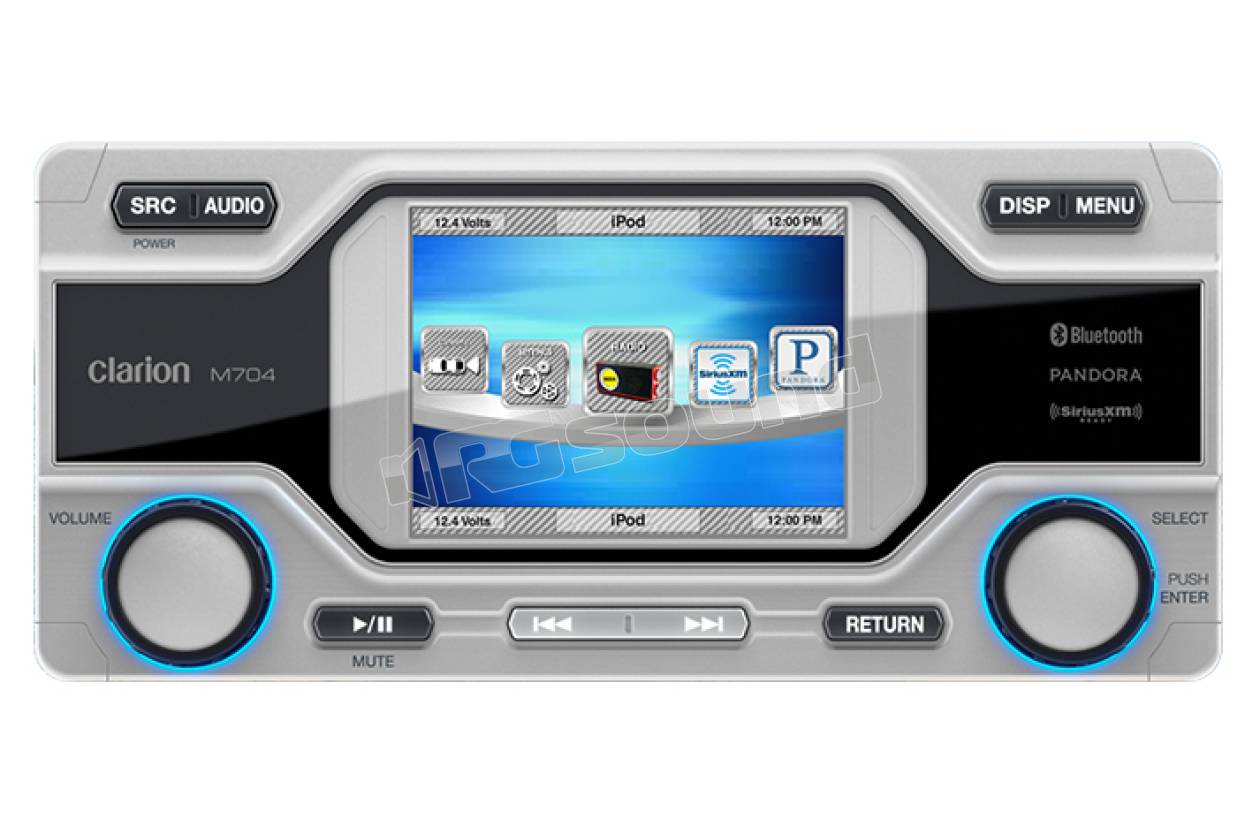

Clarion M704

Clarion M704 WATERTIGHT J1939 MARINE USB/BLUETOOTHWEATHER BAND RECEIVER

SPECIFICHE M704

TUNER
Frequency bands : FM/AM/Weather Band
FM Tuner with RDS
Frequency Range :
USA 87.9 ~ 107.9MHz (0.2MHz STEP)
Europe 87.5 ~ 108.0MHz (0.05MHz STEP)
Australia 87.5 ~ 108.0MHz (0.1MHz STEP)
AM Tuner with RDS
Frequency Range :
USA 530 ~ 1710kHz (10kHz STEP)
Europe 531 ~ 1602kHz (9kHz STEP)
Australia 531 ~ 1629kHz (9kHz STEP)
Weather Band
NOAA Frequency Range : 162.400MHz ~ 162.550MHz
Channel 1 : 162.400MHz
Channel 2: 162.425MHz
Channel 3: 162.450MHz
Channel 4 : 162.475MHz
Channel 5 : 162.500MHz
Channel 6: 162.525MHz
Channel 7 : 162.550MHz

AUDIO
Maximum Power Output : 50W x 4
Rated Power Output : 21W x 4 (CEA2006) 1% THD, 1 kHz @ 14.4V
High Pass Filter (Front/Rear) : 70/105/140/THROUGH (Speaker and RCA)
Low Pass Filer (Subwoofer) : 50/75/100/THROUGH
BASS Control : 50Hz Frequency, +14dB ~ -14dB
MID Control : 1k Frequency, +14dB ~ -14dB
TREBLE Control : 12kHz Frequency, +12dB ~ -12dB

GENERALE
Dimensions (W × H × D) (Inches) : 7-1/8 × 2 × 6-5/8
Dimensions (W × H × D) (mm) : 181 × 50.8 × 168.3
Weight (Lbs) : 4.56
Power consumption : 15 A
Speaker impedance : 4 ohm ? 8 ohm
Ingress Protection (IP) Rating:
Black Box : IP66
Controller : IP67
Connectors : IP67
ASTM B117 (Salt/Fog Exposure)
ASTM D4329 (UV Exposure)
SAE J1939 Specifications:
Broadcast Type : Open @ 29-Bit
Bandwidth : 500Kb/s
Clock : 1MB/s
Connector : 9-pin, IP6
Display
LCD : 3.5” Optically Bonded Color
Resolution : 320 x 240
Luminance : 420 NITS
