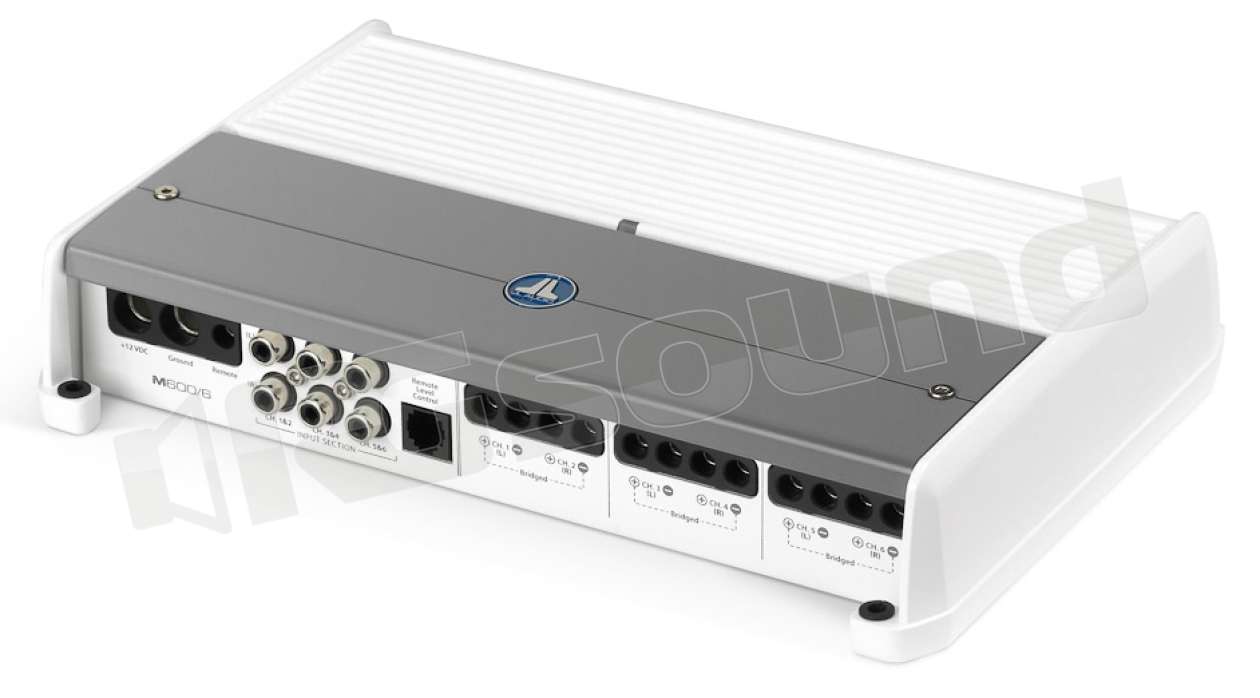

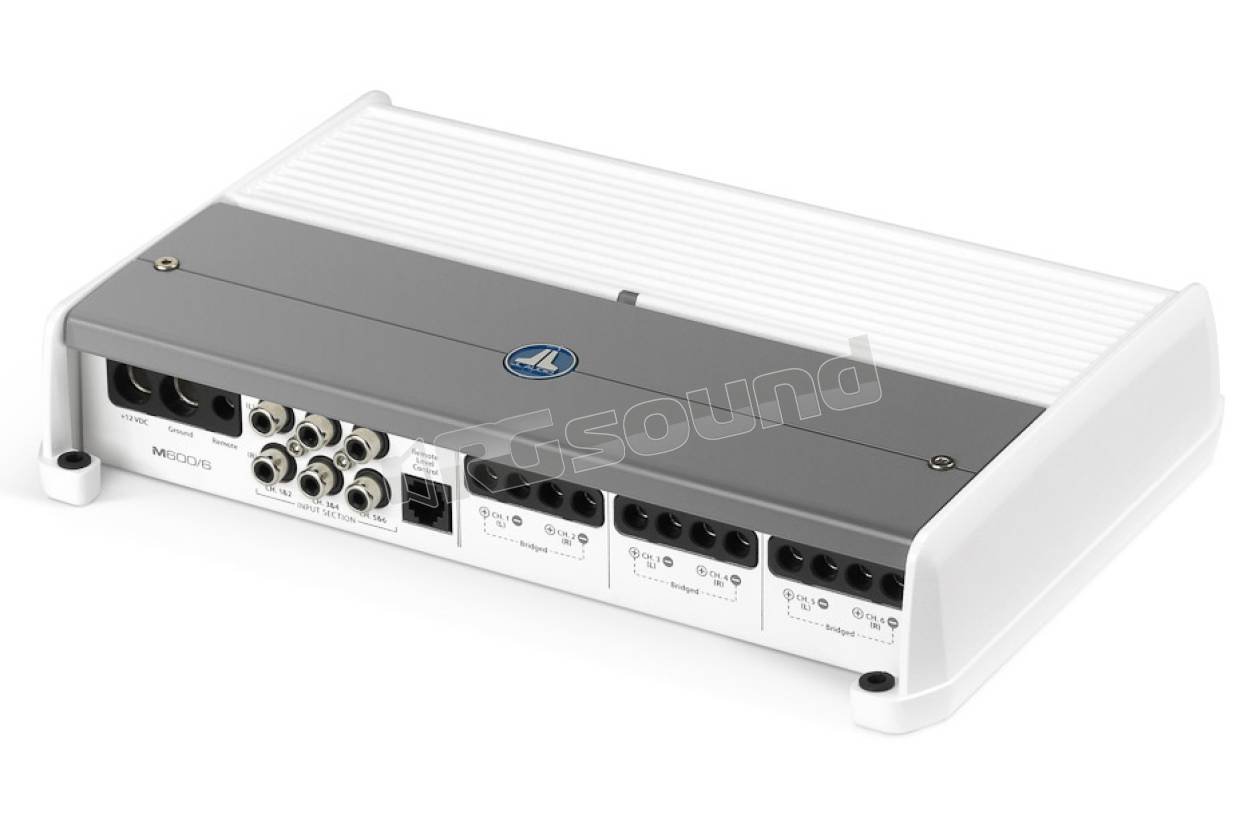

JL Audio M600/6 amplificatore marino full range a sei canali Classe D. Garantito dal miglior servizio RGsound.it. Dimensioni ultracompatte 216 x 52 x 180 mm. Finitura bianca, pannello griglio, logo JL Audio centrato.

Caratteristiche M600/6
Potenze RMS @ 14.4 V

@ 4 Ω 75 W RMS x 6
@ 2 Ω 100 W RMS x 6
Bridged @ 4Ω 200 W RMS x 3

Potenze RMS @ 12.5 V

@ 4 Ω 60 W RMS x 6
@ 2 Ω 90 W RMS x 6
Bridged @ 4Ω 180 W RMS x 3

Specifiche generali M600/6

Frequency Response 12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >150 / 50 Hz
Damping Factor @ 2 Ω >75 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 100 mV - 4 V RMS
Min Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 50 A (AFS, AGU or MaxiFuse™)

Signal processing M600/6

Filter Modes Low-Pass or High-Pass
Filter Slope (dB/Octave) 12 dB
Filter Frequency Range 50-500 Hz
Detented, Calibrated Filter Freq. Potentiometers Yes
Filter Defeatable? Yes
Remote Level Control Optional (HD-RLC)
Remote Level Modes 2 or 4 or All Channels
Channel Input Mode Switch Yes (2/4/6 ch.)
Pass-Through Preamp Output Type None
Source Channel Selection for PreOuts N/A

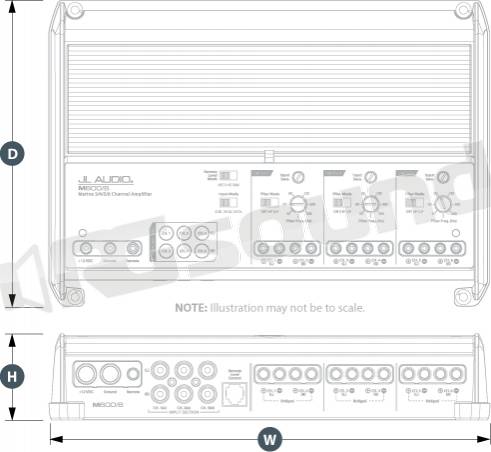

Dimensioni M600/6

Height (H) 2.05 in / 52 mm
Width (W) 10.23 in / 260 mm
Depth (D) 7.09 in / 180 mm
Net Weight 5.8 lb / 2.63 kg
