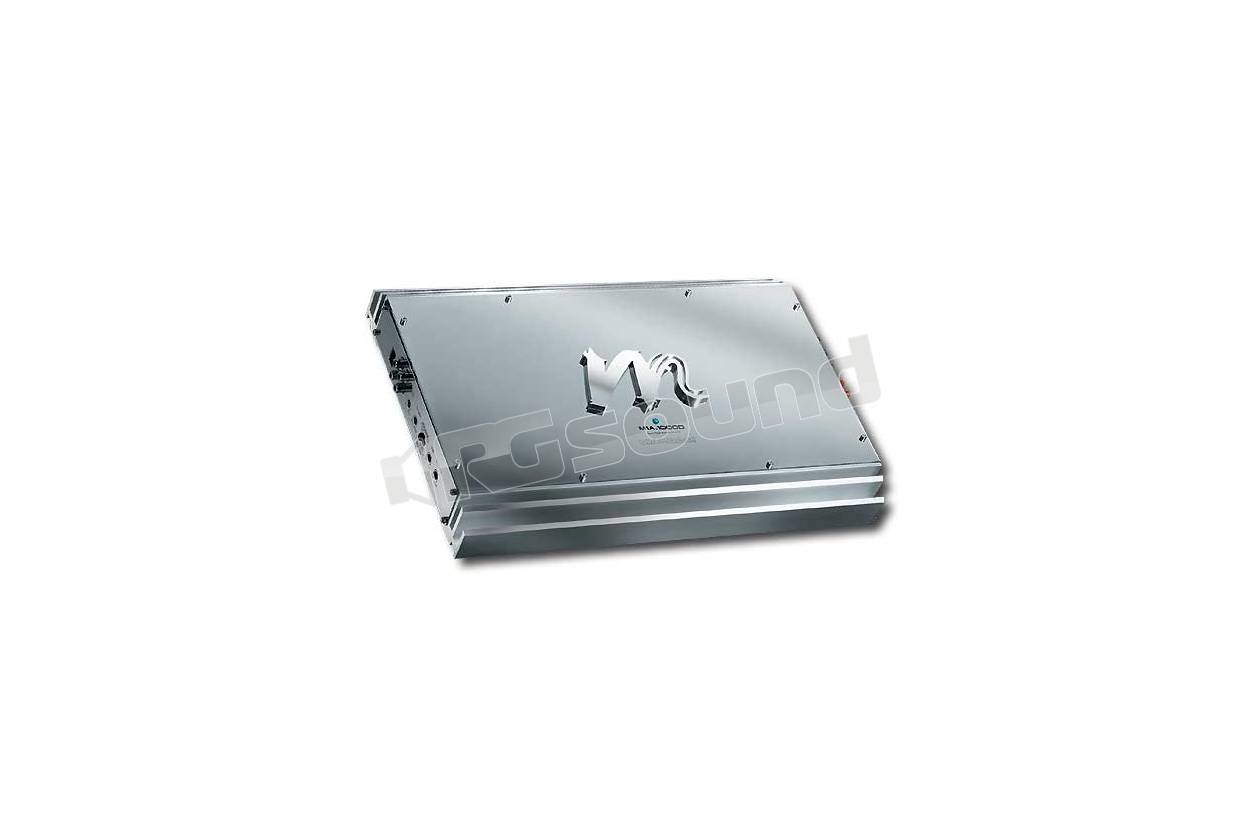

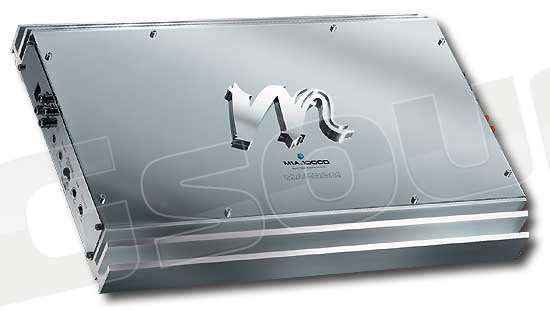

Macrom M1A.1000D

Amplificatore monofonico in classe D specifico per subwoofer

1000W classD mono amp
- 3000 watts IHF Power
- 1000 watts rms into 2 ohms load 14 volts
- 500 watts rms into 4 ohms load 14 volts
- High efficiency Class D design
- Variable 18dB per octave low pass crossover from 30 to 300Hz
- Variable 18dB per octave subsonic filter from 20 to 55Hz
- Adjustable 0 to +15dB at 45hz bass boost
- Pre-amplified output with crossover options
- Muting circuitry for soft turn-on and turn-off
- Frequency response : 20 to 330Hz (+/-0,5dB)
- Sensitivity : 0,2 to 8 volts compatible
- Total Harmonic Distortion : THD < 0,5%
- Signal to noise ratio : > 90dB
- Chrome heatshield
- PWM Mos-Fet power supply
- EBC external bass control
- 20 sq.mm power terminals
- Dimensions : 265 x 50 x 385 mm
