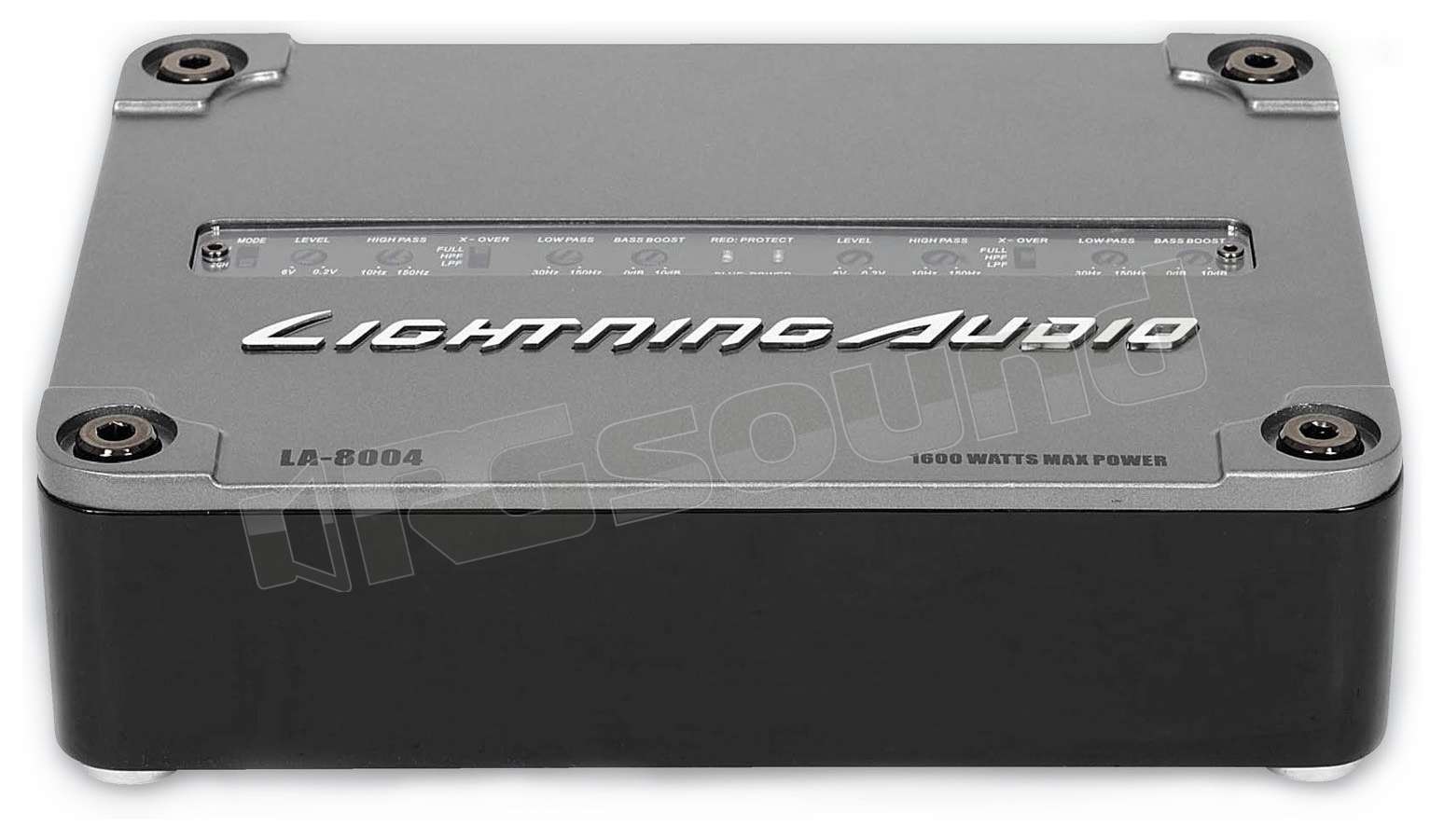

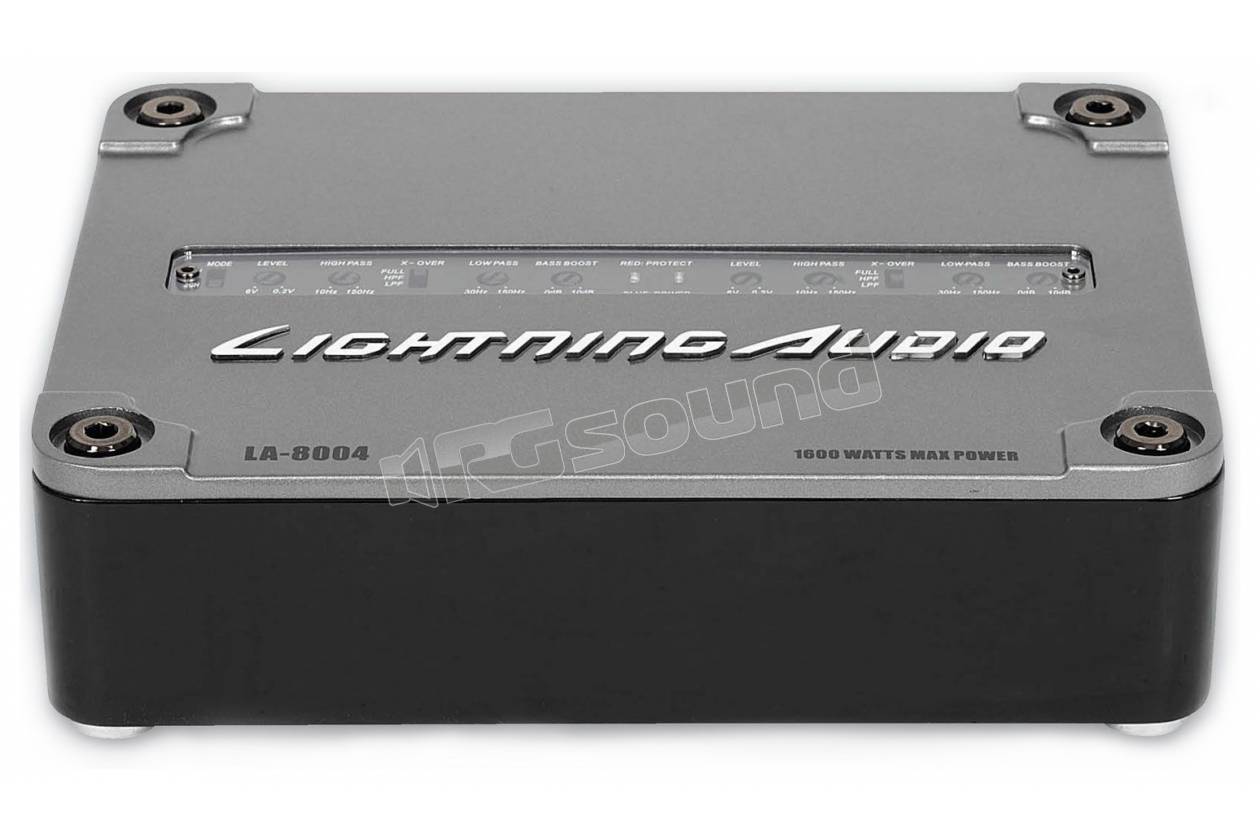

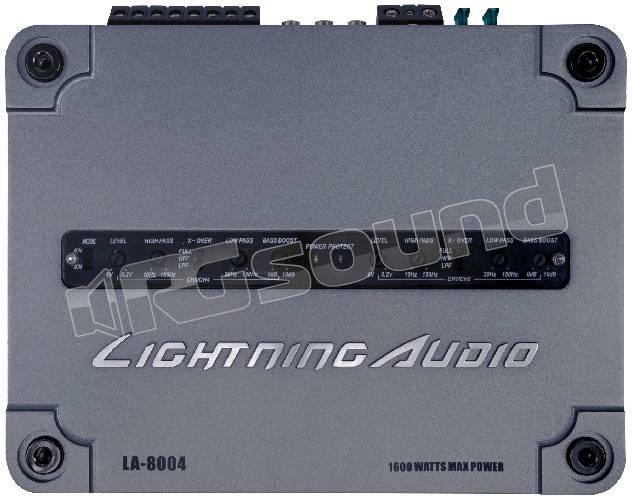

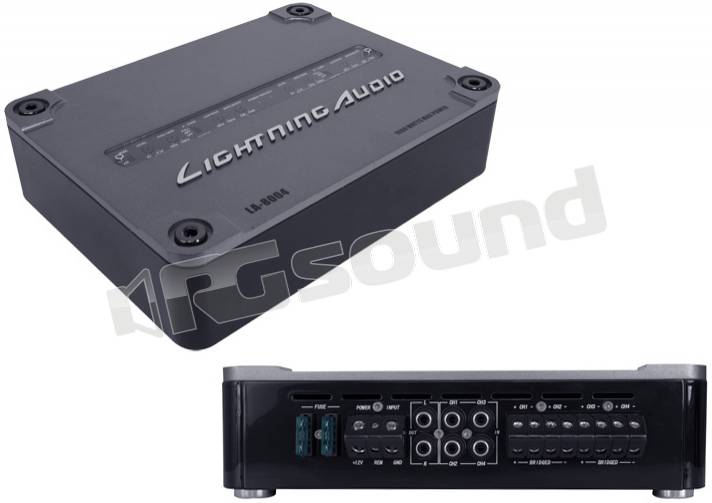

Lightning Audio LA-8004

Lightning Audio LA-8004 amplificatore a quattro canali 1,600 Watt - Potenza RMS 80 Watts x 4 @ 4Ohms - Dimensioni 63.7 x 19.05 x 6.66 cm.

Caratteristiche LA-8004

Number of Channels 4
Rated Power 80 Watts x 4 @ 4-Ohms
110 Watts x 4 @ 2-Ohms
220 Watts x 1 @ 2-Ohm
Max Power 200 Watts x 4 @ 4-Ohms
400 Watts x 4 @ 2-Ohms
800 Watts x 2 @ 1-Ohm
Bridgeable Yes
Crossover Controls CH1/CH2: 12dB/octave FULL-HPF-LPF
HP: 10Hz to 150Hz
LP: 30Hz to 150Hz

CH3/CH4: 12dB/octave FULL-HPF-LPF
HP: 10Hz to 150Hz
LP: 30Hz to 150Hz
Tone Controls CH1/CH2: Bass Boost 0dB to +10dB @ 45Hz
CH3/CH4: Bass Boost 0dB to +10dB @ 45Hz
Signal Input Low-Level: 4 RCA (200mV to 6V)
Input Mode: 2CH/4CH
Signal Output Low-Level: (2) RCA Pass Thru
Power Input Connector Block connector w/ set screw
Power Wire Gauge 8 AWG
Speaker Output Connector Block connector w/ set screw
Speaker Wire Gauge 10 AWG
Heat Sink Type Cast aluminum
Cooling Convection
Remote Control n/a
Visual Indicators Power
Protect
Circuit Topology Class Class A/B
THD at Rated Power <1.0
Frequency Response 20Hz to 20kHz
Signal-to-Noise Ratio >95 dB
Shipping Weight 9 Lbs. (4.1 Kg.)
Dimensions L9.875" x W7.5" x H2.625"
63.7cm x 19.05cm x 6.66cm
