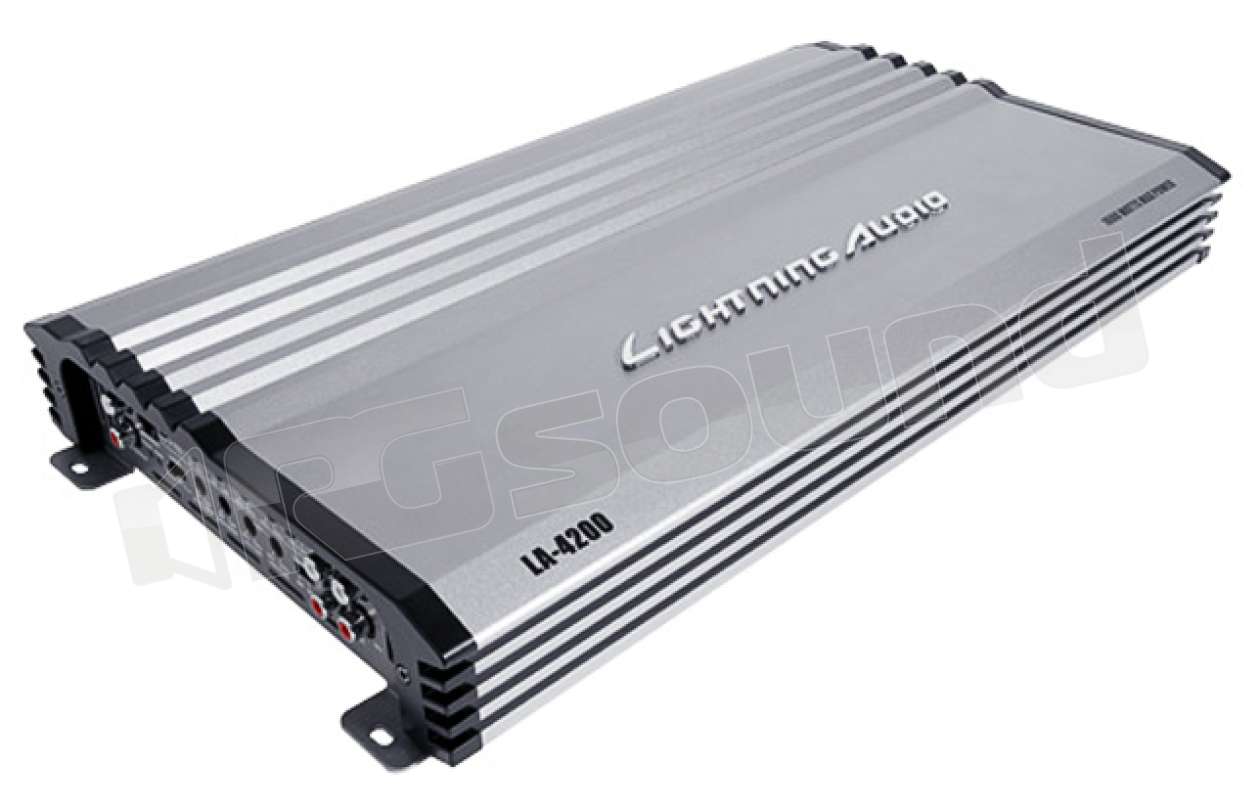

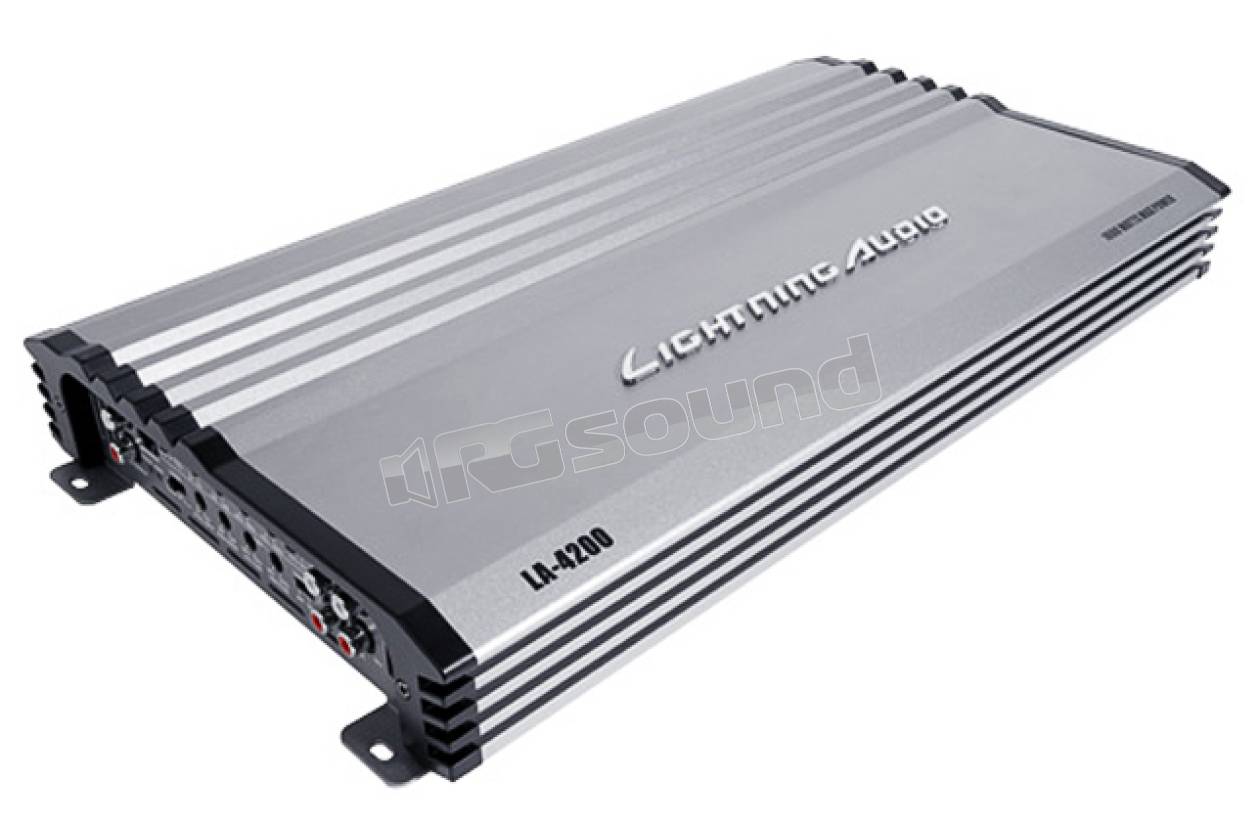

Lightning Audio LA-4200 amplificatore a 4 canali, classe AB, potenza RMS 4 x 1.600 Watt. Ingresso alto livello e basso livello.

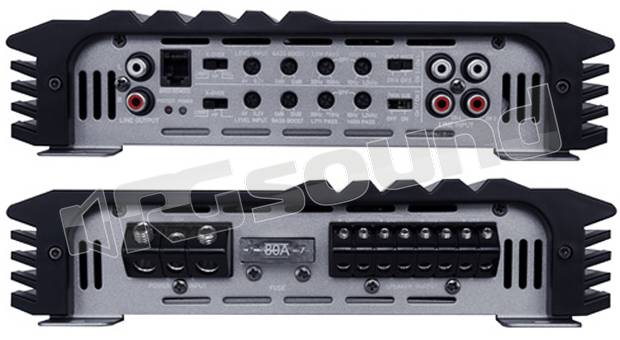

RCA Pass-Thru Outputs
12dB Bass Boost
Adjustble 12dB/octave Crossover
Input Mode Switch
Built-In Fusing
Remote Bass Control
The Lightning Audio LA-4200 1,600 Watt amplifier can run an entire system with plenty of power! Run a 4-channel full-range speaker system on the amplifier or run full-range speakers on the front channels and subwoofers bridged on the rear channels. Featuring both hi-level or low-level inputs, bass boost, a selectable High-Pass or Low-Pass crossovers and RCA line outputs for daisy-chaining an additional amplifier, this amp does it all!
Specifiche LA-4200
Number of Channels | 4 |
Rated Power | 100 Watts x 4 @ 4-Ohms 150 Watts x 4 @ 2-Ohms 300 Watts x 2 @ 4-Ohms |
Max Power | 200 Watts x 4 @ 4-Ohms 400 Watts x 4 @ 2-Ohms 800 Watts x 2 @ 4-Ohms |
Bridgeable | Yes |
Crossover Controls | CH1/CH2: 12dB/octave LP/BP-HP-FULL HP: 10Hz to 1.2kHz LP: 30Hz to 150Hz CH3/CH4: 12dB/octave LP/BP-HP-FULL HP: 10Hz to 1.2kHz LP: 30Hz to 150Hz |
Tone Controls | Front: 0dB to +12dB @ 45Hz Rear: 0dB to +12dB @ 45Hz |
Signal Input | Low-Level: 4 RCA (200mV to 4V) Input Switch: 4CH/2CH Twin Sub: off/on (synchonizes power supplies when bridging CH1/CH2 to woofer #1 and bridging CH3/CH4 to woofer #2 |
Signal Output | Low-Level: (2) RCA Pass Thru |
Power Input Connector | Block connector w/ set screw |
Power Wire Gauge | 4 AWG |
Speaker Output Connector | Block connector w/ set screw |
Speaker Wire Gauge | 10 AWG |
Heat Sink Type | Extruded aluminum |
Cooling | Convection |
Remote Control | Bass Boost (included) w/ integral Power LED & Protect LED |
Visual Indicators | Power Protect |
Circuit Topology Class | Class A/B |
THD at Rated Power | <1.0 |
Frequency Response | 20Hz - 20kHz |
Signal-to-Noise Ratio | >85 dB |
Shipping Weight | 13 Lbs. (5.9 Kg.) |
Dimensions | L16.5" x W9.4" x H2.3" 41.9cm x 23.876cm x 5.8cm |
