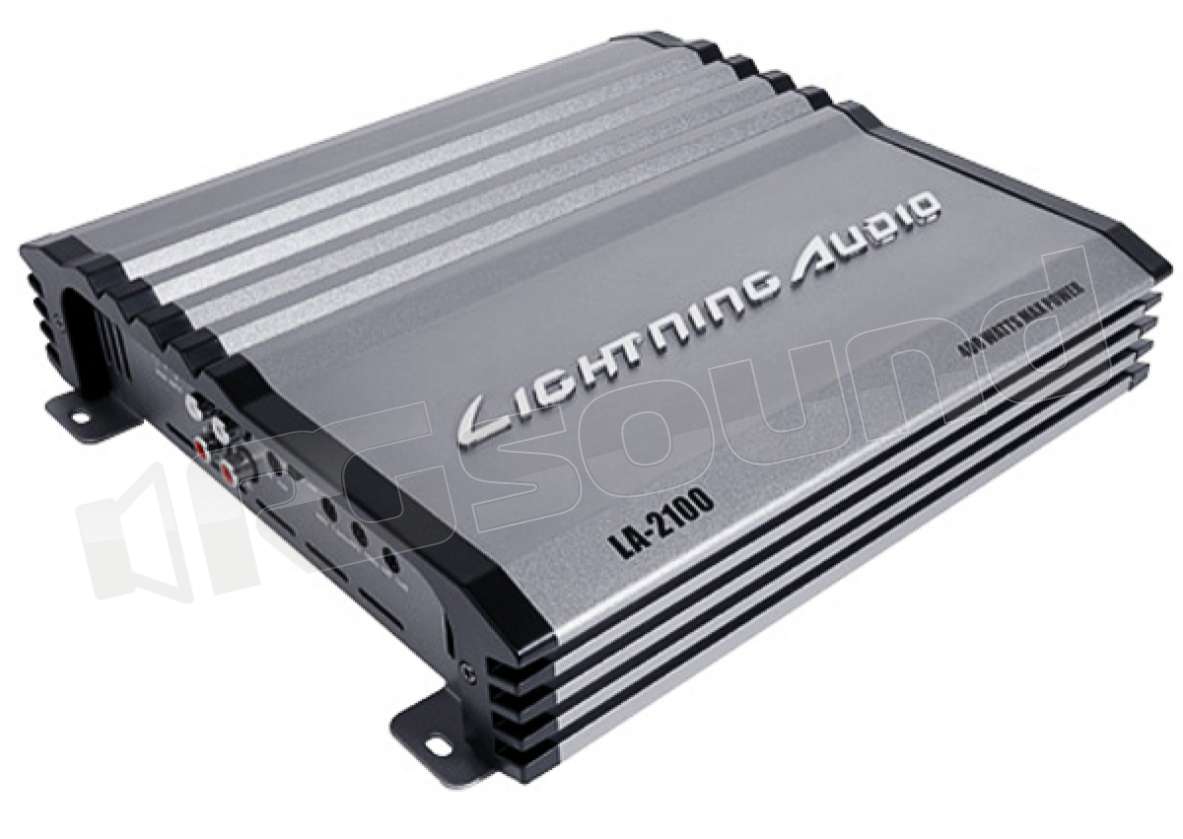

Lightning Audio LA-2100 400 Watt 2-Channel Amplifier
High Level Inputs
RCA Pass-Thru Outputs
12dB Bass Boost
Adjustble 12dB/octave Crossover
Built-In Fusing
The Lightning Audio LA-2100 is a 400 Watt Stereo amplifier optimized for any full-range or component system speaker setup. This amplifier features hi-level or low-level inputs with selectable High-Pass or Low-Pass crossover and bass boost. Also featured are a pair of RCA outputs for daisy-chaning another amplifier, like one for driving subwoofers.
Specifiche LA-2100
Number of Channels | 2 |
Rated Power | 50 Watts x 2 @ 4-Ohms 90 Watts x 2 @ 2-Ohms 180 Watts x 1 @ 4-Ohms |
Max Power | 100 Watts x 2 @ 4-Ohms 200 Watts x 2 @ 2-Ohms 400 Watts x 1 @ 4-Ohms |
Bridgeable | Yes |
Crossover Controls | 12dB/octave HP/FULL/LP High-Pass (HP): 60Hz to 1.2kHz Low-Pass (LP): 40Hz to 150Hz |
Tone Controls | Bass Boost: 0dB to +12dB @ 45Hz |
Signal Input | High-Level: L/R Pins (2V to 12V) Low-Level: 2 RCA (200mV to 4V) |
Signal Output | Low-Level: (2) RCA Pass Thru |
Power Input Connector | Block connector w/ set screw |
Power Wire Gauge | 8 AWG |
Speaker Output Connector | Block connector w/ set screw |
Speaker Wire Gauge | 8 AWG |
Heat Sink Type | Extruded aluminum |
Cooling | Convection |
Remote Control | n/a |
Visual Indicators | Power Protect |
Circuit Topology Class | Class A/B |
THD at Rated Power | <1.0 |
Frequency Response | 20Hz to 20kHz |
Signal-to-Noise Ratio | >95 dB |
Shipping Weight | 8 Lbs. (3.6 Kg.) |
Dimensions | L9.5" x W9.4" x H2.3" 24.13cm x 23.876cm x 5.8cm |
