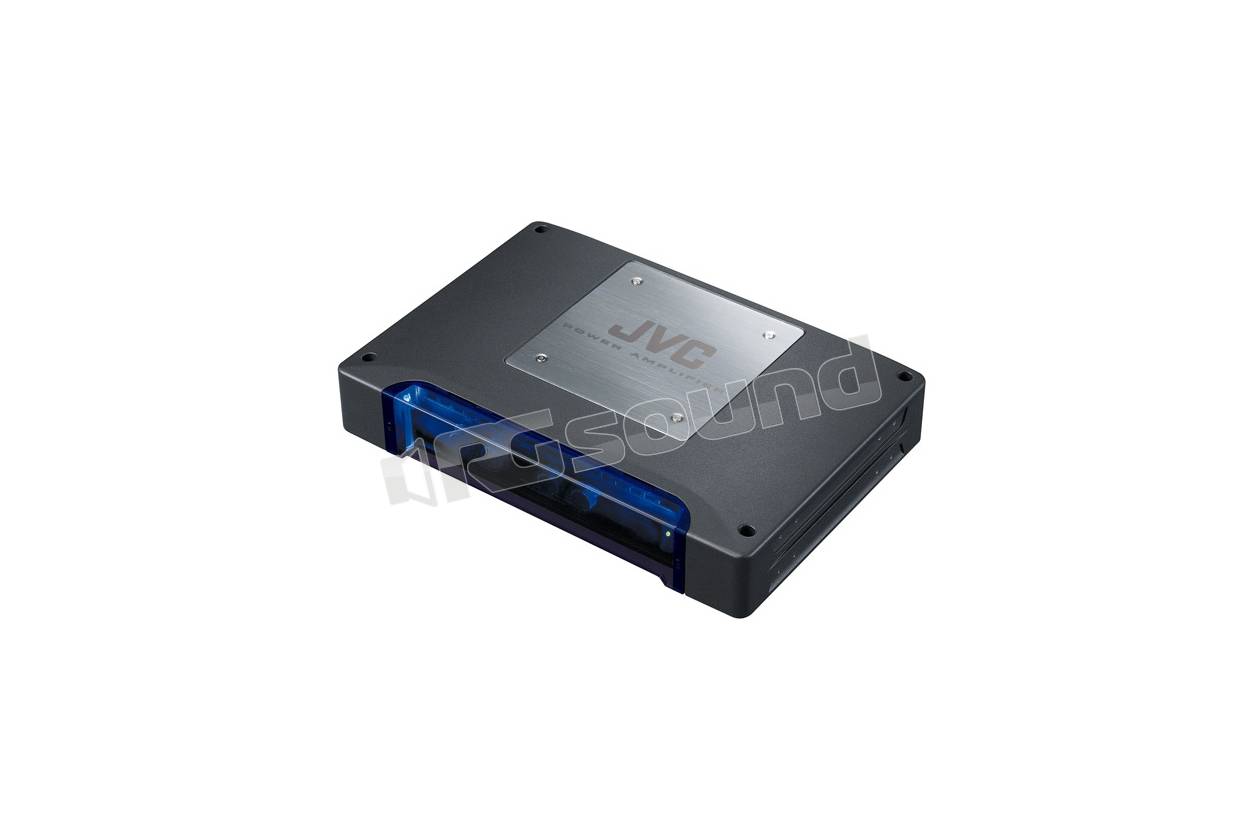

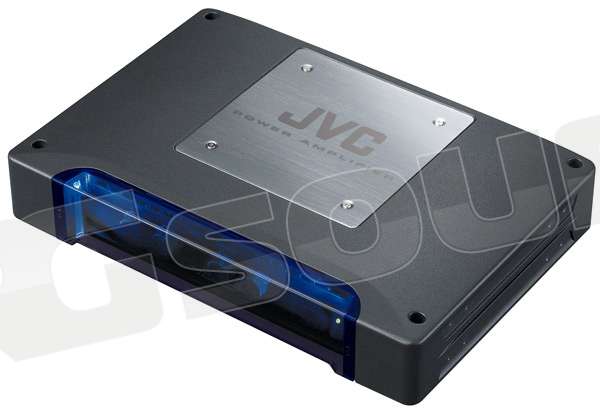

JVC KS-AR9001D

KS-AR9001D Digital Mono Amplifier

The slight curvature of the case offers this amplifier supermodel looks whilst the smoked glass cover over the illuminated control panel hints at the hi-tech credentials of the circuitry within. Controls can be adjusted without the use of tools offering immediate tweaks on the move and a very sensible square plate carrying the JVC logo can be fitted in any of four orientations. Multiple Amplifiers can be stacked to build an impressive array!

• D-Class Circuitry
• Max. Power Output of 1200W
• 1 x 250W @ 4 Ohms
• 1 x 500W @ 2 Ohms
• 1 x 1000W RMS @ 1 Ohm
• PWM Regulated MOS-FET Power Supply
• MOS-FET Output Stage
• Frequency Response: 20 - 300Hz (0, -3dB)
• S/N: 60dBA at 2Vrms
• LPF (50 - 300Hz, -18dB/oct)
• Subsonic Filter (20 - 50Hz, -18dB/oct)
• Phase Control (0/180 degree)
• Variable Input RCA Level Control (0.3 - 6V)
• Variable Speaker Input Control (1.2 - 12V)
• Variable Bass Boost Control (45Hz, 0-18dB)
• Gold-Plated RCA Jacks
• Gold-Plated Block Terminals (Power:4AWG, 8AWG/Speakers:8AWG)
• Protection Circuitry (Thermal/Short Circuit/Overload/DC Offset)
• Anti-Pop Circuit
• Control Panel on Front (Cover)
• LED Illumination
