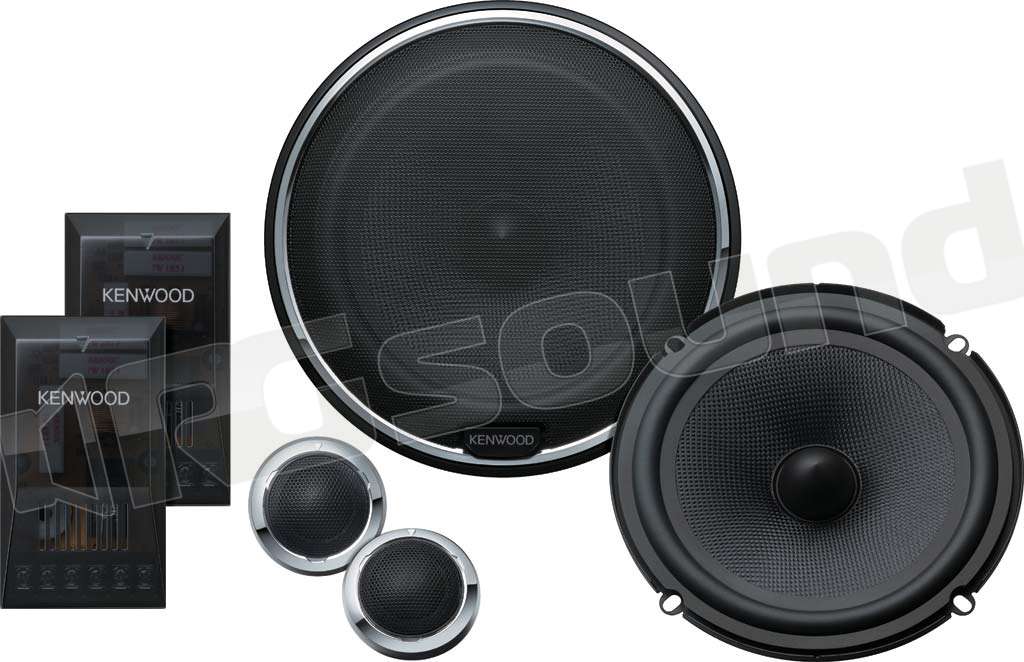

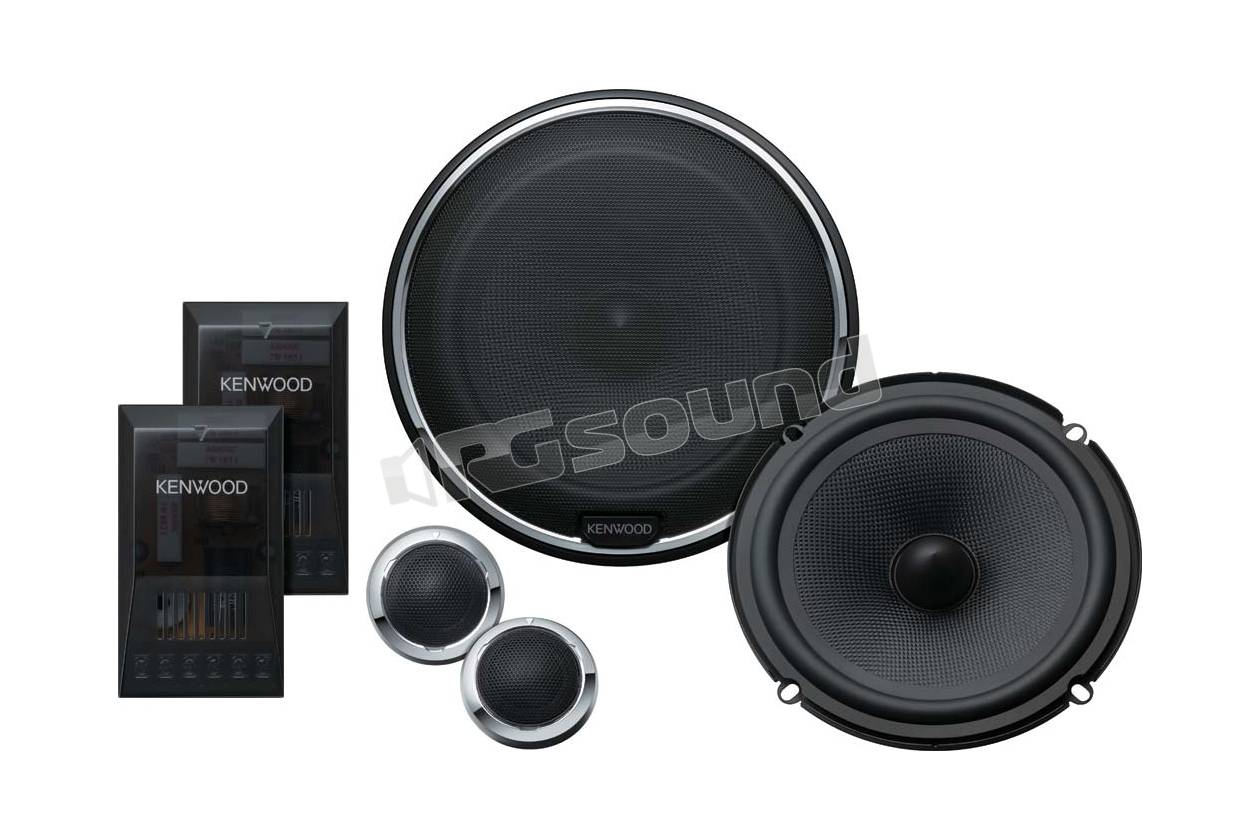

KFC-X1730P - Sistema di altoparlanti a componenti separati a due vie ad alte prestazioni da 170mm.

Caratteristiche principali

• 2-way separate component speaker package
• 16cm oversized Carbon-glass fiber Hybrid cone
• 25mm soft dome tweeter
• Swivel tweeter for flush or surface mounting
• High Quality, compact size, crossover Network
• 330W Peak Input Power
• Low distortion magnetic circuit

Speaker Features
Speaker System 2-way component
Peak Input Power 330W
Rated Input Power 110W
Speaker Size 170mm
Oversized Dimension Yes
Speaker Cone Design Diamond-Array pattern
Magnet Type Ferrit
Overload Protection System Yes
Swifel Capability Yes
Cross-over Network High Quality Crossover Network

Speaker/woofer Specifications
Peak Input Power 330W
Maximum Input Power 150W
Rated Input Power 110W
Woofer Cone material Carbon-Polypropylene Hybrid Cone
Speaker Basket Steel
Speaker Surround Rubber
Sensitivity 86dB/W/m
Frequency Response 63Hz ~ 24000Hz
Subwoofer Impedance 4Ω x 1
Dimensions (W x H x D) 180 x 180 x 86.2mm
Mounting Depth 58mm
Mouting Hole Diameter Ø 126mm
Speaker Weight with Grille (pc.) 1060gr
Speaker Weight w/o Grille (pc.) 970gr
Gross Weight 3300gr
Weight of Magnet 330gr

Tweeter Specifications
Cone Size 25mm
Cone Material Soft dome
Magnet Type Neodymium

Cross-over Network Specifications
Cross-over network type High quality, compact size, crossover network
Zobel Network Circuit for Woofer Yes
Cross-over Frequency 6000 Hz
Tweeter Attenuator 3 points
Tweeter Protection Circuit Yes

Accessories
Screws (Parker-type) Ø 4 x 25mm, 12 pieces
Screws (Parker-type) Ø 4 x 6mm, 8 pieces
Screws (Parker-type) Ø 3 x 16mm, 4 pieces
Clip nut φ4, 8pieces
Clip nut φ3, 4pieces
Wing nut M5, 2 pieces
Buttyl rubber Yes
Grille Yes
Bracket for Honda 2 pieces
Bracket for GM 2 pieces
Bracket for MAZDA 2 pieces
Bracket for Ford 2 pieces
Bracket for flush mount 2 pieces
Electrical circuit box Yes, X'over network
