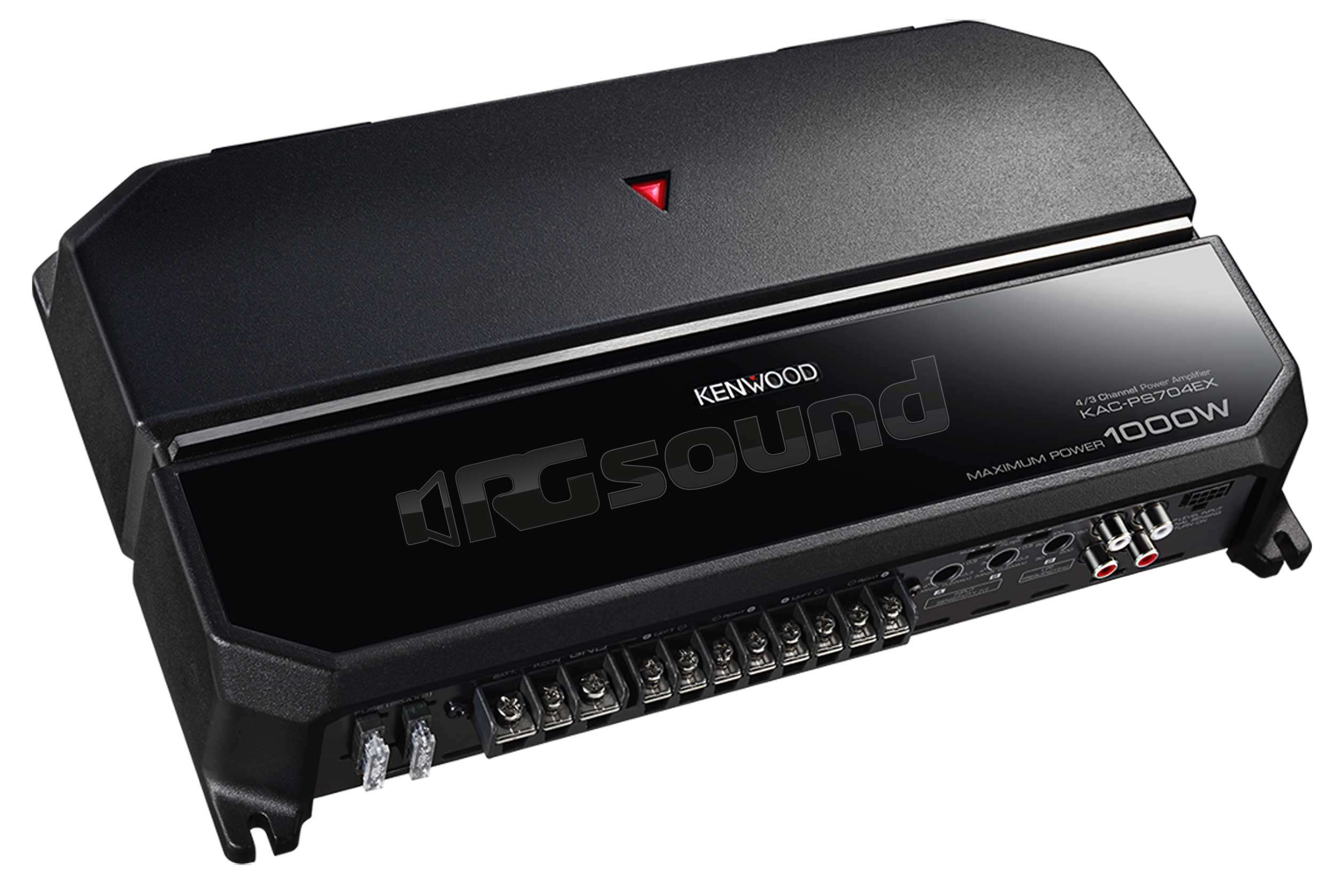

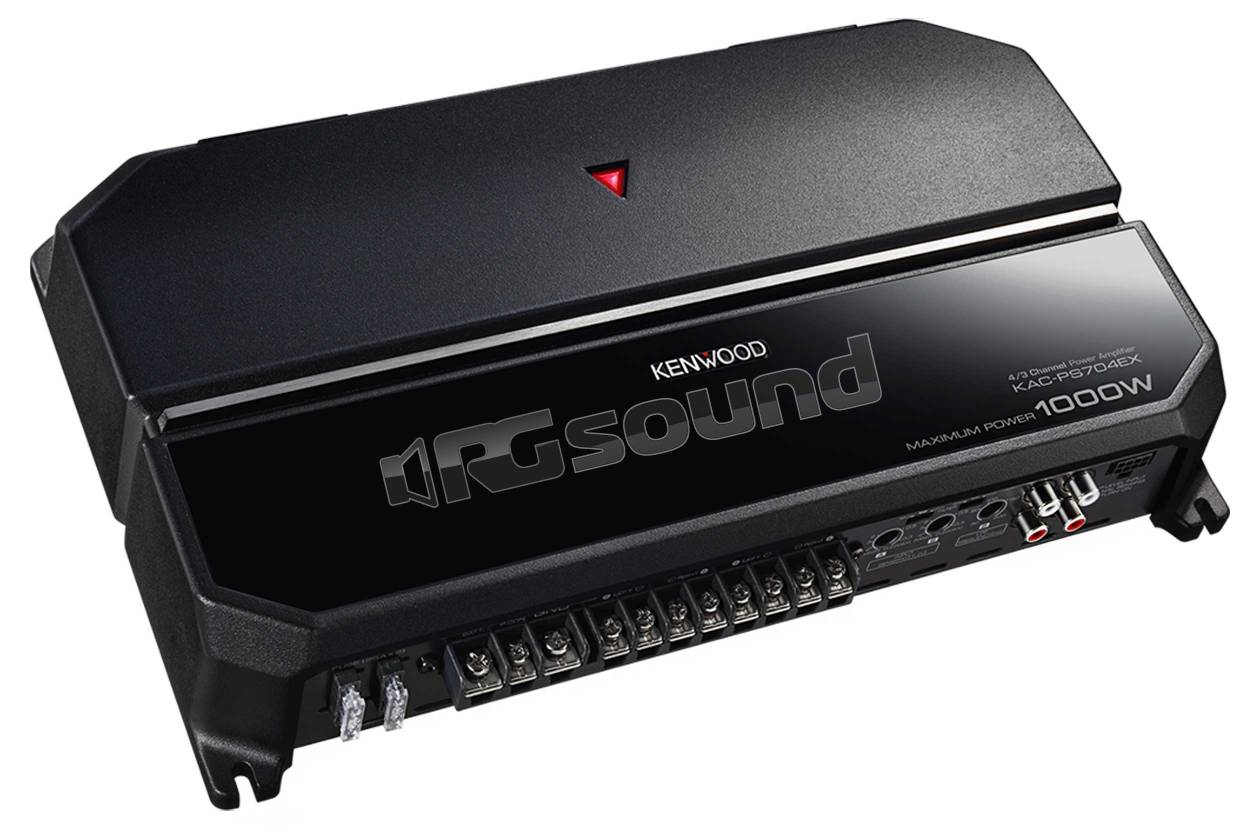

Kenwood KAC-PS704EX

Kenwood KAC-PS704EX amplificatore a quattro canali Serie Performance Standard, la linea top degli amplificatori Kenwood, fornisce dinamiche eccezionali tenendo una riproduzione musicale di alto livello

Caratteristiche tecniche del KAC-PS704EX

Performance Standard Serie

4 channel, 3 channel or 2 channel setup

1000W Maximum output power

Built-in Variable Low-pass filter

Built-in High-pass filter (80Hz: ON/OFF)

Signal Sensing Turn-on

Speaker level input

Power MOS-FET switching power supply

Die cast aluminium heat sink

Cooling fan

Amplifier Features

Load Capability 2Ω Stable

Maximum power output 1000W

Rated power output (4Ω) 70W x 4 (4Ω)

Rated power output 100W x 4 (4Ω)

Bridged power output (4Ω) 200W x 2

CEA-2006 Compliant

Low-pass Filter

High-pass Fliter

Switched Mode Power supply, MOS-FET

Cooling Fan

Signal Sensing Turn-on

Line in 4 RCA / Speaker level

Speaker level Input

Single Side TerminalsYes

Die-Cast Aluminium Heat Sink

Rated power output (4Ω, 14,4V) 70W x 4 (20Hz ~ 20000Hz, 1%THD)

Rated power output (2Ω, 14,4V) 100W x 4 (1000Hz, 1%THD)

Rated power output (CEA-2006) 70Watts RMS x 4 at 4 ohms and 1% THD

Low-pass Filter 50~200Hz (24dB/oct)(B-Channel)

High-pass Fliter 80Hz (-12dB/oct)A-channel only

RCA Input Sensitivity 0.2 ~ 5V

Speaker Level Input Sensitivity 4 ~ 12V

Input Impedance 10 kOhm

Signal to Noise Ratio 100dB

Signal to noise ratio (CEA-2006) 80dBa (Reference: 1 Watt into 4 Ohms)

Frequency response (+0dB, -3dB) 20Hz ~ 50Hz

Operating voltage 14.4V (11V - 16V allowable)

Maximum current consumption 32A

Dimensions (WxHxD) 335 x 56 x 204 (mm)

Weight 2.6kg
