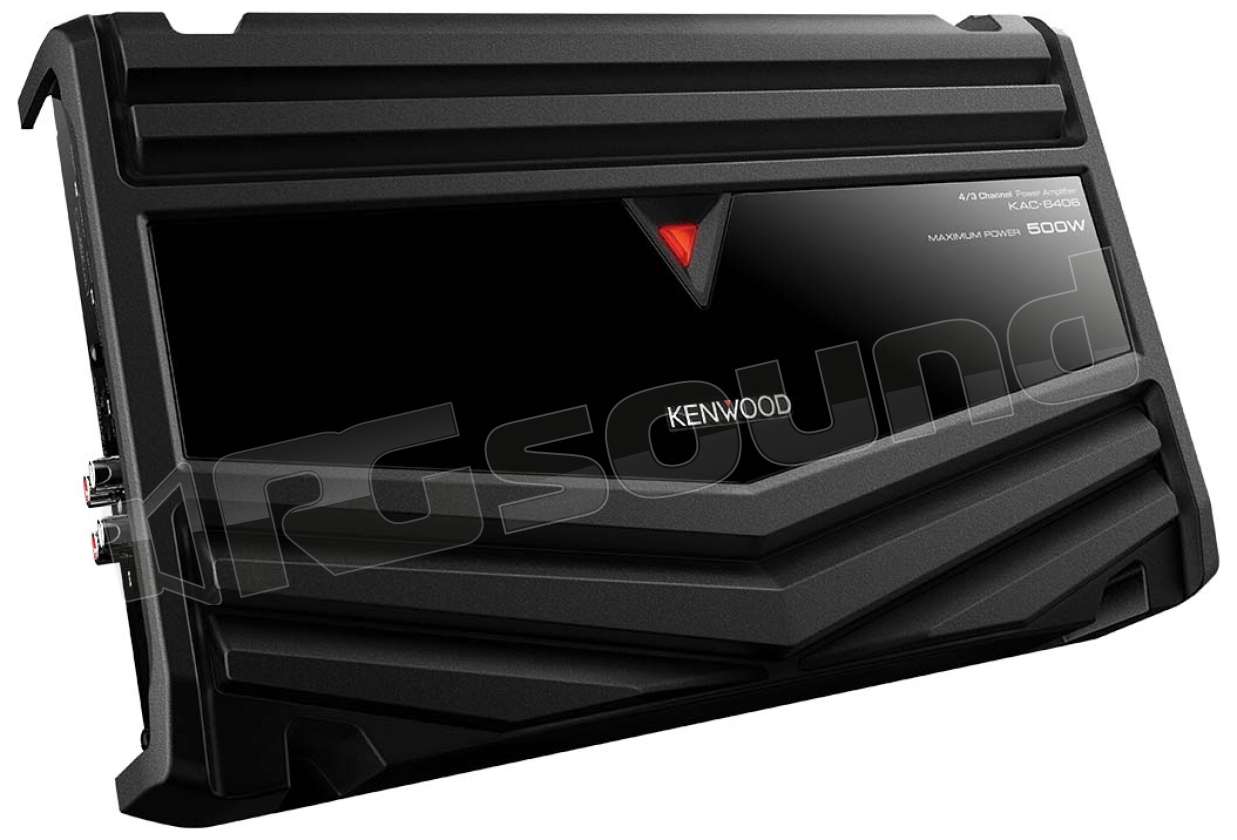

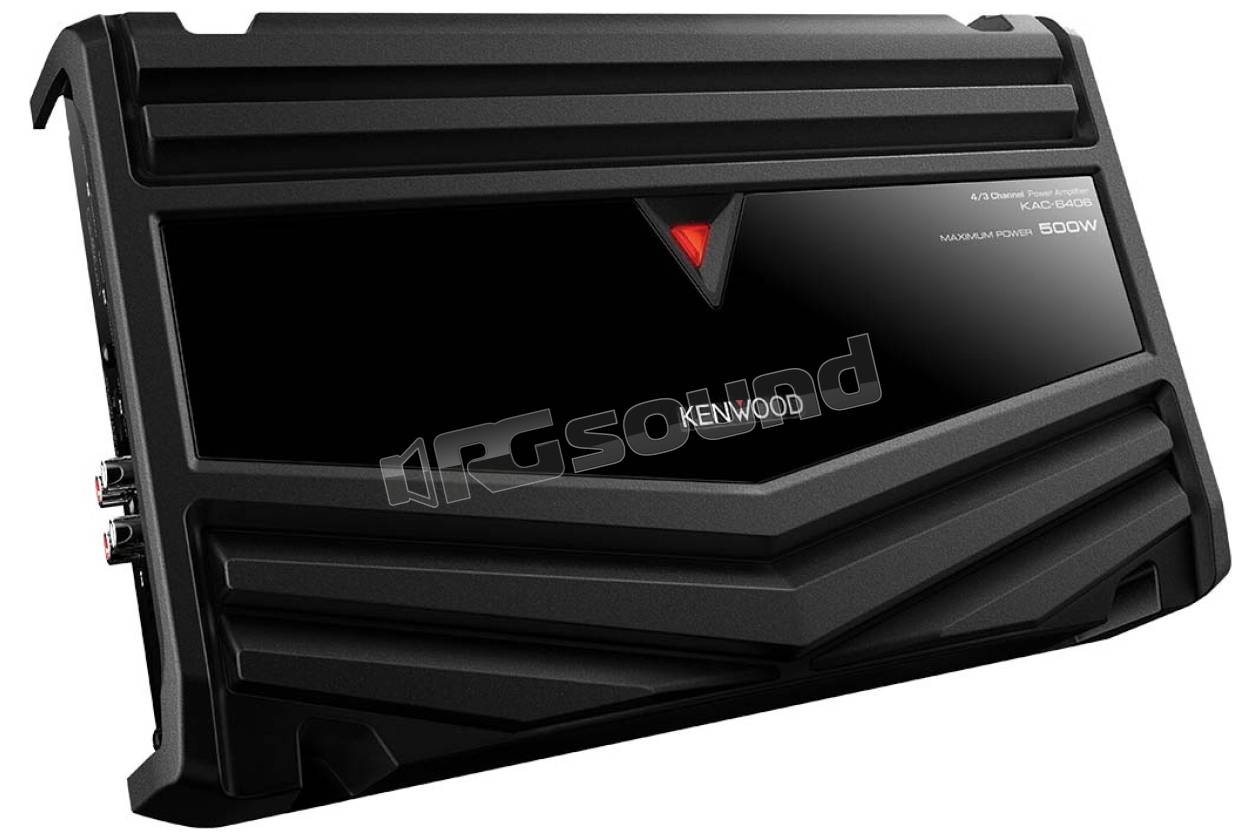

Kenwood KAC-7406
il tuo prezzo: € 159,00
Prezzo riferito a singolo pezzo (IVA inclusa)
Fai una domanda sul prodotto
Tipologia Amplificatore
4 canali
Classe amplificatore
AB
Potenza RMS 4 Ohm
4x40 Watt
Potenza RMS 2 Ohm
4x60 Watt
Potenza RMS 3 Canali 4 Ohm
Watt
Potenza RMS 3 Canali 2 Ohm
Watt
Potenza RMS Dual Mono 4 Ohm
2x130 Watt
Potenza RMS Mono 2Ω
Watt
Ingresso Digitale S/PDIF
NO
Ingresso Alto Livello
NO
Rapporto segnale rumore
100 dB S/N
Distorsione armonica
% THD
Dimensione
315 x 56 x 200 mm
KAC-7406 - Amplificatore Kenwood a quattro canali, potenza RMS 4x40 W, dimensioni: 315 x 56 x 200 mm.
Caratteristiche generali KAC-7406
| Aluminum die cast heat sink |
| Power MOS-FET switching power supply |
| 500 Watts max Output Power |
| 2Ω Load Capability |
| 4 channel or 2 channel + sub setup |
| Built-in Low-pass filter (B-ch.only) |
| Built-in High-pass filter (A-ch.only) |
| Signal Sensing Turn-on |
|
Speaker level input Con la garanzia del miglior servizio RGsound.it. |
KAC-7406 Amplifier Features
| Load Capability | 2Ω Stable |
| Maximum power output | 500W |
| Rated power output (4Ω) | 40W x 4 (4Ω) |
| Rated power output | 40W x 2 + 130W x 1 (4Ω) |
| Bridged power output (4Ω) | 130W x 2 |
| CEA-2006 Compliant | Yes |
| Low-pass Filter | Yes |
| High-pass Fliter | Yes |
| Switched Mode Power supply | Yes, with Power MOS-FET |
| Power Indicator | Yes |
| Signal Sensing Turn-on | Yes |
| Line in | 2 RCA's |
| Speaker level Input | Yes |
| Die-Cast Aluminium Heat Sink | Yes |
KAC-7406 Amplifier-Specifications
| Maximum power output (4Ω) | 130W x 4 |
| Rated power output (4Ω, 14,4V) | 40W x 4 (20Hz ~ 20000Hz, 1%THD) |
| Rated power output (2Ω, 14,4V) | 60W x 4 (1000Hz, 1%THD) |
| Rated power output (4Ω, 14,4V) | 40W x 2 + 130W x 1 (1%THD) |
| Rated power output (CEA-2006) | 40Watts RMS x 4 at 4 ohms and 1% THD |
| Low-pass Filter | 50~200Hz (24dB/oct)(B-Channel) |
| High-pass Fliter | 80Hz (-12dB/oct) |
| RCA Input Sensitivity | 0.2 ~ 5V |
| Speaker Level Input Sensitivity | 4 ~ 12V |
| Input Impedance | 10kΩ |
| Signal to Noise Ratio | 100dB |
| Signal to noise ratio (CEA-2006) | 80dBa (Reference: 1 Watt into 4 Ohms) |
| Frequency response (+0dB, -3dB) | 5Hz ~ 50000Hz |
| Operating voltage | 14.4V (11V ～ 16V allowable) |
| Maximum current consumption | 18A |
| Dimensions (WxHxD) | 315 x 56 x 200(mm), |
| Weight | 2.1kg |
