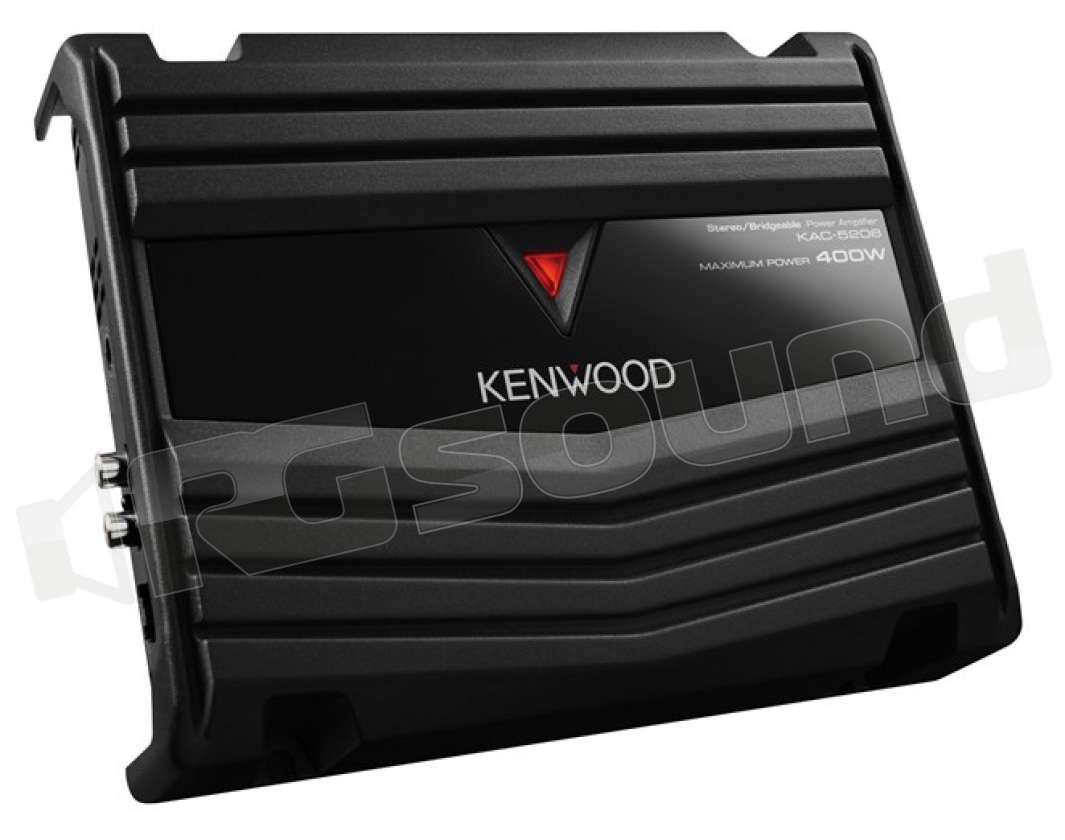

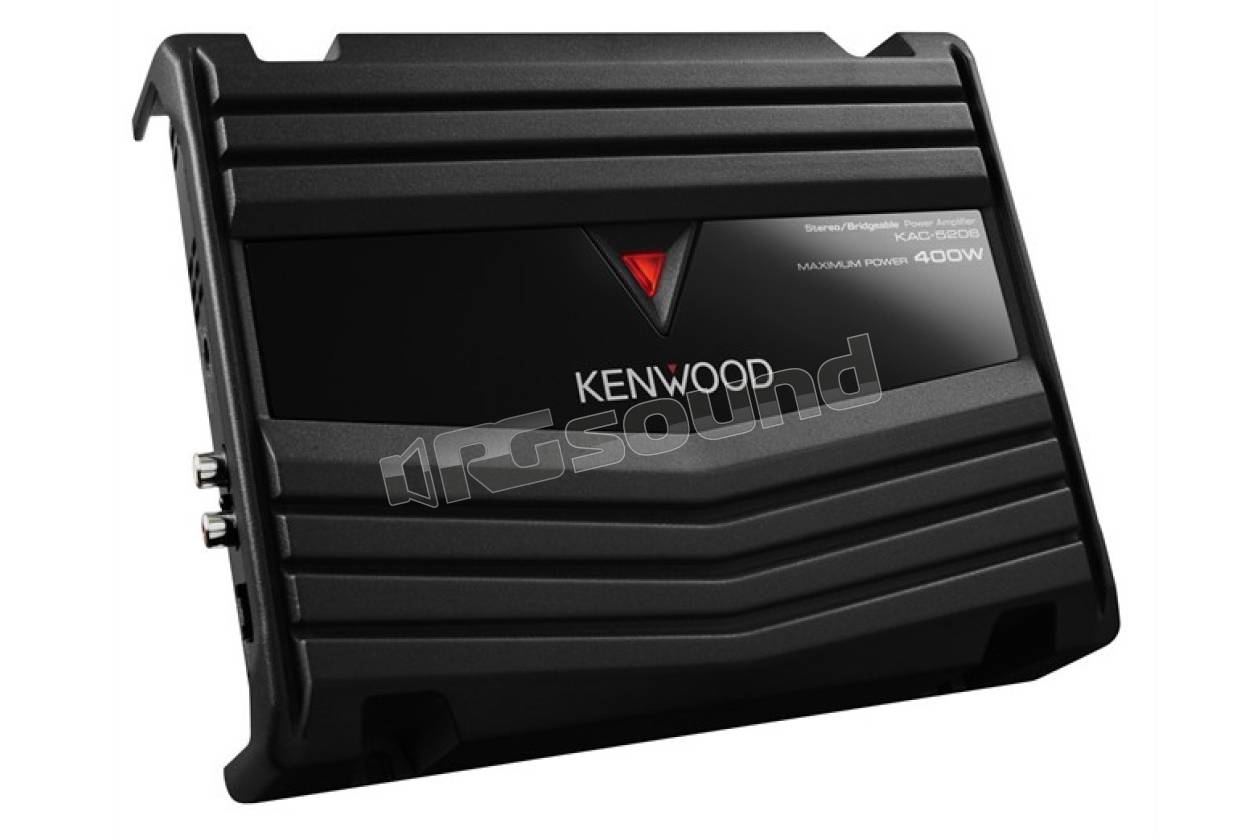

Kenwood KAC-5206

KAC-5206 - Amplificatore Kenwood a due canali, potenza RMS 2x60W, dimensioni: 225 mm x 55 mm x 180 mm.

Caratteristiche KAC-5206

Potenza max 350W
Numero di canali in uscita 2
Potenza di campionamento in uscita 60W x 2 (4 ohm)
Potenza di uscita nominale 75W x 1 (2 ohm)
Potenza uscita a ponte (4 ohm) 150W x 1
Risposta in frequenza min (Hz) 5
Risposta in frequenza max (kHz) 50
Sistema di raffreddamento

Con la garanzia del miglior servizio RGsound.it.

Specifiche tecniche KAC-5206

KAC-5206 Amplifier Type Class AB
CEA-2006 Primary Ratings Power Output 60Watts RMS x 2 at 4 Ohms and ≤1%THD+N
Signal-to-Noise Ratio 80dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output MAX POWER 400W
Power Output Rated Power at 14.4V 60Watts RMS x [ch] (4 Ohms, 20-20kHz, ≤1.0% THD)
75Watts RMS x [ch] (2 Ohms, 1kHz, ≤1.0% THD)
150Watts RMS x [ch/2] (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
Specifications Signal to Noise Ratio 95dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 5Hz-50kHz (+0dB, -3dB)
Class AB
Input Impedance 10k ohm
Speaker Impedance 4Ω (2Ω to 8Ω allowable)
Bridged connection 4Ω to 8Ω allowable
Audio Section

Low-Pass Filter
Built in Low-Pass Filter (80Hz, -18dB/oct)
Filter Selector 1
RCA Input Sensitivity 0.2[V] - 5.0 [V]

Speaker Level Input Sensitivity
4.0[V] - 12.0 [V]
Terminals Battery & Ground Screw Type Terminal Block (Ni) (M4)
Speaker Output Screw Type Terminal Block (Ni) (M4)
Line In RCA (Ni)
Speaker Input JST Connector
General Dimensions(WxHxD) 225 [mm] x 55 [mm] x 180 [mm]
Weight　 (kg) 1.3 [kg] 2.8 [lbs]
Operating Voltage 14.4V（11-16V allowable） [V]
Current Consumption 13 [A]


CEA-2006 Compliant
2 Ohms Load Capability
Speaker Level Input
Signal Sensing Turn-on
Power MOS-FET Switching Power Supply
Cast Aluminum Heat Sink Design
