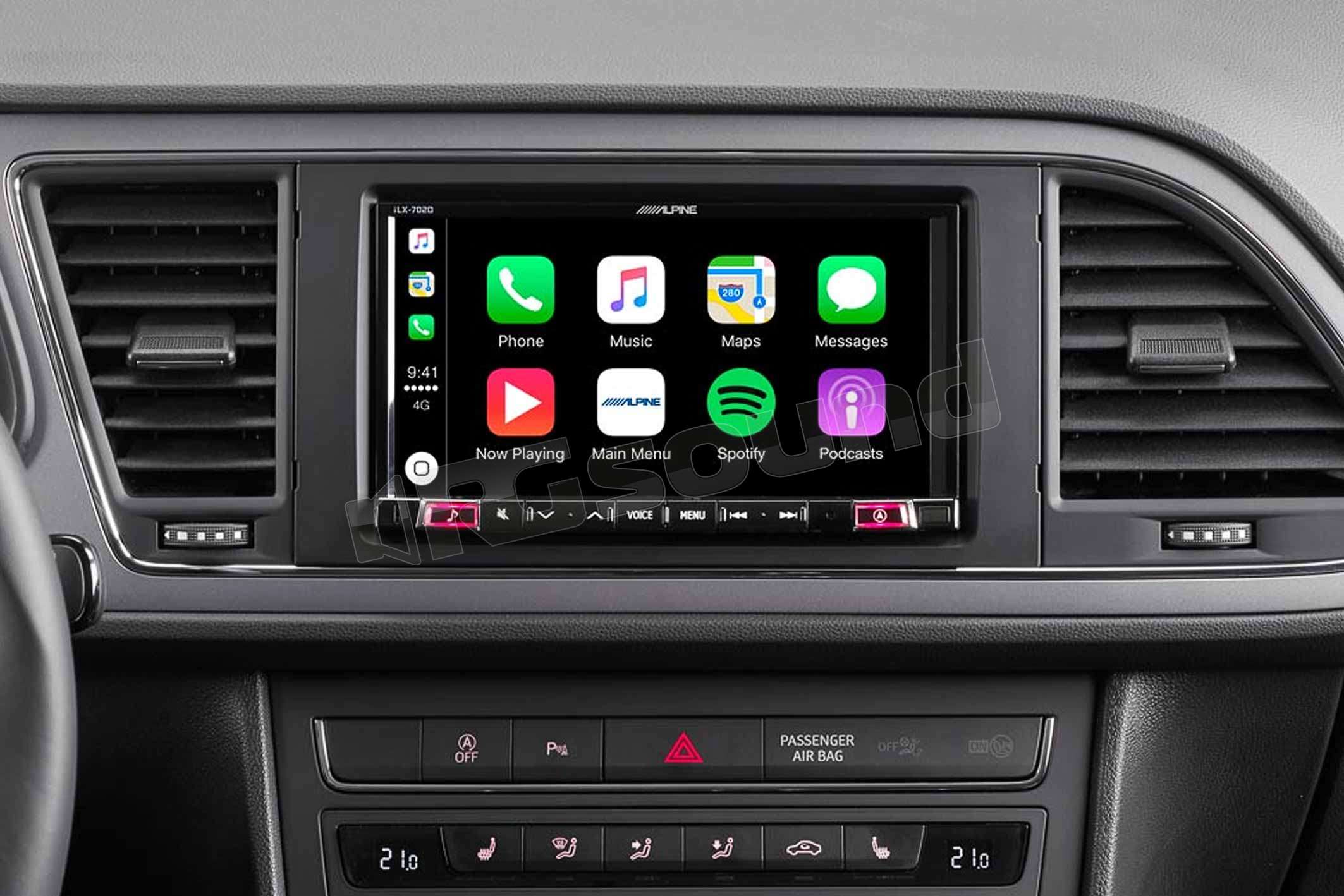

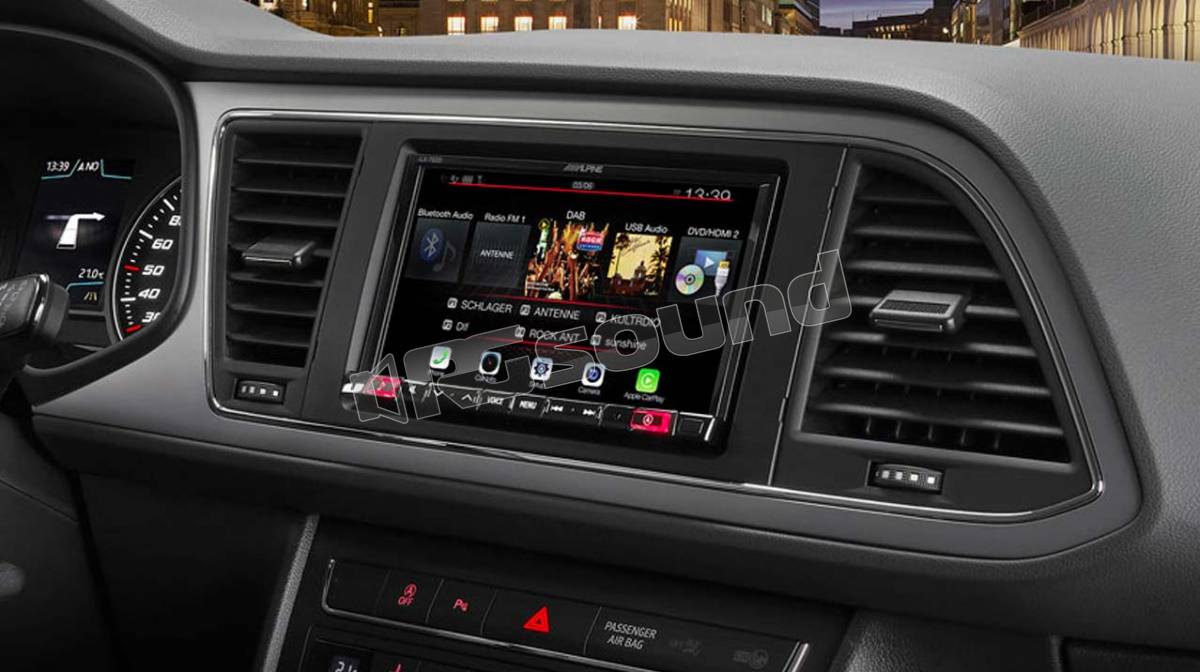

Alpine iLX-702LEON è un kit che comprende il monitor 2 Din Alpine iLX-702D certificato Apple Car Play e Android Auto, dedicato per Seat LEON 3/ST/SC/SC CUPRA 5F (non è installabile sui veicoli dotati del sistema audio SEAT).
Basato sul nuovo monitor ILX-702D questo sistema è compatibile Android e Car Play DAB+ Ingresso HDMI lettore Flac e può essere installato facilmente nel vano singolo din originale della Seat Leon.

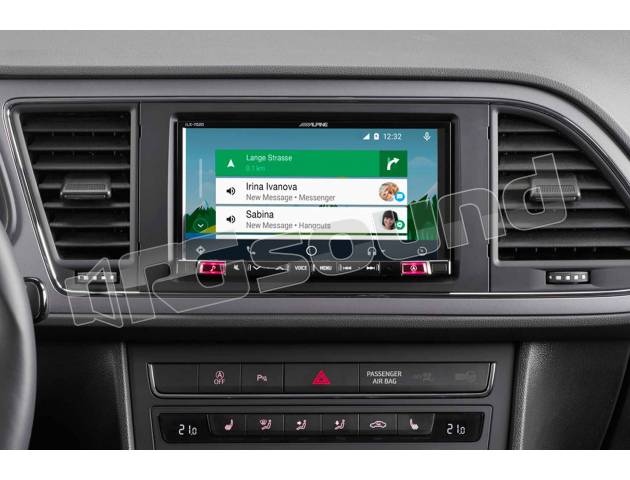

iLX-702D dispone di un touchscreen capacitivo da 7 pollici con built-in Android Auto e Apple CarplayCarplay. Altre funzionalità chiave includono il Tuner DAB+, il collegamento di 5 dispositivi Bluetooth per vivavoce e streaming musicale, ingressi USB e HDMI e la lettura dei file FLAC.

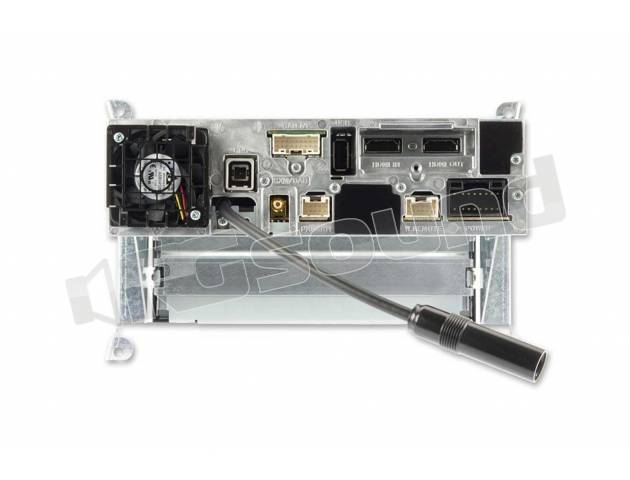

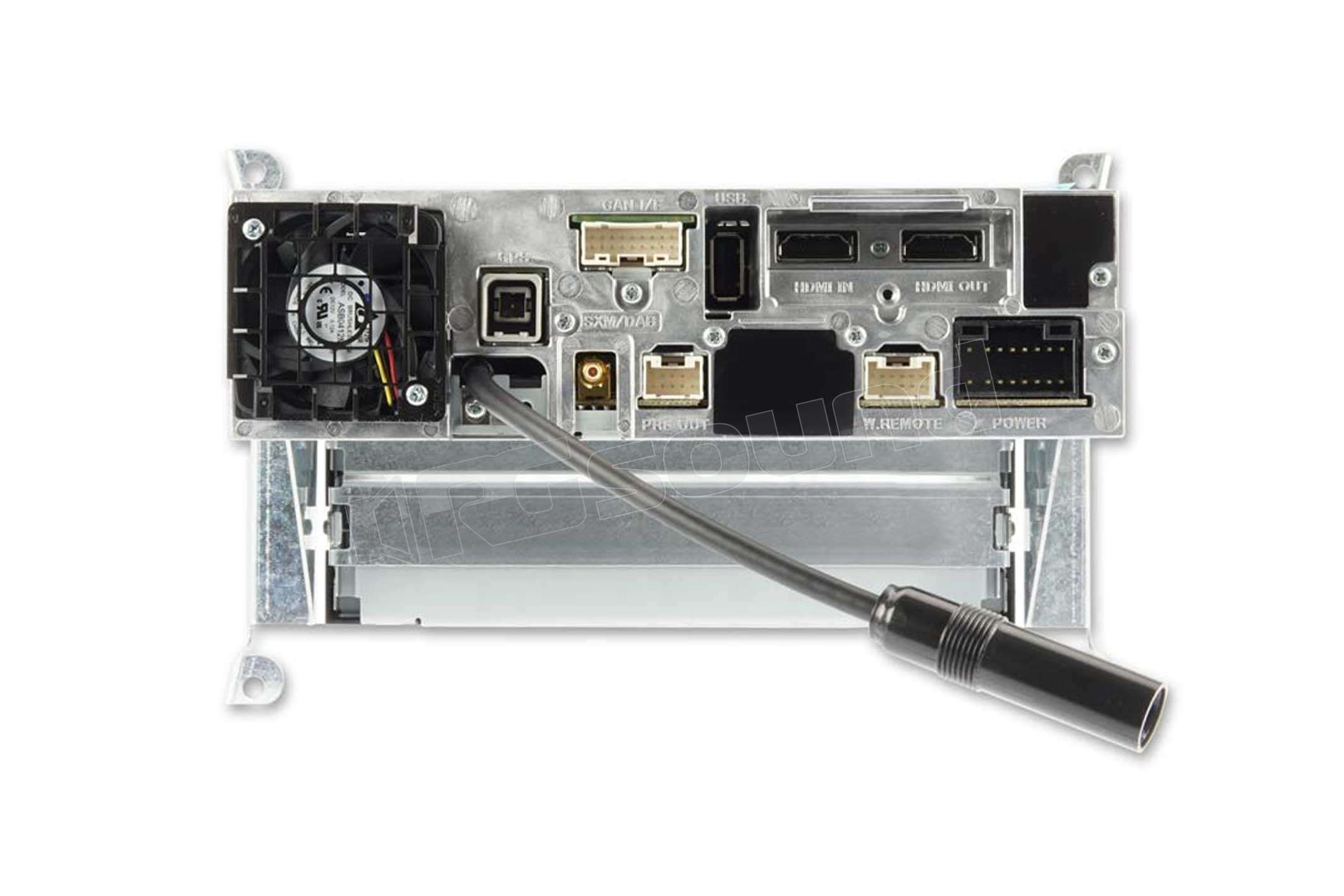

Interessante è anche il retro dell'unità, dalle dimensioni simili ad un unico slot DIN.

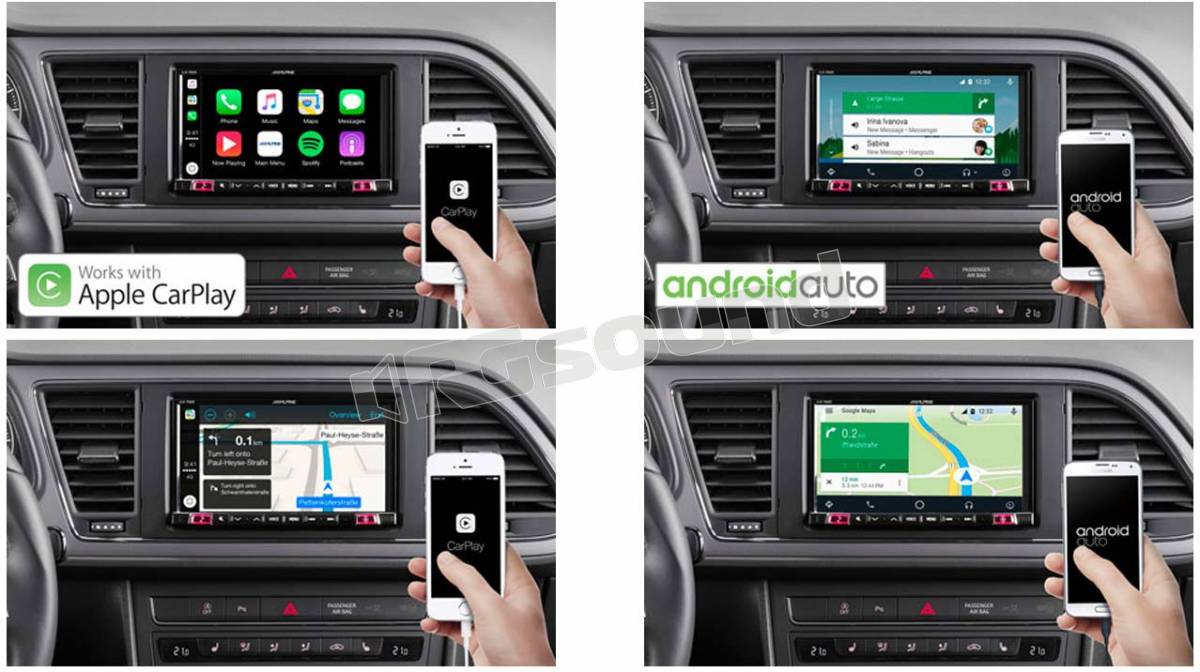

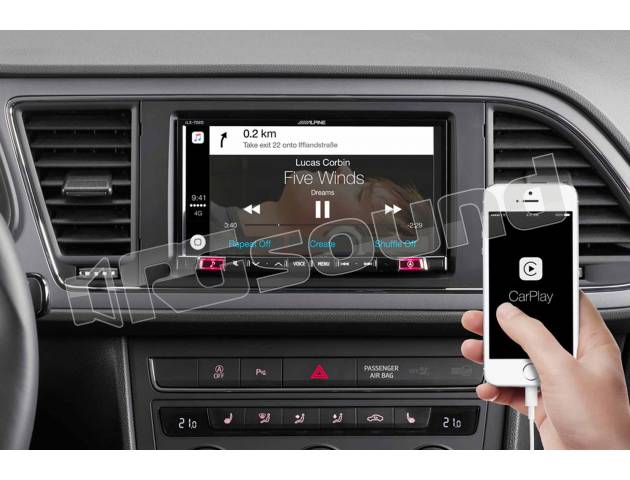

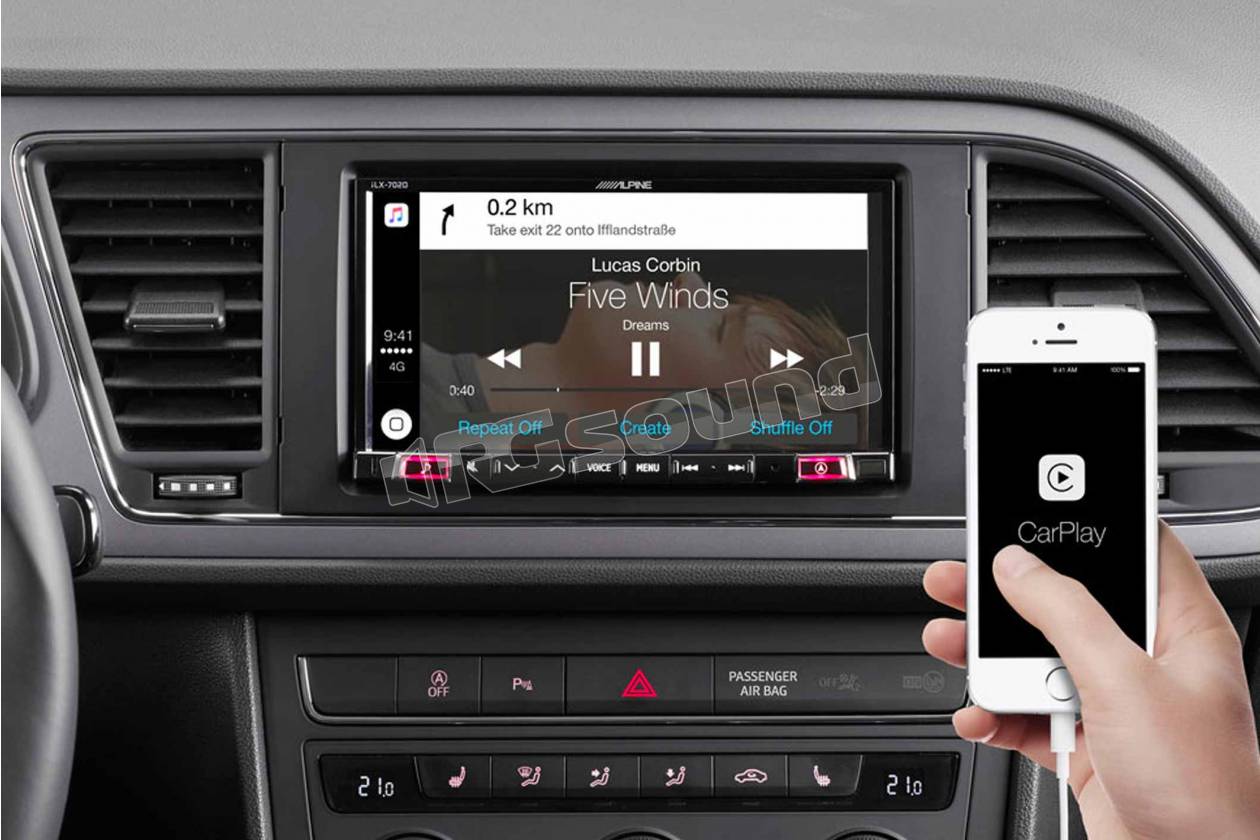

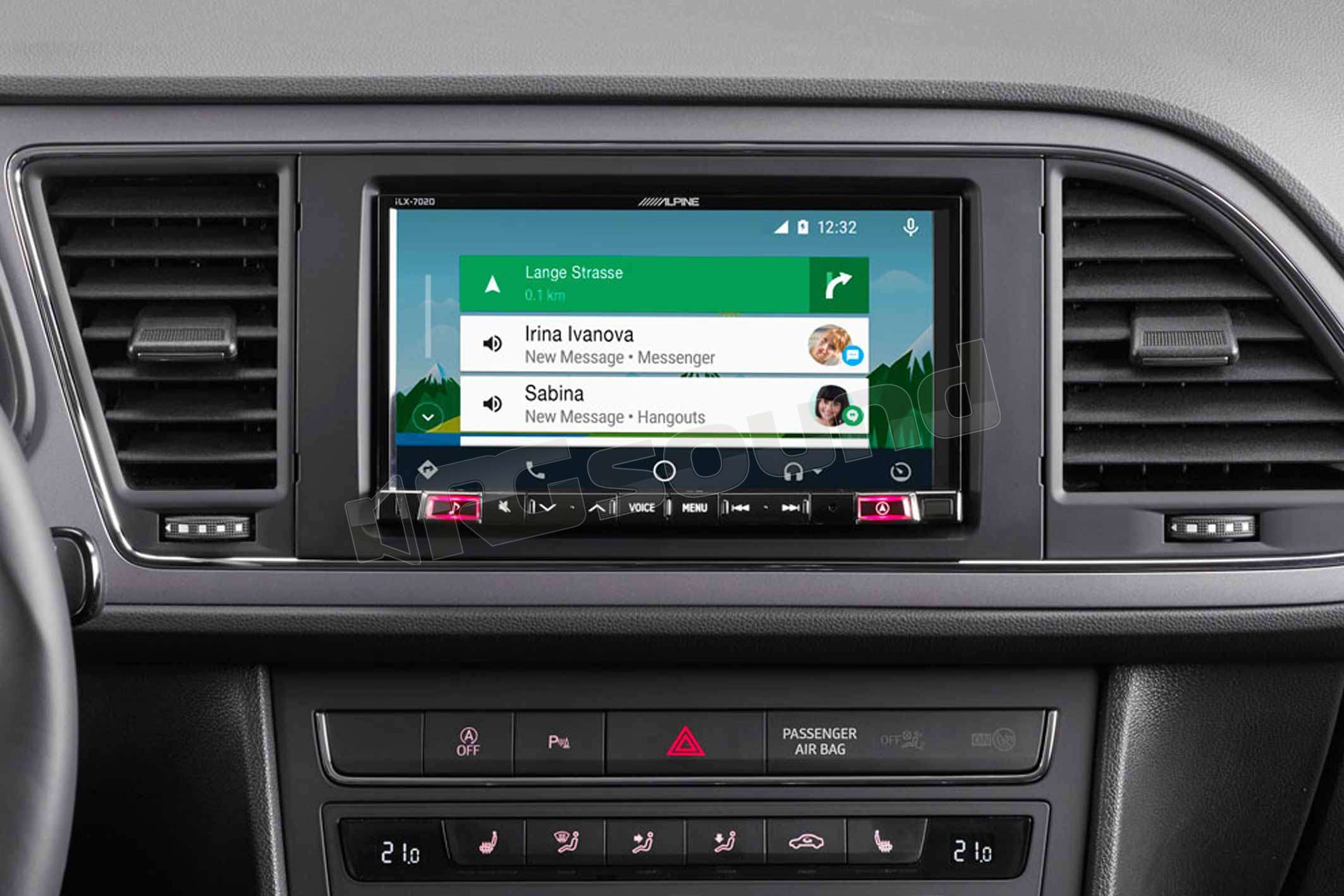

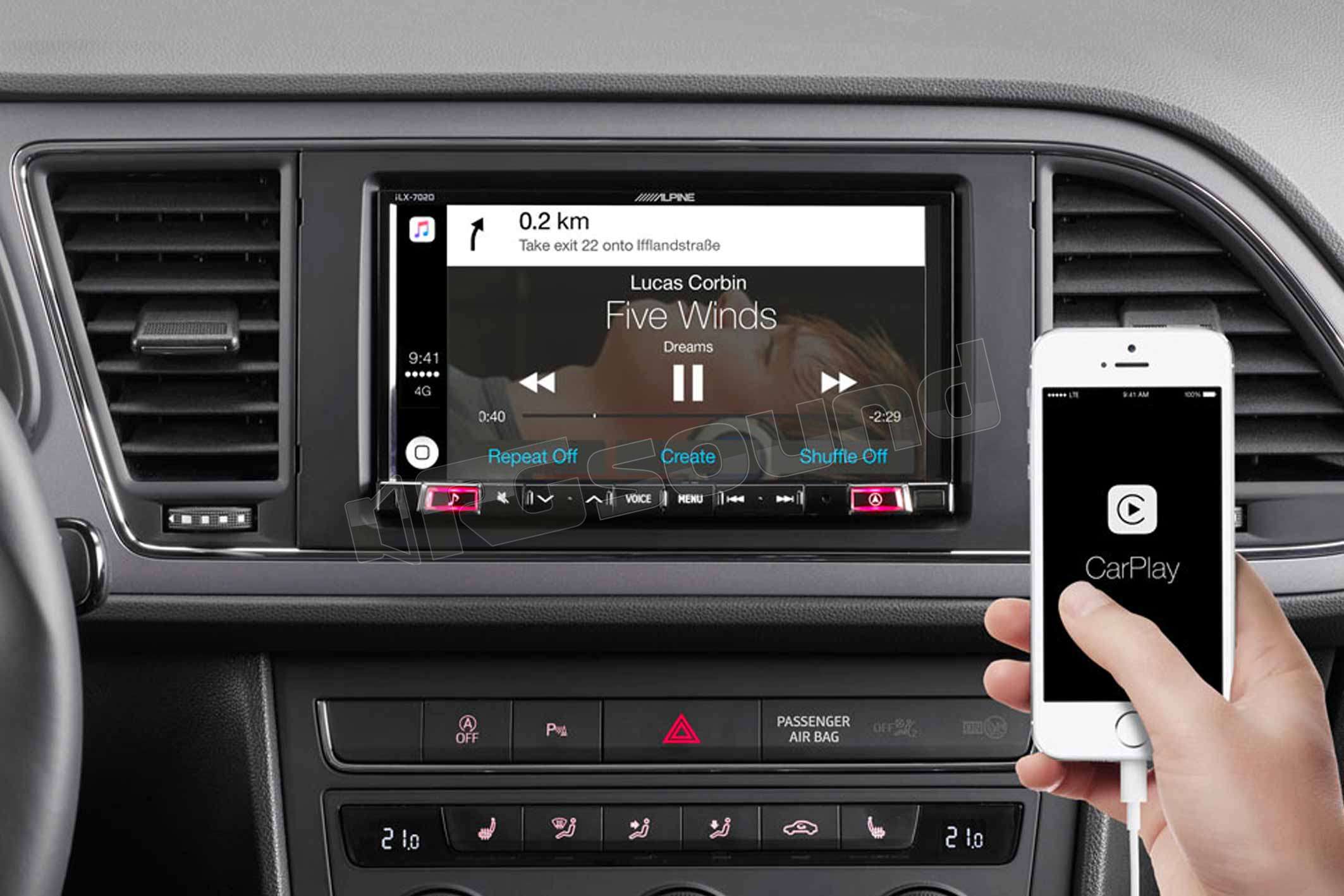

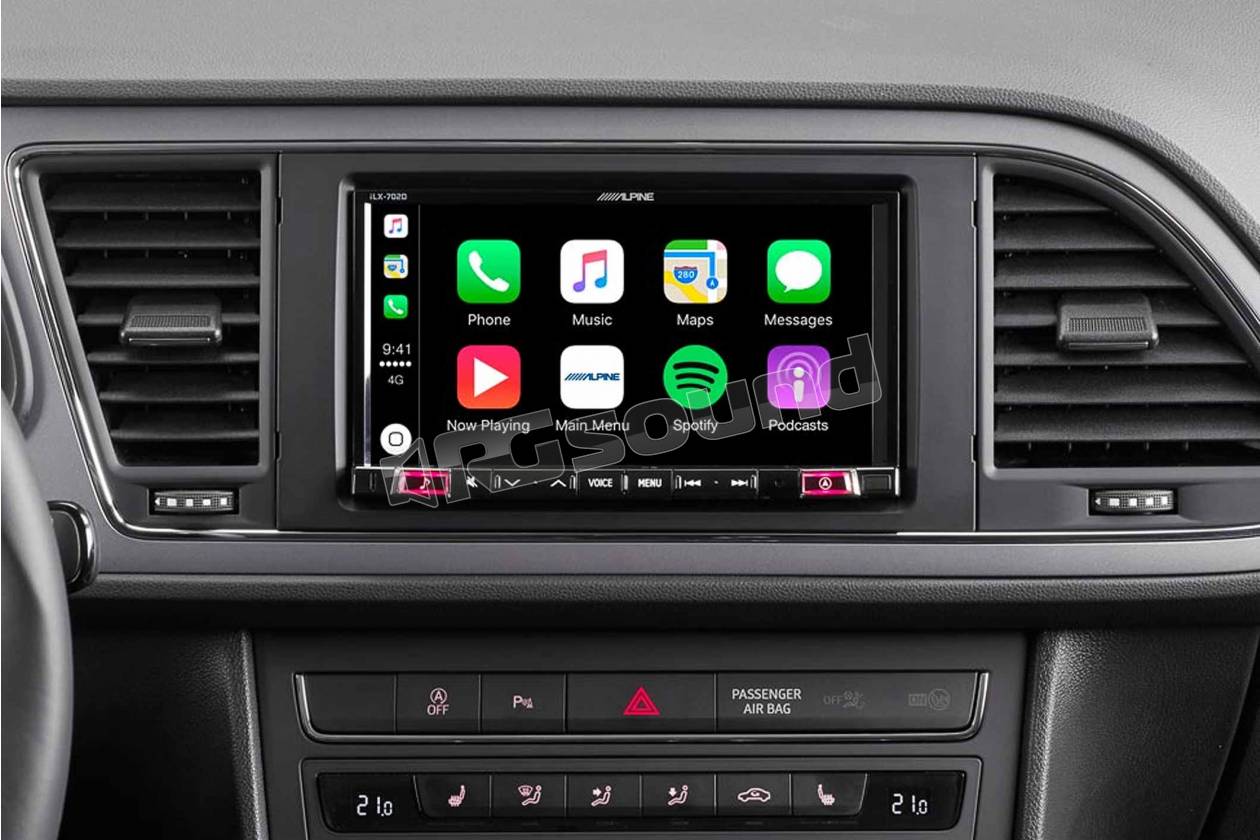

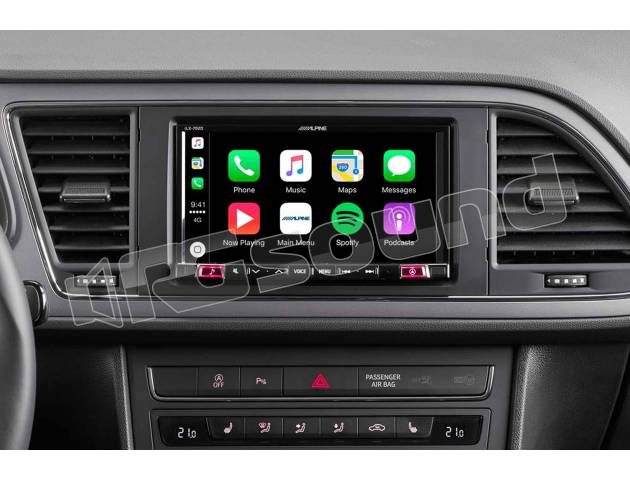

La stazione multimediale digitale iLX-702D garantisce la qualità del suono audiophile di Alpine. È completamente compatibile con gli smartphone più recenti, come l'iPhone 7 e il Galaxy S7, e consente di utilizzare Android Auto e Apple CarPlay sullo schermo touch screen da 7 pollici ad alta risoluzione.
Il Tuner DAB+ permette l'ascolto della radio digitale che ha una migliore ricezione del segnale e qualità del suono.
iLX-702D è inoltre fornito con un'antenna GPS di precisione, per sfruttare pienamente i sistemi di navigazione presenti sugli smartphone. Hai anche diverse opzioni per la navigazione: l'iLX-702D include la funzionalità di navigazione online utilizzando Maps con Apple CarPlay e la navigazione di Google con Android Auto. Entrambe le applicazioni Apple CarPlay e Android Auto possono accedere all'antenna di navigazione Alpine per la massima precisione di posizionamento.
La confezione del kit iLX-702LEON comprende i seguenti componenti:
- Monitor ILX-702D
- Mascherina in Plastica
- Staffe di montaggio
- Adattatore Antenna FM

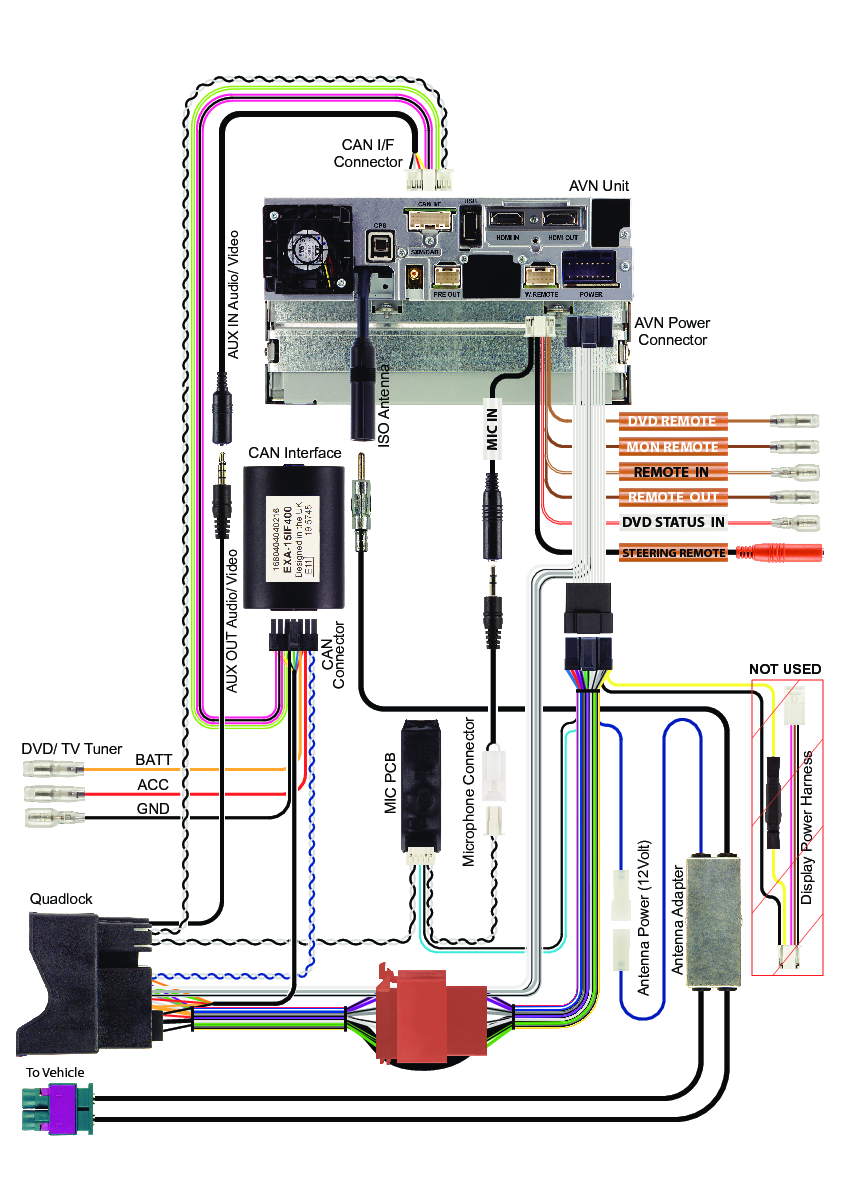

- Interfaccia UART (CAN) con cablaggi dedicati per gestione comandi al volante Display originale e menu servizi della LEON
Caratteristiche tecniche Alpine iLX-702LEON
Power Output: 4 x 50 W High Power Amplifier
Advanced Power IC
Display: 7′′ Capacitive WVGA High Resolution Display
White LED Backlighting System
Control Type: Touch, Drag, Flick
My Favorites Function
Automatic Setting Change for 2 Users
High Grade Audiophile Design
PreOut: 3 PreOuts (2 V, Front / Rear / Subwoofer) KTX-PRE1 Required (Sold separately)
AUX-In: 1 A/V AUX Input
Steering Wheel Remote Control Function
Remote Control Included
Navigation Guidance Mix
Camera Connection & Built-in Controls for Multi-View Cameras
Camera Guide Line Adjustment
Rearview Camera Display Automatic Boot-up
Simple Mode & Info Mode Display Selection
Visual EQ
Live Contrast Adjustment
Menu Language: 24 Languages (for AV / Bluetooth)
Clock
Auto Dimmer
Anti-theft security code
Firmware Updatable
Power Antenna Lead
Remote Turn-On
HDMI Input (Alpine HDMI cable required)
Engine Start-Stop unaffected
CAN Connection Interface Included with quadlock harness adapter
Ready for optional DVD Player DVE-5300
HDMI splitter I/F (KCX-630HD) ready
Multi camera I/F (KCX-C250MC) ready
Screen Size: 7 inch Capacitive WVGA
LCD Type: Transparent Type TN LCD
Operation System: TFT Active Matrix
Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
Illumination System: White LED Backlighting
Effective Number of Picture Elements: 99.99%
Colour System: NTSC, PAL
Max Power Output Ratings
Max Power Output: 4 x 50 W
Power Requirement: 14.4 V. DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 2 V / 10k ohms
Maximum Mounting Angle: 30°
Installazione
Includes installation brackets, wiring harness and CAN bus interface for complete installation.
Caratteristiche Tuner
Memory Pre-sets (FM: 24 / MW: 6 / LW: 6)
Memory: Auto Memory
Seek Mode: Local / DX Selection
RDS
RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
DAB Tuner
DAB+ Tuner Built-in
DAB+/DMB Supported
DAB+ Slideshow Service
DLS (Dynamic Label Service)
DAB Service Following
RDS Fallback (where available)
Service Pre-set: 18 Pre-set Memory
Auto Ensemble/Service Memory
Service Search Function
PTY Search Function
Alphabet Search Function
Antenna Power Supply Selection
FM Tuner
Tuning Range: 87.5 - 108.0 MHz
Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo Separation: 35 dB
Capture Ratio: 2 dB
MW Tuner
Tuning Range: 531 - 1,602 kHz
Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf
LW Tuner
Tuning Range: 153 - 281 kHz
Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf
Caratteristiche Bluetooth
Built-in BLUETOOTH® Module
Wide Band Speech Technology
HFP (Hands-Free Profile) Compatible
Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
Advanced BLUETOOTH® Technology
Connection: SSP (Simple Secure Pairing) Supported
Individual Profile Connection Hands Free Phone and Music Streaming
Phone Book: Phone Book Synchronization
Speed Dial: 4 Pre-set Memory (per phone)
Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
Device Name Display
Auto Answer
Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
Redial Function
Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
DTMF (Touch-Tone) Function
Signal Strength Indicator
Battery Level Indicator
Menu Language Selection: 24 Languages
Firmware Updatable
BLUETOOTH® Version: Bluetooth V3.0+EDR
Output Power: +4 dBm Max. (Power class 2)
HFP: HFP (Hands Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
HSP (Head Set Profile)
A2DP: A2DP (Advanced Audio Distribution Profile)
AVRCP: AVRCP (Audio/Video Remote Control Profile)
SPP (Serial Port Profile)
iLX-702DLEON Made for iPod® / iPhone®
Compatibility for iPod/iPhone: compatible with all models except 1st and 2nd generation iPhone
Connection: KCU-442i / KCU-471i Required (Sold separately)
Music Playback
Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
Alphabet Search
Artwork Display
Direct Up / Down: Playlist / Artist / Album / Genre / Composer
M.I.X. (Shuffle) Play: Song, Albums, All
Repeat
Battery Charging
iLX-702DLEON Connettività
Works with Apple CarPlay (requires CarPlay enabled iPhone)
Works with Android Auto (Requires Android Auto enabled smartphone)
USB Media Connection
USB Connection: USB Extension Cable Included
Music Playback: FLAC/MP3/WMA/AAC compatible
Video Playback: MP4 compatible
File / Folder Name Search
Tag Info Search
Folder Up / Down
M.I.X. Random Play
Repeat
Sound Tuning
Bass Engine SQ
Bass Engine™ Pro
Subwoofer Level Adjustment
Subwoofer Phase Select
2 V High Voltage PreOut
Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
Dual HD EQ (9-band Parametric Equalizer front/rear)
6 Channel Digital Time Correction
Digital Crossover Setting
Customized Sound Setting by Car Type
MediaXpander HD
Application Volume Level Setting
Sound Setting Data Download
Easy, Step-by-Step Sound Customization
Alpine TuneIt App ready
Subwoofer Level Adjustment: 0 to +15
Subwoofer Phase Setting: 0° or 180°
BASS ENGINE SQ: 5Mode, Level 0 to +6
High Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
High Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
High Pass Filter (Gain): -12 to 0 dB
Low Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
Low Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
Low Pass Filter (Gain): -12 to 0 dB
Time Correction: 0.0 - 9.9ms (0.1ms step)
Dual HD EQ Front + Rear
Parametric Equalizer (Band 1): 20 - 100 Hz
Parametric Equalizer (Band 2): 63 - 315 Hz
Parametric Equalizer (Band 3): 125 - 500 Hz
Parametric Equalizer (Band 4): 250 - 1k Hz
Parametric Equalizer (Band 5): 500 - 2k Hz
Parametric Equalizer (Band 6): 1k - 4k Hz
Parametric Equalizer (Band 7): 2k - 7.2k Hz
Parametric Equalizer (Band 8): 5.8k - 12k Hz
Parametric Equalizer (Band 9): 9k - 20k Hz
Parametric Equalizer (Gain): -14 to +14
Application Volume Level Setting: -14 to +14
HDMI Section
Input Format 720p/480p/VGA
Output Format 480p
USB
USB Requirements: USB 2.0
Max. Power Consumption: 1,500 mA (CDP Support)
USB Class: Mass Storage Class, Play From Device
File System: FAT 16/32
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: ACC-LC format ′′.m4a′′ file
Flac Decoding
USB Video playback (AVI/MP4/MKV file with H.264 Video and MP3/AAC Audio)
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
Total Harmonic Distortion (at 1kHz): 0.008%
Dynamic Range(at 1kHz): 95 dB
Signal-to-Noise Ratio: 100 dB
Channel Separation (at 1kHz): 85 dB
GPS / Glonass
GPS / Glonass compatible navigation antenna included
Dimensioni
iLX-702LEON: Fits for SEAT Leon
Din Size: 1DIN chassis and 7” Capacitive Touch Screen
Chassis Size (W x H x D) mm: 178 x 50 x 164 mm
Modelli auto compatibili con iLX-702DLEON
SEAT Leon 3 / ST / SC / SC Cupra (5F)
2012 - 2016
Not combatible with SEAT sound system. We are not able to retain the traffic sign recognition. A few other functions or settings are retained but may be controlled in a different fashion.
