Alpine iLX-702D è il nuovo monitor multimediale certificato Apple Car Play e Android Auto

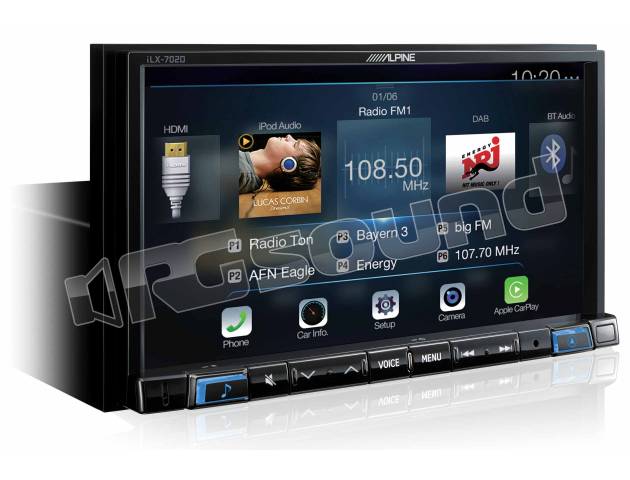

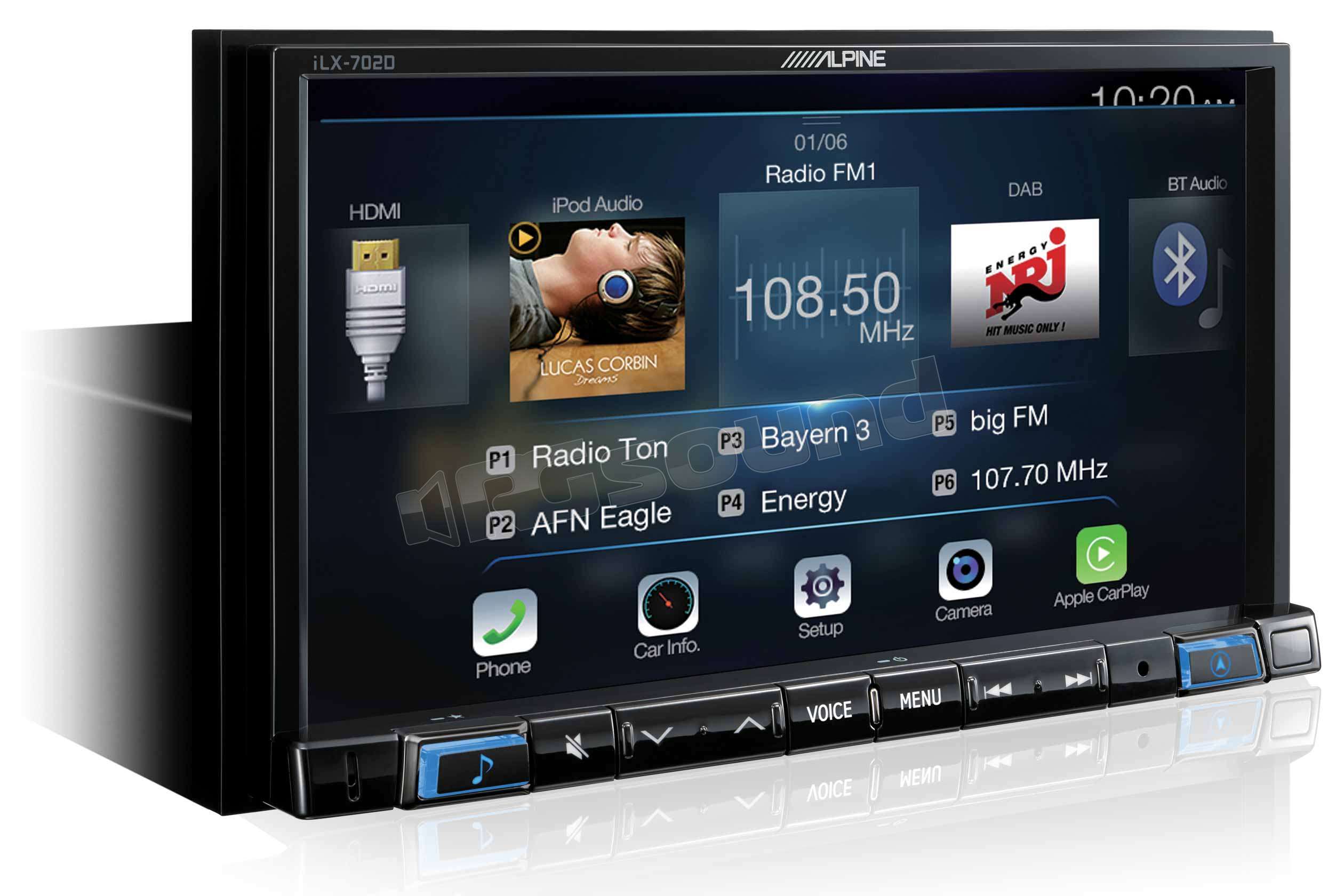

iLX-702D dispone di un touchscreen capacitivo da 7 pollici con built-in Android Auto e Apple CarplayCarplay. Altre funzionalità chiave includono il Tuner DAB+, il collegamento di 5 dispositivi Bluetooth per vivavoce e streaming musicale, ingressi USB e HDMI e la lettura dei file FLAC.

Interessante è anche il retro dell'unità, dalle dimensioni simili ad un unico slot DIN.

La stazione multimediale digitale iLX-702D garantisce la qualità del suono audiophile di Alpine. È completamente compatibile con gli smartphone più recenti, come l'iPhone 7 e il Galaxy S7, e consente di utilizzare Android Auto e Apple CarPlay sullo schermo touch screen da 7 pollici ad alta risoluzione.

Il Tuner DAB+ permette l'ascolto della radio digitale che ha una migliore ricezione del segnale e qualità del suono.

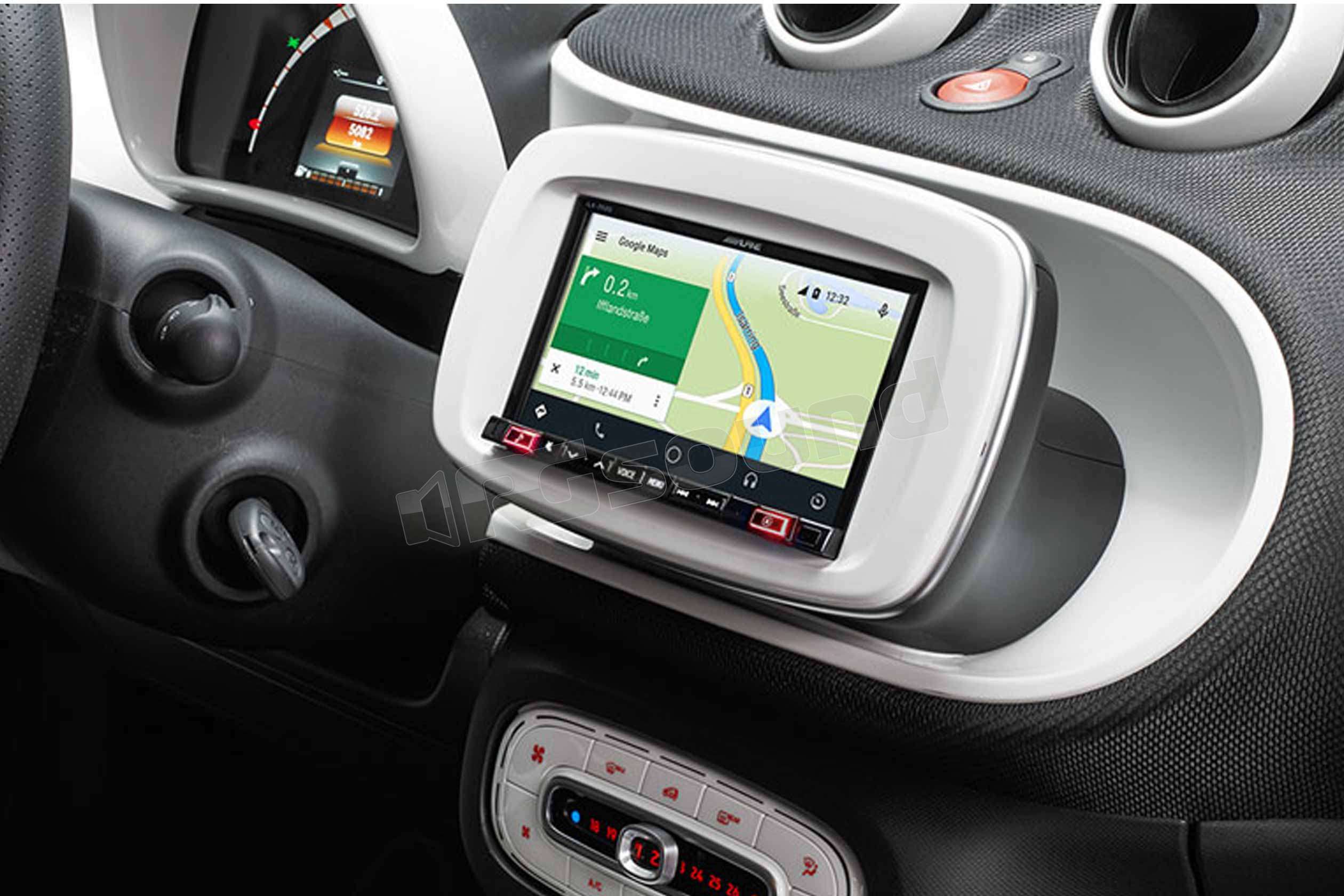

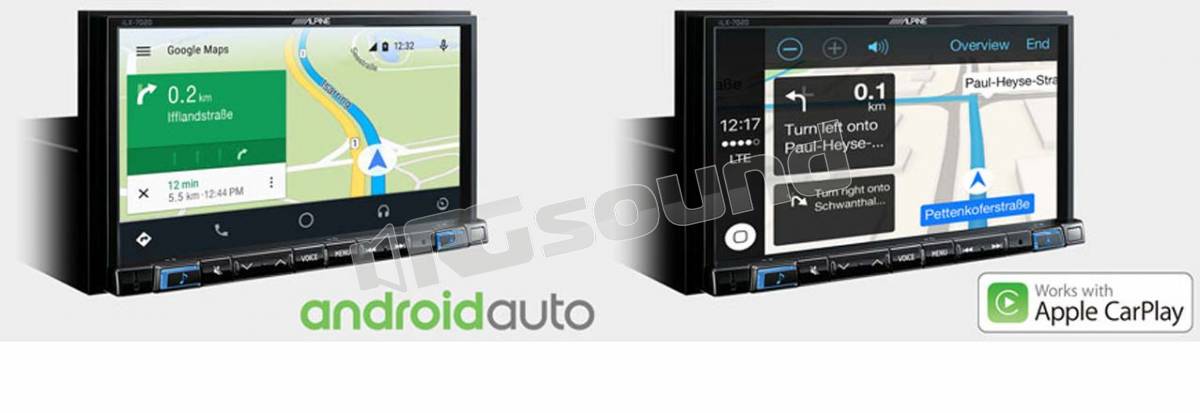

iLX-702D è inoltre fornito con un'antenna GPS di precisione, per sfruttare pienamente i sistemi di navigazione presenti sugli smartphone. Hai anche diverse opzioni per la navigazione: l'iLX-702D include la funzionalità di navigazione online utilizzando Maps con Apple CarPlay e la navigazione di Google con Android Auto. Entrambe le applicazioni Apple CarPlay e Android Auto possono accedere all'antenna di navigazione Alpine per la massima precisione di posizionamento. E' inoltre possibile completare il sistema di infointrattenimento aggiungendo il lettore DVD DVE-5300.

Caratteristiche principali Alpine iLX-702D

• Schermo da 7’’ touch screen con chassis 1DIN
• Amplificatore 4 x 50W High-Power
• Works with Apple CarPlay and Android Auto
• Sintonizzatore DAB+ Digital Radio
• GPS & Glonass Compatible per le APP Navi
• Riproduzione USB video
• Riproduzione FLAC
• Hi-Res Audi Playback (24/96 and 24/192)
• 3 PreOuts (4 Volts)
• Correzione Temporale Digitale a 6 Canali
• X-Over & Parametric EQ
• Ingresso e uscita HDMI
• Modulo Bluetooth Integrato
• Bluetooth Audio Streaming
• Vehicle Data-Bus Interface Ready

Specifiche tecniche Alpine iLX-702D

Power Output: 4 x 50 W High Power Amplifier

Advanced Power IC

Display: 7 inch Capacitive WVGA High Resolution Display

White LED Backlighting System

Control Type: Touch, Drag, Flick

My Favorites Function

Automatic Setting Change for 2 Users

High Grade Audiophile Design

3 PreOuts (2 V, Front / Rear / Subwoofer)

AUX-In: 1 A/V AUX Input (3.5mm micro jack)

Steering Wheel Remote Control Function

Vehicle Display Interface Ready (UART connection)

Remote Control Ready

Navigation Guidance Mix

Direct Camera Connection & Built-in Controls for Multi-View Cameras

Camera Guide Line Adjustment

Rearview Camera Display Automatic Boot-up

Simple Mode & Info Mode Display Selection

Visual EQ

Live Contrast Adjustment

Menu Language: 24 Languages (for AV / Bluetooth)

Clock

Auto Dimmer

Anti-theft security code

Firmware Updatable

Power Antenna Lead

Remote Turn-On

HDMI Input (Alpine Special HDMI connector required)

Engine Start-Stop unaffected

Ready for optional DVD Player DVE-5300

Screen Size: 7 inch Capacitive WVGA

LCD Type: Transparent Type TN LCD

Operation System: TFT Active Matrix

Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)

Illumination System: White LED Backlighting

Effective Number of Picture Elements: 99.99%

Colour System: NTSC, PAL

Max Power Output Ratings

Max Power Output: 4 x 50 W

Power Requirement: 14.4 V. DC (11-16V allowable)

Pre Output Voltage (Before Clipping): 2 V / 10k ohms

Maximum Mounting Angle: 30°

Tuner

Memory Presets: Preset Stations (FM: 24 / MW: 6 / LW: 6)

Memory: Auto Memory

Seek Mode: Local / DX Selection

RDS

RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

DAB Tuner

DAB+ Tuner Built-in

DAB+/DMB Supported

DAB+ Slideshow Service

DLS (Dynamic Label Service)

DAB Service Following

RDS Fallback (where available)

Service Preset: 18 Preset Memory

Auto Ensemble/Service Memory

Service Search Function

PTY Search Function

Alphabet Search Function

Antenna Power Supply Selection

FM Tuner

Tuning Range: 87.5 - 108.0 MHz

Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)

50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)

Alternate Channel Selectivity: 80 dB

Signal-to-Noise Ratio: 65 dB

Stereo Separation: 35 dB

Capture Ratio: 2 dB

MW Tuner

Tuning Range: 531 - 1,602 kHz

Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

Tuning Range: 153 - 281 kHz

Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

Caratteristiche BLUETOOTH

Built-in BLUETOOTH® Module

Wide Band Speech Technology

HFP (Hands-Free Profile) Compatible

Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible

Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible

Advanced BLUETOOTH® Technology

Connection: SSP (Simple Secure Pairing) Supported

Individual Profile Connection Hands Free Phone and Music Streaming

Phone Book: Phone Book Synchronization

Speed Dial: 4 Preset Memory (per phone)

Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name

Device Name Display

Auto Answer

Call History Display: Outgoing Calls / Incoming Calls / Missed Calls

Redial Function

Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume

DTMF (Touch-Tone) Function

Signal Strength Indicator

Battery Level Indicator

Menu Language Selection: 24 Languages

Firmware Updatable

Microphone Included

BLUETOOTH® Version: Bluetooth V2.1+EDR

Output Power: +4 dBm Max. (Power class 2)

HFP: HFP (Hands Free Profile)

OPP (Object Push Profile)

PBAP (Phone Book Access Profile)

HSP (Head Set Profile)

A2DP: A2DP (Advanced Audio Distribution Profile)

AVRCP: AVRCP (Audio/Video Remote Control Profile)

SPP (Serial Port Profile)

iLX-702D Made for iPod® / iPhone®

Compatibility for iPod/iPhone: compatible with all models except 1st and 2nd generation iPhone

Connection: KCU-461iV / KCU-471i Required (Sold separately)

Music & Video Playback Compatible with KCU-461iV only

Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook

Alphabet Search

Artwork Display

Direct Up / Down: Playlist / Artist / Album / Genre / Composer

M.I.X. (Shuffle) Play: Song, Albums, All

Repeat

Battery Charging

Connectivity

Works with Apple CarPlay (requires CarPlay enabled iPhone)

Works with Android Auto (Requires Android Auto enabled smartphone)

Funzioni di navigazione

Online navigation capability with Apple CarPlay and Android Auto

Includes GPS / Glonass enabled navigation antenna

Direct navigation access key to launch CarPlay or Google maps

Connessioni USB

USB Connection: USB Extension Cable Included

Music Playback: FLAC/MP3/WMA/AAC compatible

Video Playback: MP4 compatible

File / Folder Name Search

Tag Info Search

Folder Up / Down

M.I.X. Random Play

Repeat

USB Requirements: USB 2.0

Max. Power Consumption: 1,500 mA (CDP Support)

USB Class: Mass Storage Class, Play From Device

File System: FAT 16/32

MP3 Decoding: MPEG-1/2 AUDIO Layer-3

WMA Decoding: Windows Media™ Audio

AAC Decoding: ACC-LC format ′′.m4a′′ file

Sound Tuning

Bass Engine SQ

Bass Engine™ Pro

Subwoofer Level Adjustment

Subwoofer Phase Select

2 V High Voltage PreOut

Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical

Dual HD EQ (9-band Parametric Equalizer front/rear)

6 Channel Digital Time Correction

Digital Crossover Setting

Customized Sound Setting by Car Type

MediaXpander HD

Application Volume Level Setting

Sound Setting Data Download

Easy, Step-by-Step Sound Customization

Alpine TuneIt App ready

Subwoofer Level Adjustment: 0 to +15

Subwoofer Phase Setting: 0° or 180°

BASS ENGINE SQ: 5Mode, Level 0 to +6

HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz

HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.

HighPassFilter (Gain): -12 to 0 dB

LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz

LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.

LowPassFilter (Gain): -12 to 0 dB

Time Correction: 0.0 - 9.9ms (0.1ms step)

Dual HD EQ Front + Rear

Parametric Equalizer (Band 1): 20 - 100 Hz

Parametric Equalizer (Band 2): 63 - 315 Hz

Parametric Equalizer (Band 3): 125 - 500 Hz

Parametric Equalizer (Band 4): 250 - 1k Hz

Parametric Equalizer (Band 5): 500 - 2k Hz

Parametric Equalizer (Band 6): 1k - 4k Hz

Parametric Equalizer (Band 7): 2k - 7.2k Hz

Parametric Equalizer (Band 8): 5.8k - 12k Hz

Parametric Equalizer (Band 9): 9k - 20k Hz

Parametric Equalizer (Gain): -14 to +14

Application Volume Level Setting: -14 to +14

FLAC Decoding

Number of Channels: 2-Channel (Stereo)

Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate

Total Harmonic Distortion (at 1kHz): 0.008%

DynamicRange(at 1kHz): 95 dB

Signal-to-Noise Ratio: 100 dB

Channel Separation (at 1kHz): 85 dB

HDMI Section

Input Format 720p/480p/VGA

Output Format 480p

Dimensioni del monitor iLX-702D

Din Size: 1DIN chassis and 7” Capacitive Touch Screen

Chassis Size (W x H x D) mm: 178 x 50 x 164 mm

Nose Piece Size (W x H x D) mm: 170 x 96 x 17 mm
