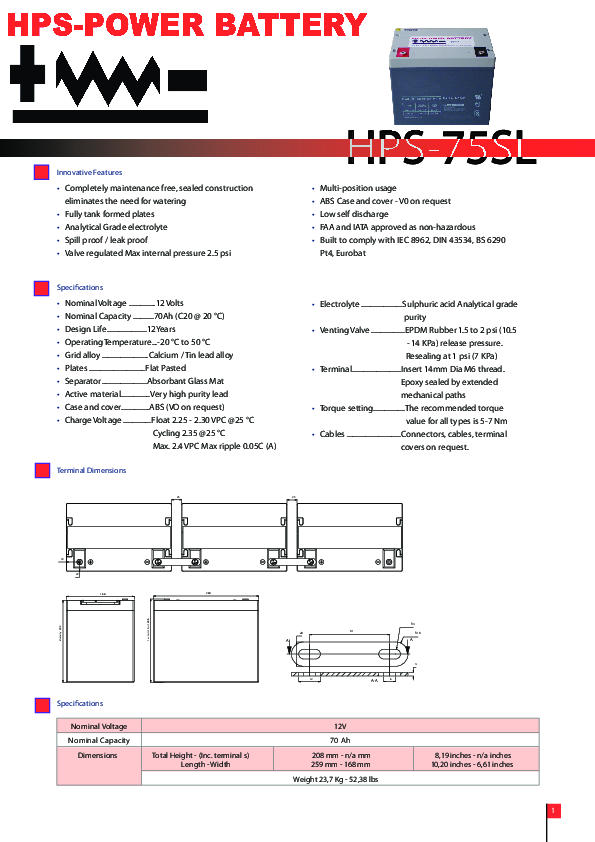

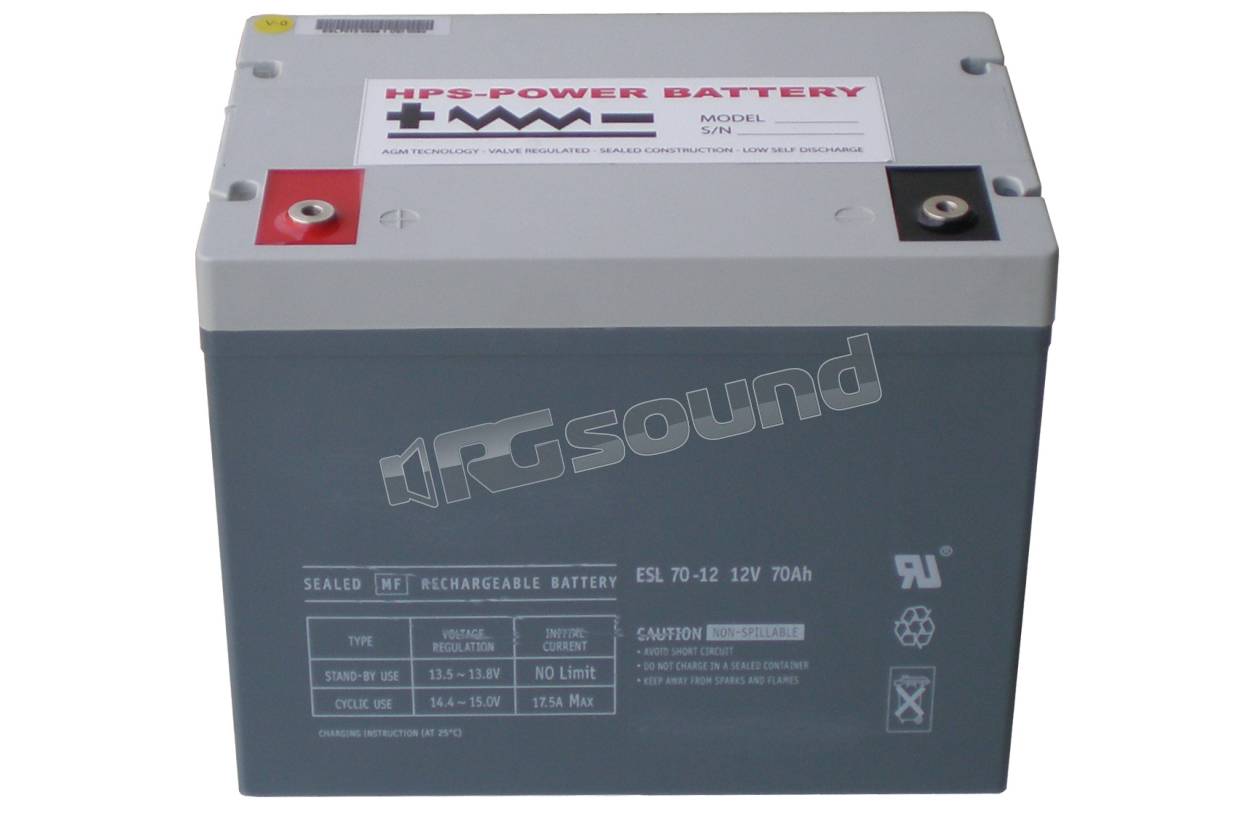

HPS-Power Battery HPS-75SL

HPS POWER BATTERY HPS-75SL

• Completely maintenance free, sealed construction
• eliminates the need for watering
• Fully tank formed plates
• Analytical Grade electrolyte
• Spill proof / leak proof
• Valve regulated Max internal pressure 2.5 psi
• Multi-position usage
• ABS Case and cover - V0 on request
• Low self discharge
• FAA and IATA approved as non-hazardous
• Built to comply with IEC 8962, DIN 43534, BS 6290
• Pt4, Eurobat

Specifiche tecniche:

Nominal Voltage ..............12 Volts
Nominal Capacity ...........70Ah (C20 @ 20 °C)
Design Life .....................12 Years
Operating Temperature ...-20 °C to 50 °C
Grid alloy .........................Calcium / Tin lead alloy
Plates ..............................Flat Pasted
Separator ........................Absorbant Glass Mat
Active material ................Very high purity lead
Case and cover ...............ABS (VO on request)
Charge Voltage ...............Float 2.25 - 2.30 VPC @25 °C
Cycling 2.35 @25 °C
Max. 2.4 VPC Max ripple 0.05C (A)

Electrolyte ......................Sulphuric acid Analytical grade purity
Venting Valve ..................EPDM Rubber 1.5 to 2 psi (10.5
- 14 KPa) release pressure. Resealing at 1 psi (7 KPa)
Terminal ..........................Insert 14mm Dia M6 thread.
Epoxy sealed by extended mechanical paths
Torque setting .................The recommended torque value for all types is 5-7 Nm
Cables .............................Connectors, cables, terminal covers on request.
