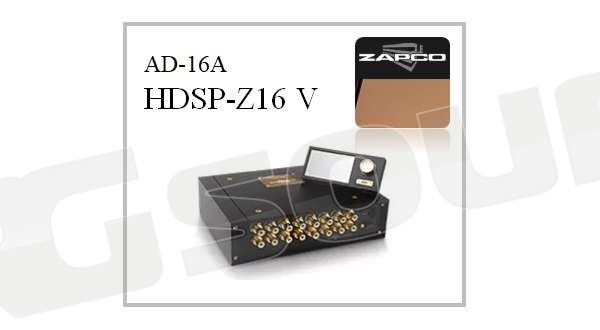

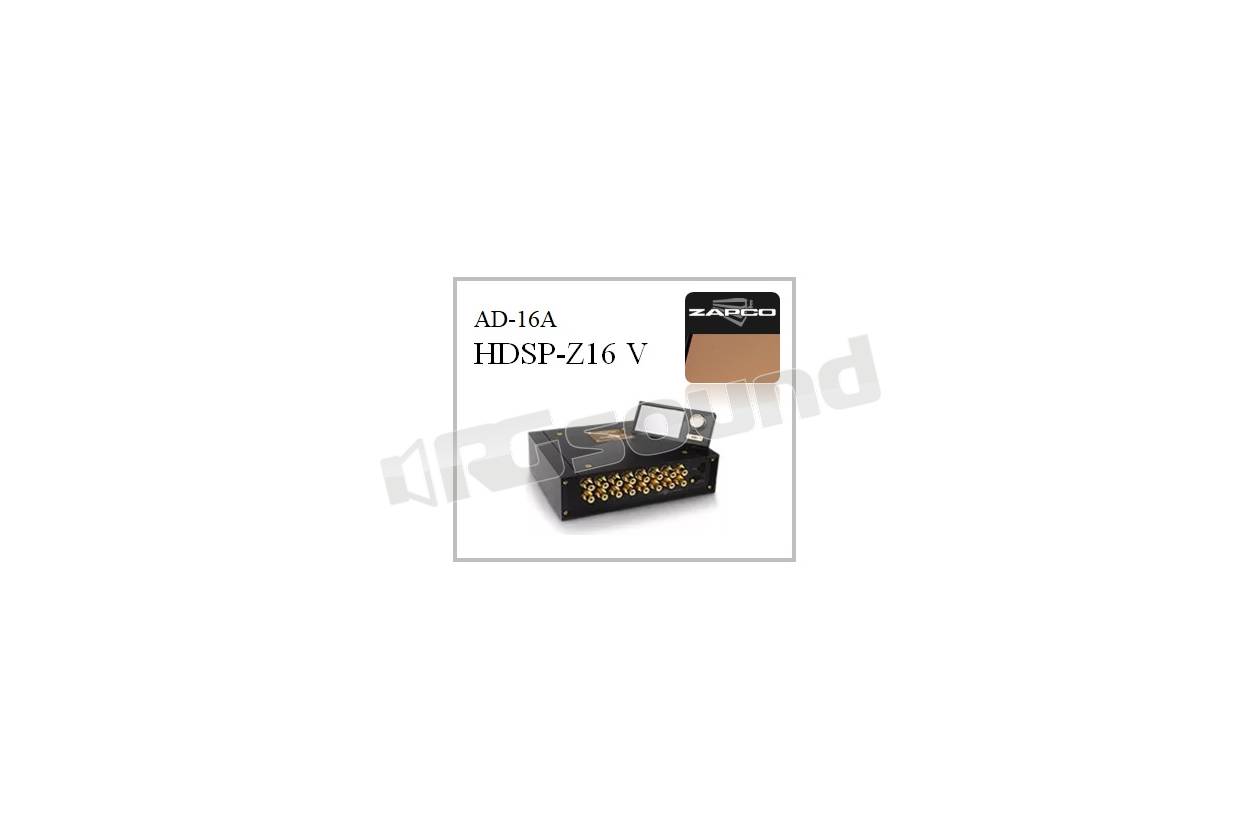

Zapco HDSP-Z16 V AD-16A GOLD

Zapco HDSP-Z16 V AD-16A

16 Channels DSP with HD Player

8 Analog Inputs (RCA + High Level), 5 Digital Inputs, 16 Analog Outputs

Modular device: High-end solution with 18 independent PCB

Player & DSP: All-in-one dual core processor

DSP Processor: OMAP L-138 – 2 x 456 MHz, 32 Bit (till 64-bit/IEEE double precision)

DSP Processor Point: Fixed & Floating

DSP Sampling Rate: 96 KHz

Player power: 456 Mhz – Arm 9 32 Bit. Read till 192 KHz/24 bit

File Audio formats: WAV, AIF, AIFF, FLAC, ALAC, AAC, MP3, Direct.: File or Artist/Album or Title

USB memory stick support: Formatted FAT32 with limited memory space (2 TB)

ADC Processor (standard): AK5558, 32 Bit, 784 KHz, 115 dB DNR

DAC Processor (standard): AK4458, 32 Bit, 784 KHz, 115 dB DNR (*8ch)

Frequency response: 5Hz @ 45 KHz

THD+N: 0,0008 (Digital Input), 0,001 (Analog Input) 1V Out

S/N Device Floor Noise: -125 dB (from 20 Hz to 20 KHz), -135 dB (from 150 Hz to 20 KHz), -140 dB (average from 80 Hz to 20 KHz)

S/N Ratio (Digital Inputs): from 115 to 120 dB A

S/N Ratio (Analog Inputs): from 109 to 115 dB A

Crosstalk: > 110 dB (from 300 Hz to 0.9 KHz)

Crosstalk: average 115 dB (from 300 Hz to 0.9 KHz)

Analog Inputs: 6/8 x RCA Low Level 1/5 Volt, 8 x High Level 4/20 Volt

Digital Inputs: Optical: 24 Bit – 192 KHz, SPDIF: 24 Bit – 192 KHz, 3 x i2S: 24 Bit – 192 KHz

Analog Outputs: 16 x RCA, 4 Volt (5 KOhm),  Impedance: 100 Ohm

Dash Board: 3″ Touch Screen, 10 Preset

Dash Board Control: Volume/Balance/Fader/Tone

BT Streaming: External APTX HD Module (opt.)

I/O Setup: 2ch, 4ch, 6ch, 8ch, OEM SUM, AUX

Digital Input Mode: HD, Optical, Coax, i2S 1, 2, 3

EQ Parametric 30 / 6 poles

XO Filters: Linkwitz, Butterw., Bessel, Tsecheb.

Power Supply: Operating: 6-16 Volt, Current Draw: 750 mA/14.4 V, Fuse: 1A

Stop-Start ignition system support
