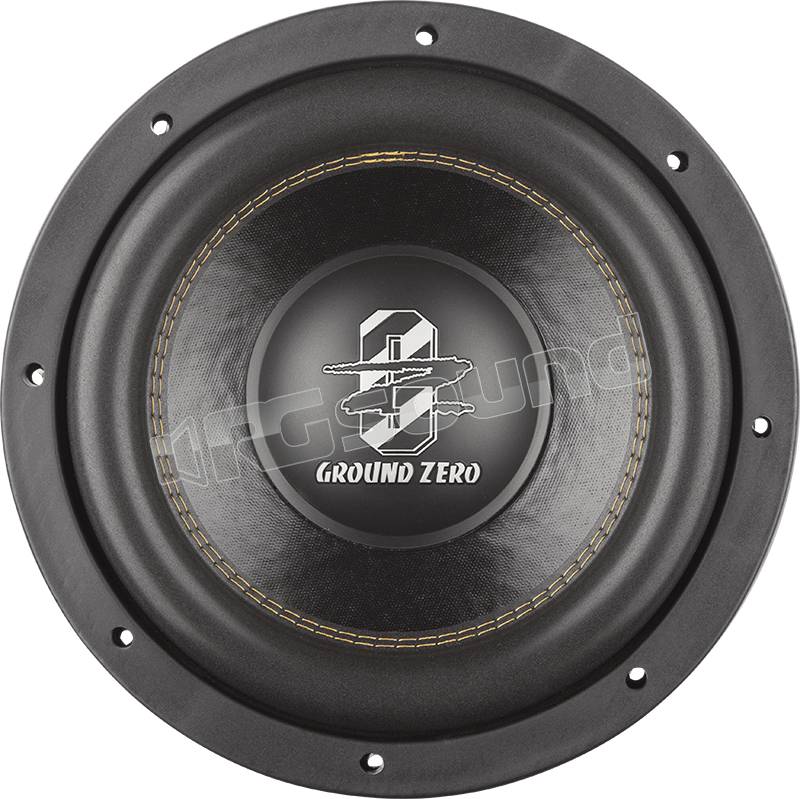

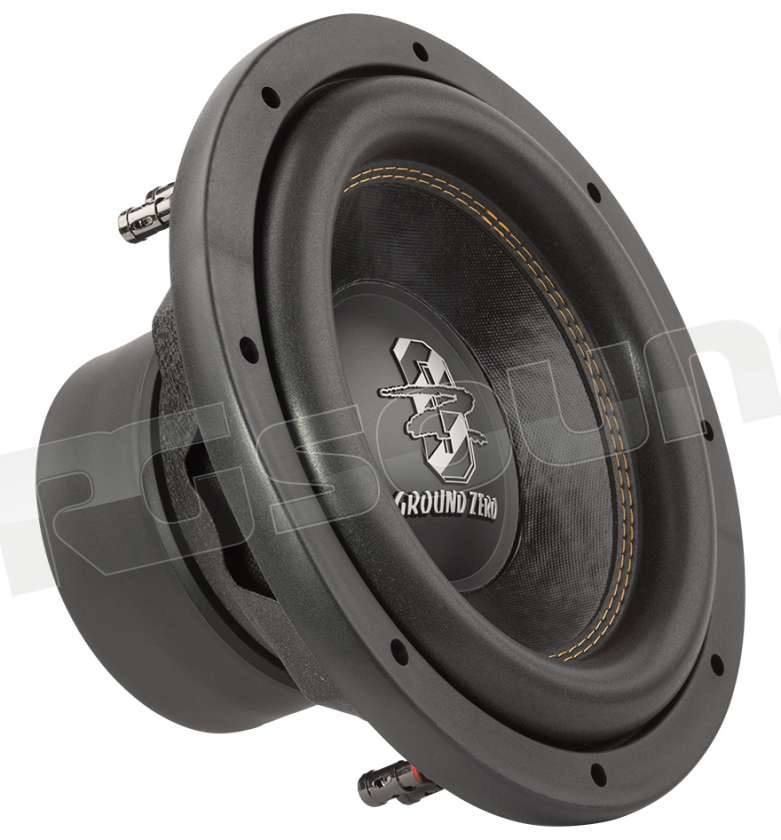

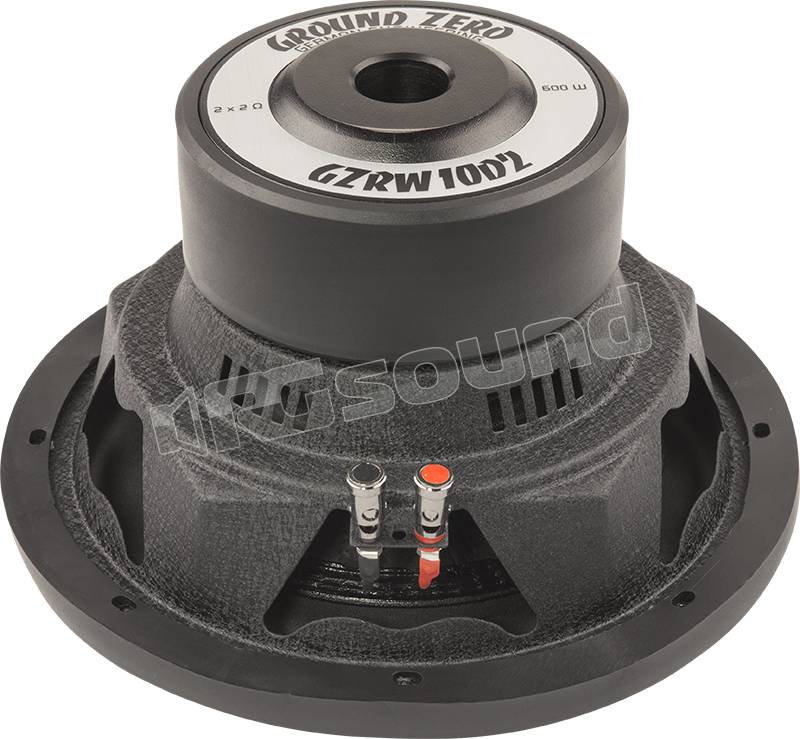

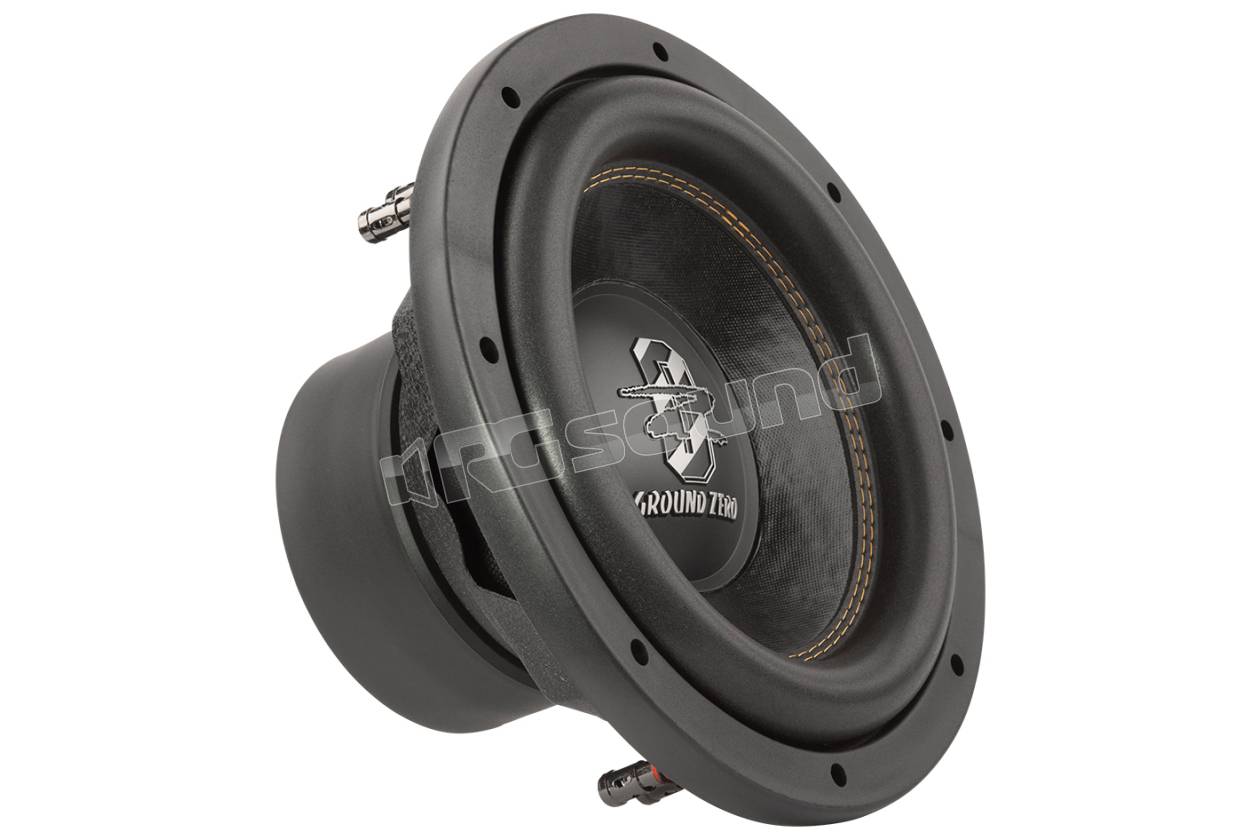

Woofer GZRW 10 D2 - D4
Diameter 250 mm / 10"
Mounting diameter 233 mm / 9.17"
Mounting depth 148 mm / 5.83"
Voice coil 63 mm Copper
Cone Reinforced paper cone
Power Handling 600 WRMS
Impedance 2 x 2 Ohm
SPL 86 dB
Xmax 22 mm / 0.9"
Fs 35 Hz
Qts 0.451
Vas 26,6 / 0.939
Sound Quality* ??
SPL Competition* ???
Low bass performance 20 - 50 Hz* ???
Mid bass performance 50 - 80 Hz* ??
Box recommendation vented 40 Liter / 1.57 cu.ft. net - Rohr/Tube 10 cm - L = 24 cm
Box recommendation sealed 10 - 20 Liter / 0.43 - 0.78 cu.ft. net
*Describes the GZRW 10D2 subwoofer's ability for each kind of use.
? = Good ability
?????? = Excellent ability
