- The famous Plutonium SPL subwoofers combine excellent sound quality and outstanding max-level
- Custom-made quad spiders and the VOXR surround allow extremely linear mechanical excursion
- High SPL and precise bass performance due to the stiff paper cone with glassfiber & kevlar
- “Made in Japan” high-power voice coils on black-alu former can handle up to 10000 Watt

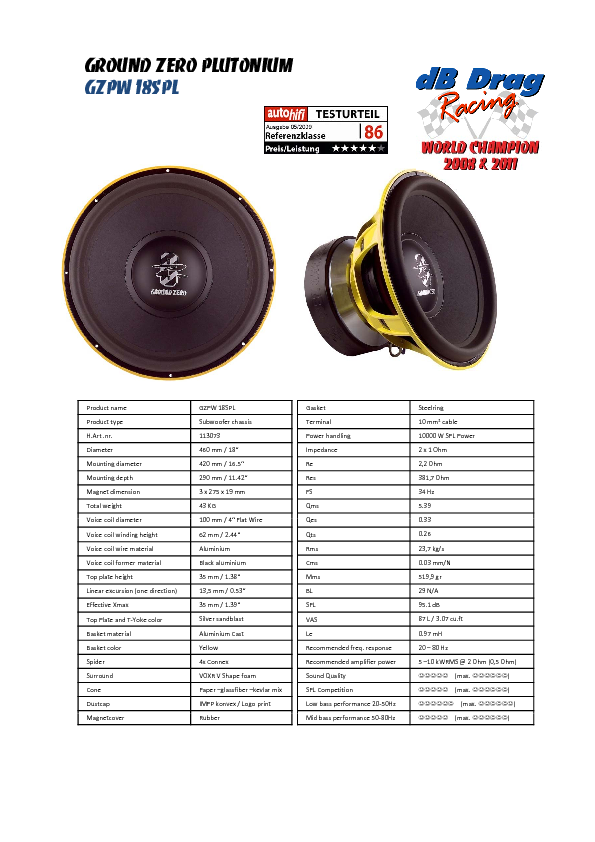

Woofer GZPW 18SPL
Diameter 46 cm / 18"
Mounting diameter 420 mm / 16.7"
Mounting depth 290 mm / 11.42"
Voice coil 100 mm Flachdraht / 4" Flat wire
Cone Paper-glassiber-kevlar
Power Handling 10000 W SPL Power
Impedance 2 x 1 Ohm
SPL 95,1 dB
Xmax 35 mm / 1.39"
Fs 34 Hz
Qts 0.26
Vas 87 L / 3.07 cu.ft.
Sound Quality* ☺☺☺☺☺
SPL Competition* ☺☺☺☺☺
Low bass performance 20 - 50 Hz* ☺☺☺☺☺☺
Mid bass performance 50 - 80 Hz* ☺☺☺☺☺
Box recommendation vented 180 Liter / 6.36 cu.ft. - Tube 2 x Ø 16 cm - L= 25 cm
Box recommendation sealed, not recommended
*Describes the GZPW 18SPL subwoofer's ability for each kind of use.
☺ = Good ability
☺☺☺☺☺☺ = Excellent ability
