- GZPW 15XQ ”State of the Art“ High X-max subwoofer chassis
- “Made in Japan” flatwire voice coils with 4” ø
- Deepest bass out of smallest enclosures due to the passive radiator

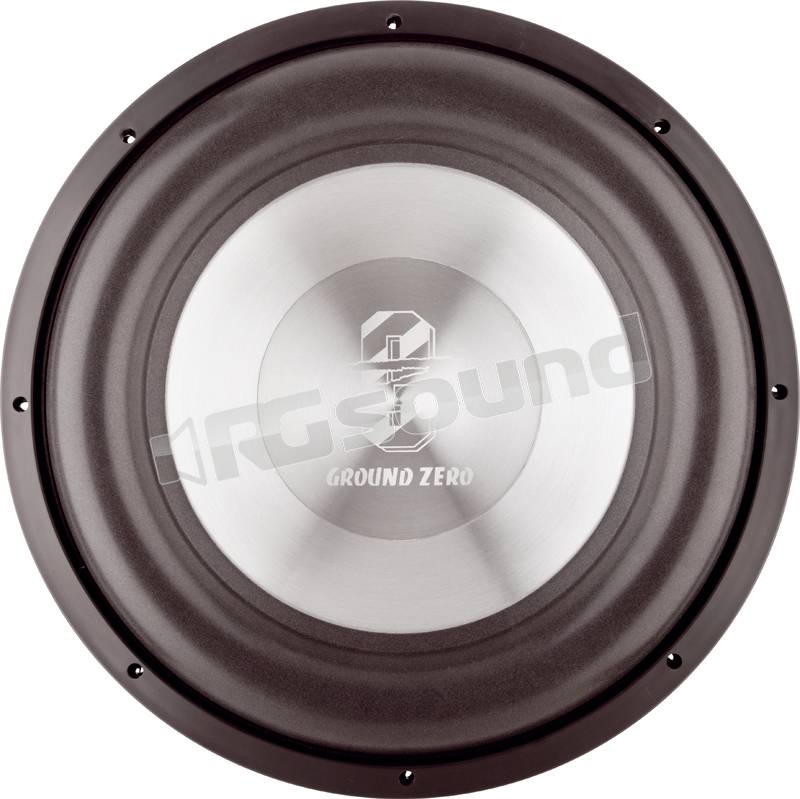

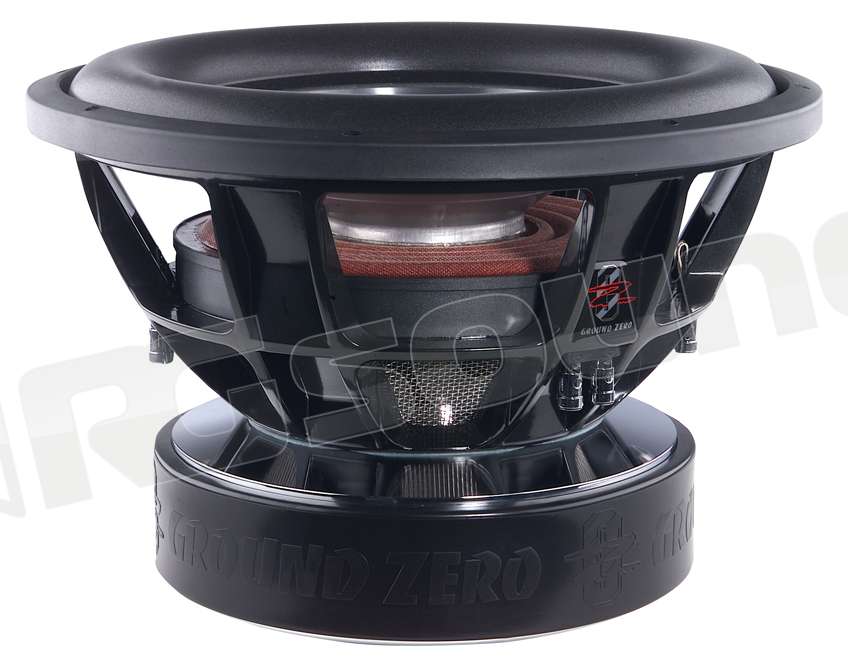

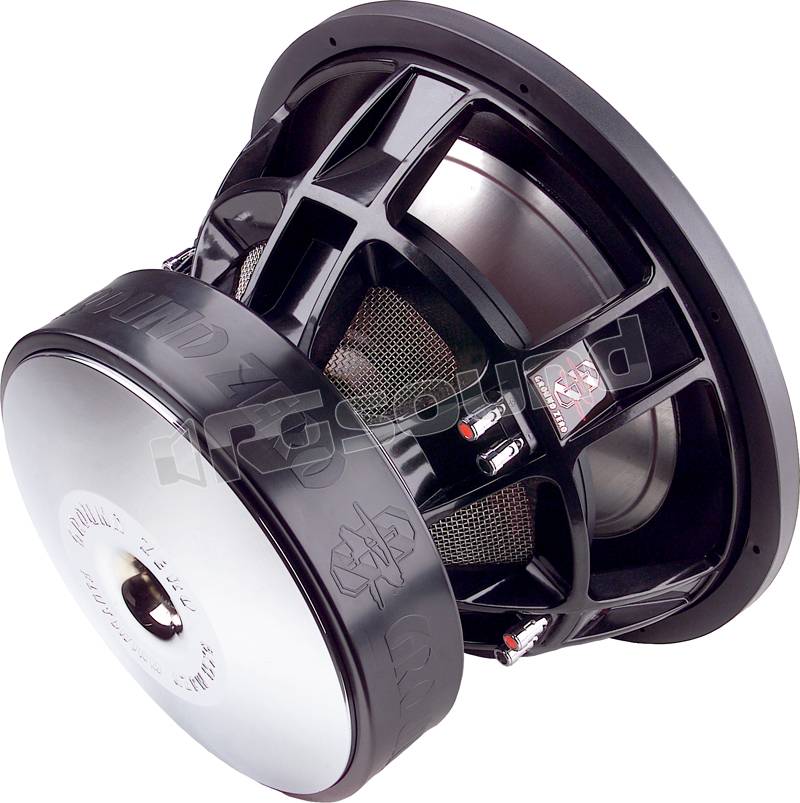

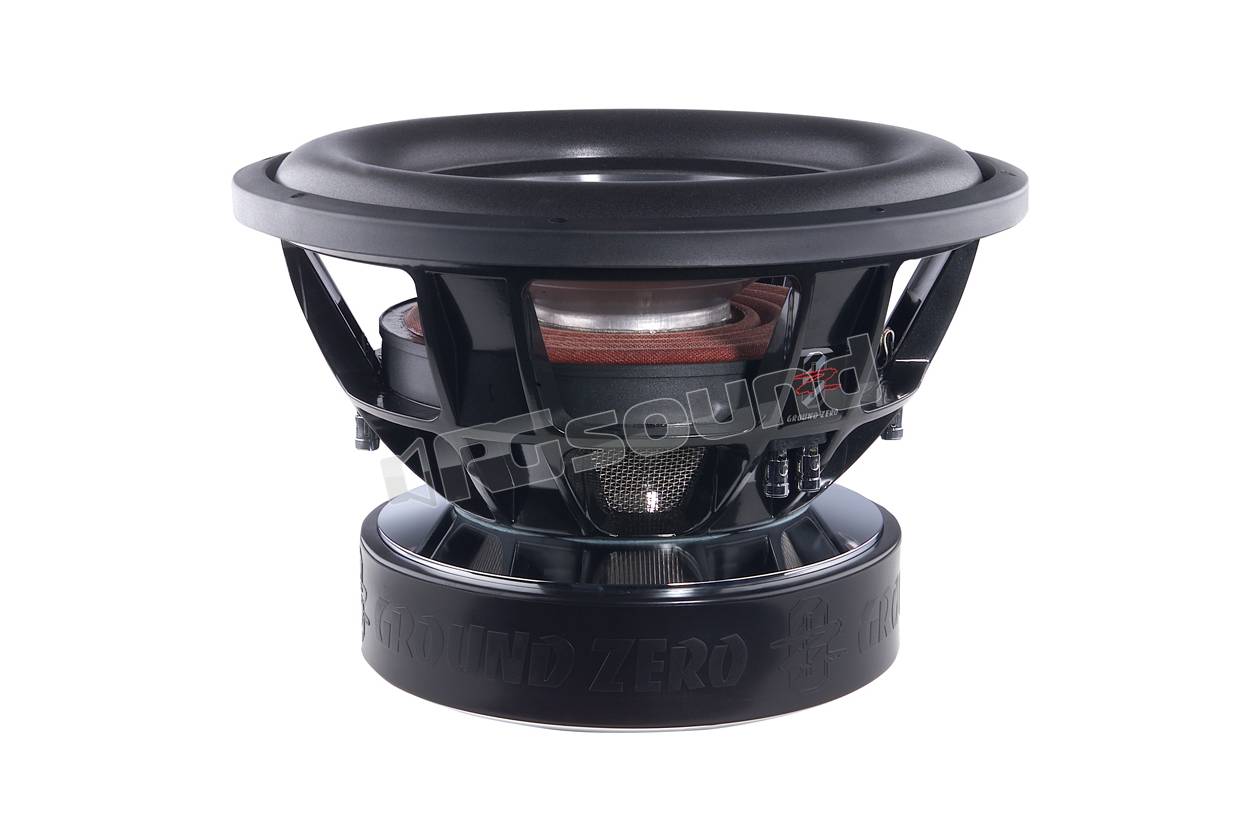

Woofer GZPW 15XQ
Diameter 38 cm / 15"
Mounting diameter 360 mm / 14.3"
Mounting depth 258 mm / 10.16"
Voice coil 100 mm Flat wire
Cone Aluminium
Power Handling 5000 WRMS
Impedance 4 x 1 Ohm
SPL 91,5 dB
Xmax 50 mm / 2"
Fs 32 Hz
Qts 0.27
Vas 49 L / 1.73 cu.ft.
Sound Quality* ☺☺☺☺☺
SPL Competition* ☺☺☺☺
Low bass performance 20 - 50 Hz* ☺☺☺☺☺☺
Mid bass performance 50 - 80 Hz* ☺☺☺☺
Box recommendation vented 80 Liter / 2.82 cu.ft. - Tube 1 x Ø 16 cm - L = 24 cm
