- The famous Plutonium SPL subwoofers combine excellent sound quality and outstanding max-level
- Custom-made quad spiders and the VOXR surround allow extremely linear mechanical excursion
- High SPL and precise bass performance due to the stiff paper cone with glassfiber & kevlar
- “Made in Japan” high-power voice coils on black-alu former can handle up to 10000 Watt

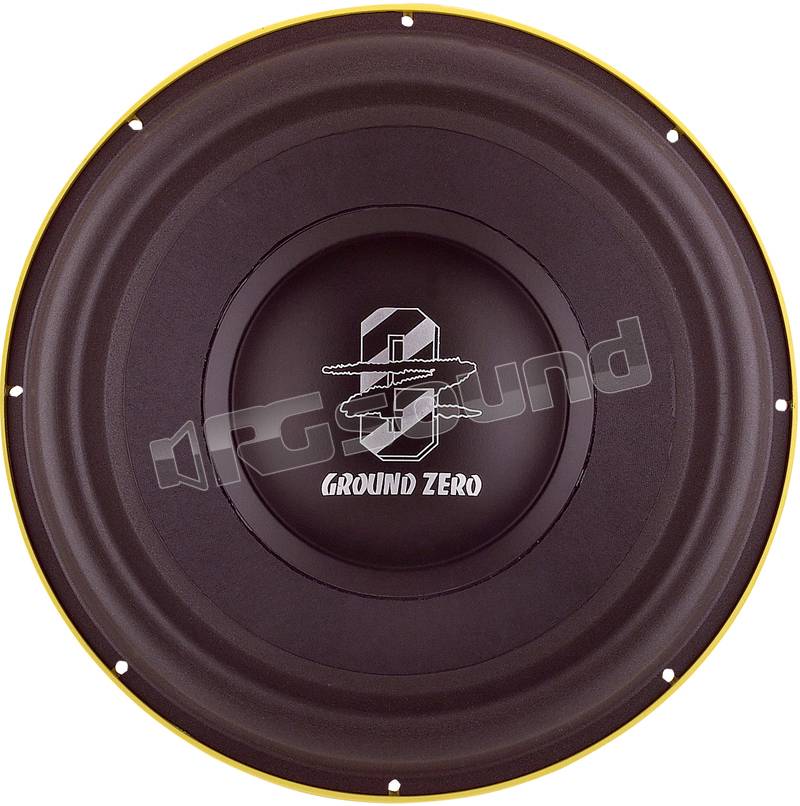

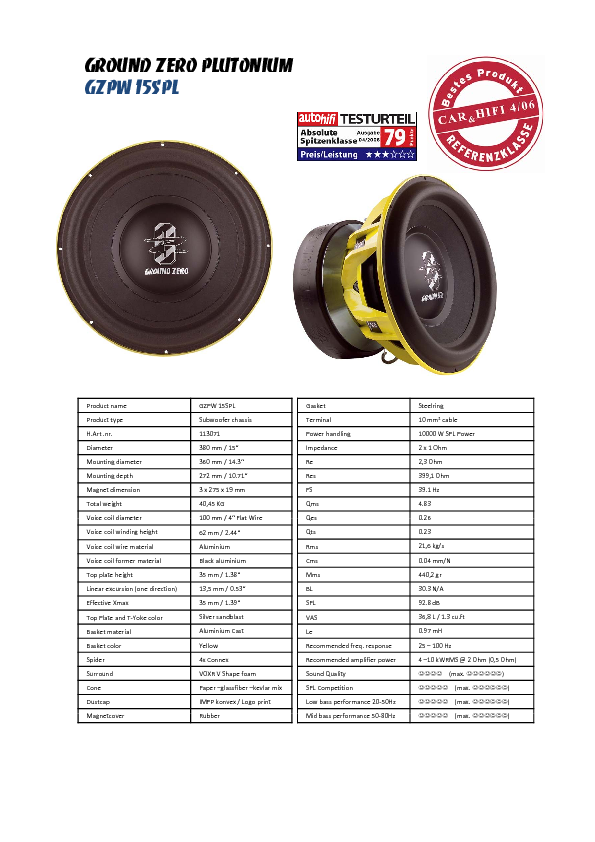

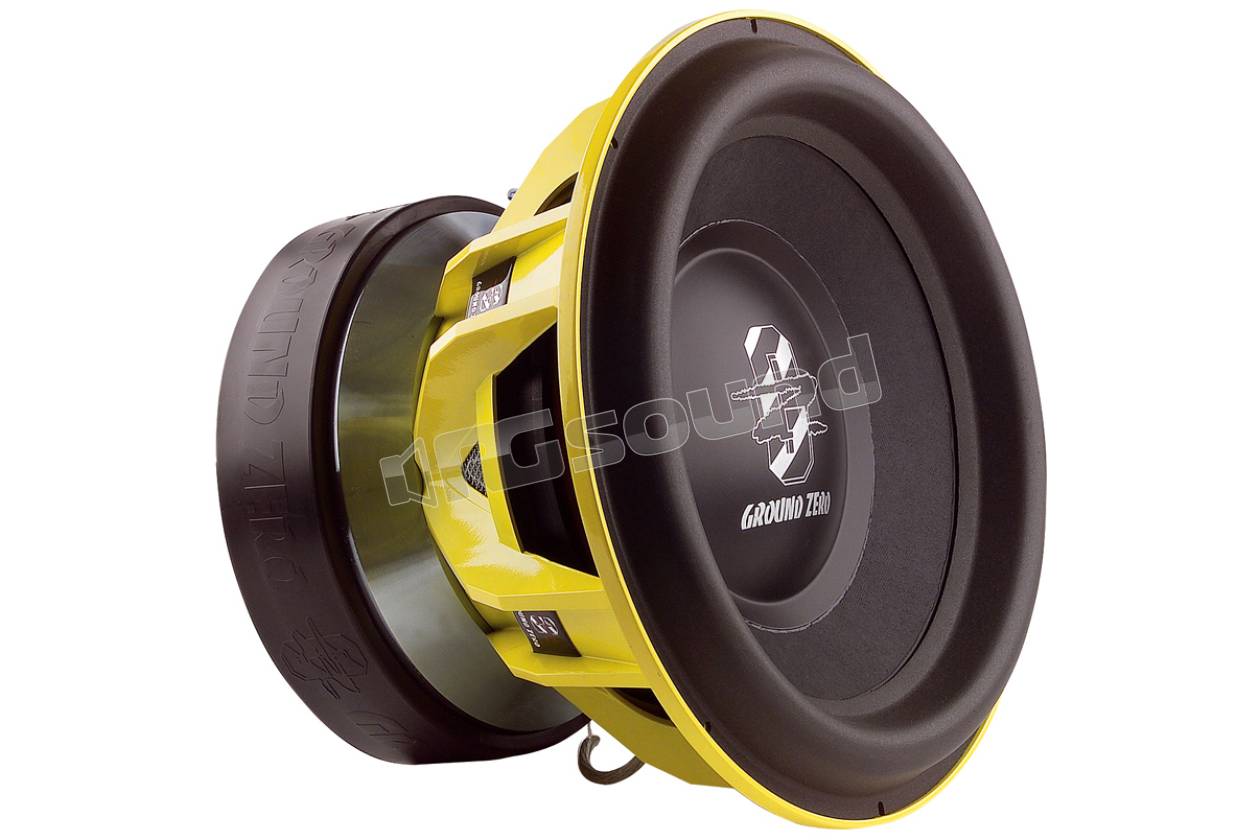

Woofer GZPW 15SPL
Diameter 38 cm / 15"
Mounting diameter 360 mm / 14.3"
Mounting depth 272 mm / 10.71"
Voice coil 100 mm Flachdraht / 4" Flat wire
Cone Paper-glassiber-kevlar
Power Handling 10000 W SPL Power
Impedance 2 x 1 Ohm
SPL 92,8 dB
Xmax 35 mm / 1.39"
Fs 39.1 Hz
Qts 0.23
Vas 36,8 L / 1.3 cu.ft.
Sound Quality* ☺☺☺☺
SPL Competition* ☺☺☺☺☺
Low bass performance 20 - 50 Hz* ☺☺☺☺☺
Mid bass performance 50 - 80 Hz* ☺☺☺☺☺
Box recommendation vented 120 Liter / 4.24 cu.ft. - Tube 1 x Ø 16 cm - L= 16 cm
